Shanghai (Japan)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| dump date | 07/05/2007 |
| emulator | MAME 0.35rc1 |
| dev | Nicola Salmoria |
| name | shanghaij on ProgettoEMMA shanghaij on Arcade Database |
| description | Shanghai (Japan) |
| year | 1988 |
| manufacturer | SunSoft |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 68000 | ic41 | 16/32-bit Microprocessor - main | |
| 1x | V30 | ic8 | 16-bit Microprocessor - main | |
| 1x | YM2203 | ic6 | FM Operator Type-N (OPN) - sound | |
| 1x | Y3014B | ic24 | D/A Converter (DAC) - sound | |
| 1x | LM324N | ic30 | Quad Operational Amplifier - sound | |
| 1x | oscillator | 16.000 | ||
| 1x | oscillator | 18.000 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 6x | M27512 | ic21,22,27,28,36,37 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 16x | HY53C464LS | ic46,49,51,52,55,58,61,64,67,70,73,75,78,79,82,84,87 |
| 2x | TC5565APL | ic9,10 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TIBPAL16L8-25CN | ic57 | dumped |
| 1x | unknown DIP16 mil300 | ic26 | not dumped |
Others
1x JAMMA edge connector
2x 8x2 switches DIP
Notes
Not Working
Shanghai (Italian bootleg) (1989)
PCB N°893 - GD-8062
This is an Italian bootleg of the original Japanese game. The main difference is a 68000 CPU (not present on the original, at least reading the mame source)
Update 20090415 I just got another PCB for the same game and I could dump the PAL
Files
-
PCB component side
-

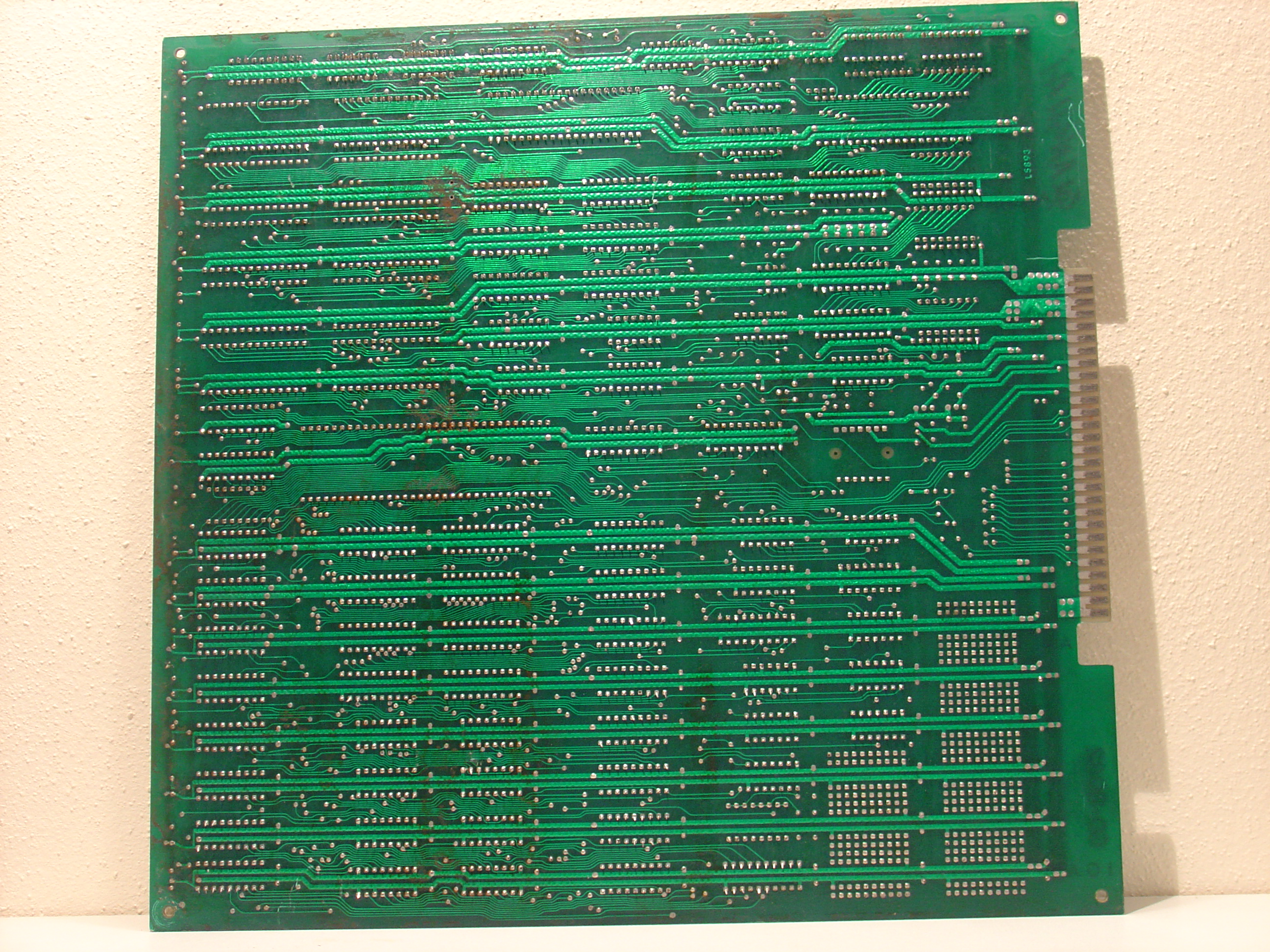

PCB solder side
-

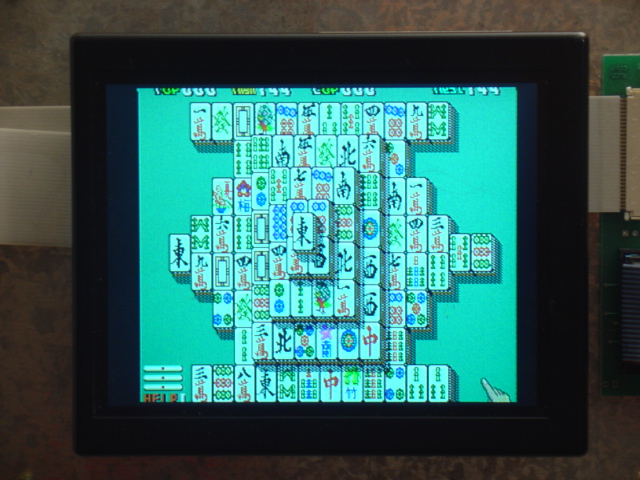

In game 1
-

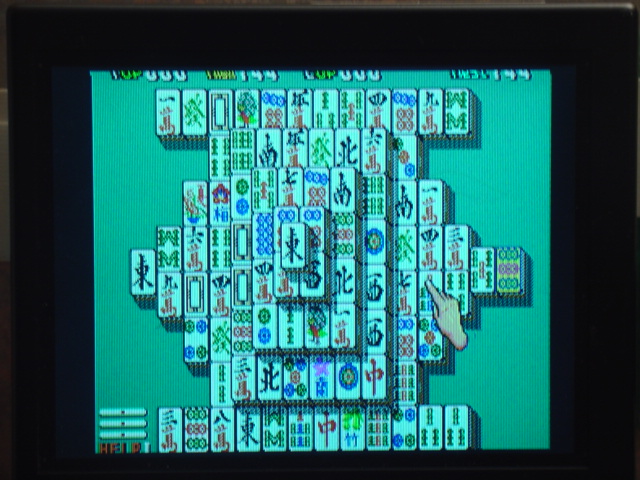

In game 2
-

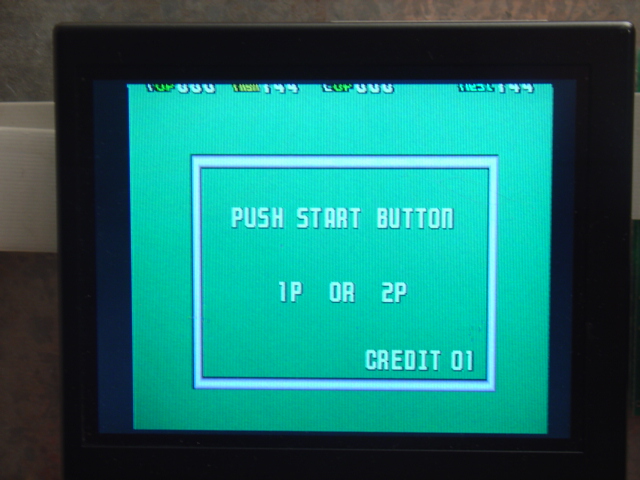

Start
-

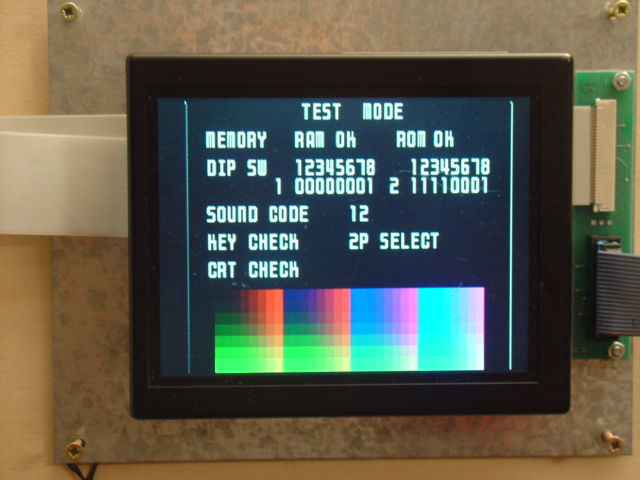

Test
-

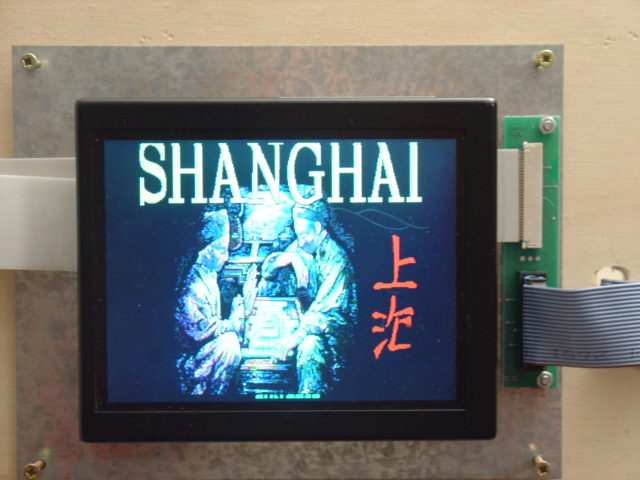

Title
-
