Savanna (bootleg of Jungler)
From Citylan
Jump to navigationJump to search
| dumper | f205v, robotype |
| date | 24/07/2011 |
| emulator | MAME 0.143u2 |
| dev | f205v, robotype |
| name | savanna on ProgettoEMMA savanna on Arcade Database |
| description | Savanna (bootleg of Jungler) |
| year | 1982 |
| manufacturer | Olympia |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z80 | main PCB | 8-bit Microprocessor - main | |
| 1x | Z80 | sound PCB | 8-bit Microprocessor - sound | |
| 2x | AY-3-8910 | sound PCB | Programmable Sound Generator - sound | |
| 1x | oscillator | sound PCB | ||
| 1x | oscillator | main PCB |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 2732 | sound PCB | dumped |
| 6x | 2732 | main PCB | dumped |
| 2x | N82S123N | main PCB | dumped |
| 2x | N82S129N | main PCB | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
1x 18x2 edge connector
1x trimmer (volume)
2x 8x2 switches DIP
Notes
Files
-
assembled PCB component side
-

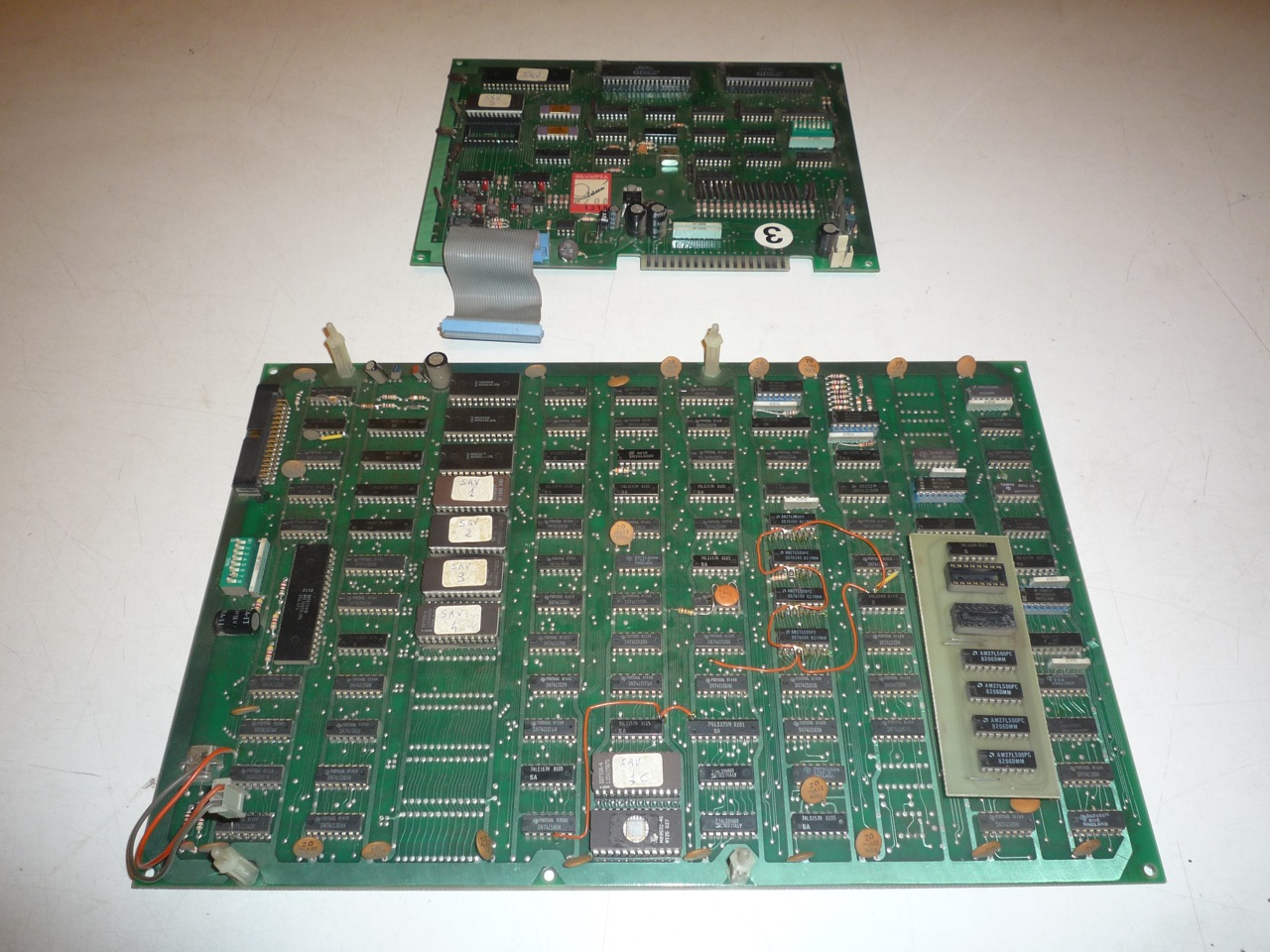

main PCB component side
