Samba De Amigo (Rev A)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 09/01/2019 |
| emulator | MAME 0.206 |
| dev | MetalliC |
| name | sambaa on ProgettoEMMA sambaa on Arcade Database |
| description | Samba De Amigo (Rev A) |
| year | 1999.12 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27322 | EPR-22966A.ic22 | dumped |
| 16x | M27W064 | 22950.ic1 - 22965.ic16s | not dumped |
| 1x | X76F100 | ic37 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 840-0020C
Protection IC: SEGA 315-5881 (317-0270-COM)
Key: 0x280a8b5d
--
will boot but requires special controller to play it
epr-22966b.ic22 was also found in cartridge with Rev.A case label
update 20190109: finally we have a proper dump for it.
Files
-
Cart 1
-
Cart 2
-
PCB component side
-

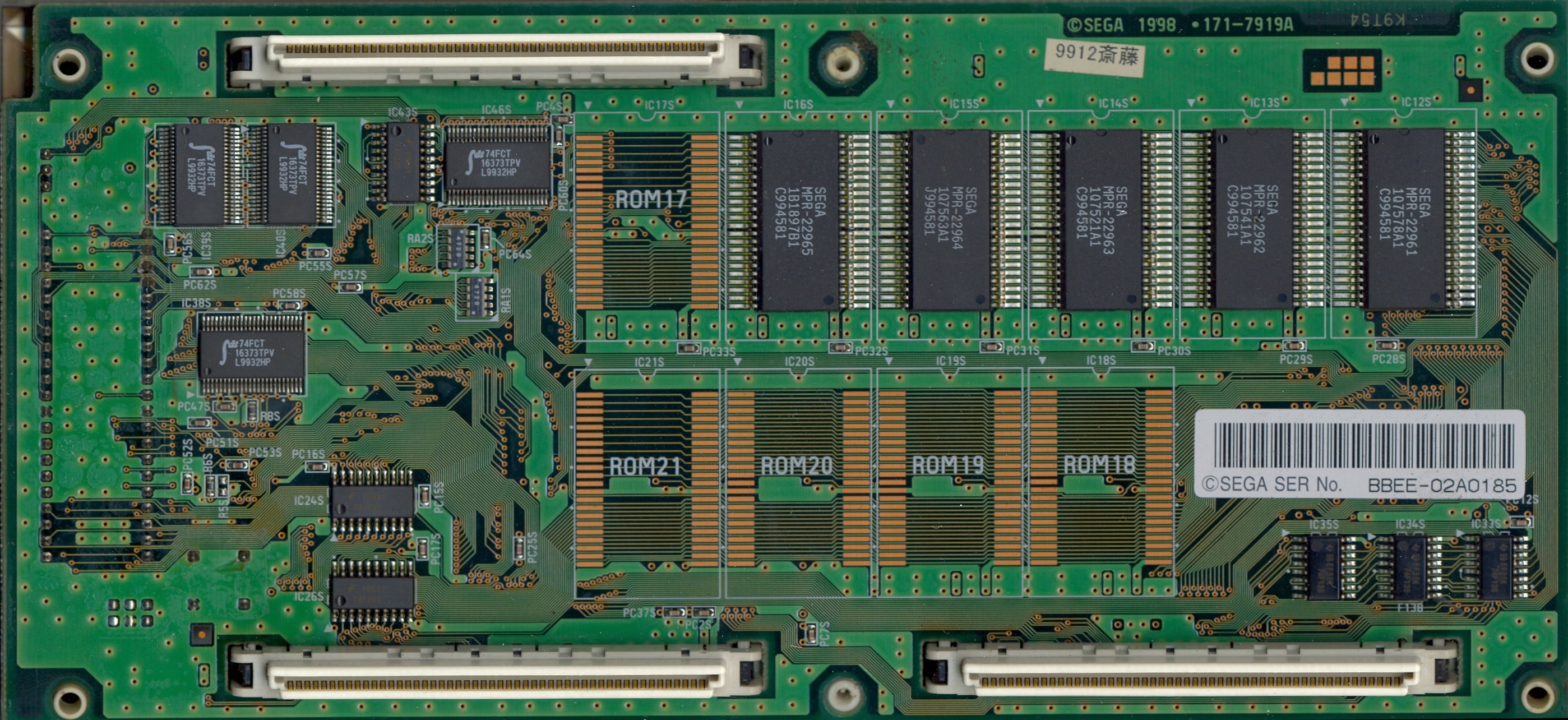

PCB solder side
