Royal Poker V 1.85
From Citylan
Jump to navigationJump to search
| dumper | Any |
| date | 02/01/2016 |
| emulator | MAME 0.170 |
| dev | David Haywood |
| name | tabpkr on ProgettoEMMA tabpkr on Arcade Database |
| description | Royal Poker V 1.85 |
| year | 1996 |
| manufacturer | TAB Austria |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 68000-16 | 16/32-bit Microprocessor - main | ||
| 1x | oscillator | 24.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27040 | ic1 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | 6264 | CPU RAM |
| 4x | KM44C258CZ-10 | video RAM |
PLDs
| QTY | Type | position | status |
|---|
Others
Audio DAC AD557JN
insg176p-66 ramdac?
hd63487cp Memory interface and video attribute controller
hd63484cp8 advanced CRT controller
Notes
Files
-

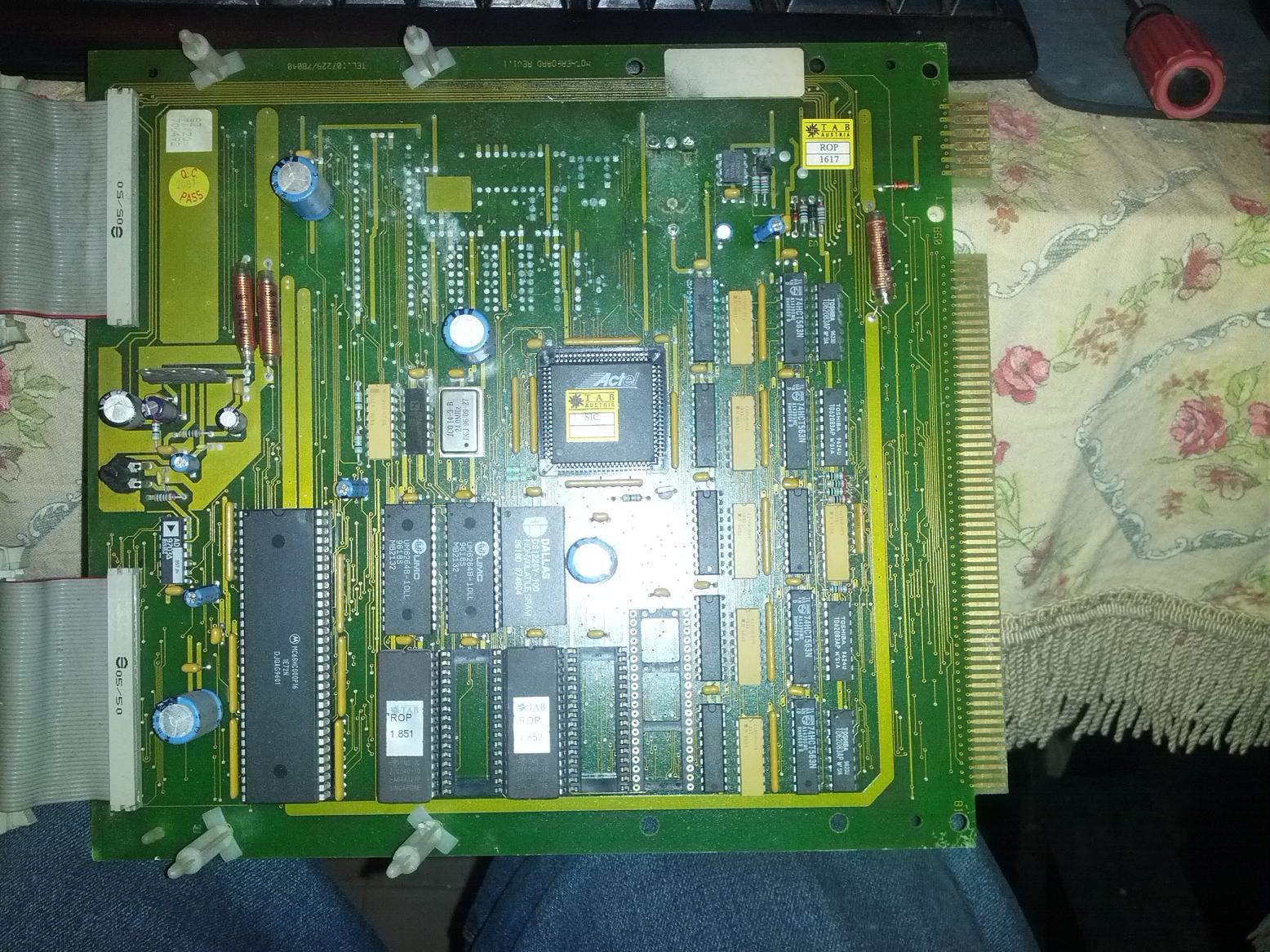

main PCB component side
-

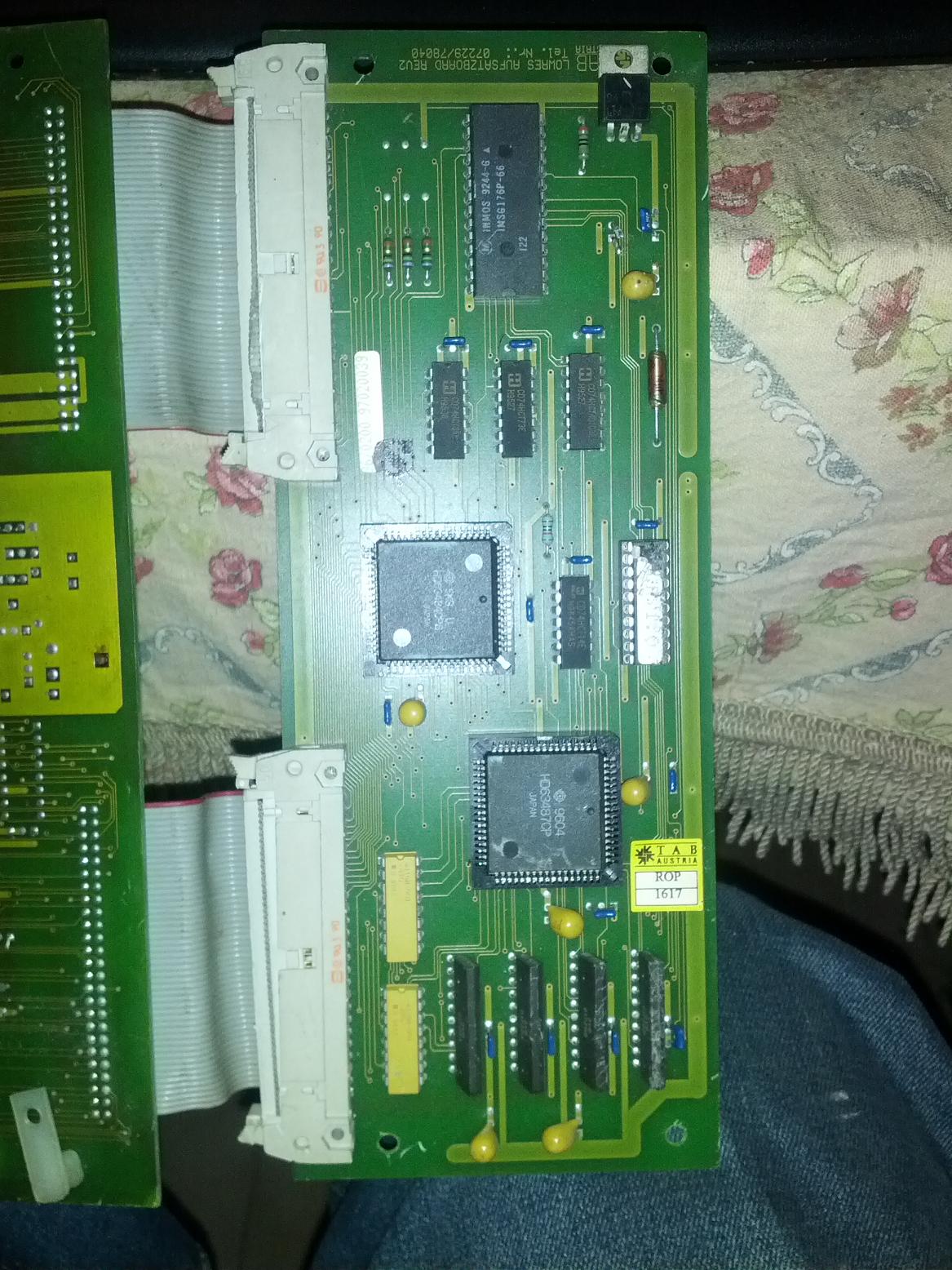

sub PCB component side
-
Read me
