Roadrace
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 23/06/2018 |
| emulator | |
| dev |
| name | 1609 |
| description | Roadrace |
| year | 197x |
| manufacturer | Polycon |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | AY-3-8603 | main |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
RAMs
| QTY | Type | position |
|---|---|---|
| 0x |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
Notes
PCB is marked: "MEGA 52084A-2" on component side
PCB is marked: "MEGA 52084B-1" on solder side
Cart N°: CT603
Files
-
cart front
-
cart back
-

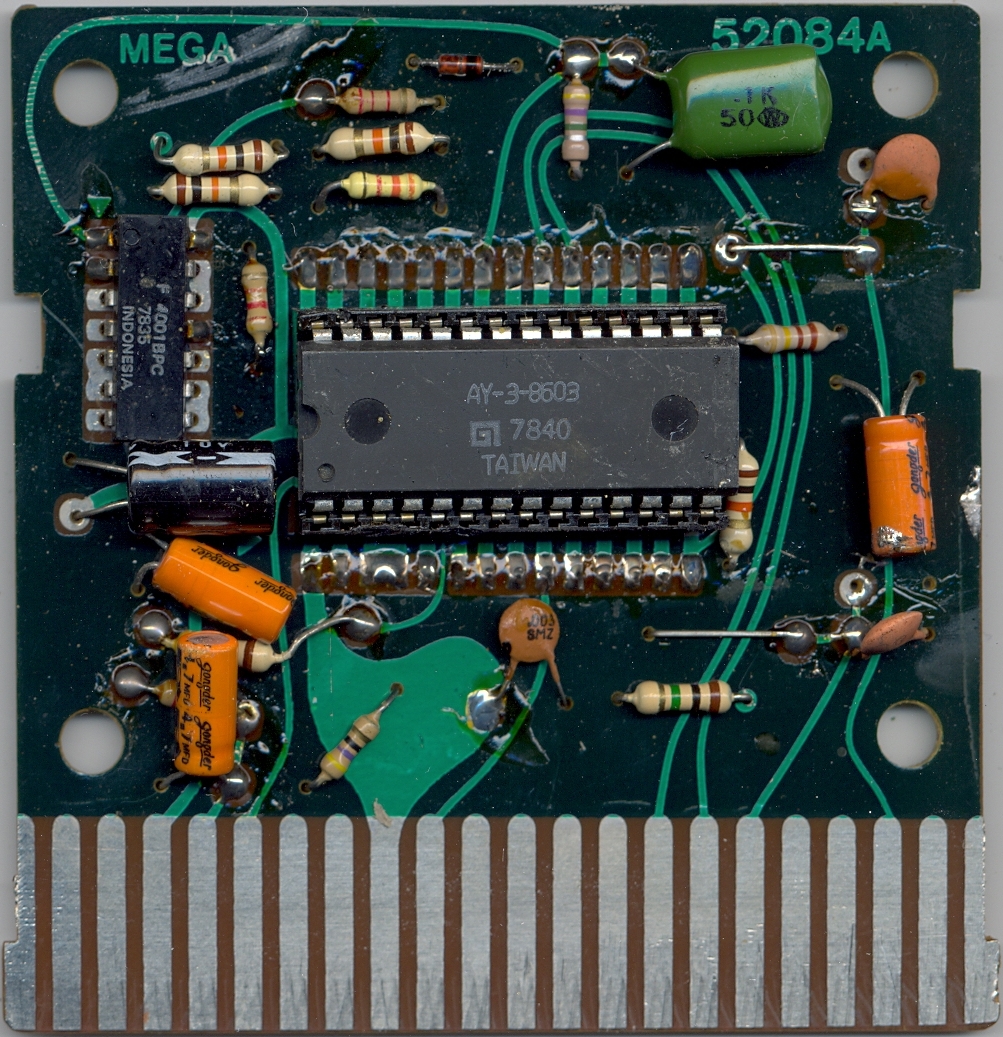

PCB component side
-

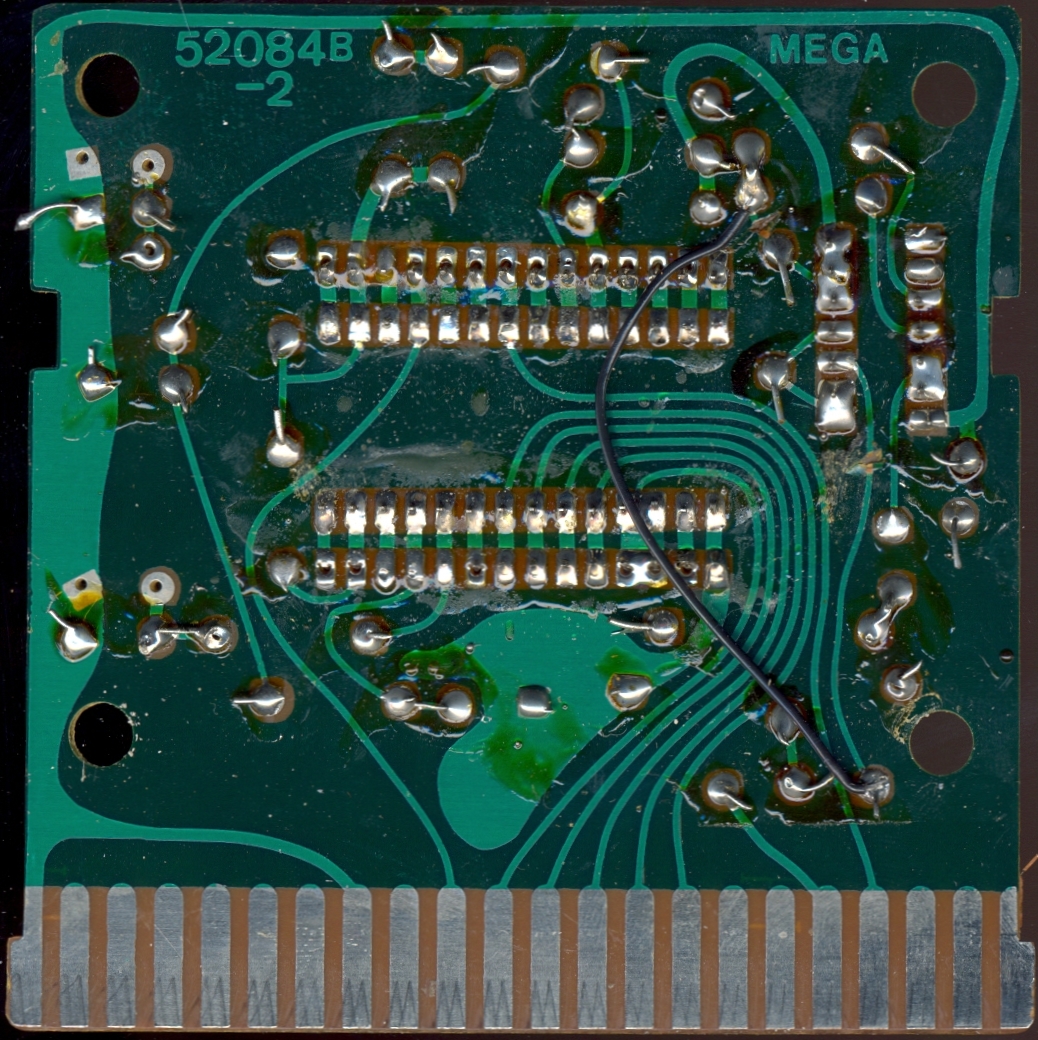

PCB solder side
-
box front + back
-
box top + bottom + sides
-
manuals Italian + English
1609
