Rastan Saga (bootleg, Japan Rev 1, earlier code base)
From Citylan
Jump to navigationJump to search
dumper | Tirino73 |
date | 16/03/2011 |
emulator | MAME 0.240 |
dev | Fabrice Arzeno |
name | rastsagaabl on Arcade Database |
description | Rastan Saga (bootleg, Japan Rev 1, earlier code base) |
year | 1987 |
manufacturer |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
1x | 68000P8 | MHz | 16/32-bit Microprocessor - main | |
1x | Z80A | MHz | 8-bit Microprocessor - sound | |
1x | MSM5205 | MHz | ADPCM Speech Syntesis IC - sound | |
1x | YM2151 | MHz | FM Operator Type-M (OPM) - sound | |
1x | YM3012 | MHz | D/A Converter (DAC) - sound | |
1x | oscillator | 16.000MHz | ||
1x | oscillator | 13.000MHz |
ROMs
QTY | Type | position | status |
---|---|---|---|
12x | 27256 | 15,16,17,18,19,20 21,22,24,25,26,28 |
dumped |
8x | 27512 | 3,4,5,6,7,8,29,30 | dumped |
RAMs
QTY | Type | position |
---|
PLDs
QTY | Type | position | status |
---|---|---|---|
1x | EP1210PC | read protected |
Others
Notes
This romset comes from a working bootleg pcb.Game differences are:none.
EPROMs 29 and 30 are double size with identical halves.
Files
-

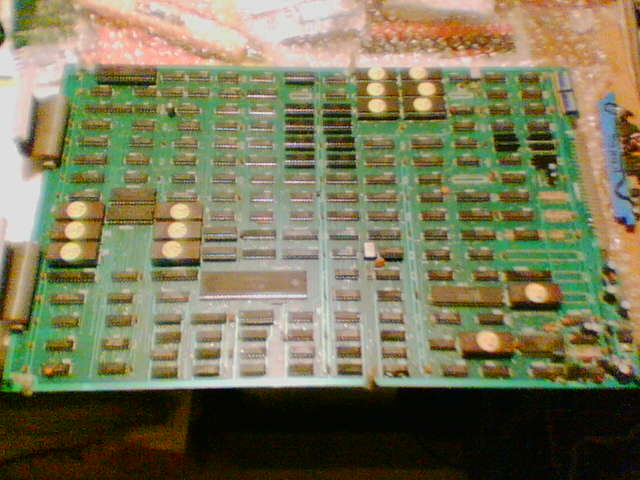

main PCB component side
-

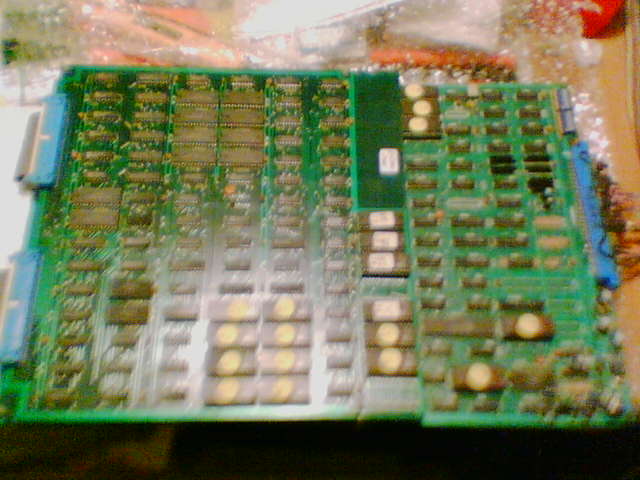

ROMs PCB component side
-

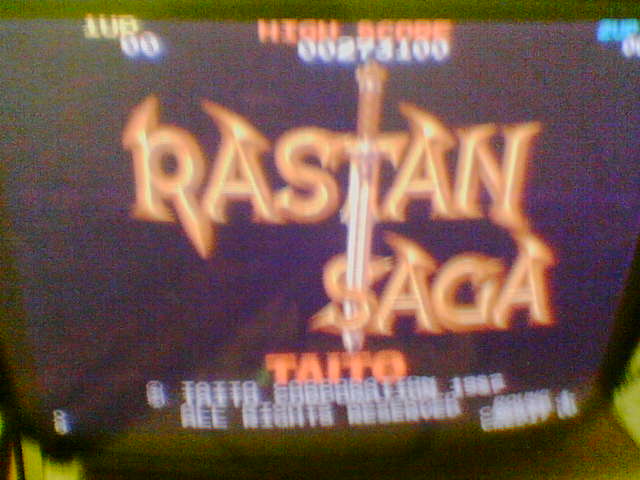

Title
-

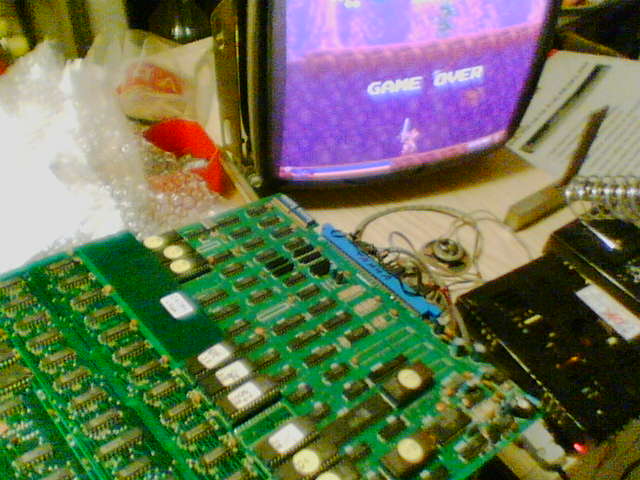

In game
-
