Puzzle Game Rong Rong (Europe)
From Citylan
Jump to navigationJump to search
| dumper | Corrado Tomaselli |
| date | 26/04/2005 |
| emulator | MAME 0.96 |
| dev | Pierpaolo Prazzoli |
| name | rongrong on ProgettoEMMA rongrong on Arcade Database |
| description | Puzzle Game Rong Rong (Europe) |
| year | 1994.05.31 |
| manufacturer | Nakanihon (Activision license) |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Nakaniho custom NL-002-3D1 | 6h | main | |
| 1x | TMPZ84C015BF-8 | 3c | 8-bit Microprocessor - sound | |
| 1x | M6295 | 3f | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | YM2413 | 4h | FM Operator Type-LL - sound | |
| 2x | TA75358P | - | 2h,3h | Dual Operational Amplifier - sound |
| 1x | TDA1510 | - | 2j | Audio Amplifier - sound |
| 1x | oscillator | 28.6363 | 9e | |
| 1x | oscillator | M16.0CL | x2 | |
| 1x | Dynax custom 1108F405 | 10h | main | |
| 1x | Dynax custom 4L02F2637 | 10p | main | |
| 1x | Dynax custom 1427F0071 | 10d | main |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C2001 | 8001w.2f | dumped |
| 1x | M27C4001 | 8002e.3e | dumped |
| 2x | TC534000AP | 8003.8c, 8004.9c | dumped |
| 2x | M27C4001 | 8005e.10c, 8007e.12c | dumped |
| 1x | M27C4001 | 8006e.11c | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | TC62257BSPL-10 | 2e, 9f |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | GAL16V8B | 1e | dumped |
| 1x | GAL16V8B | 9d | not dumped |
Others
1x 28x2 JAMMA edge connector
2x trimmer (volume)(VR1,VR2)
2x 8 DIP switches banks (SW1,SW2)
Notes
PCB is marked: "NAKANIHON", "N8010178L1" and "NAGOYA JAPAN" on component side
PCB is labelled: "94/5/31 -NAKANIHON-" and "ORIGINAL SEAL - 6.2.14 - NAKANIHON (R) - No.0016367" on component side
update 20231130: better description
Files
-

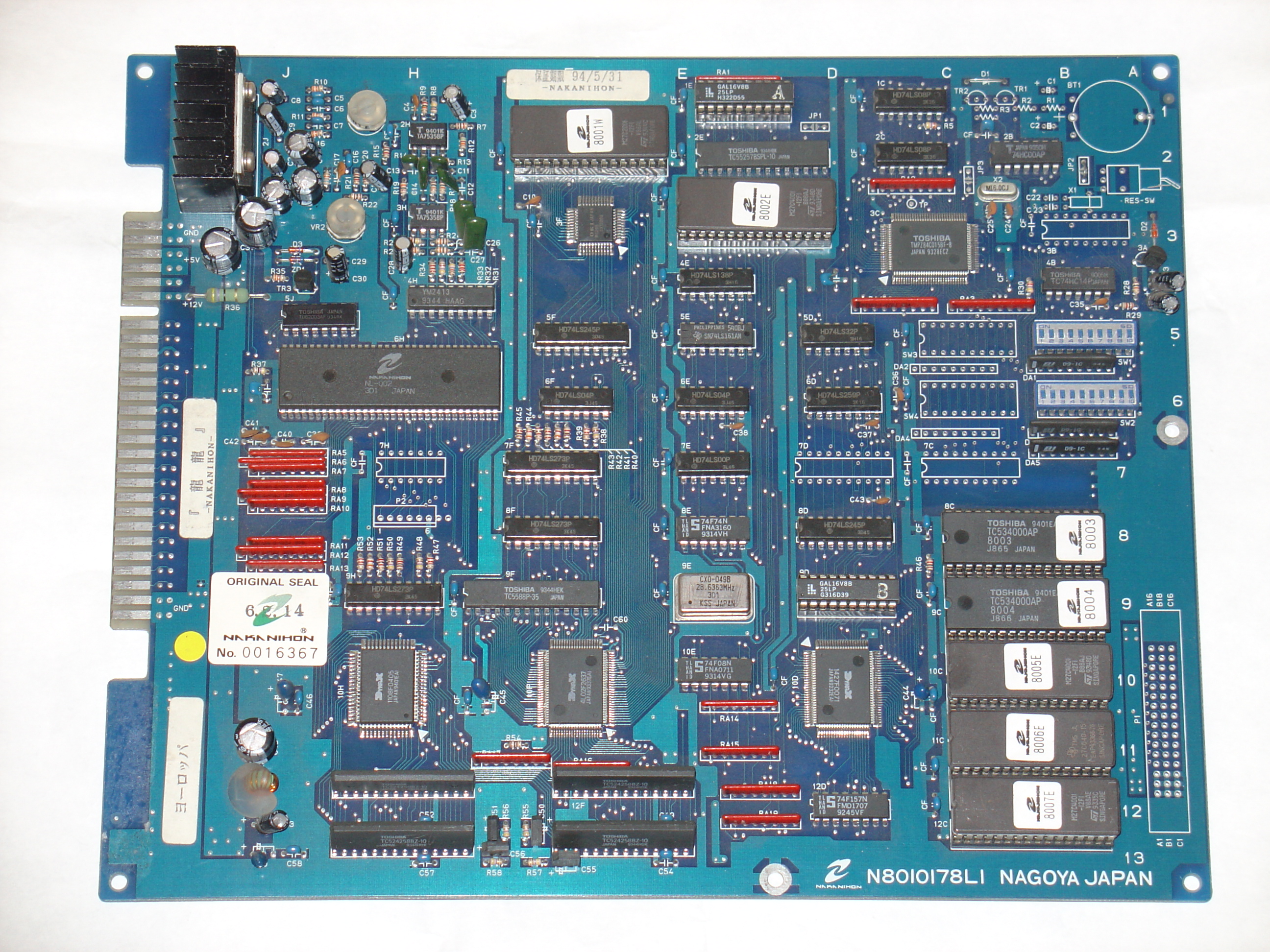

PCB component side
-

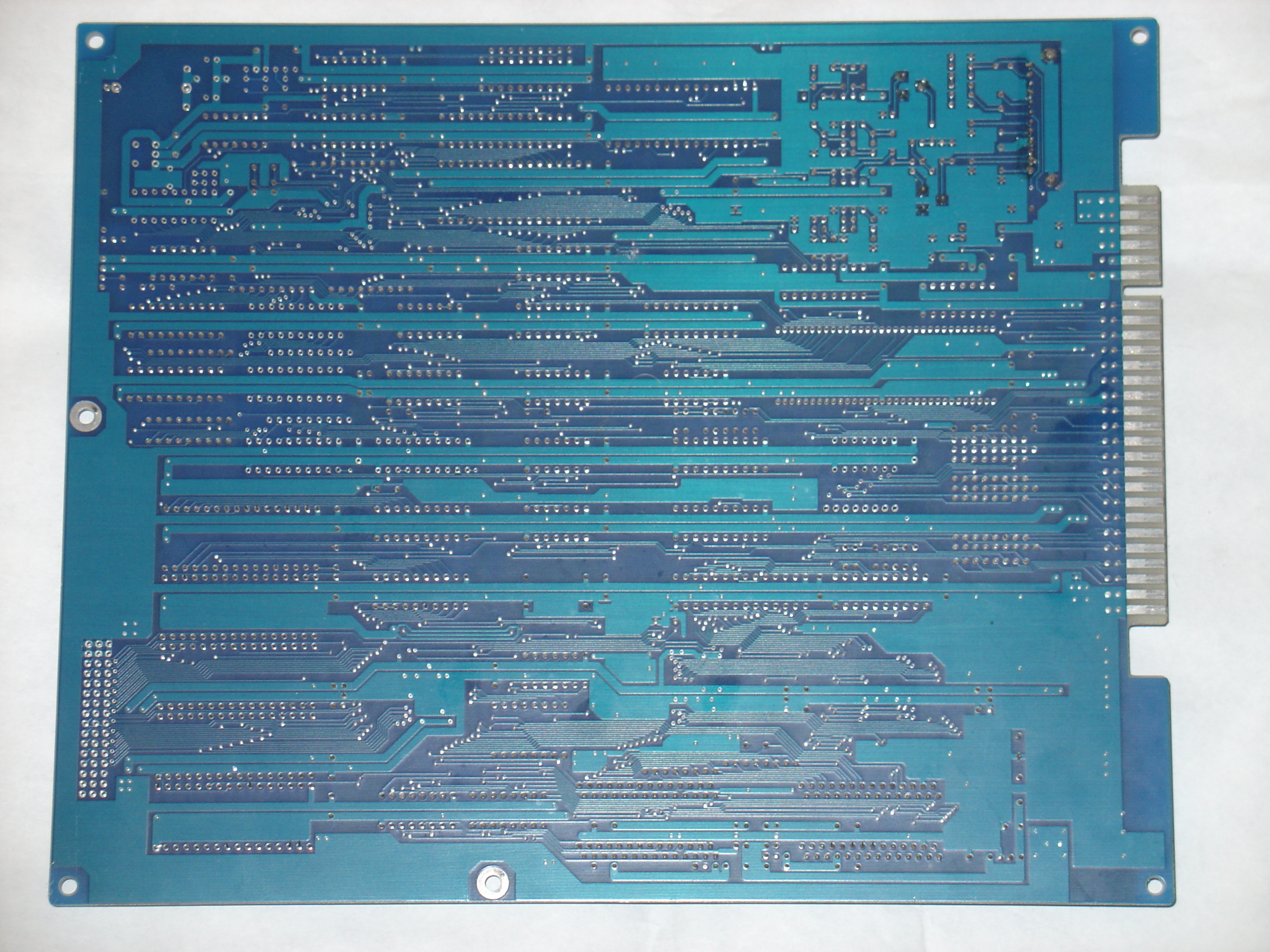

PCB solder side
