Puyo Puyo Fever (prototype ver 0.01)
From Citylan
Jump to navigationJump to search
| dumper | "someone" |
| date | 28/01/2014 |
| emulator | MAME 0.153 |
| dev | R. Belmont |
| name | puyofevp on ProgettoEMMA puyofevp on Arcade Database |
| description | Puyo Puyo Fever (prototype ver 0.01) |
| year | 2003.11.11 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 12C508A | ic41 | 8bit CMOS Microcontroller (dumped) | |
| 1x | MB86604A | ic45 | SCSI-II controller | |
| 1x | oscillator | 20.000MHz | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 22x | DA28F640J5 | ic17s-ic38s | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | CY7C199 | ic44 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ACTEL A54SX32A (QFP208) SEGA 315-6257A | ic40 | read protected |
Others
2x connector to main PCB (CN2, CN3 component side)
3x connector to main PCB (CN1, CN2, CN3 solder side)
1x DB-25 SCSI-II connector (component side)
1x pushbutton (SW1)
1x 8 DIP switches bank (SW2)
7x 2 position JUMPERS (JP1-7)
Notes
It's a NAOMI cart.
Cart type: 171-7930B
Cart N°: ?
Key: no key
Files
-

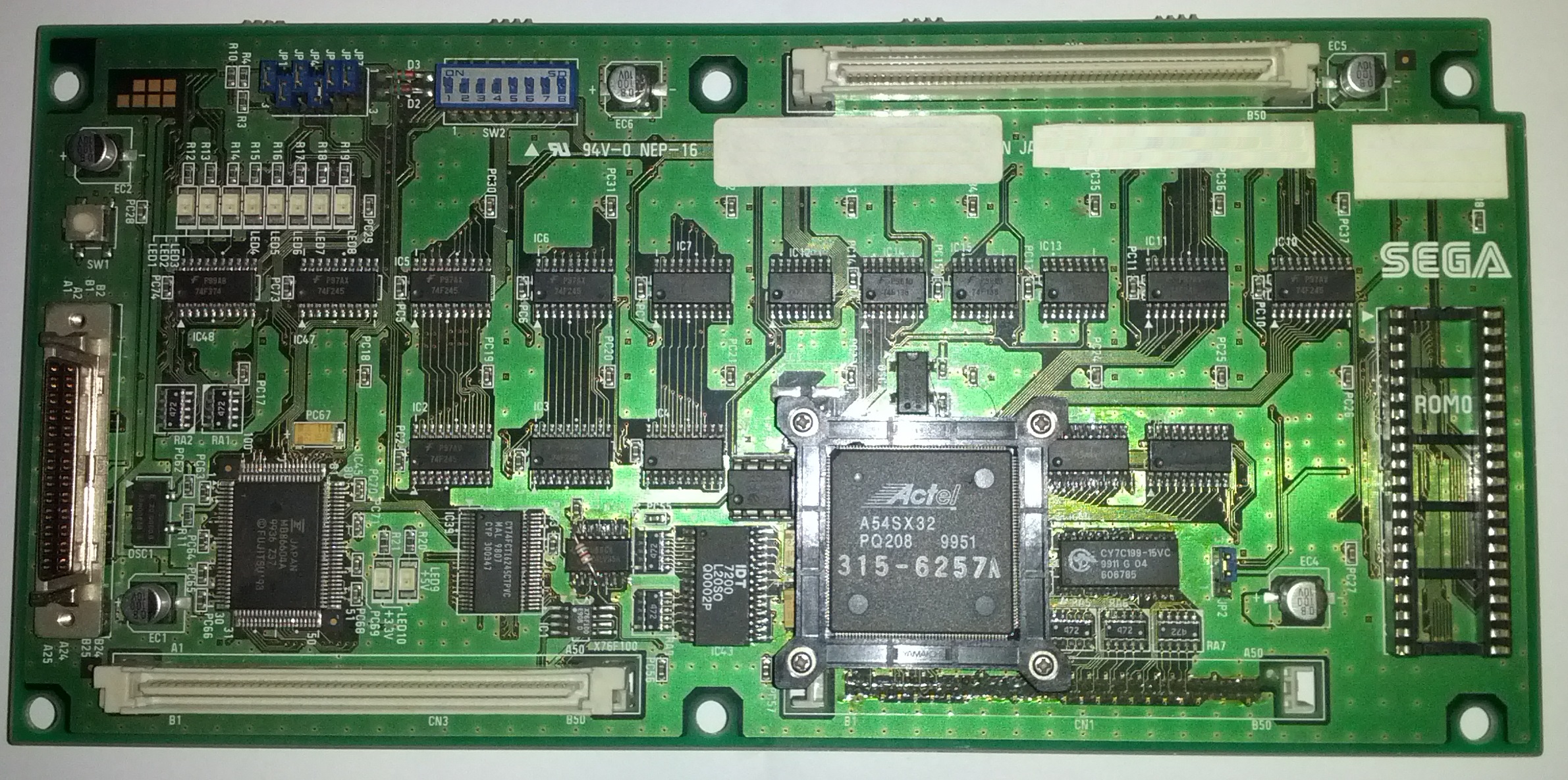

PCB component side
-

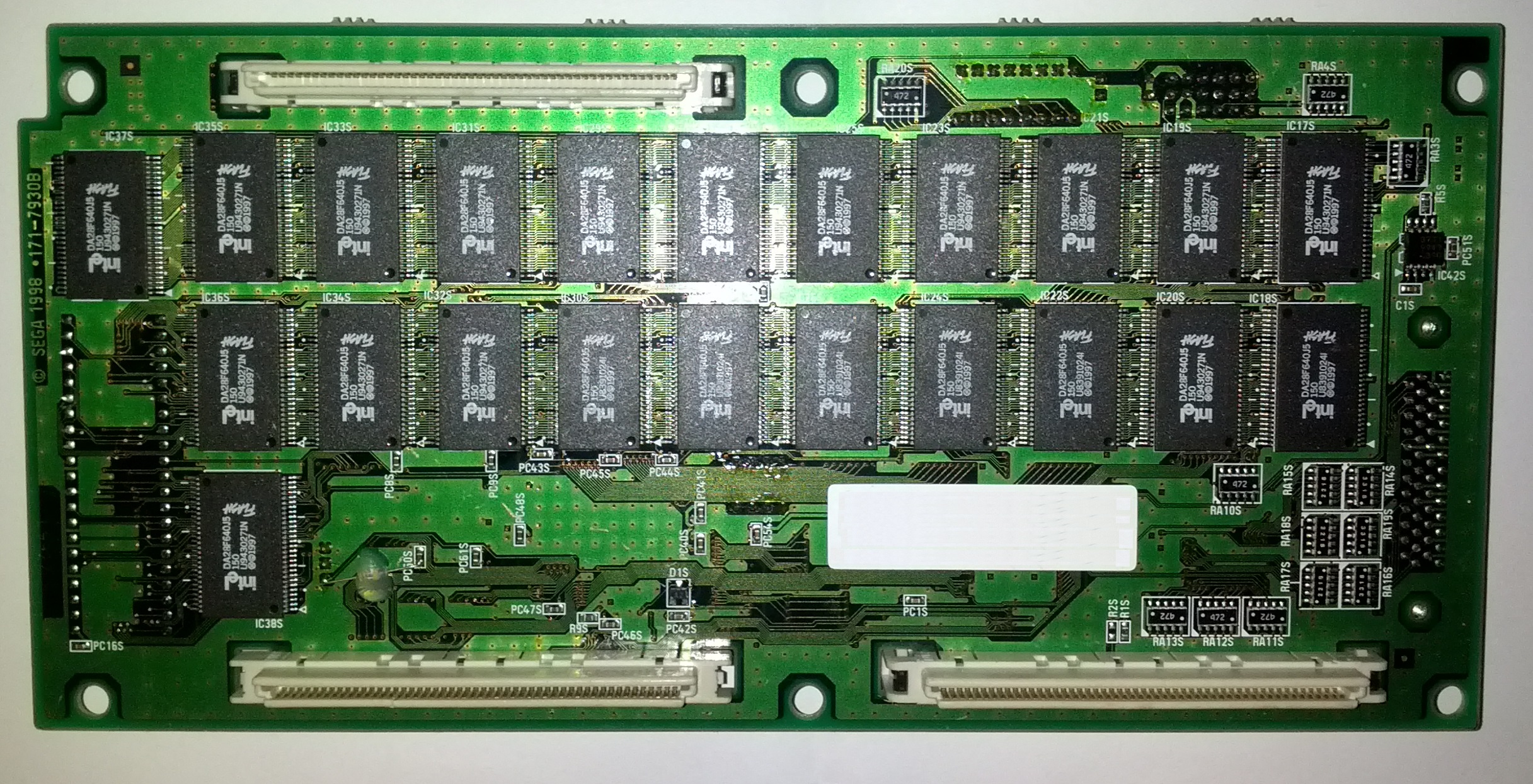

PCB solder side
-

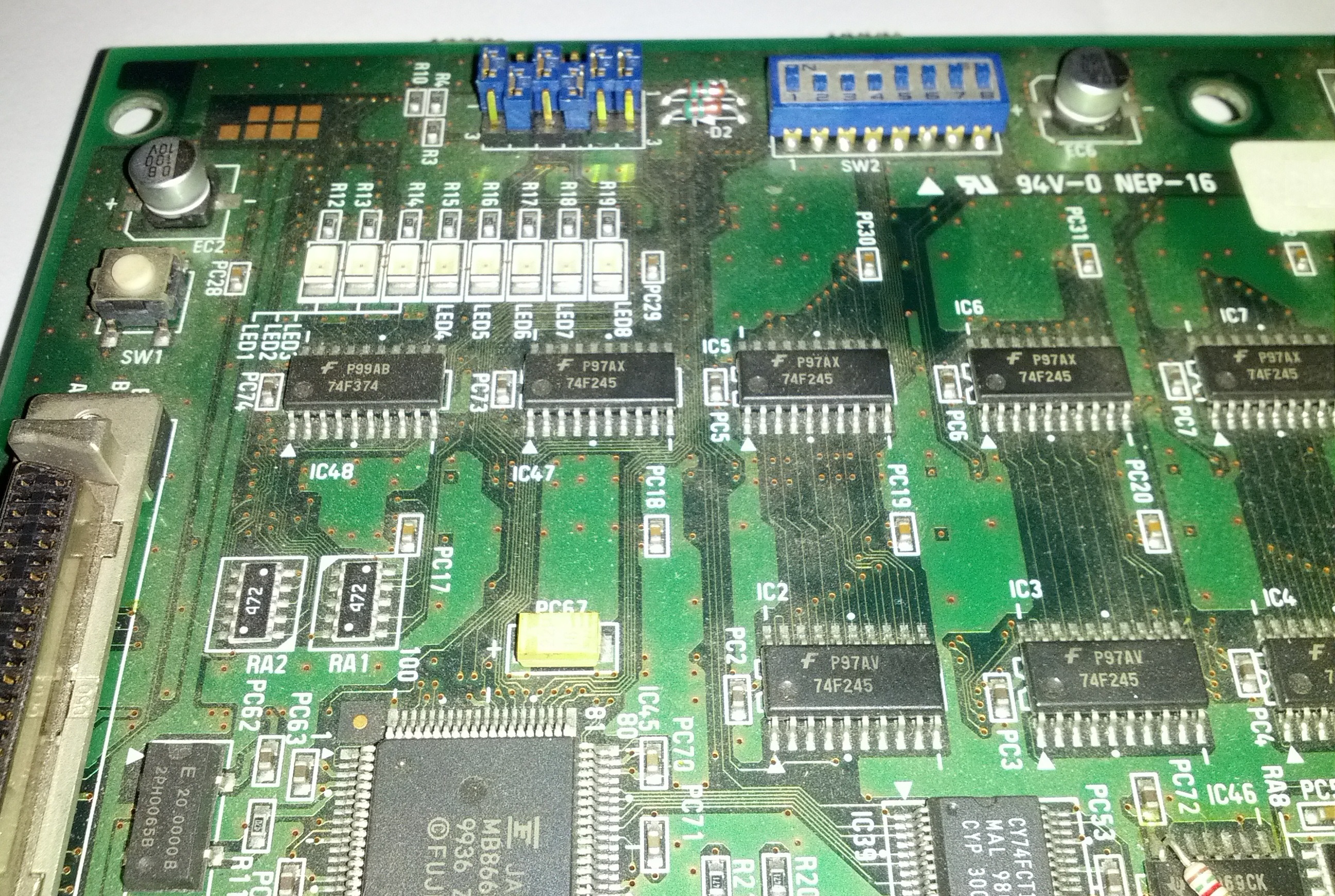

PCB component side detail 1
-

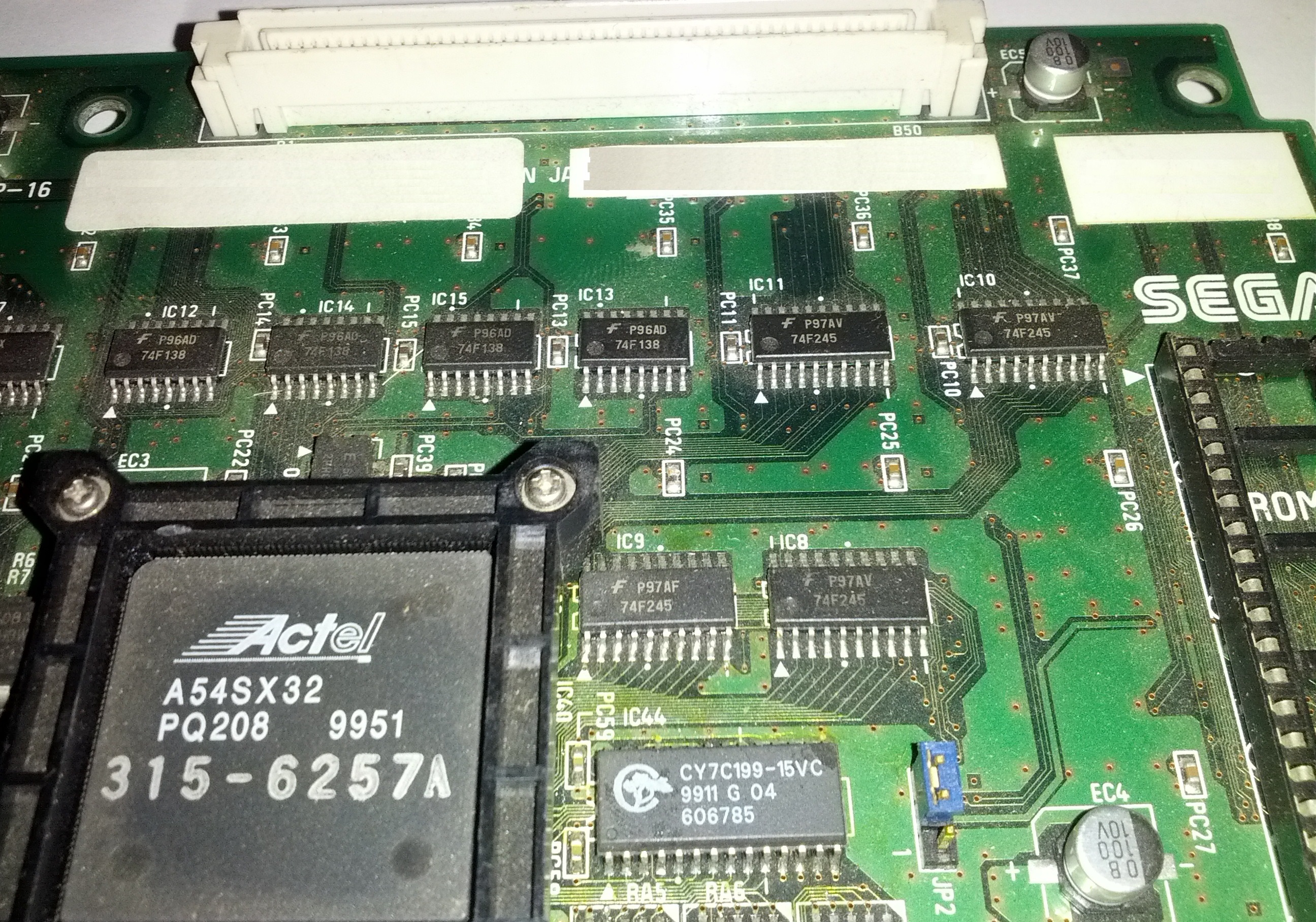

PCB component side detail 2
-

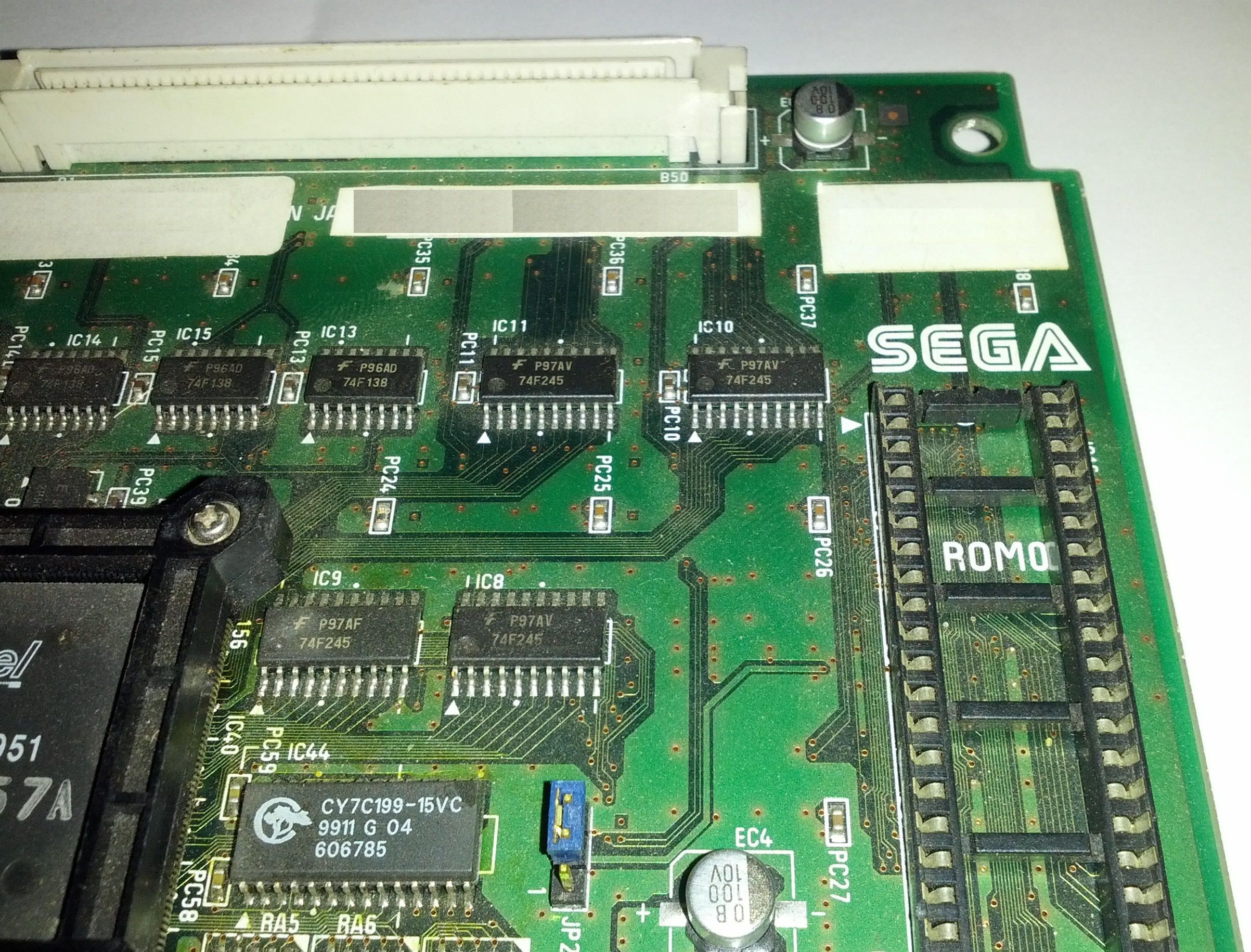

PCB component side detail 3
-

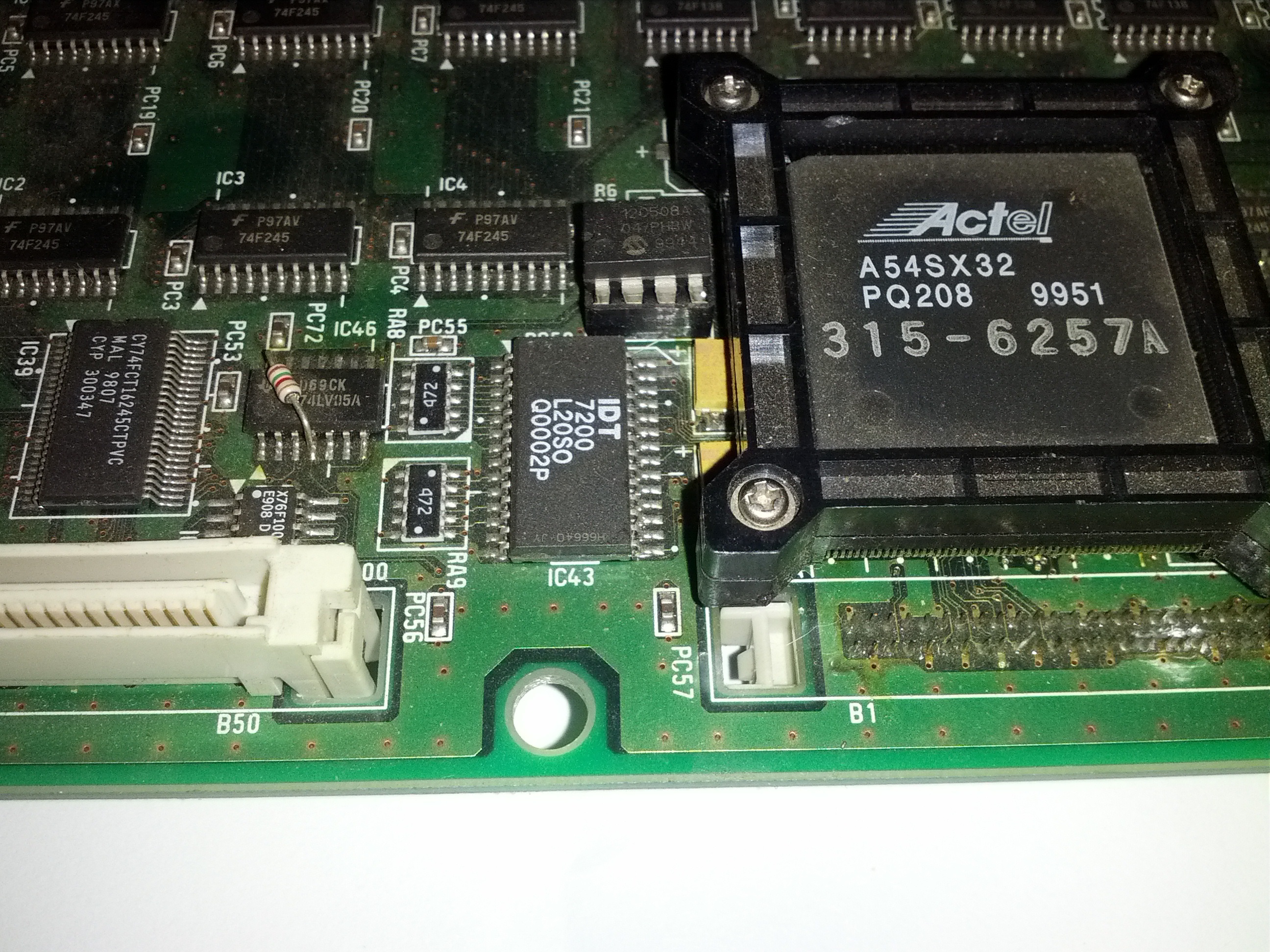

PCB component side detail 4
-

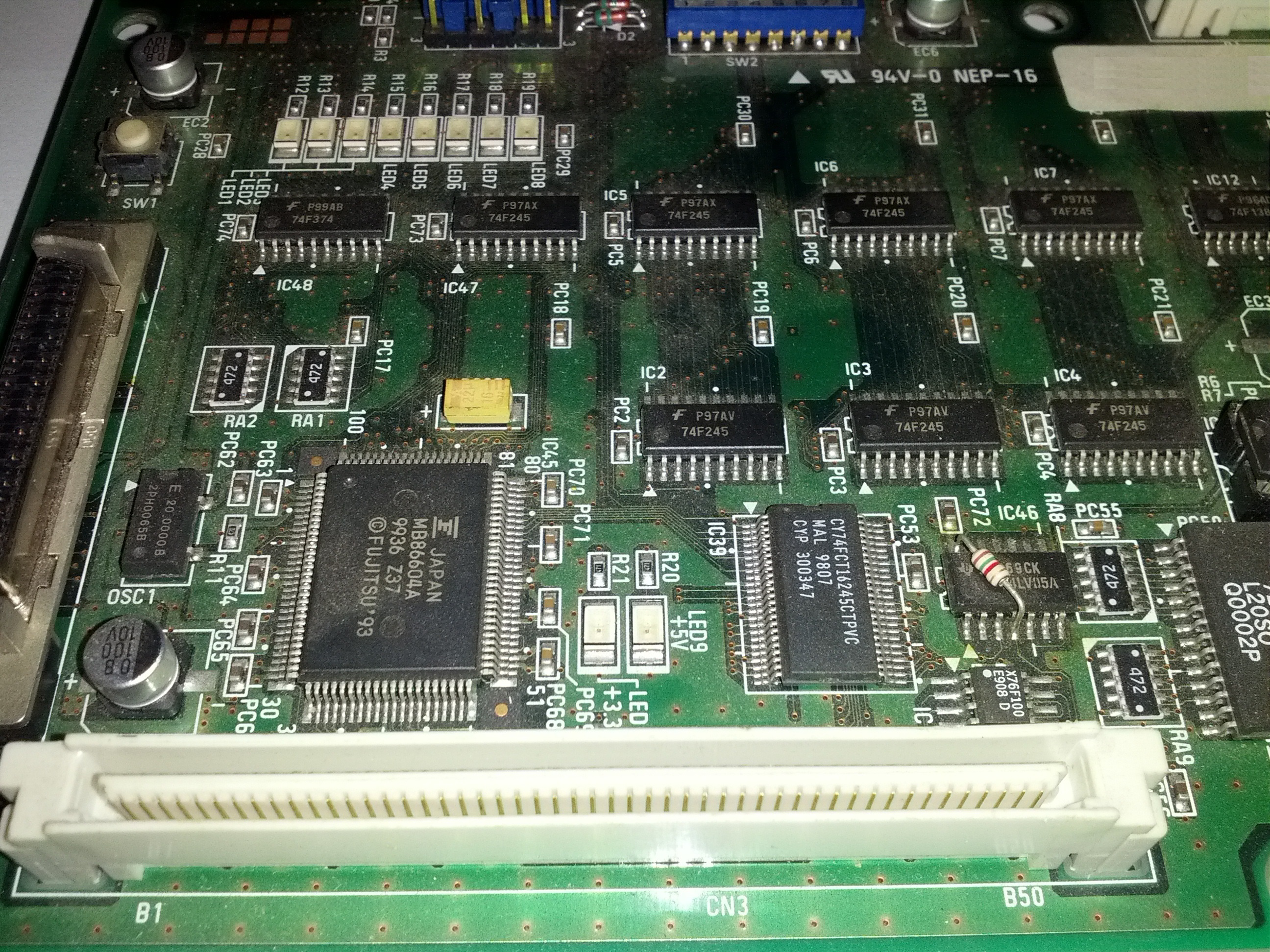

PCB component side detail 5
-

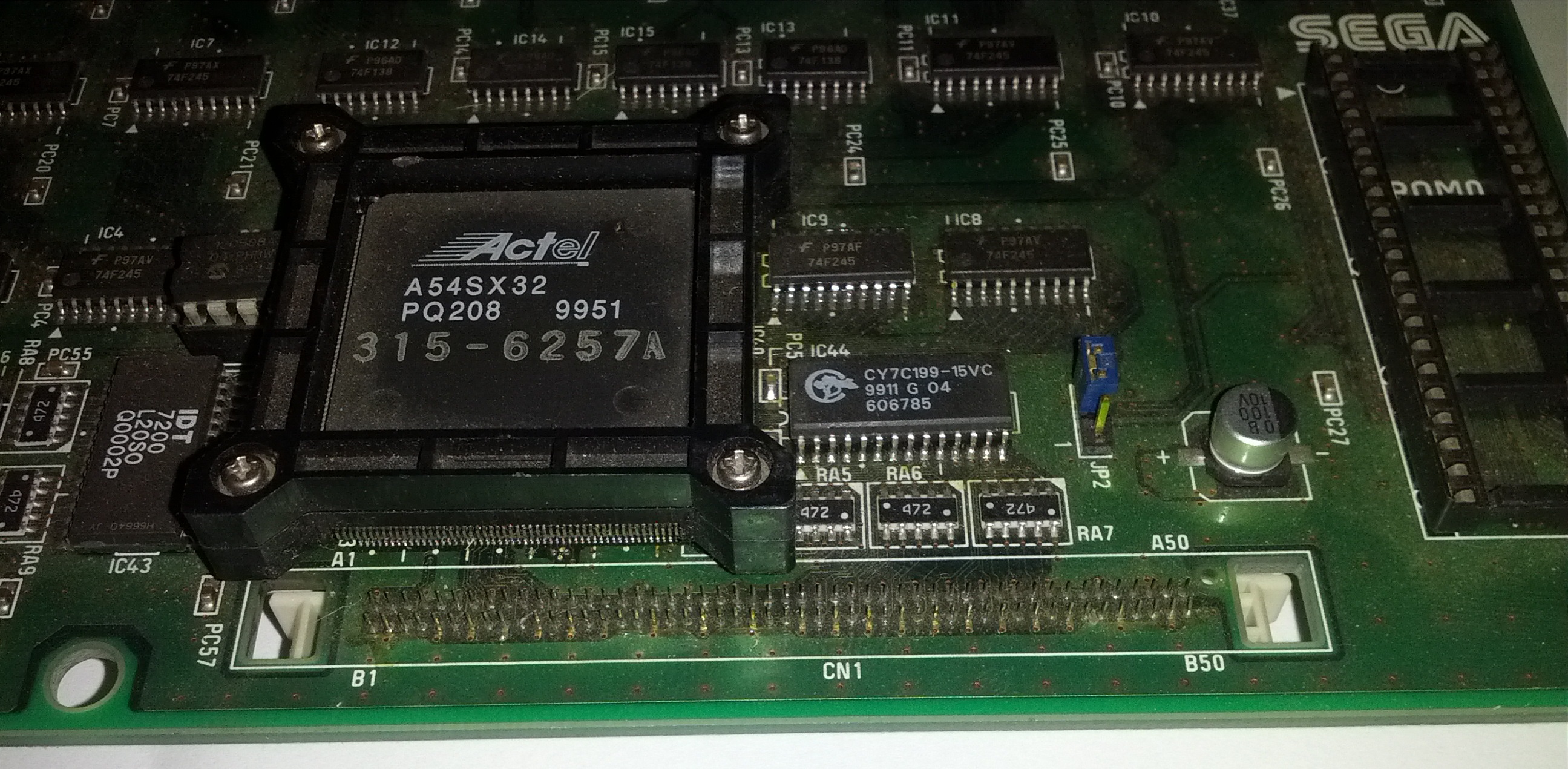

PCB component side detail 6
-

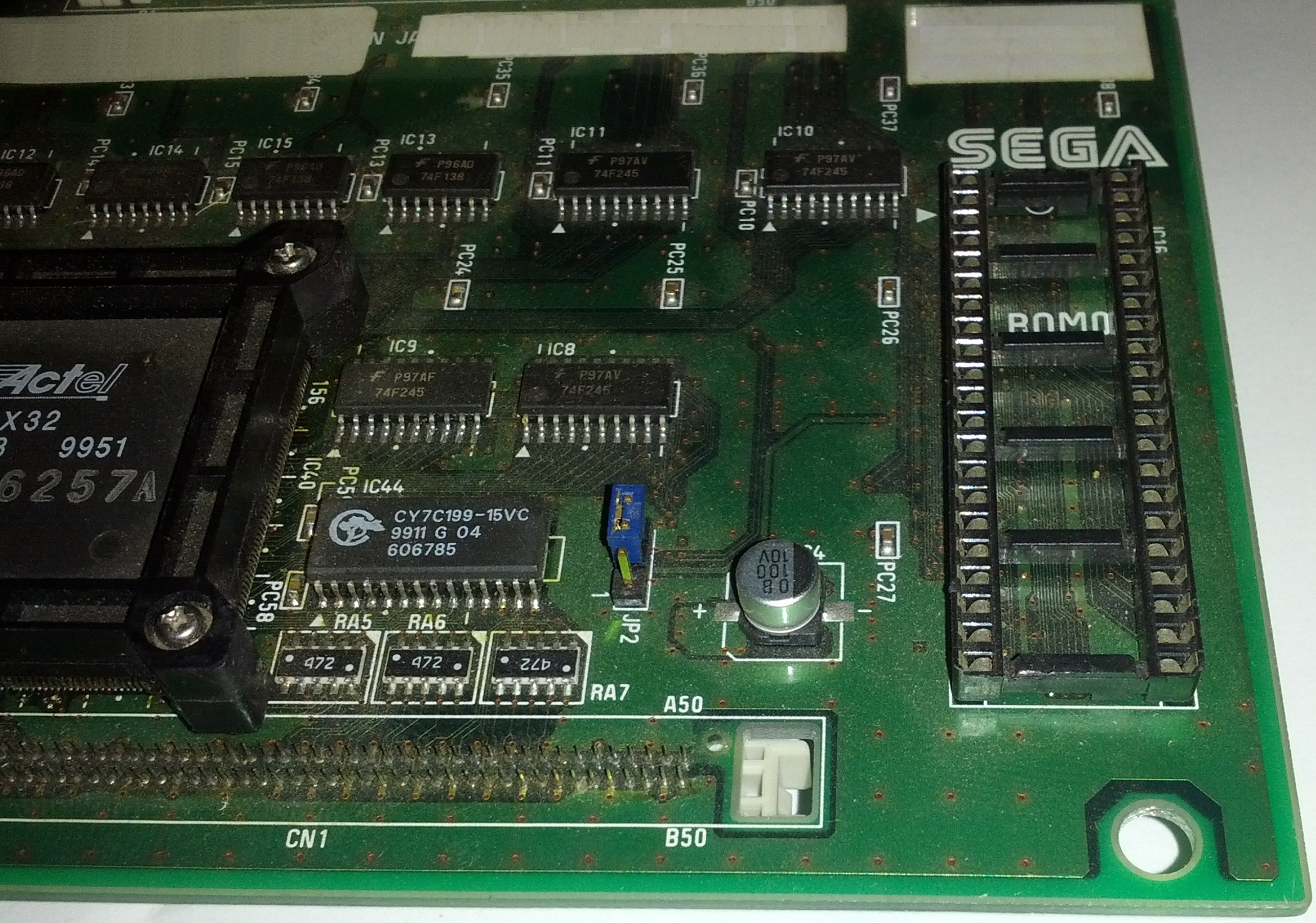

PCB component side detail 7
-

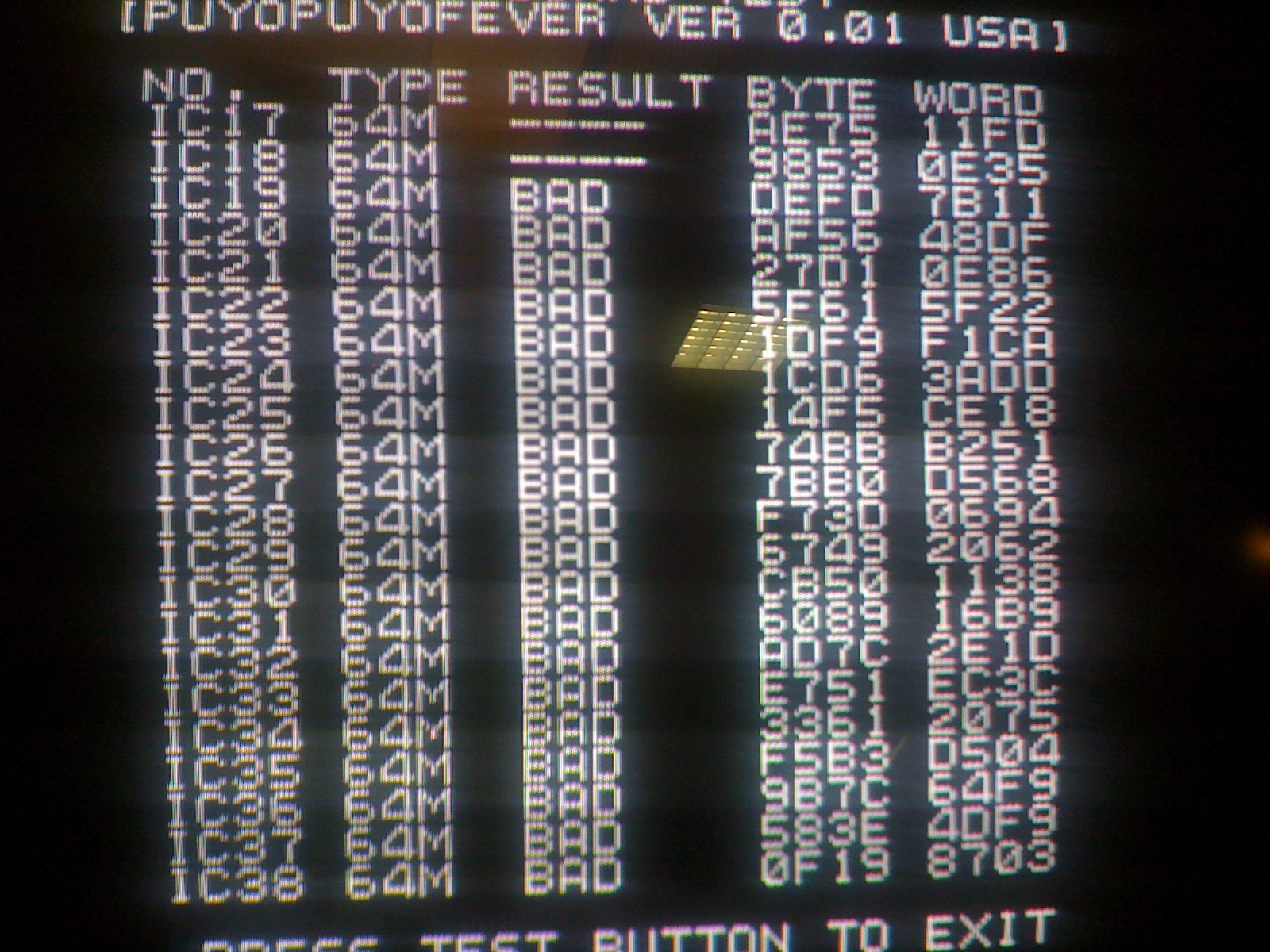

ROM board test
-
Read me
