Pushman (Korea, set 1)
From Citylan
Jump to navigationJump to search
| dumper | f205v, Brian A. Troha |
| date | 09/02/2023 |
| emulator | MAME 0.37b8 |
| dev | Bryan McPhail |
| name | pushman on ProgettoEMMA pushman on Arcade Database |
| description | Pushman (Korea, set 1) |
| year | 1990 |
| manufacturer | Comad |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P10 | 7.991MHz(@15) | ic199.20l | 16/32-bit Microprocessor - main |
| 1x | MC68705R3P | 3.995MHz(@5) - 3.995MHz(@6) | ic234.15o | 8-bit Microcomputer Unit - main (internal ROM not dumped) |
| 1x | Z8400A-PS | 4.997MHz(@6) | ic214.1n | 8-bit Microprocessor - sound |
| 2x | YM2203C | ?MHz(@38) - ?MHz(@39) | ic184.1l ic185.3l | FM Operator Type-N (OPM) - sound |
| 2x | Y3014B | ?MHz(@5) | ic200.1m ic201.3m | D/A Converter (DAC) - sound |
| 1x | GL324 | - | ic226.3o | Quad Operational Amplifier - sound |
| 1x | TDA2003 | - | 2p | Audio Amplifier - sound |
| 1x | oscillator | 10.000MHz | 7o | |
| 1x | oscillator | 8.000MHz | 11n | |
| 1x | oscillator | 24.000MHz | 20b |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | M27256 | ic130.20g ic189.7l | dumped |
| 1x | NMC27C256Q | ic216.4n | dumped |
| 10x | TMS27C512 | ic56.1c ic57.3c ic58.1d ic59.3d ic131.1h ic132.3h ic148.1j ic149.3j ic197.16l ic212.16n |
dumped |
| 1x | N82S129N | ic82.9e | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | MCM2018AN45 | ic23.4b ic28.9b |
| 13x | UM6116K-2 | ic92.19e ic93.20e ic133.4h ic144.5h ic145.6h ic147.7h ic139.10h ic140.11h ic194.13l ic196.15l ic215.3n ic236.17o ic239.20o |
| 2x | GM76C88L-15 | ic198.18l ic213.18n |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | PAL16R8ACN | ic35.16b ic52.17c | dumped |
| 1x | HY18CV8S-30 | ic245.20p | dumped |
| 1x | EP600PC-3 | ic193.11l | dumped |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
2x 8 DIP switches banks (SW.12o SW.14o)
Notes
PCB is marked: "COMAD-01" on component side
PCB is labelled: "O.K." on component side
update 20230211: dumped 1x PROM and 4x PLDs
Files
-

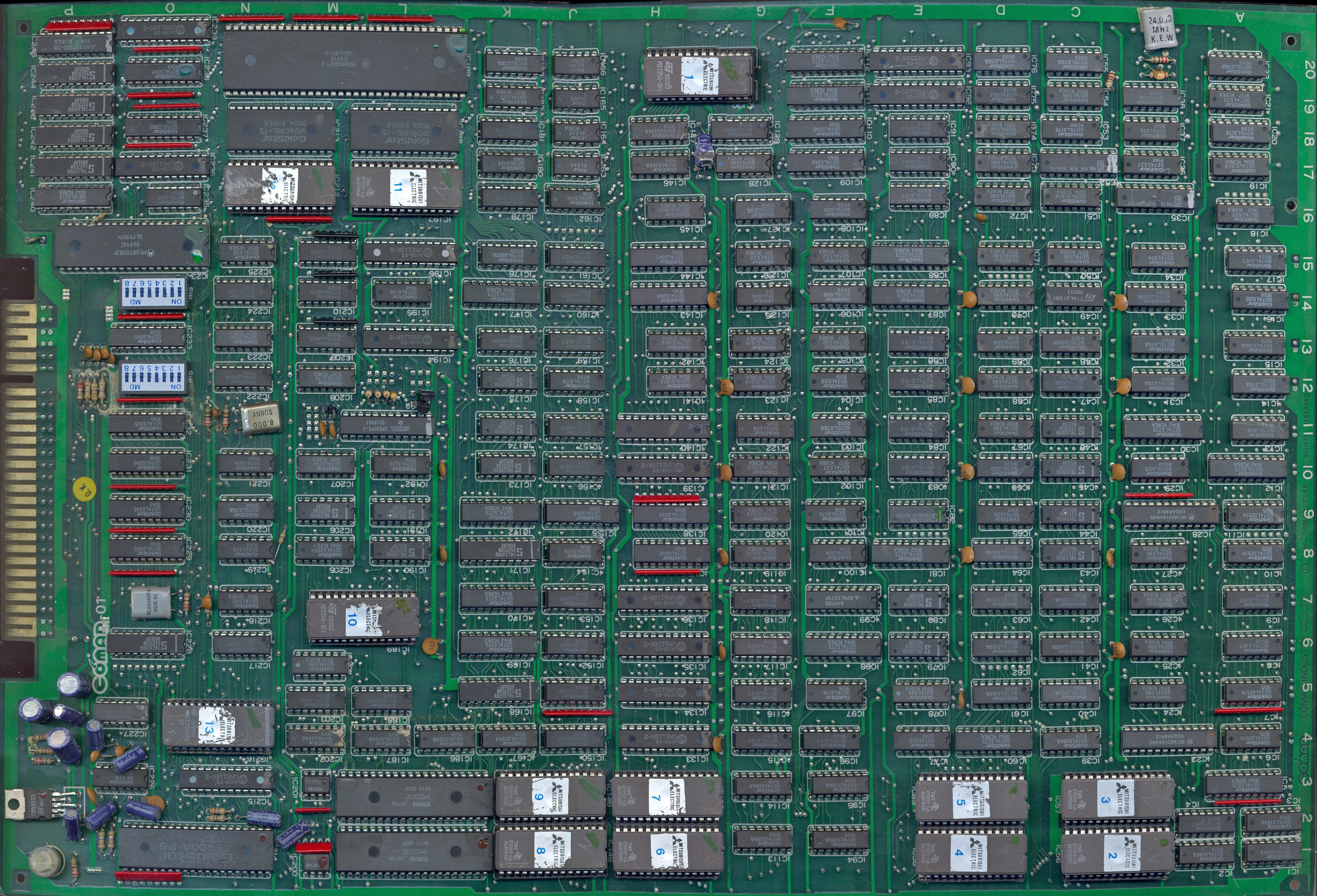

PCB component side
-

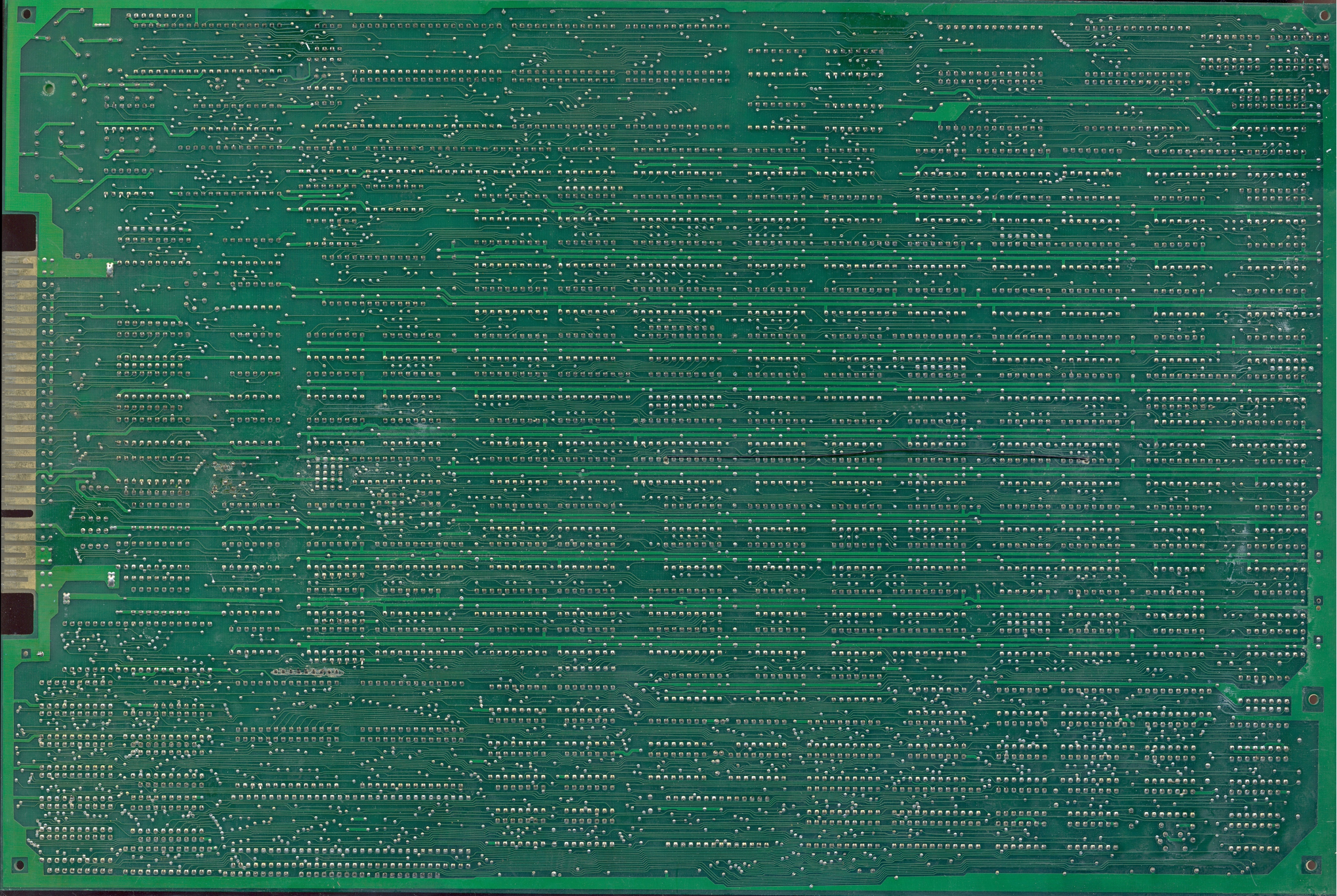

PCB solder side
