Puck Man zombie clone
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 24/12/2016 |
| emulator | |
| dev |
| name | 1449 |
| description | Puck Man zombie clone |
| year | 1980 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z80COU8400W20 | 7b | 8-bit Microprocessor - main | |
| 1x | oscillator | 18 MHz | 8c |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 12x | MK2716 | 1-12 | dumped |
| 3x | MMI 6301-1J | 1m,3m,4a | dumped |
| 1x | SN74S288N | 8h | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 6x | MM2114 | 4k,4l,4m,4n,4p,4r |
| 4x | D2125A | 2a,2b,2c,2d |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
1x trimmer (volume son)(11b)
1x 8 DIP switches bank (10e)
Notes
Files
-

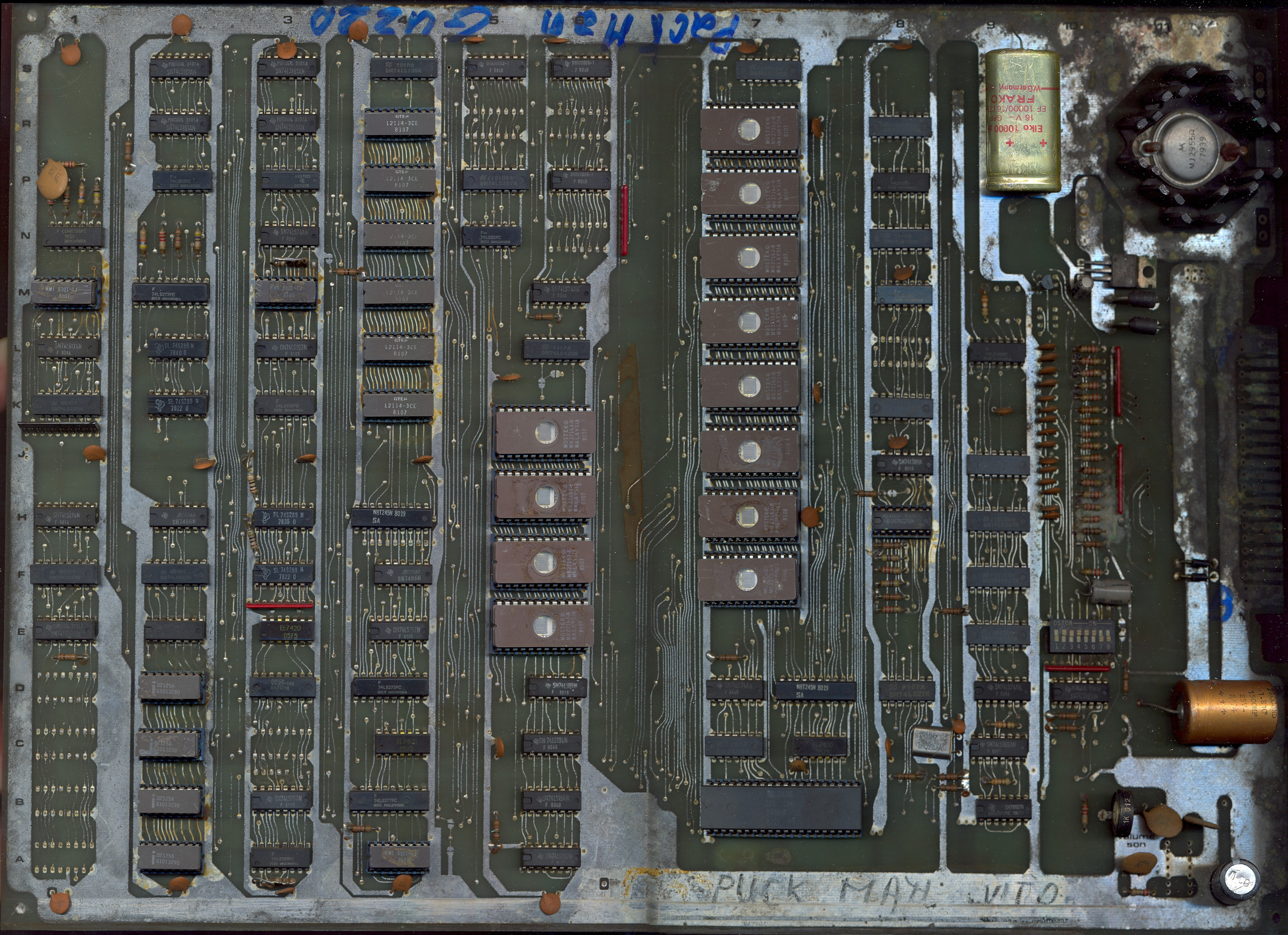

PCB component side
-

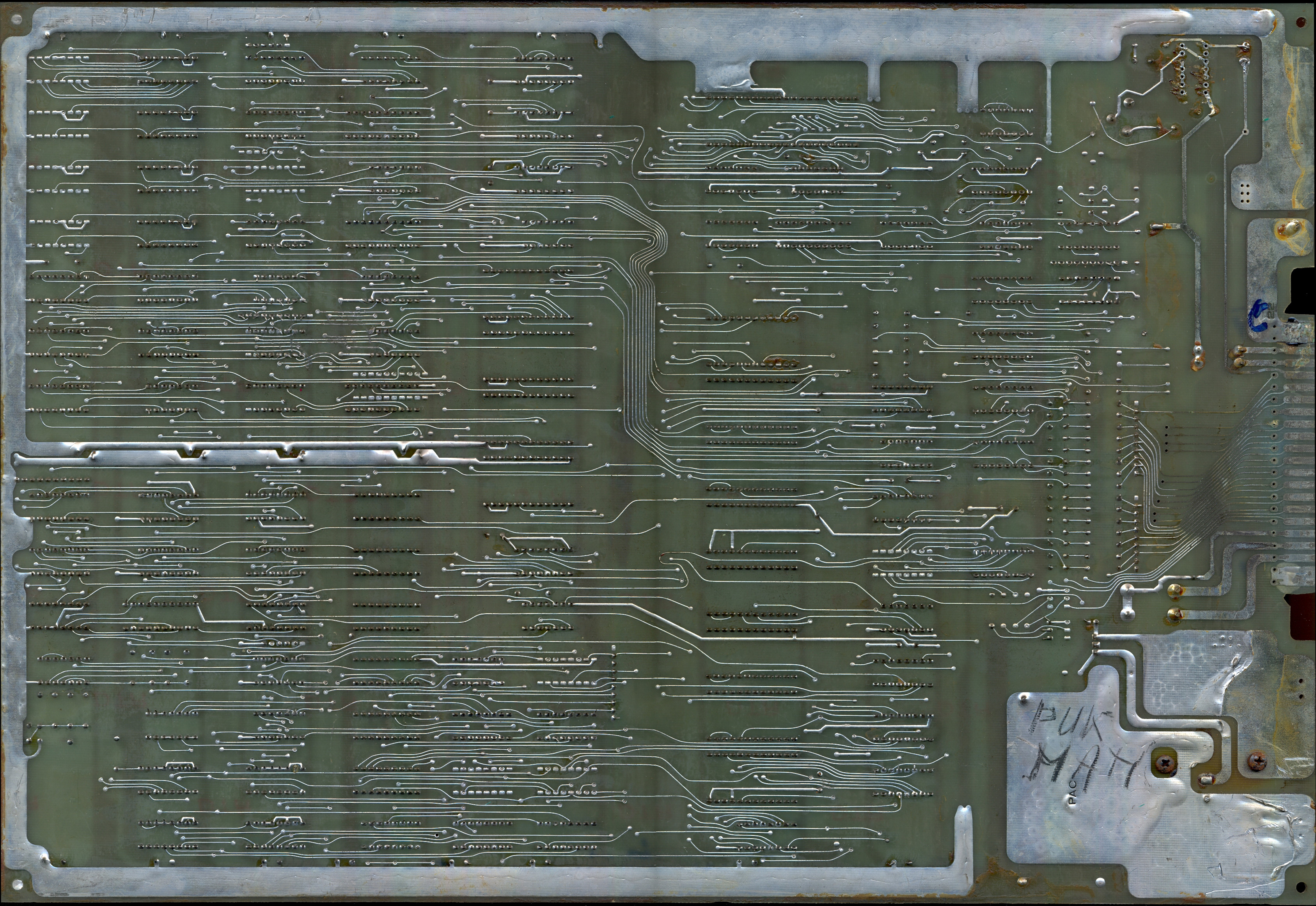

PCB solder side
-
ROMs
1449
