Pool 10 (Italian, set 2)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| dump date | 25/01/2009 |
| emulator | MAME 0.112 |
| dev | Roberto Fresca |
| name | pool10b on ProgettoEMMA pool10b on Arcade Database |
| description | Pool 10 (Italian, set 2) |
| year | 1996 |
| manufacturer | C.M.C. |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | G65SC02P-2 | u1 | 8-bit Microprocessor - main | |
| 1x | KC89C72 | u34 | Programmable Sound Generator - sound | |
| 1x | MC6845P | u8 | CRT Controller (CRTC) | |
| 2x | EF6821P | u29 u30 | Peripheral Interface Adapter PIA | |
| 1x | TDA2003 | u33 | Audio Amplifier - sound | |
| 1x | oscillator | 16.000MHz | OS1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | AM27C512 | u20 | dumped |
| 1x | TMS27C512 | u21 | dumped |
| 1x | M27512 | u2 | dumped |
| 1x | N82S147F | u25 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | D446C-2 | u3 |
| 1x | HM6264ALP-12 | u13 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | PALCE20V8H-25PC/4 | u22 u23 | read protected |
| 1x | PALCE16V8H-15PC/4 | u5 | read protected -> extracted with CmD's PALdumper |
Others
1x 28x2 edge connector
1x trimmer (volume)
1x 8x2 switches DIP
1x battery
Notes
update 20090125 Using Charles MacDonald's PAL reader I extracted the 16V8 PAL file. I'm waiting for a future revision of the soft to extract also the 2x 20V8 PALs (which are PDIP24). I assume the PALs are the same accross all versions of the same game
Files
-

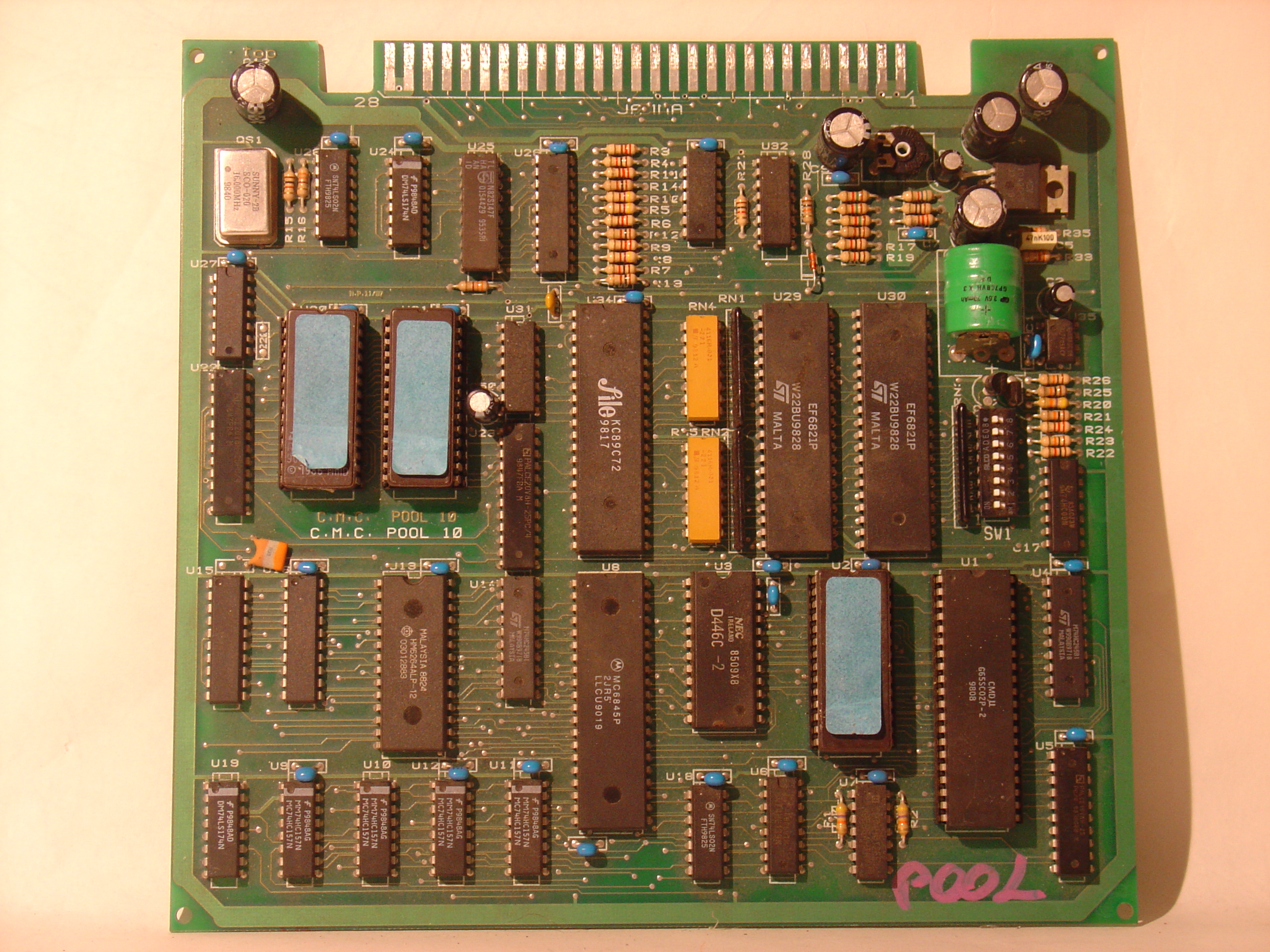

PCB component side
-

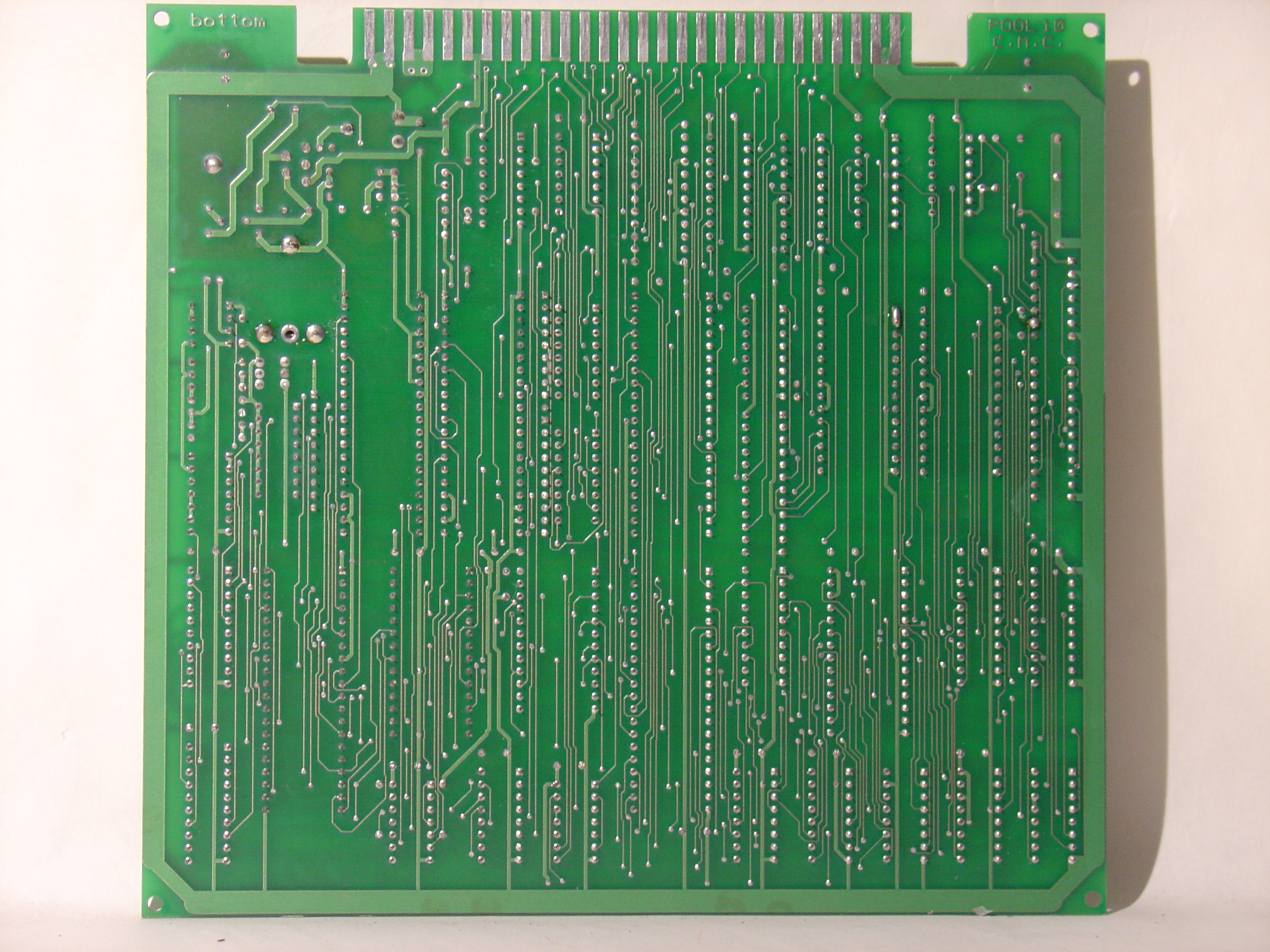

PCB solder side
-
Connector, DIPs and instructions
-
ROMs
519
