Pool 10 (Italian, set 10)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 14/11/2020 |
| emulator | MAME 0.227 |
| dev | Osso |
| name | pool10k on ProgettoEMMA pool10k on Arcade Database |
| description | Pool 10 (Italian, set 10) |
| year | 1997 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | R65C02P2 | 1.999MHz(@37) - 1.999MHz(@39) | 1st PCB u1 | 8-bit Microprocessor - main |
| 1x | MC6845P | 1.999MHz(@21) - 15.99kHz(@39) - 62.47Hz(@40) | 1st PCB u8 | CRT Controller (CRTC) |
| 2x | MC6821CP | - | 1st PCB u29,u30 | Peripheral Interface Adapter |
| 1x | YM2149F | 1.999MHz(@22) | 1st PCB u31 | Programmable Sound Generator - sound |
| 1x | R65C02P2 | 1.999MHz(@37) - 1.999MHz(@39) | 2nd,3rd PCBs u1 | 8-bit Microprocessor - main |
| 1x | HD46505P-2 | 1.999MHz(@21) - 15.99kHz(@39) - 62.47Hz(@40) | 2nd,3rd PCBs u8 | CRT Controller (CRTC) |
| 2x | MC68B21CP | - | 2nd,3rd PCBs u29,u30 | Peripheral Interface Adapter |
| 1x | YM2149F | 1.999MHz(@22) | 2nd,3rd PCBs u31 | Programmable Sound Generator - sound |
| 1x | TDA2003 | - | all PCBs u33 | Audio Amplifier - sound |
| 1x | oscillator | 16.000000MHz | all PCBs os1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | 27C512 | all PCBs u2,u20,u21 | dumped |
| 1x | AM27S29PC | all PCBs u25 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | UM6264B-10LL | all PCBs u13 |
| 1x | GM76C28A-10 | all PCBs u3 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | PALCE20V8-15PC | 1st PCB u22,u23 | read protected |
| 1x | GAL16V8AH-15LNC | 1st PCB u5 | read protected |
| 2x | GAL20V8B-25LP | 2nd PCB u22,u23 | read protected |
| 1x | GAL16V8AH-15LNC | 2nd PCB u5 | read protected |
| 2x | GAL20V8B-25LP | 3rd PCB u22,u23 | read protected |
| 1x | PALCE16V8H-25PC/4 | 3rd PCB u5 | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
1x 8 DIP switches bank (SW1)
1x battery 3.6V
Notes
Not working
PCB is marked: "LC DINO2" on component side
update 20201208: found a 3rd PCb for the same game. Confirmed dump.
Files
-

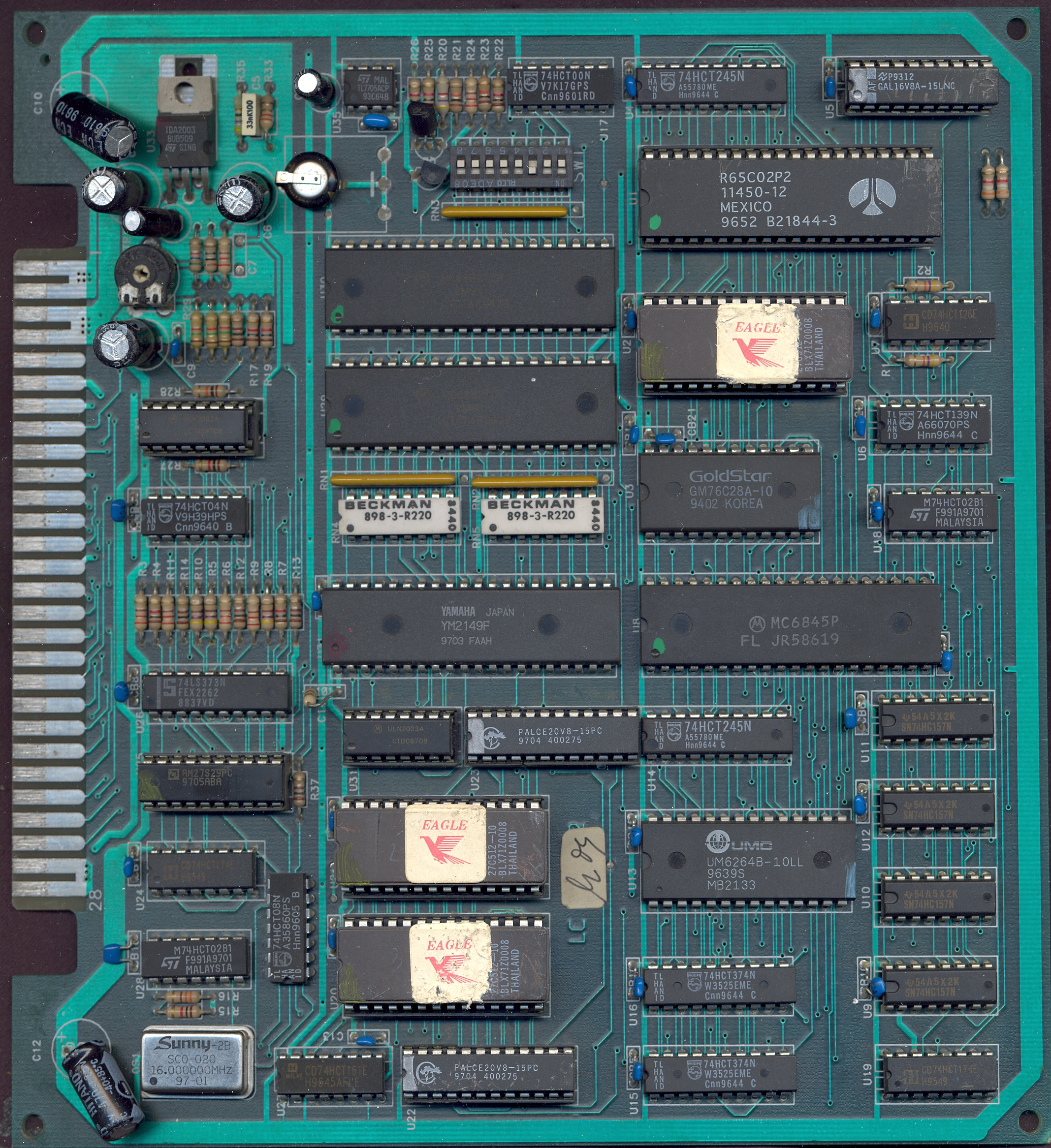

1st PCB component side
-

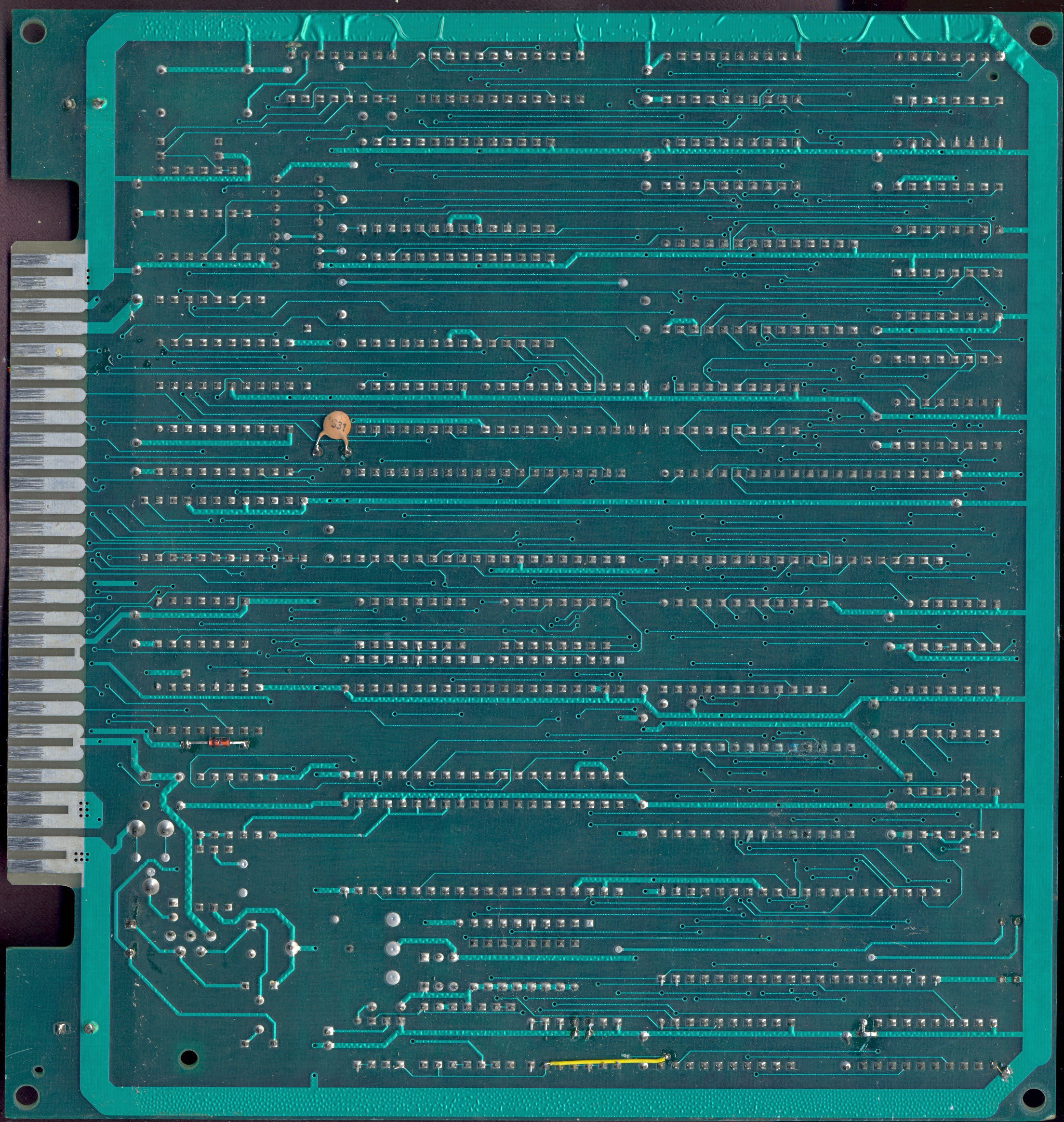

1st PCB solder side
-

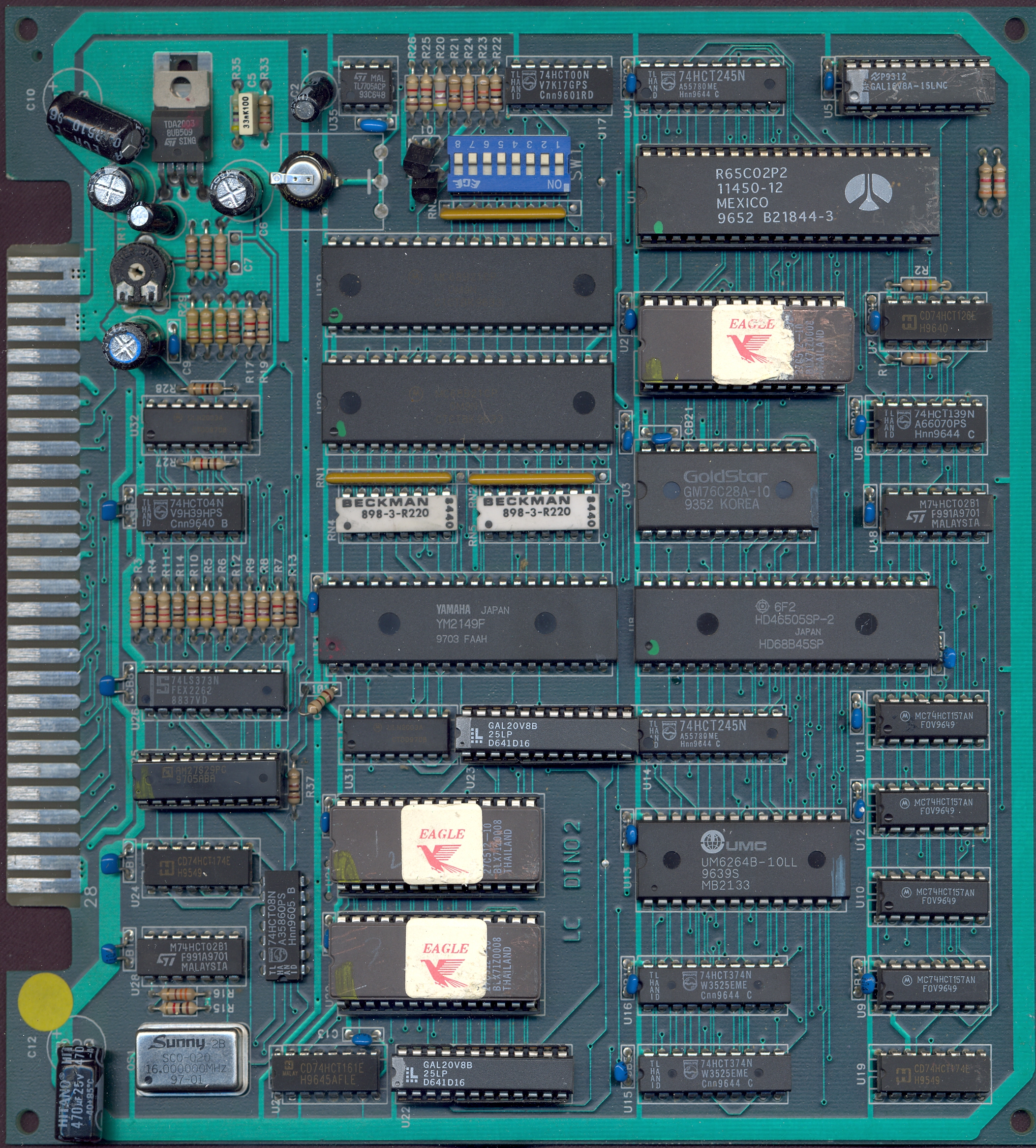

2nd PCB component side
-

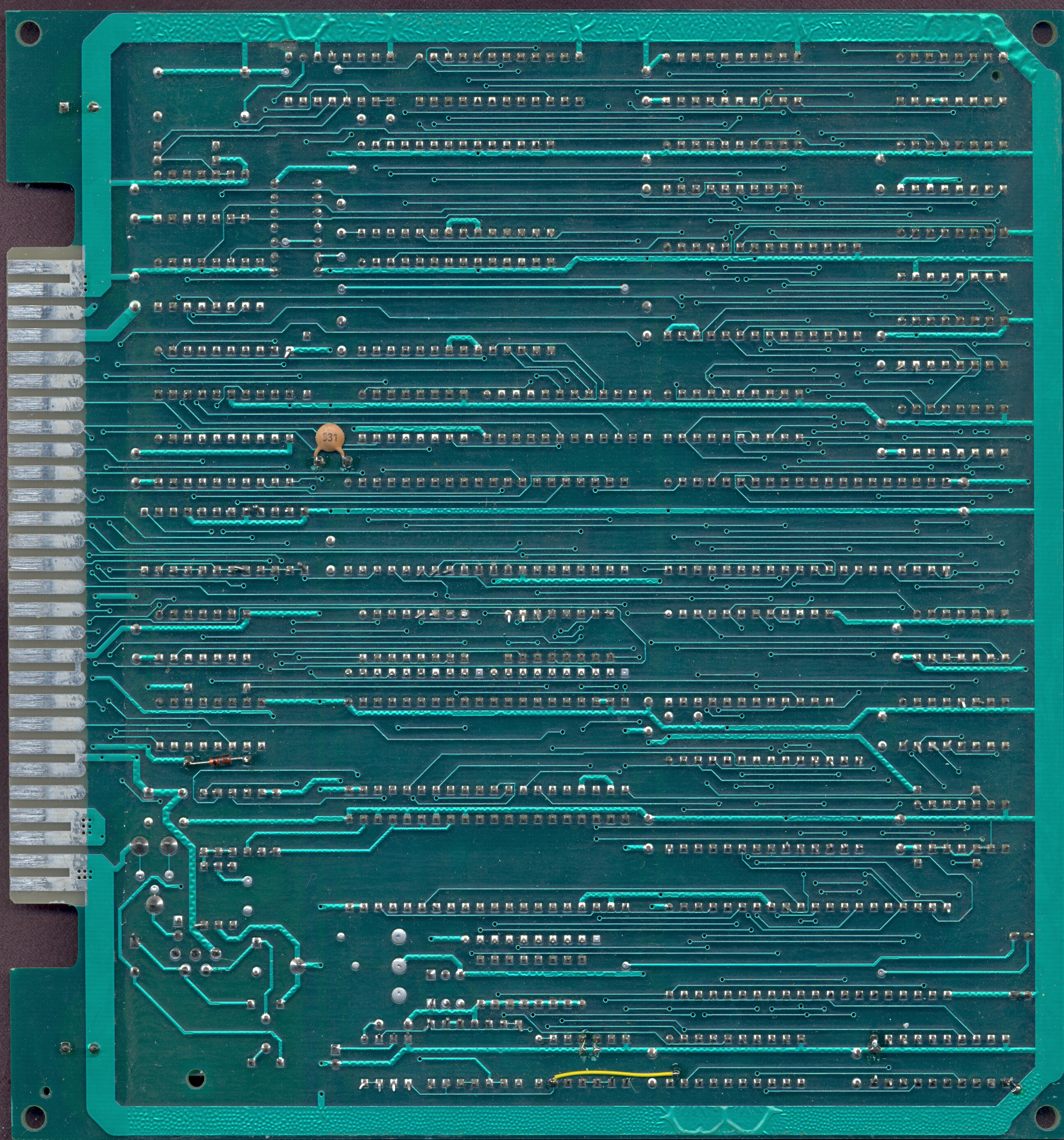

2nd PCB solder side
-

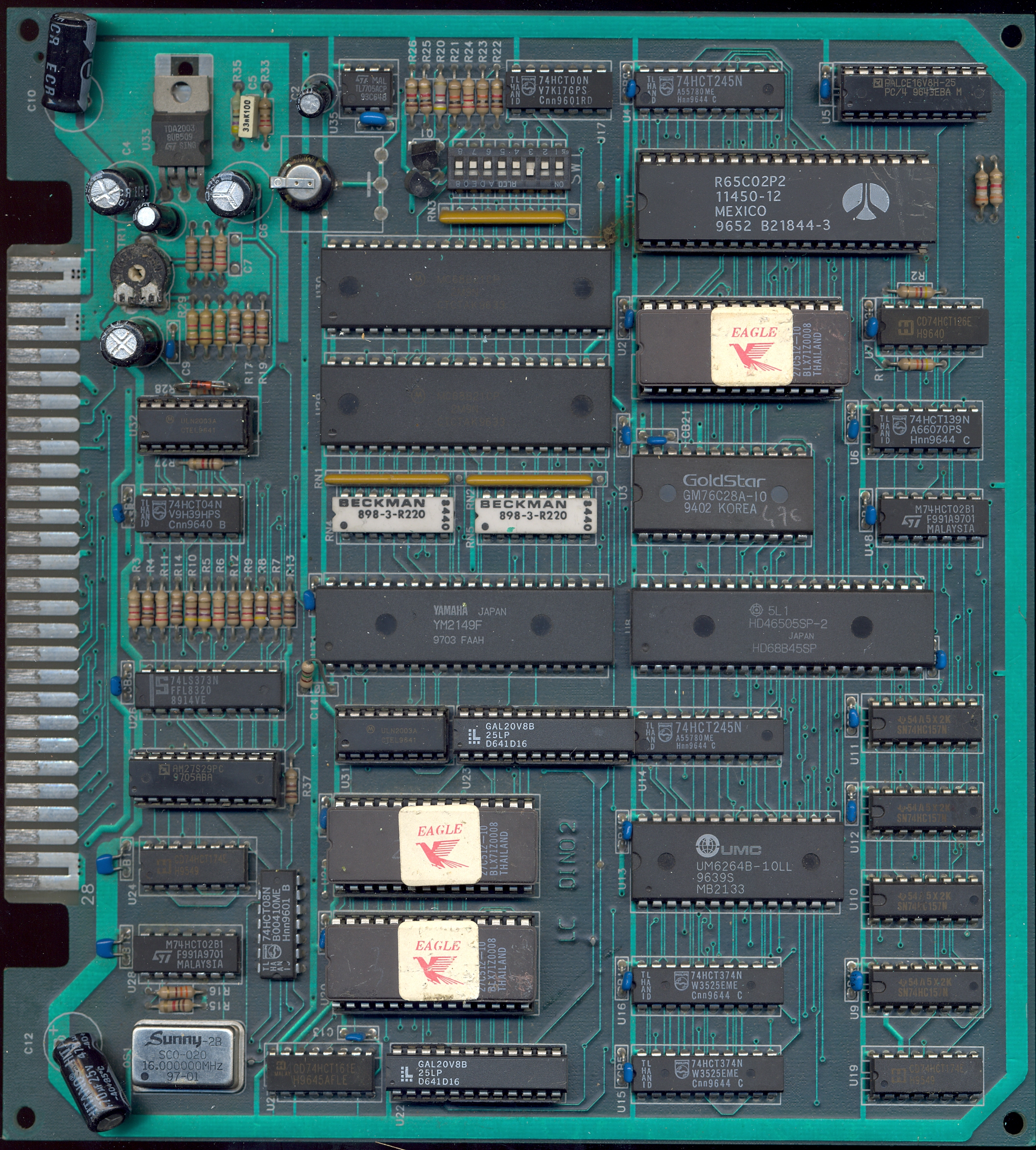

3rd PCB component side
-

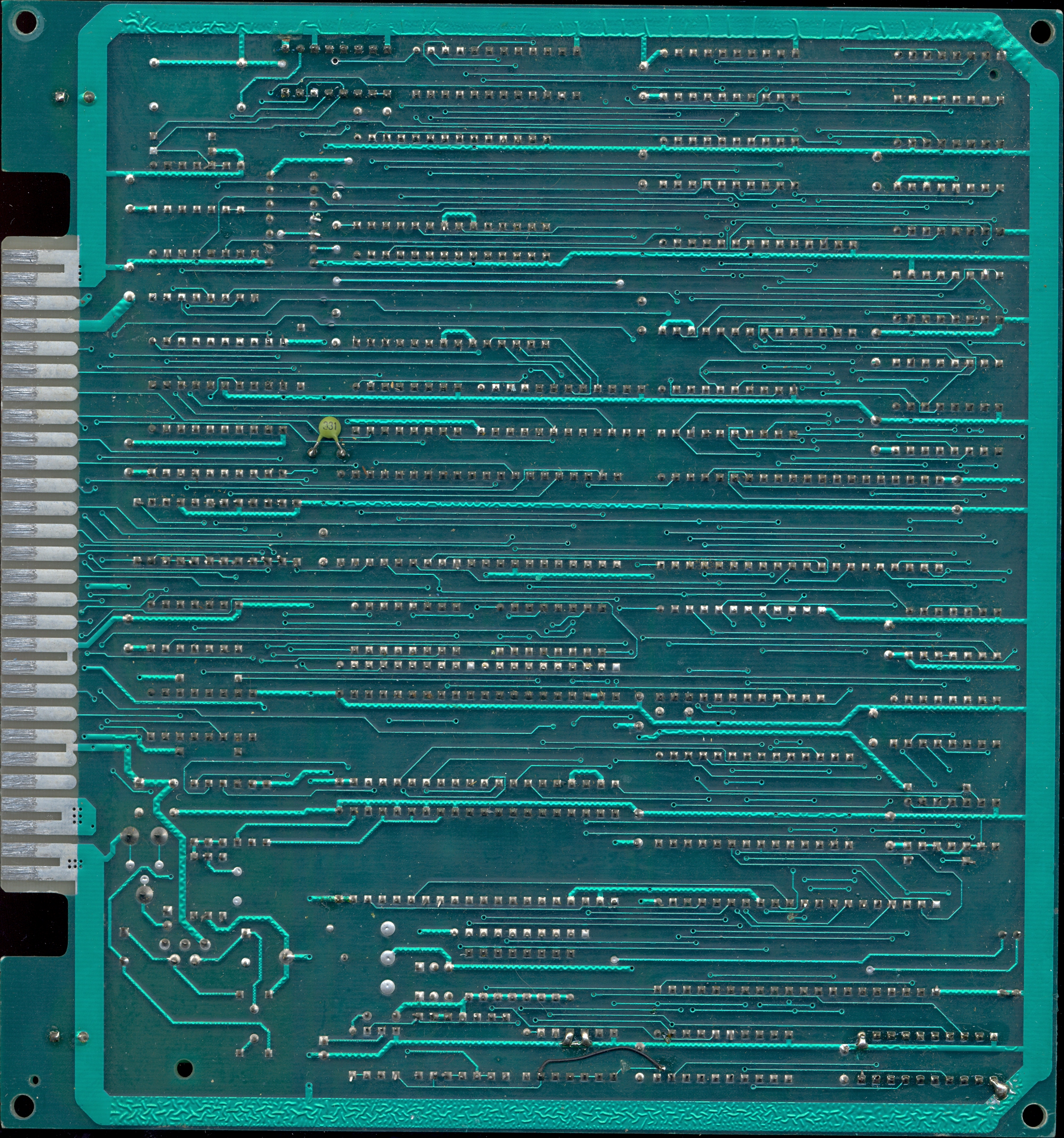

3rd PCB solder side
-

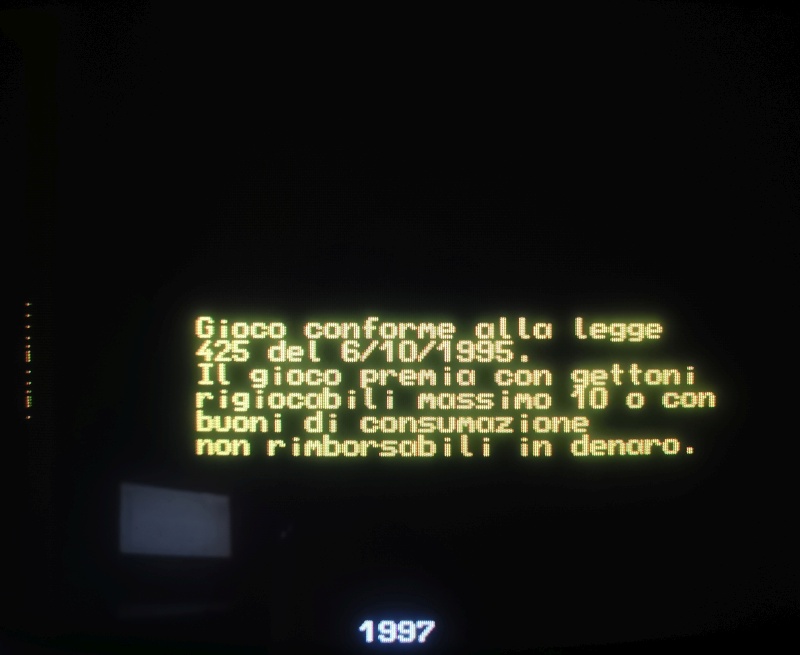

disclaimer
-

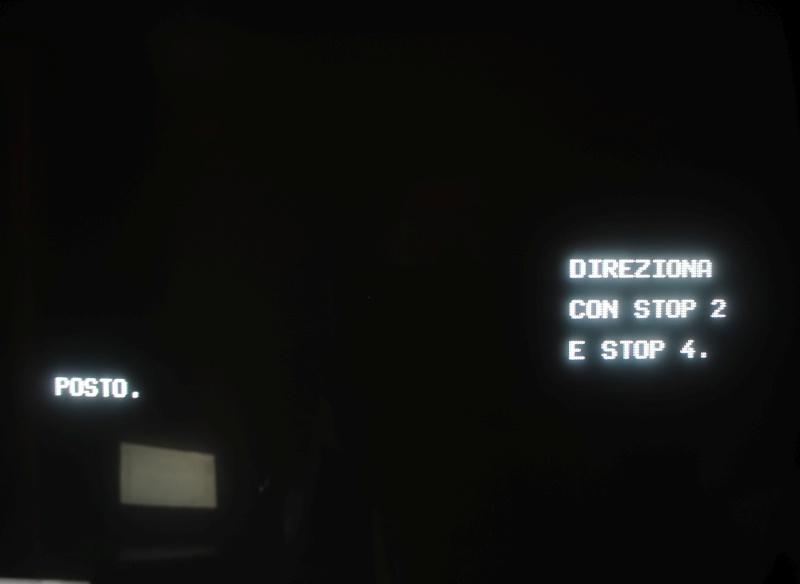

how to play
