Pool 10 (Italian, set 1)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 23/12/2006 |
| emulator | MAME 0.111u1 |
| dev | Roberto Fresca |
| name | pool10 on ProgettoEMMA pool10 on Arcade Database |
| description | Pool 10 (Italian, set 1) |
| year | 1996 |
| manufacturer | C.M.C. |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | R65C02P2 | 1st PCB u1 | 8-bit Microprocessor - main | |
| 1x | HD46505 | 1st PCB u8 | CRT Controller (CRTC) | |
| 2x | EF6821P | 1st PCB u29,u30 | Peripheral Interface Adapter | |
| 1x | YM2149F | 1st PCB u34 | Programmable Sound Generator - sound | |
| 1x | R65C02P2 | 2nd+4th PCB u1 | 8-bit Microprocessor - main | |
| 1x | MC68B45P | 2nd+4th PCB u8 | CRT Controller (CRTC) | |
| 2x | MC68C21CP | 2nd+4th PCB u29,u30 | Peripheral Interface Adapter | |
| 1x | 89C10 | 2nd+4th PCB u34 | Programmable Sound Generator - sound | |
| 1x | G65SC02P-2 | 3rd PCB u1 | 8-bit Microprocessor - main | |
| 1x | UM6845EA | 3rd PCB u8 | CRT Controller (CRTC) | |
| 2x | EF6821P | 3rd PCB u29,u30 | Peripheral Interface Adapter | |
| 1x | WF19054 | 3rd PCB u34 | Programmable Sound Generator - sound | |
| 1x | TDA2003 | all PCBs u33 | Audio Amplifier - sound | |
| 1x | oscillator | 16.000000MHz | all PCBs os1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | M27256 | 1st PCB u2,u21 | dumped |
| 1x | D27256 | 1st PCB u20 | dumped |
| 1x | N82S147AN | 1st+3rd PCB u25 | dumped |
| 3x | 27C256 | 2nd+3rd+4th PCB u2,u20,u21 | dumped |
| 1x | AM27S29PC | 2nd+4th PCB u25 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | GM76C28A-10 | 1st+2nd+4th PCB u3 |
| 1x | HY6116Ap-10 | 3rd PCB u3 |
| 1x | KM6264BL-10L-12 | all PCBs u13 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | PALCE20V8H-25PC/4 | 1st+2nd+3rd PCB u22,u23 | read protected |
| 2x | GAL20V8A-25LP | 4th PCB u22,u23 | read protected |
| 1x | PALCE16V8H-15PC/4 | all PCBs u5 | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (TR1, volume)
1x 8 DIP switches bank (SW1)
1x battery 3.6V
Notes
PCB is marked: "top" and "C.M.C. POOL 10" on component side
PCB is marked: "bottom" and "POOL 10 C.M.C" on solder side
update 20180801: I found 2nd, 3rd and 4th PCBs for the same game. Better pics and confirmed dump.
Files
-
1st PCB component side
-
1st PCB solder side
-
2nd PCB component side
-
2nd PCB solder side
-
3rd PCB component side
-
3rd PCB solder side
-

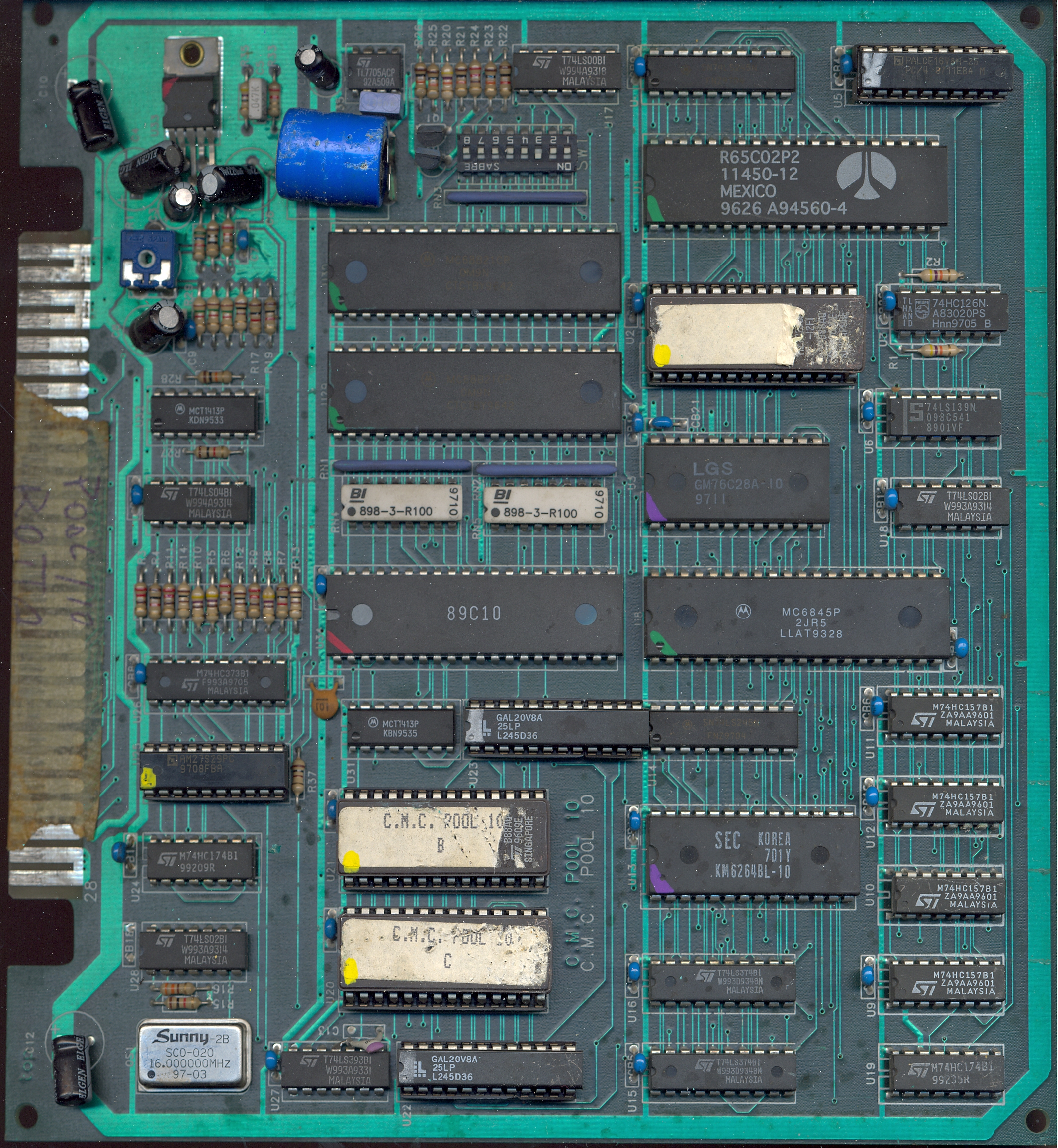

4th PCB component side
-
4th PCB solder side
-
Title
-
Attract mode 1
-
Attract mode 2
-
In game 1
-
In game 2
-
In game 3
-
Readme
