Poker Ladies (Leprechaun ver. 401)

EMU Infos

dumper	Manuel Assoni, f205v
date	10/03/2005
emulator	MAME 0.94u2
dev	Manuel Assoni

PCB Infos

name	pkladiesla on Arcade Database
description	Poker Ladies (Leprechaun ver. 401)
year	1989
manufacturer	Leprechaun

Technical references

CPUs

QTY	Type	clock	position	function
1x	KABUKI DL-030P-110V		16d	8-bit Microprocessor - main (encrypted)
1x	DL-020F-108U		14d	Custom chip (SDIP64)
1x	DL-010D-103		1e	NEC Custom chip (SDIP64)
1x	CAPCOM 86S105 RJ5C39 8M2 76		1h	CAPCOM Custom chip (LCC84)
1x	VLSI 8907EV 5616A1 VC5144-0001		3h	VLSI Custom chip (QFP60)
1x	CM^81300		11g	Custom chip (SDIP28, ^ is a triangle symbol)
1x	M6295		4c	4-Channel Mixing ADCPM Voice Synthesis LSI - sound
1x	YM2413		4b	FM Operator Type-LL - sound
1x	M5224P		2b	Quad Operational Amplifier - sound
1x	MB3714A		3a	Audio Amplifier - sound
1x	oscillator	16.000MHz	UX0

ROMs

QTY	Type	position	status
1x	TC541001A	01,02,16,17	dumped
1x	TC544001A	18,19,20,21	dumped
1x	93C46	14a	dumped

RAMs

QTY	Type	position
2x	CXK5814P-35L	10c,11c
1x	TMM2063P	16c
1x	D4016CX-12	6e-a
1x	D4364CX-12L	6g

PLDs

QTY	Type	position	status
1x	PAL16L8CN	POKER.10g	read protected -> extracted with Brizzo's PALdumper
1x	EPL16P8BP	PL-C4.5j	read protected -> extracted with Brizzo's PALdumper

Others

1x 28x2 JAMMA edge connector
1x pushbutton (SW1)
2x trimmer (volume)(VR1,VR2)
1x battery (missing)(BAT1)

Notes

update 20160208: full redump, including EEPROM and PALs. Pictures and full documentation. Correct ROMs names

	rom ( name 93c46.14a size 128 crc 6856c4aa sha1 f767773f2a5930890273c992b044094c023affb7 )
	rom ( name epl16p8bp.pl-c4.5j size 279 crc 6cae00f7 sha1 9826bed70d9ee223a1e4d72b765deb34350bed49 )
	rom ( name epl16p8bp.pl-c4.5j.bin size 262144 crc ed21f482 sha1 7e98dc8fa5efd46f0cb7dd22d8c199cfaeb4efed )
	rom ( name epl16p8bp.pl-c4.5j.jed size 1193 crc 46a9ba37 sha1 2c83bf2508e3677de3a94fb3aeaabc5ca7174e6e )
	rom ( name epl16p8bp.pl-c4.5j.pld size 1551 crc b7131728 sha1 1557f167d0752aa68503dd9885c564e0cc48dfa2 )
	rom ( name pal16l8cn.poker.10g size 279 crc 8e592f22 sha1 abec57c811ea647768c96fd4258922c4662c005e )
	rom ( name pal16l8cn.poker.10g.bin size 262144 crc 4fd66189 sha1 3db3add398506e53db5fbc312115a43bae84e8f5 )
	rom ( name pal16l8cn.poker.10g.jed size 984 crc 8131f6a9 sha1 fcb8873f880111403458ffb0ca84a1138d87fba0 )
	rom ( name pal16l8cn.poker.10g.pld size 1357 crc de95139a sha1 119fa9a29ee338492fc78f5e339dec1158ae2ad4 )
	rom ( name pk0-001-t18.8h size 524288 crc 1ead5d9b sha1 ac9b294ce1fcfb994f7c06e0e3f0ec8d86f2d908 )
	rom ( name pk0-002-t19.9h size 524288 crc 1cf02586 sha1 d78fa4824c00b88049c36c1525031f3b8b5d36c8 )
	rom ( name pk0-003-t20.8j size 524288 crc 339ab4e6 sha1 0dbe6801e72df1226a4df3f6911523c95cd2ac6a )
	rom ( name pk0-004-t21.9j size 524288 crc 09ccb442 sha1 c8deb7c29f75ad61237c8b737caded58f21f3bba )
	rom ( name pk01.2d size 131072 crc 07e0f531 sha1 315715f7686ae09c446029da36faec5bab7fcaf0 )
	rom ( name pk02.3d size 131072 crc 18398bf6 sha1 9e9ab85383350d01ba597951a48f18ecee1f46c6 )
	rom ( name pk05.14f size 32768 crc fa18e16a sha1 05fff3335a55b9ebf13a0bc89216f00fba6b6b6d )
	rom ( name pk06.15f size 65536 crc a2fb7646 sha1 778d3c1348efe6e46aed4ce968826ce73e320187 )
	rom ( name pk16.2j size 131072 crc 31ce33cd sha1 9e8cea7625e7436a8480c4114c9148c67ccbf247 )
	rom ( name pk17.3j size 131072 crc ad7e055f sha1 062f4d3b6e11ddce035bd0d5a279dc4489149cc4 )

Files

•

  PCB component side 1

•

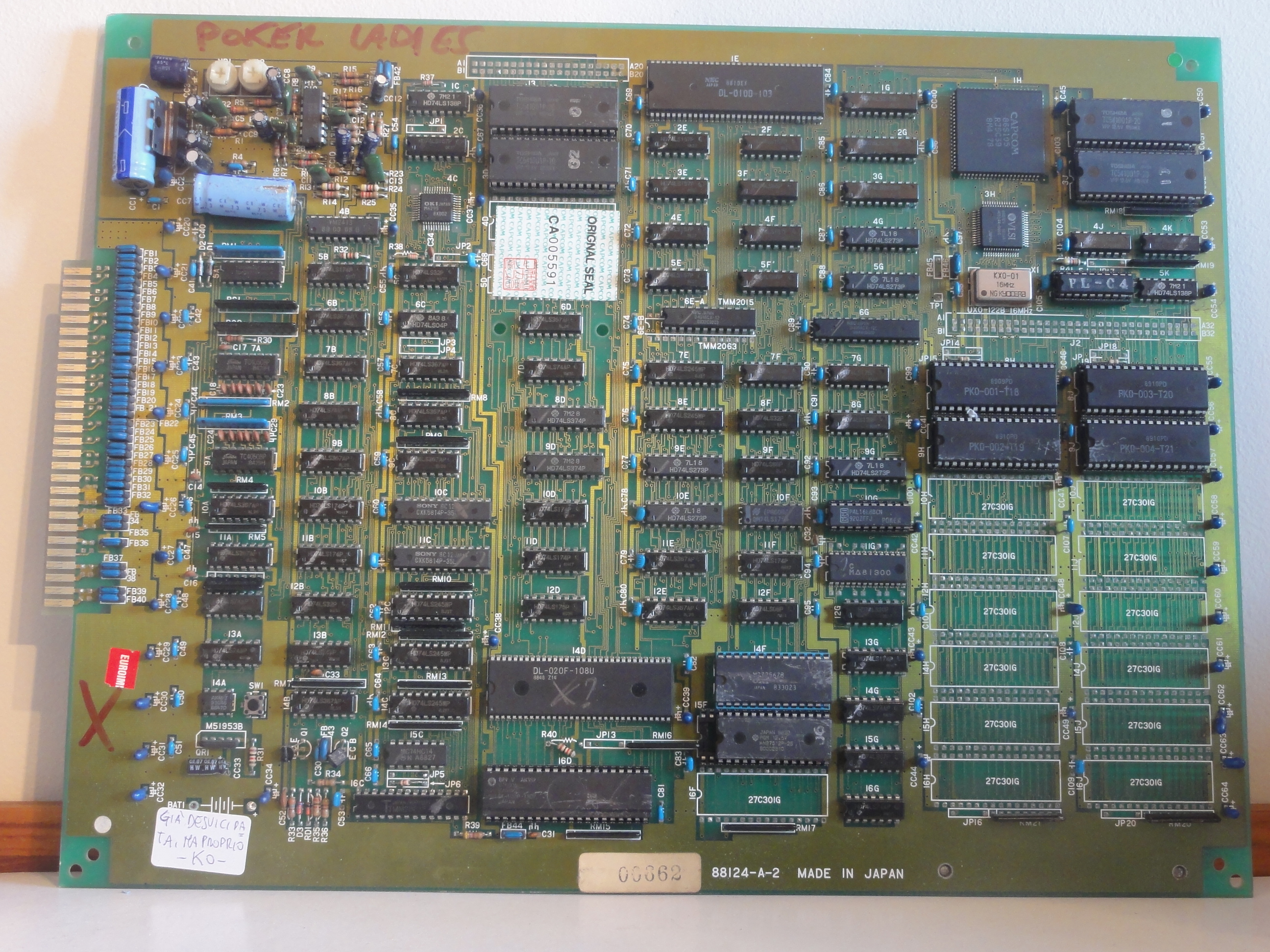

  PCB component side 2

•

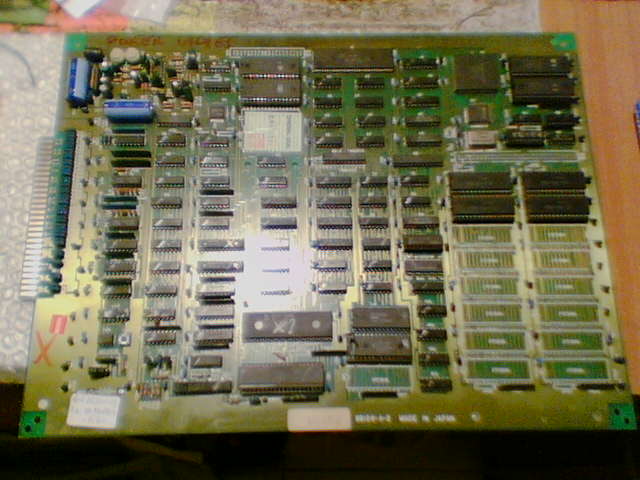

  PCB component side 3

•

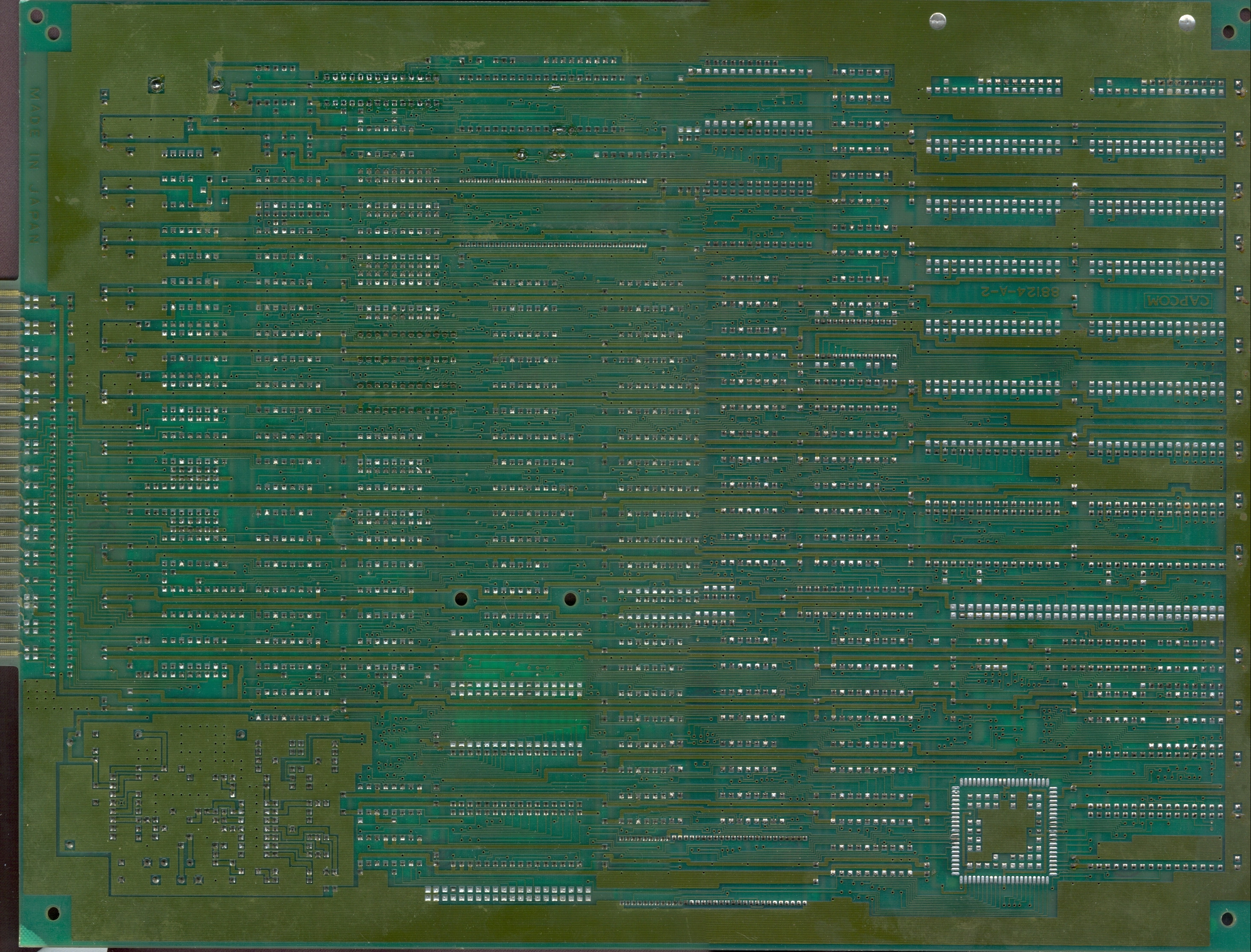

  PCB solder side 1

•

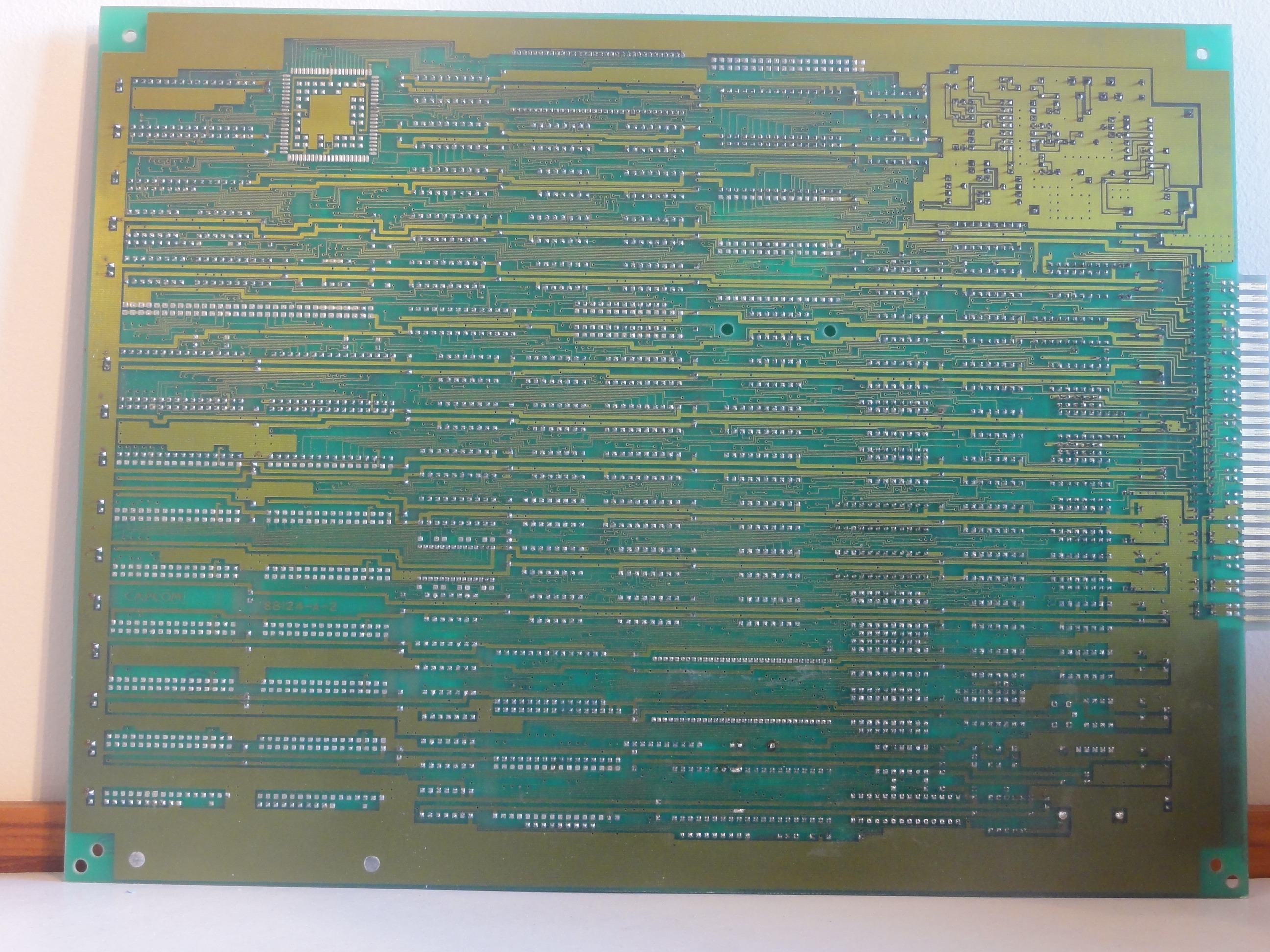

  PCB solder side 2
