Pokasuka Ghost! (Japan)
From Citylan
Jump to navigationJump to search
| dumper | Rtw |
| date | 04/07/2011 |
| emulator | MAME 0.143u1 |
| dev | R. Belmont |
| name | pokasuka on ProgettoEMMA pokasuka on Arcade Database |
| description | Pokasuka Ghost! (Japan) |
| year | 2007.07.01 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | PIC16C621A | 317-0461-COM.ic3 | EPROM-Based 8-Bit CMOS Microcontroller (not dumped) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XCF01SVG | ic4 | not dumped |
| 5x | S29GL512N10T | FPR-24365.ic8, FPR-24369.ic12 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XC3S50 | ic2 | not dumped |
Others
Notes
It's a NAOMI cart.
Cart type: 171-8346C
Cart N°: 840-0170C
EPR.ic7: not present
requires 837-14672 sensor board (SH4 based)
Files
-

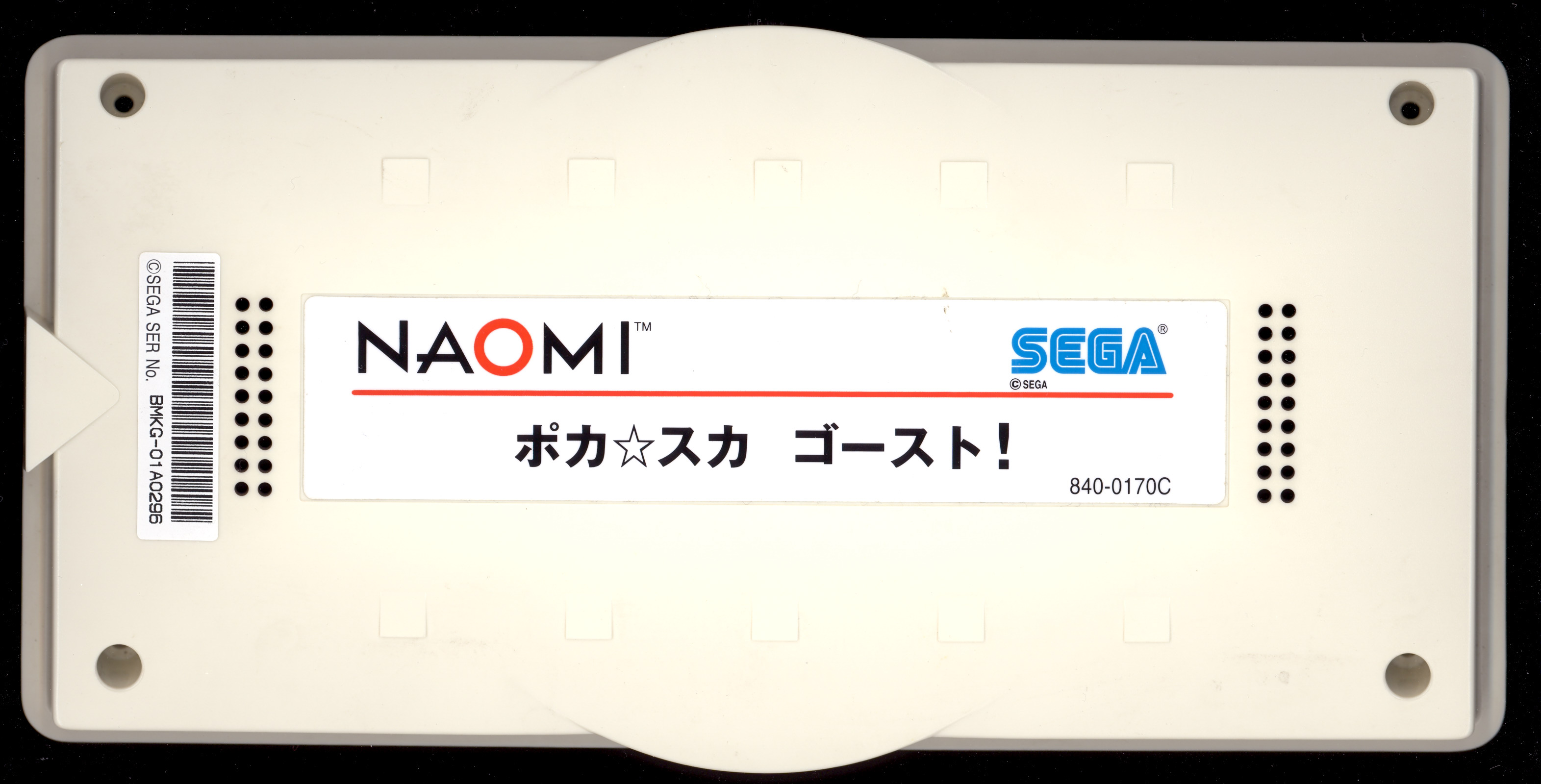

Cart 1
-

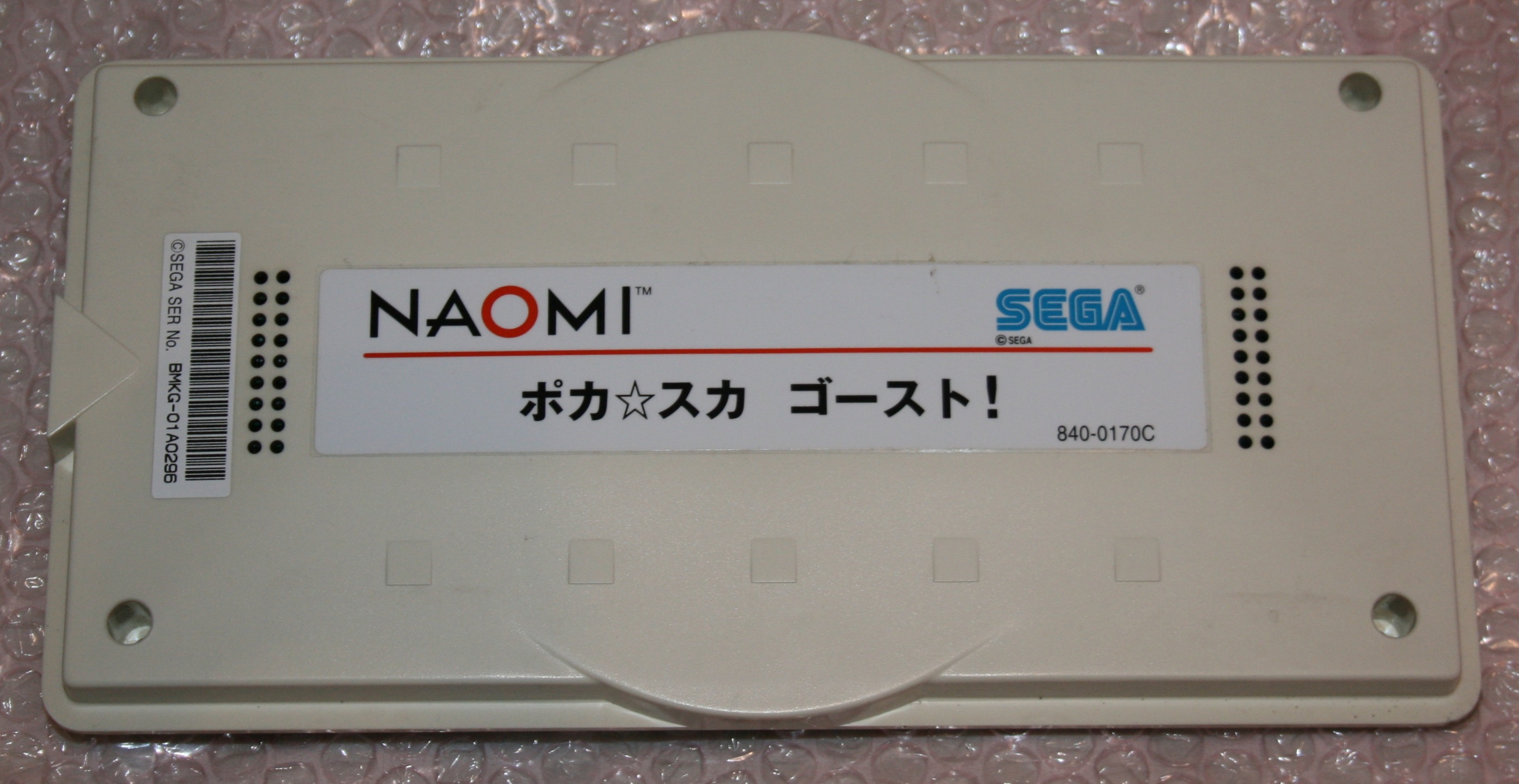

Cart 2
-

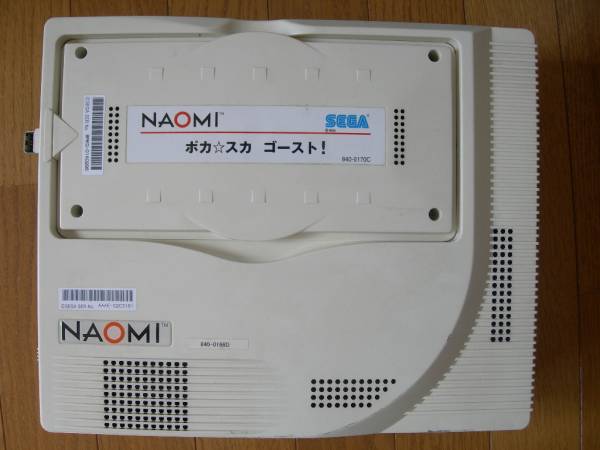

Cart 3
-

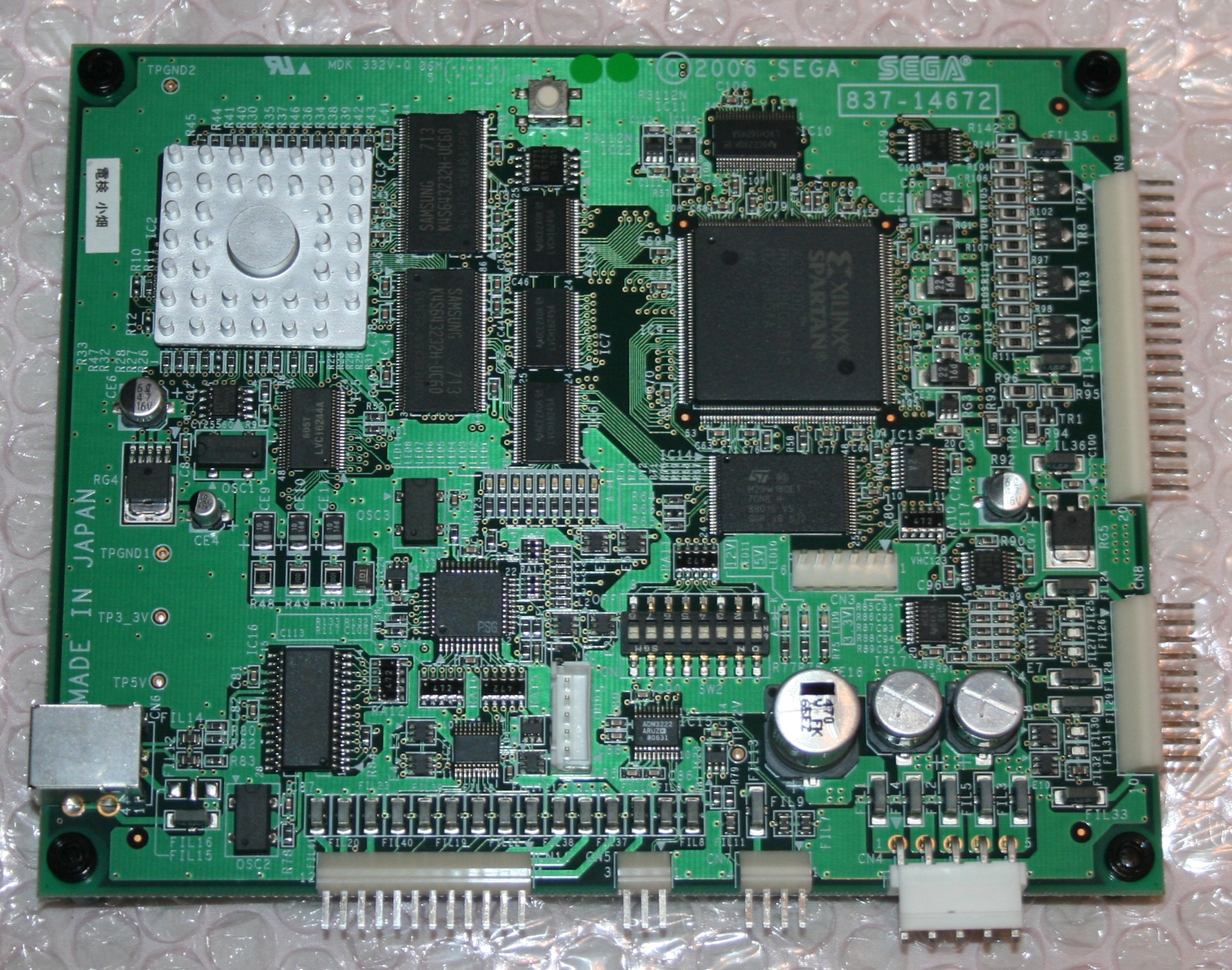

IO board component side
-

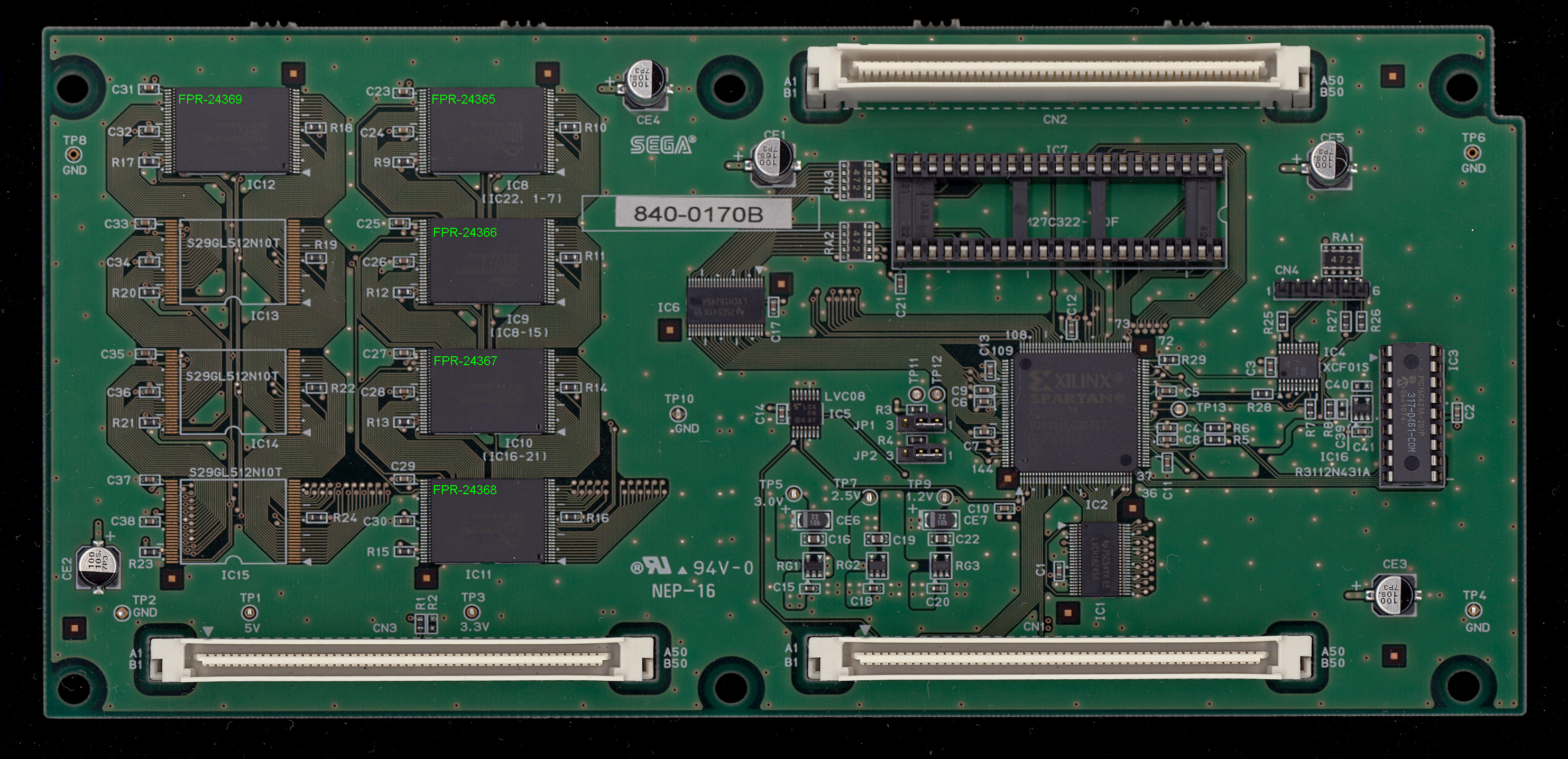

PCB component side 1
-

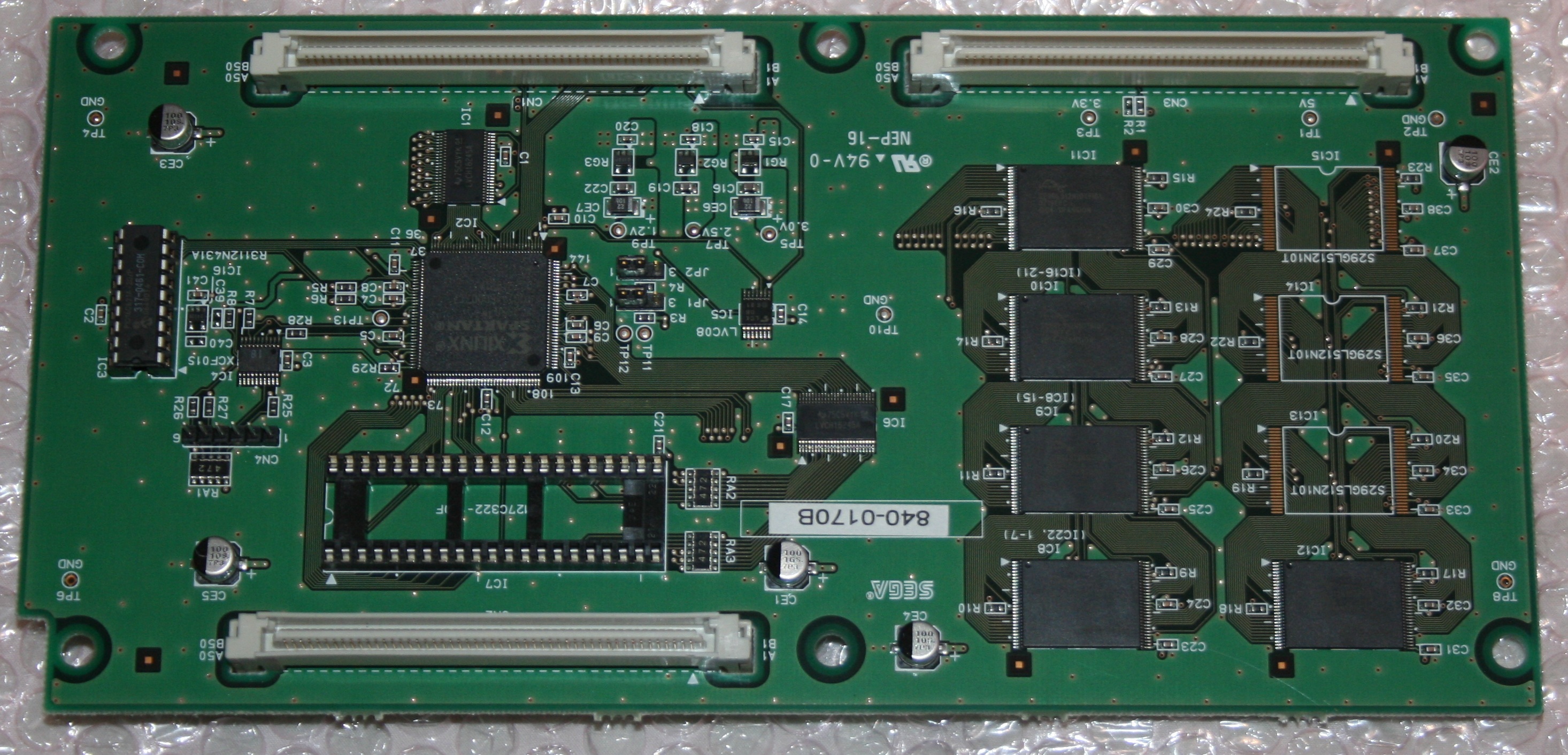

PCB component side 2
-

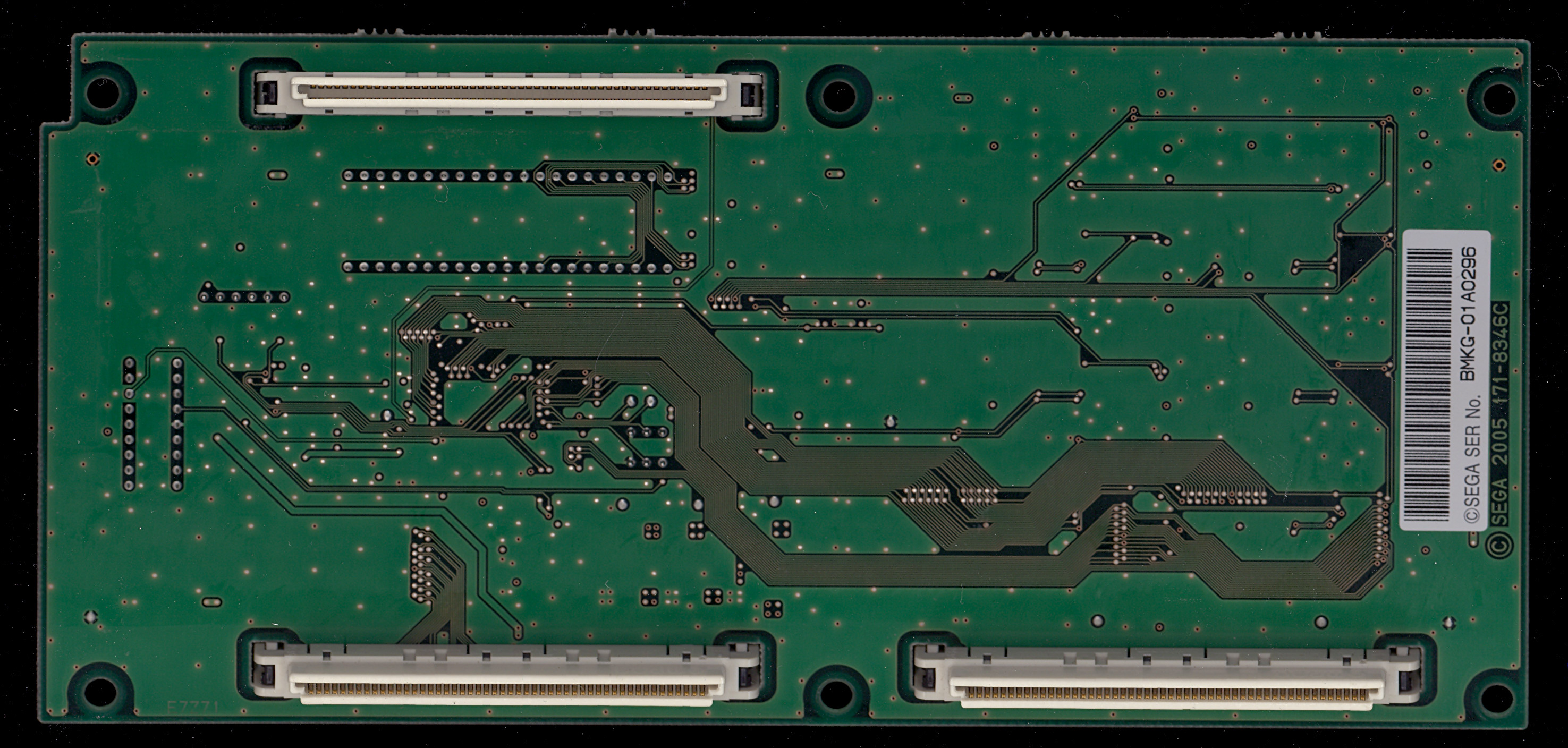

PCB solder side 1
-

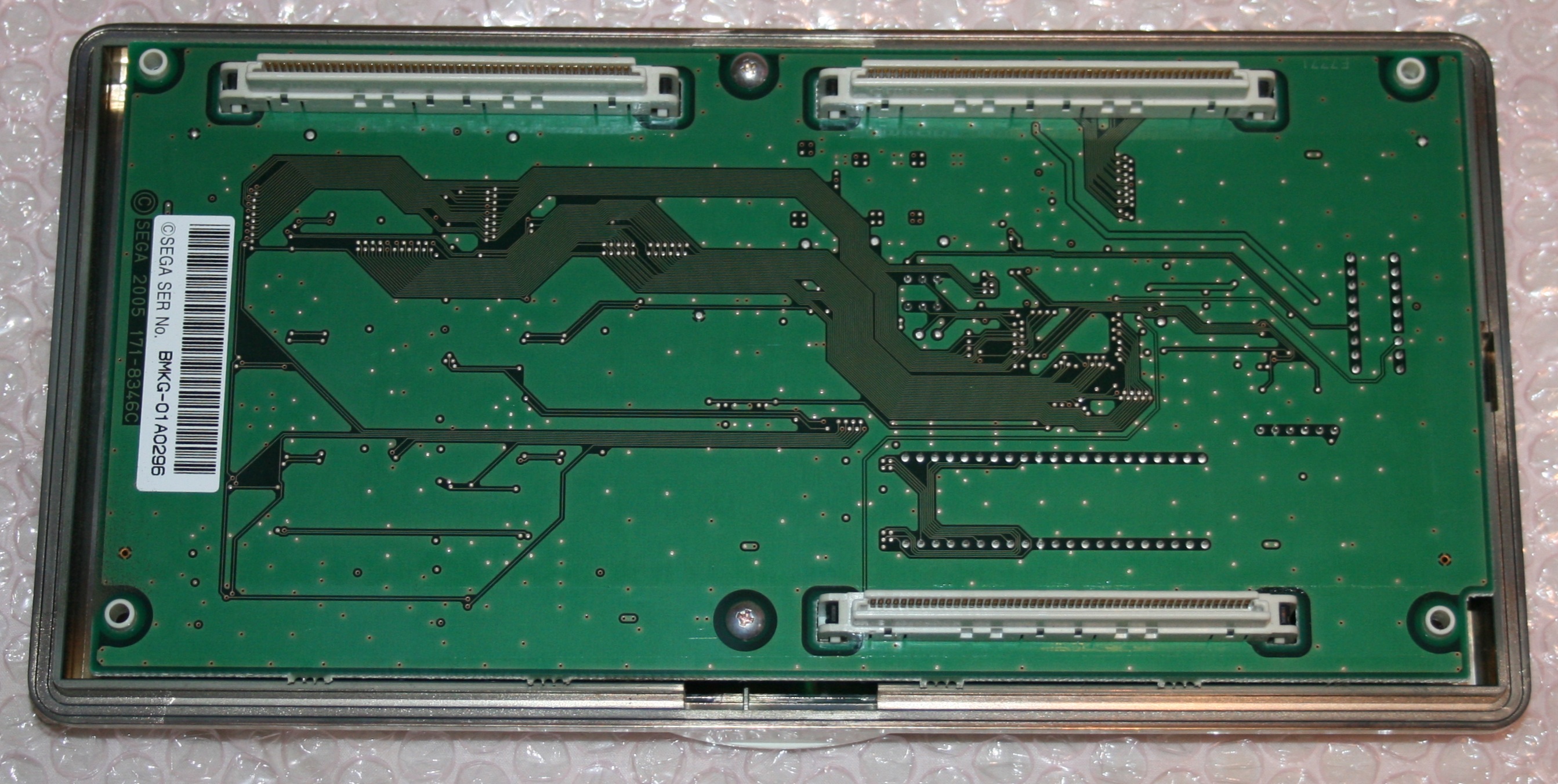

PCB solder side 2
-

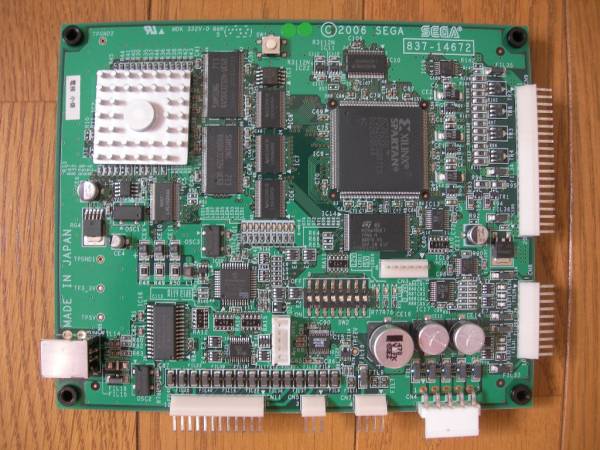

sensor
-
Readme
