Pocket Simon (Rev. C)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 26/09/2016 |
| emulator | |
| dev |
| name | 1433 |
| description | Pocket Simon (Rev. C) |
| year | 1978 |
| manufacturer | Milton Bradley |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MB4850 | 4-bit Microprocessor - main (internal ROM not dumped) |
ROMs
| QTY | Type | position | status |
|---|
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
1x SN75494N (Hex Digit Driver)
4x gameplay buttons (Red, Green, Blue, Yellow)
3x control buttons (Ultima, Partenza, Piu lunga)
2x 4 positions sliders (Off, Gioco 1-2-3 - Abilita 1-2-3-4)
Notes
Working
Reference site: WaitingForFriday
Files
-

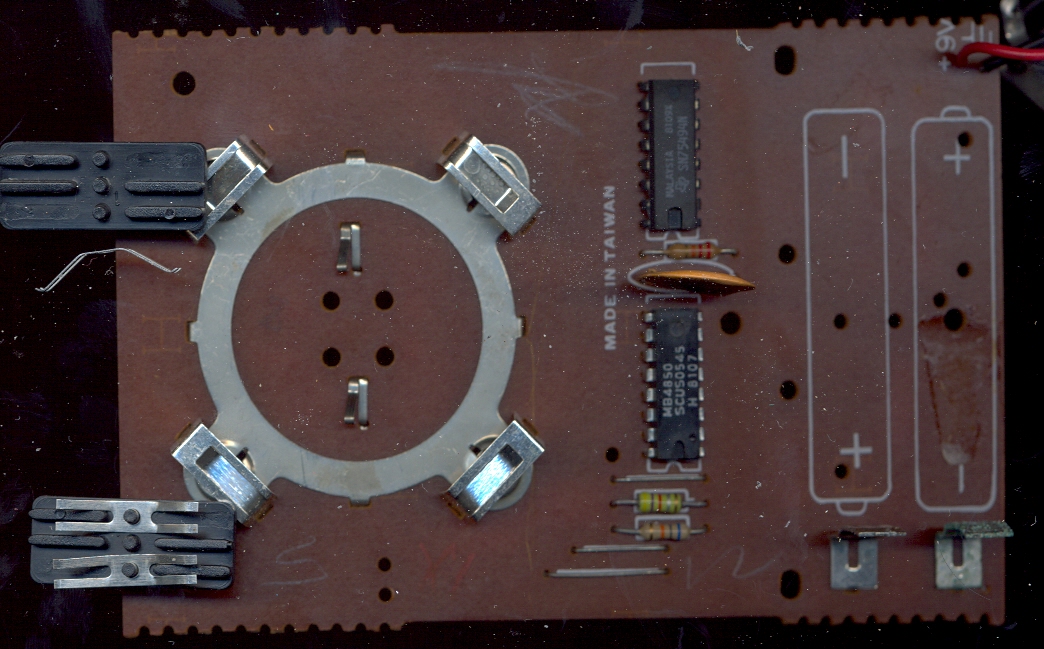

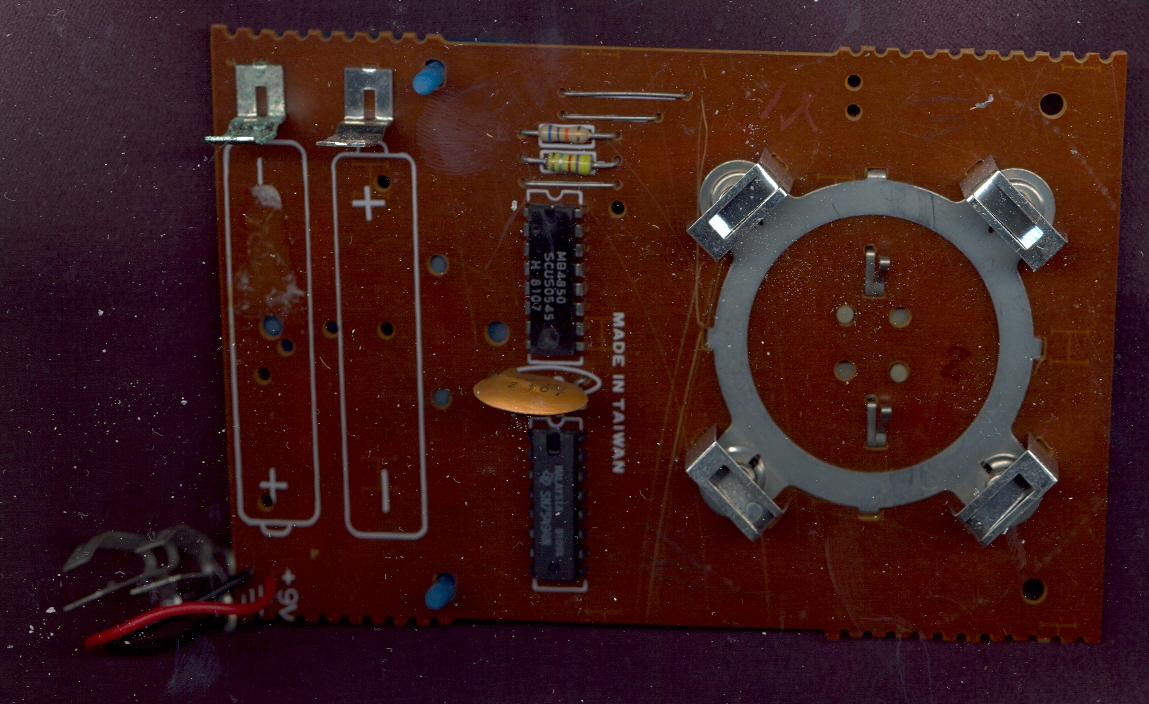

PCB component side 1
-
PCB component side 2
-

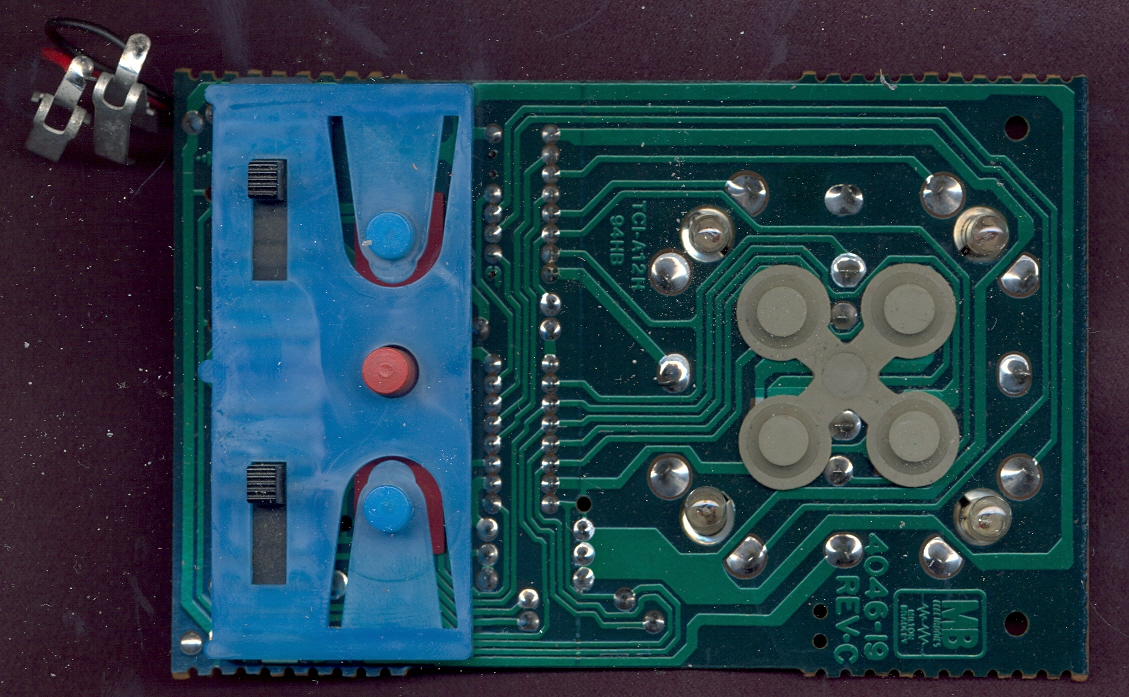

PCB solder side
-

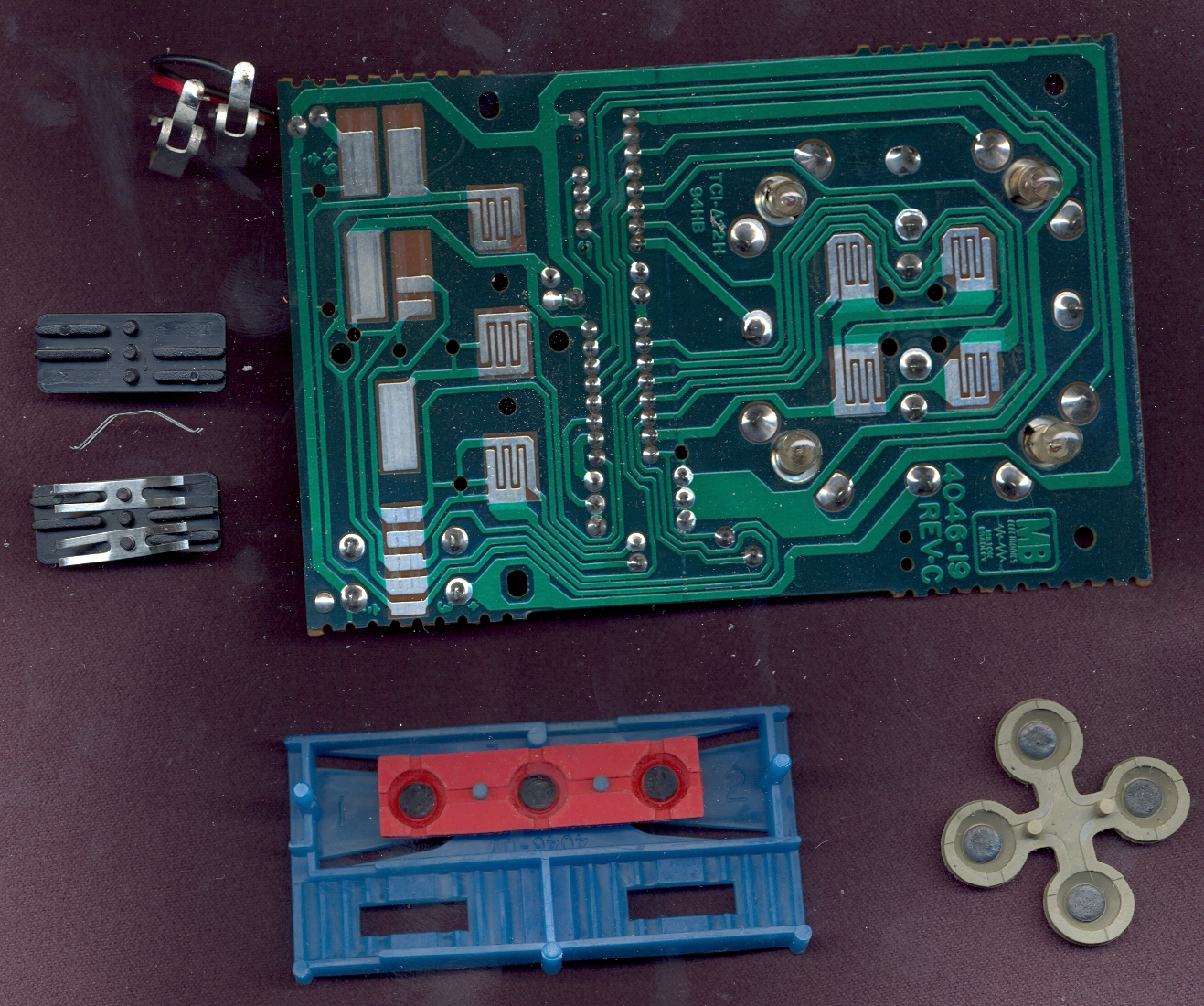

PCB solder side disassembled
-

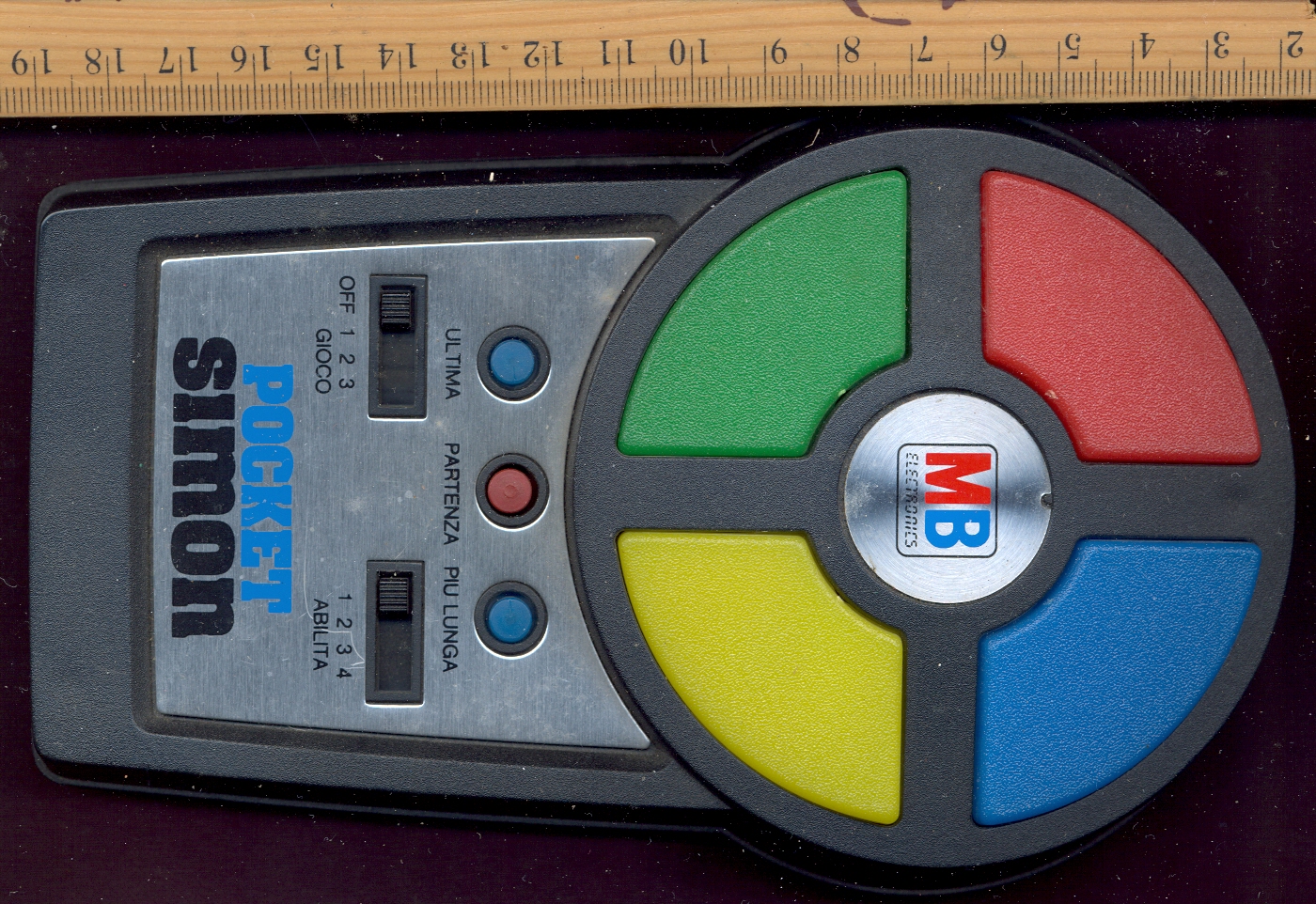

case top
-

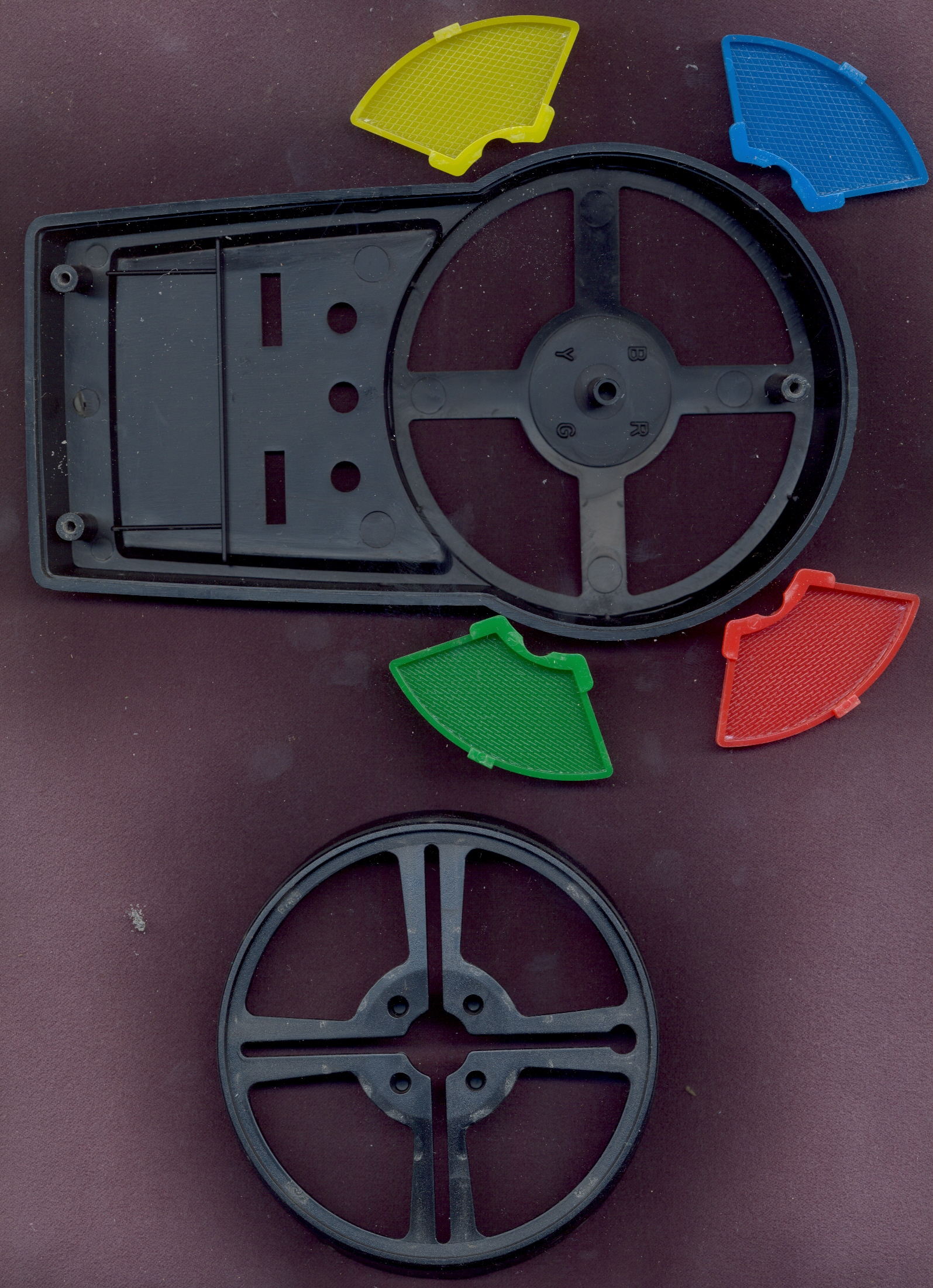

case top disassembled
-

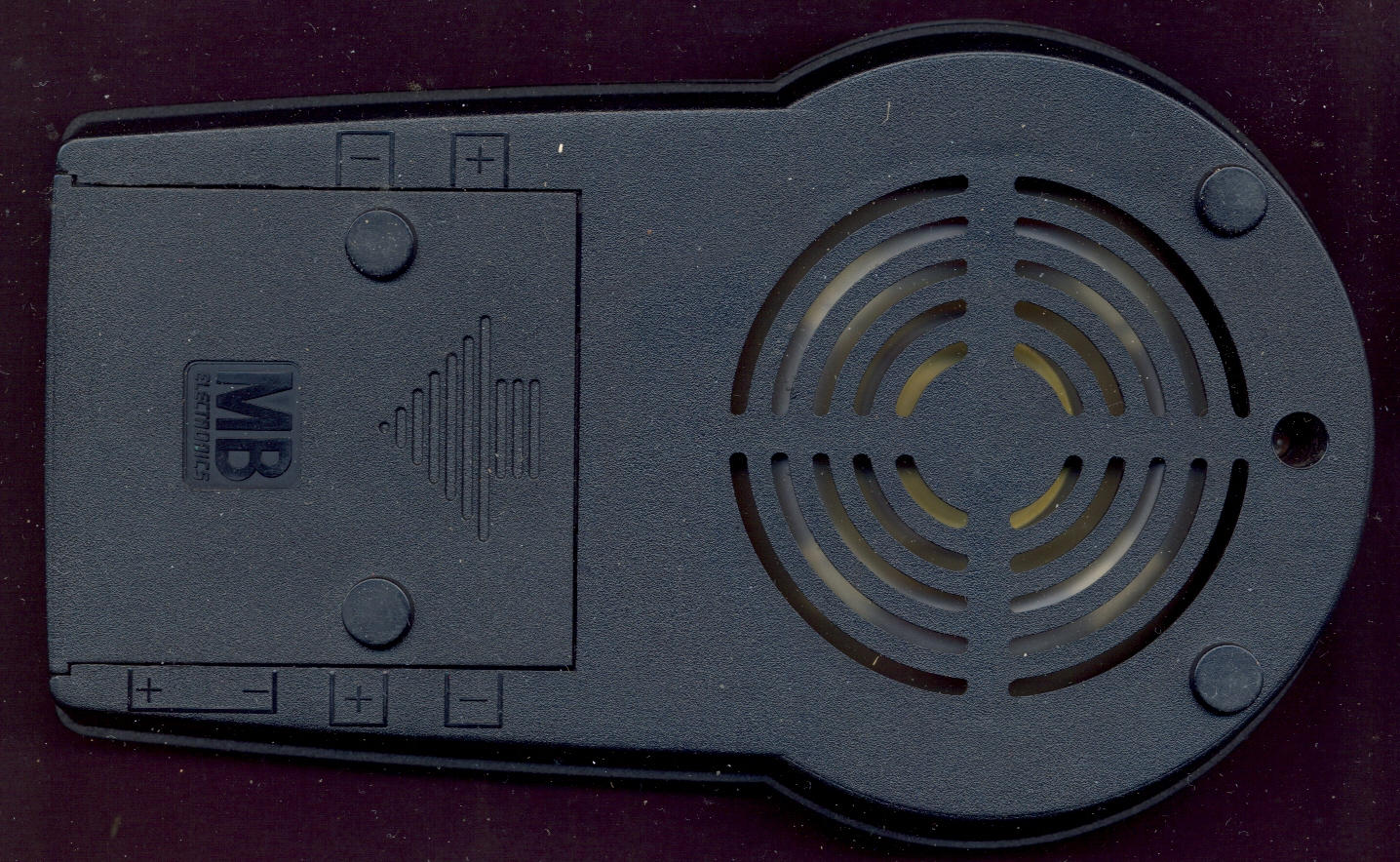

case bottom
-

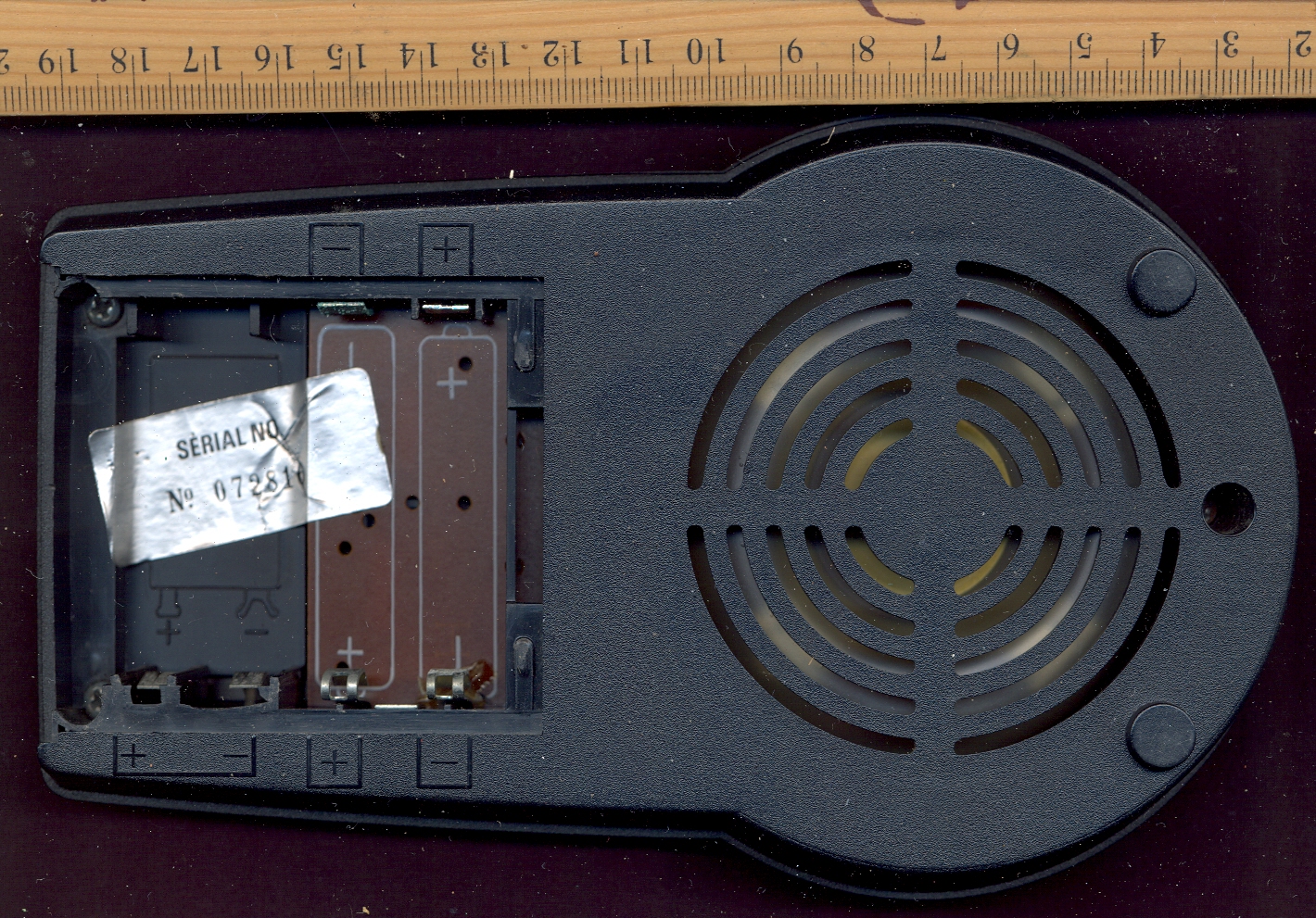

case bottom open
-

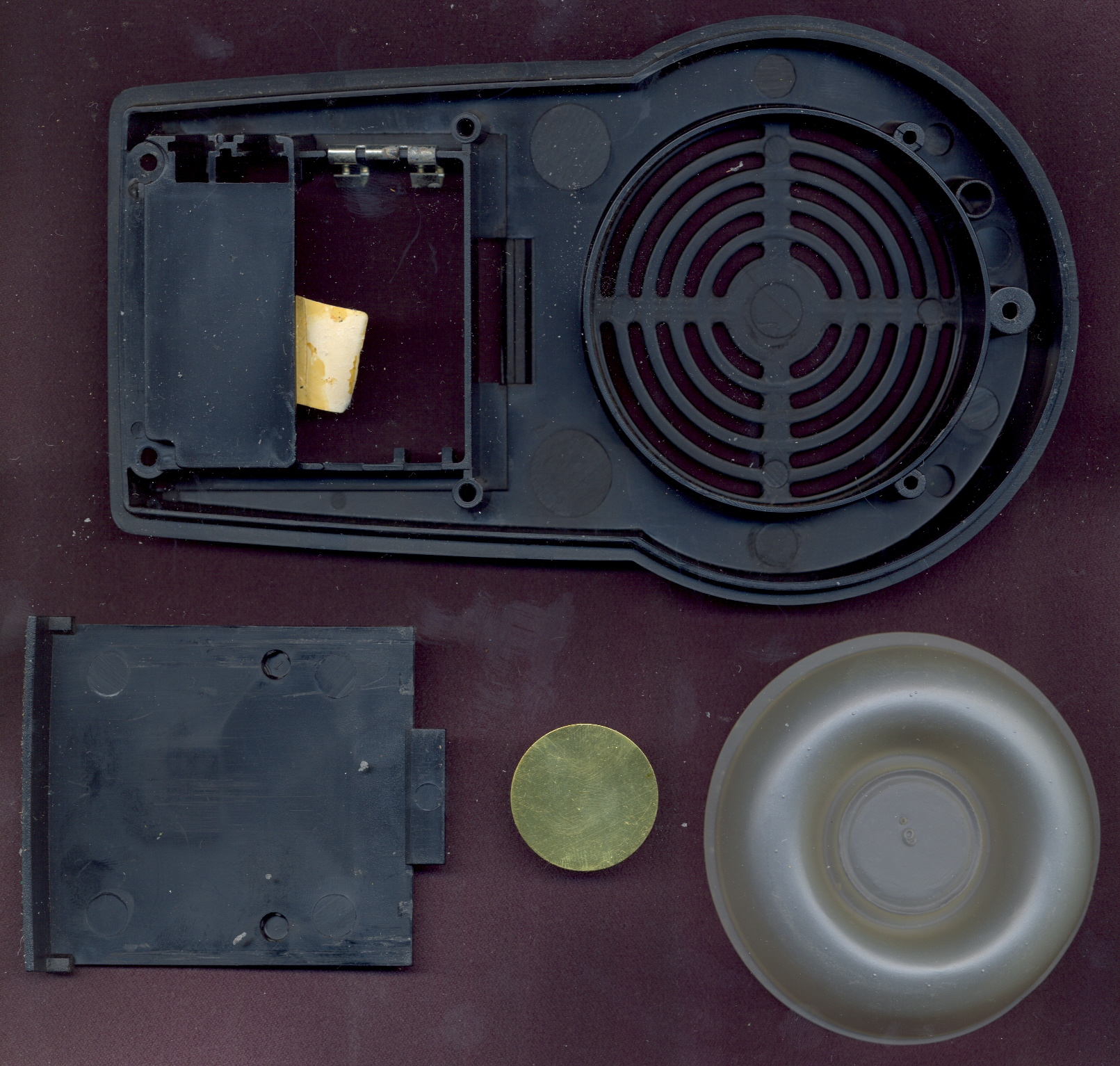

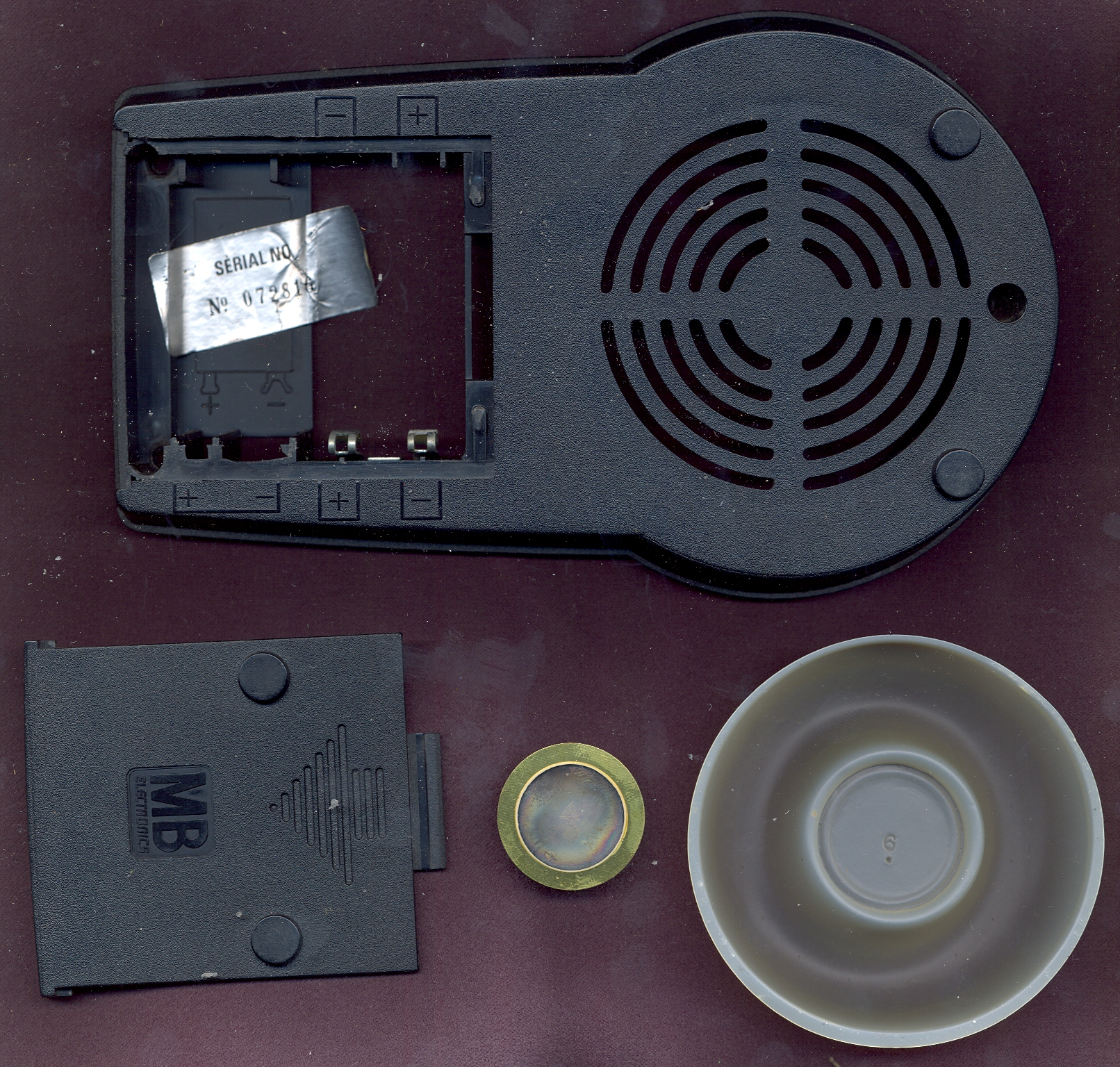

case bottom disassembled 1
-
case bottom disassembled 2
-

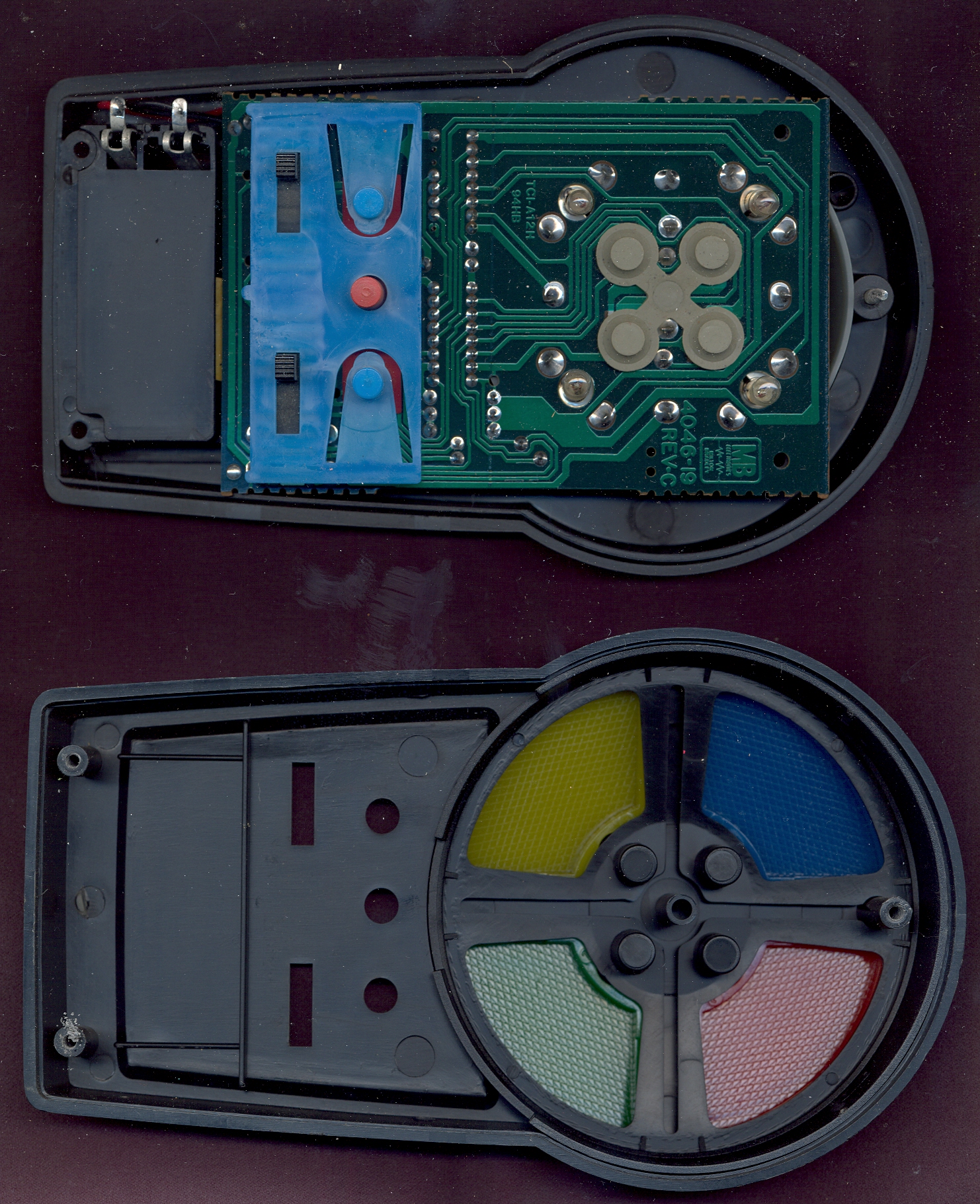

case open 1
-

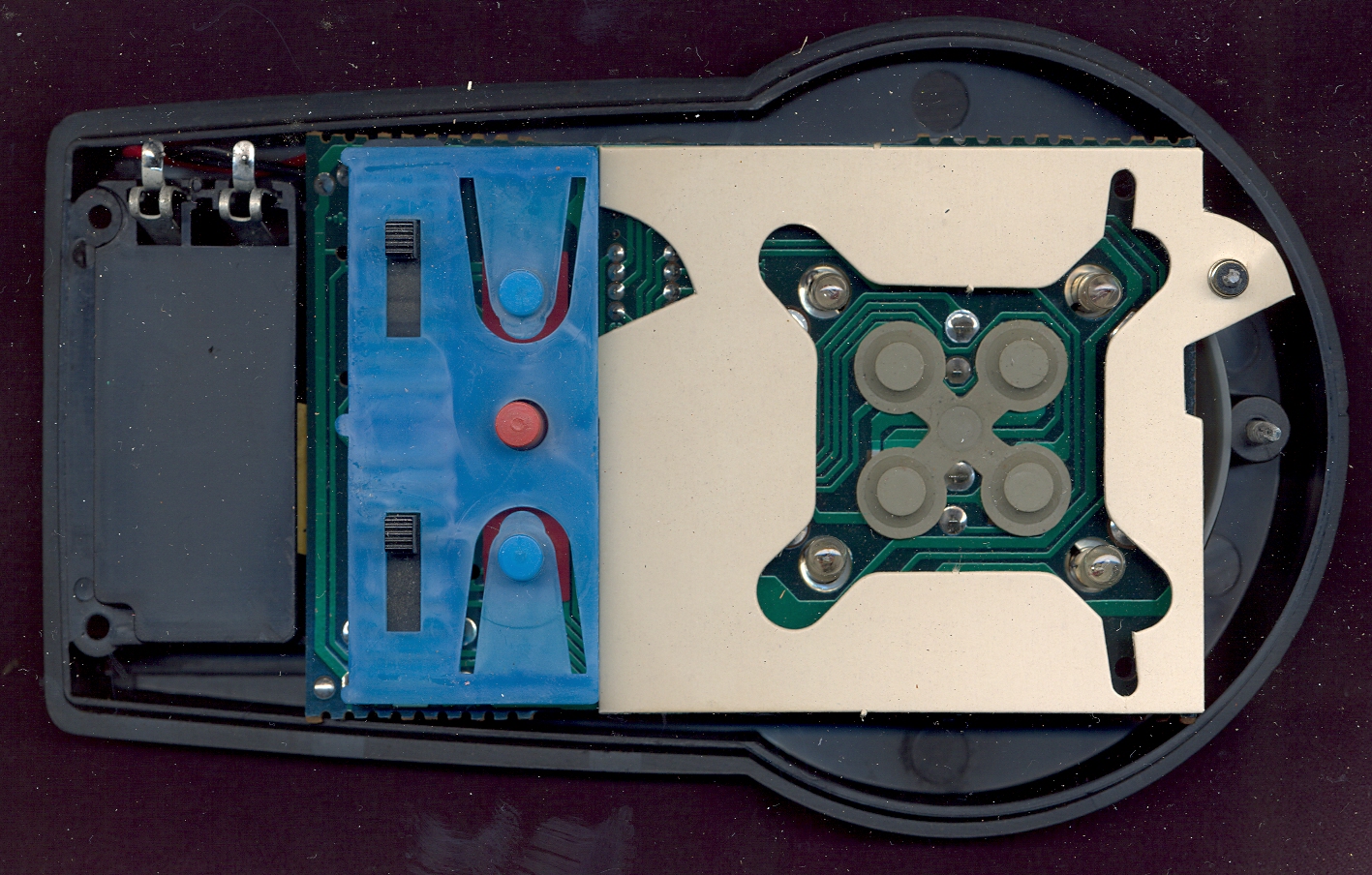

case open 2
1433
