Pocket Gal Deluxe (Europe v3.00)
From Citylan
Jump to navigationJump to search
| dumper | f205v, Corrado Tomaselli |
| date | 12/04/2005 |
| emulator | MAME 0.95u4 |
| dev | Corrado Tomaselli |
| name | pktgaldx on Arcade Database |
| description | Pocket Gal Deluxe (Europe v3.00) |
| year | 1992.12.14 |
| manufacturer | IGS |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | DECO 52 9223EV-211731-VC5259-0001 | |||
| 1x | DECO 56 24220F005-9143EAI | |||
| 1x | DECO 71 9228EV-313141 | |||
| 1x | DECO 102 237 | |||
| 1x | DECO 104 L7A_717-9145 | |||
| 1x | DECO 153 L7AC68B-9244 | |||
| 2x | M6295 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
| 1x | MB3730 | - | Audio Amplifier - sound | |
| 1x | oscillator | 32.220MHz | osc2 | |
| 1x | oscillator | 28.000MHz | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TMS27C010A | ke01 | dumped |
| 1x | HN27C4096G | ke00 | dumped |
| 2x | 27040 | maz00,maz01 | dumped |
| 1x | 27080 | maz02 | dumped |
| 1x | 27080 | maz03 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | 6264 | |
| 2x | 62256 |
PLDs
| QTY | Type | position | status |
|---|
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
2x 8 DIP switches banks
Notes
PCB is marked: "DATA EAST TM", "DE-0378-2" and "CG-5" on component side
PCB is labelled: "14-12-92" on solder side
Files
-

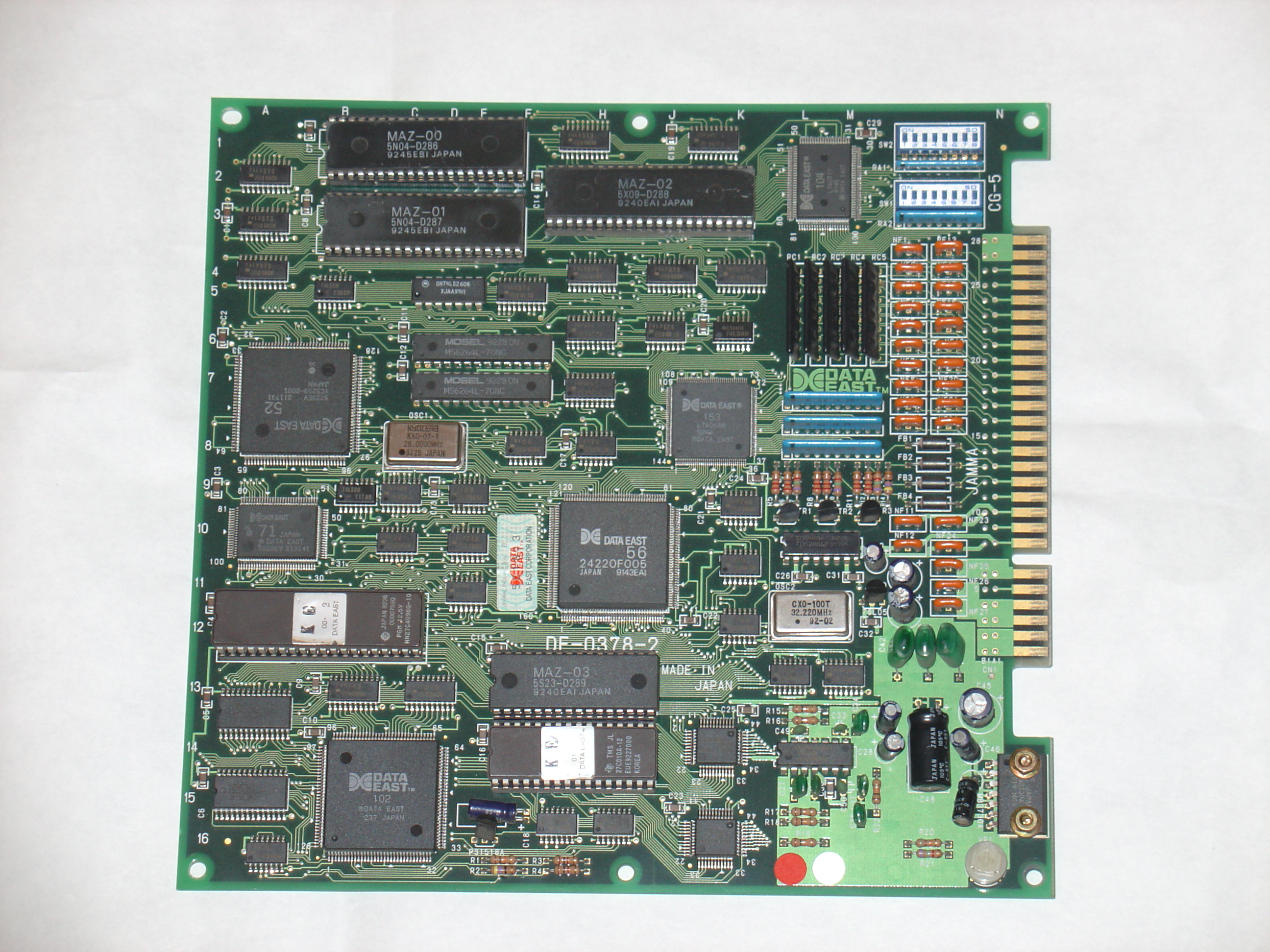

PCB component side
-

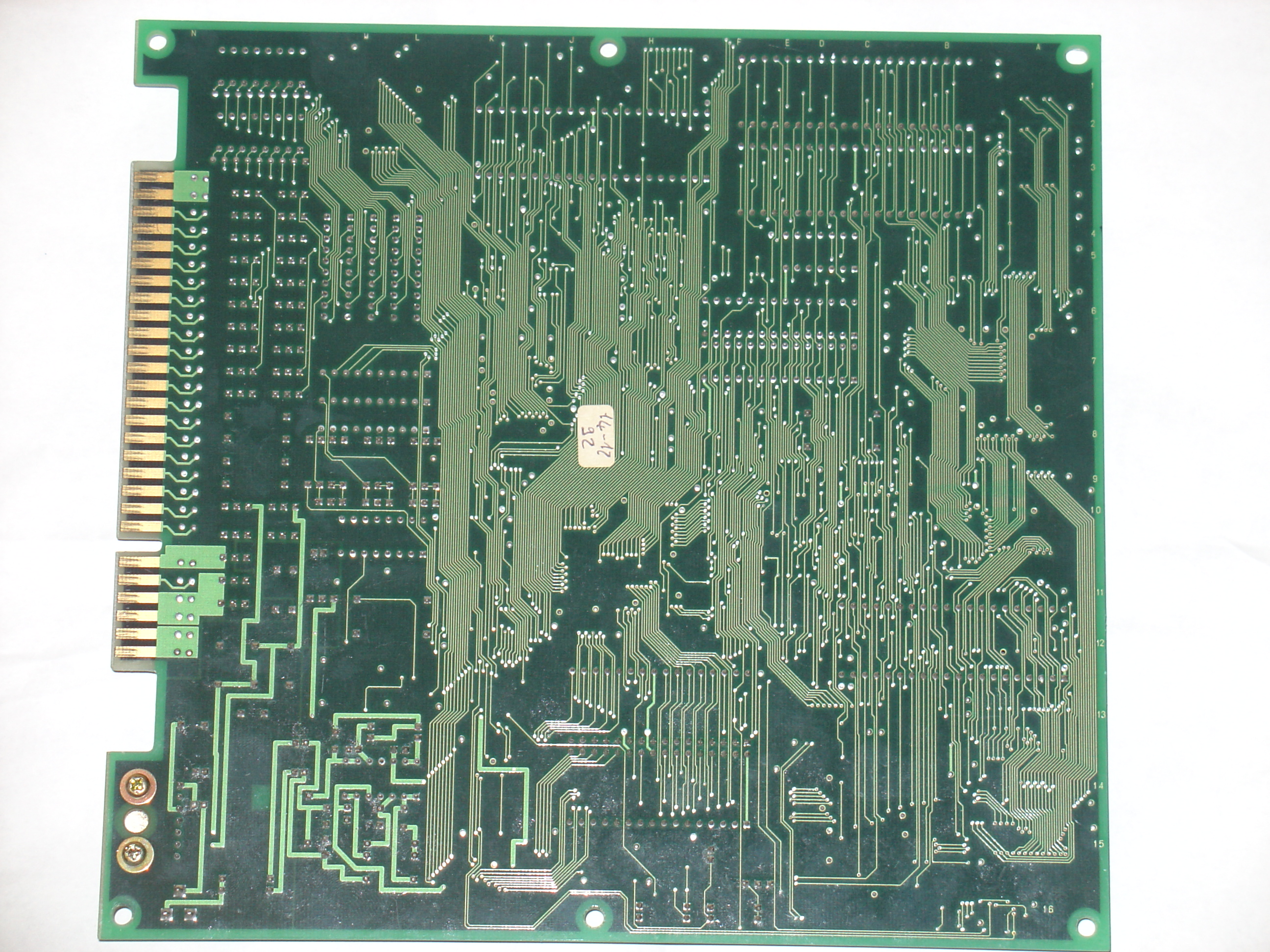

PCB solder side
-
