Pleiads (GMP Games)
From Citylan
Jump to navigationJump to search
dumper | IZ8DWF |
date | 04/06/2022 |
emulator | MAME 0.267 |
dev | Osso |
name | pleiadsgmp on Arcade Database |
description | Pleiads (GMP Games) |
year | 1981 |
manufacturer | GMP Games |
Technical references
CPUs
QTY | Type | clock | position | function |
---|
ROMs
QTY | Type | position | status |
---|
RAMs
QTY | Type | position |
---|
PLDs
QTY | Type | position | status |
---|---|---|---|
0x |
Others
Notes
main PCB is marked: "NOV-3" and "TIM-8001" on component side
ROMs PCB is marked: "TIM-8002" on component side
very similar to Pleiads (Famaresa, Spanish bootleg) already in MAME
update 20240606: redumped ic49
update 20240611: added PCB pics
Files
-

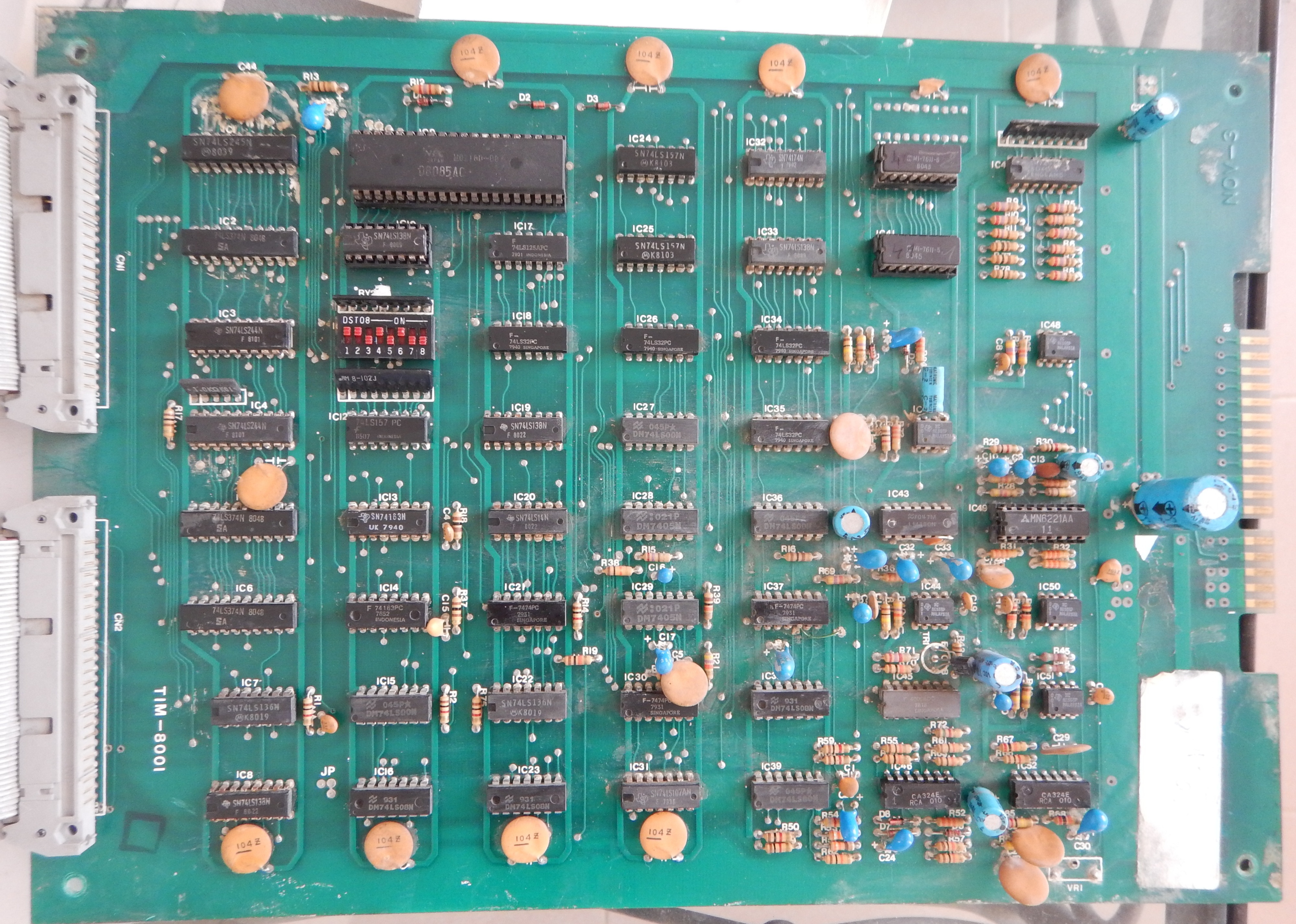

main PCB component side
-

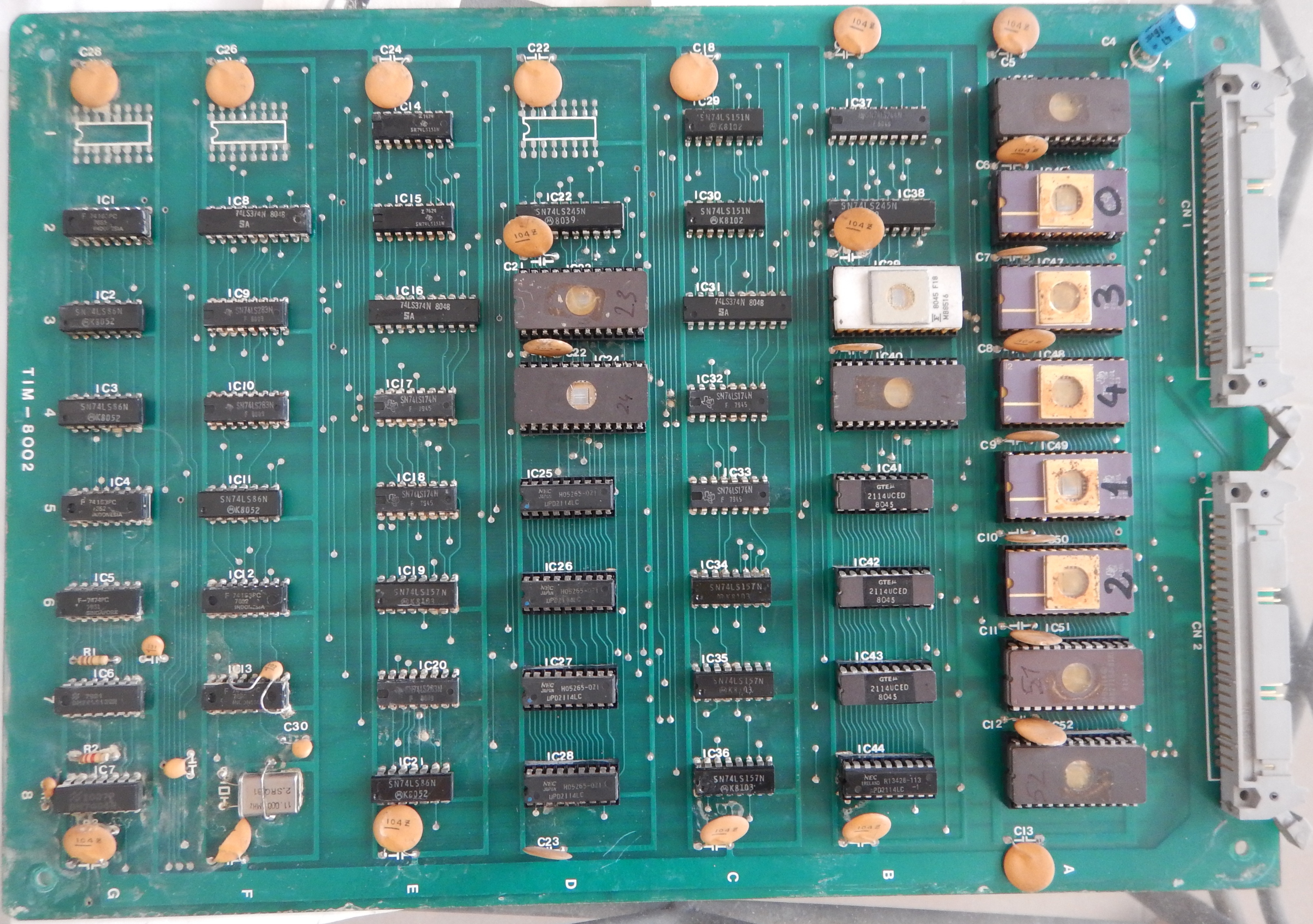

ROMs PCB component side
-

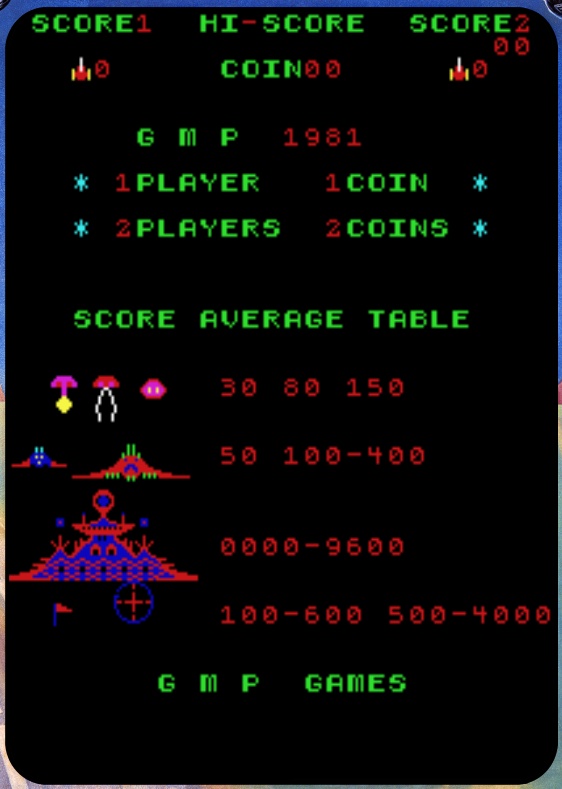

Title
