Play 2000 (Super Slot & Gran Tesoro) (v5.01) (Italy)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| dump date | 15/02/2009 |
| emulator | MAME 0.129u5 |
| dev | f205v |
| name | play2000a on Arcade Database |
| description | Play 2000 (Super Slot & Gran Tesoro) (v5.01) (Italy) |
| year | 1999 |
| manufacturer | Nova Desitec |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68HC000FN12 | u18 | 16/32-bit Microprocessor - main | |
| 1x | CG-1V-149 | u42 | sound/gfx? maybe the same as Gaelco | |
| 1x | DALLAS DS5002FP | u44 | Secure Microprocessor Chip - not dumped | |
| 1x | TDA1543 | u20 | D/A Converter (DAC) - sound | |
| 1x | LM358N | u7 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | u1 | Audio Amplifier - sound | |
| 1x | oscillator | 34.000MHz | xtal1 | |
| 1x | oscillator | 11.0592MHz | xtal2 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | AM27C010 | u39,u40 | dumped, bad |
| 4x | NM27C040Q | u50,u52,u53,u54 | dumped |
| 1x | M27C801 | u51 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 6x | CY7C199 | u22,u23,u26,u27,u55,u56 |
| 2x | KM428C256TR | u37,u41 (Video RAM) |
| 1x | GM76C256CLLFW70 | u47 close to Dallas |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | unknown (DIP20 mil300) | u12 | read protected -> extracted with CmD's PALdumper - resulting file is under further investigation |
| 1x | PALCE16V8H | u28 | read protected -> extracted with CmD's PALdumper - it's registered |
| 1x | PALCE16V8H | u29 | read protected -> extracted with CmD's PALdumper |
Others
1x 28x2 edge connector
1x 2 legs connector (jp1)
1x 4 legs connector (jp2)
1x 12 legs connector (jp3)
1x 5 legs connector (jp4)
1x RS232 connector
1x trimmer (volume)
1x battery 3V (bt1)
Notes
Not working
Files
-

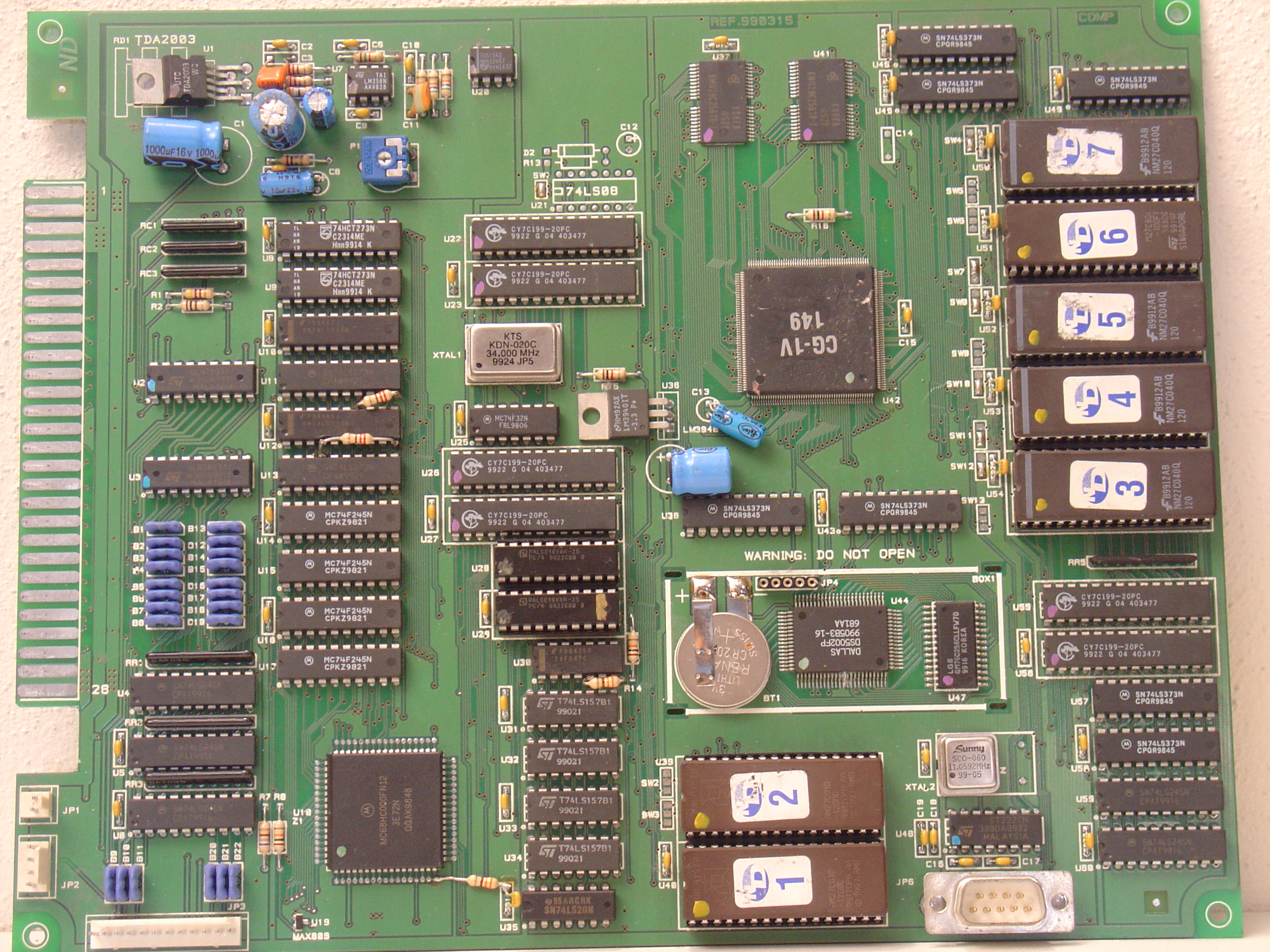

PCB component side
-

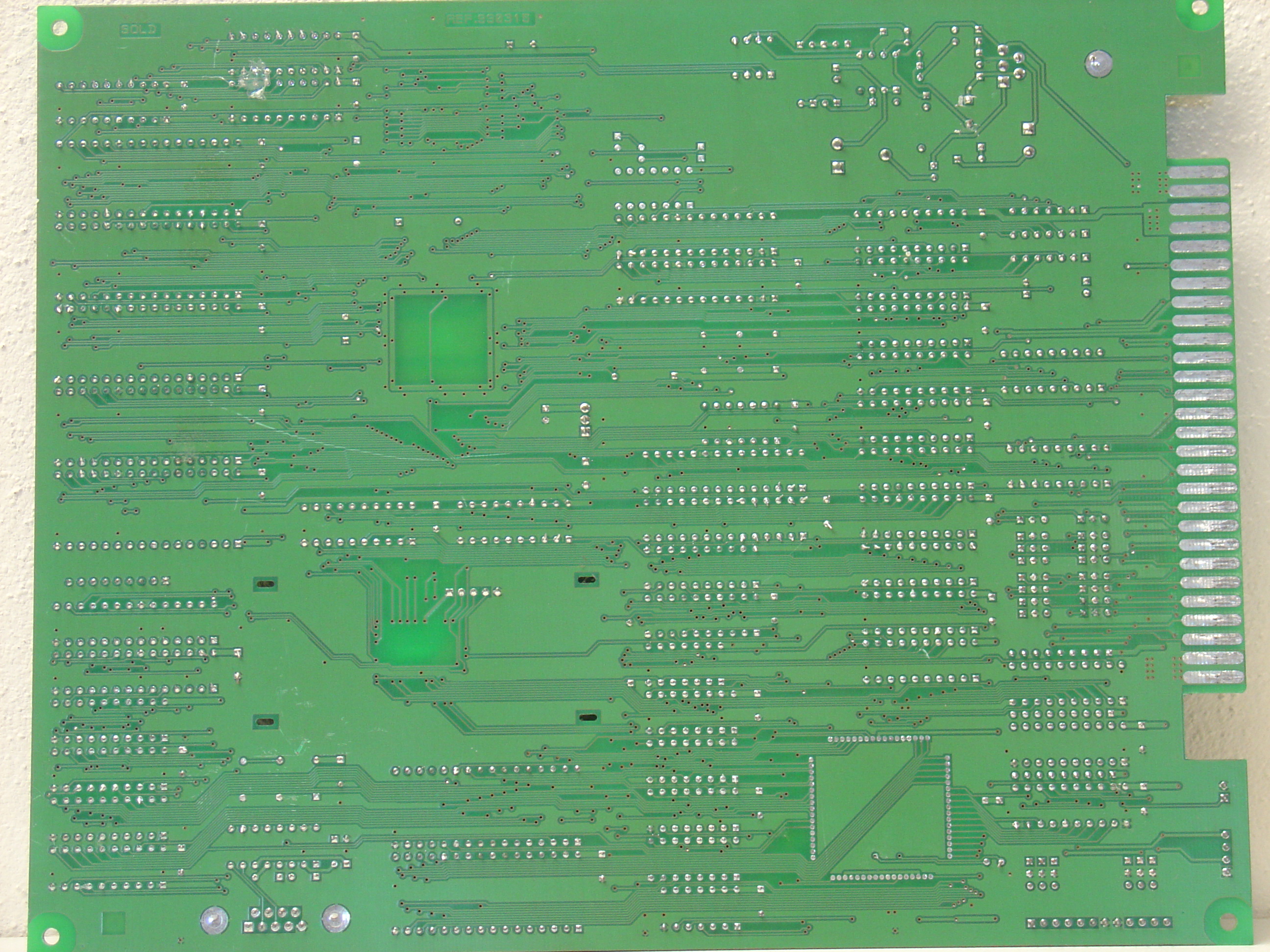

PCB solder side
