Phoenix (Amstar, different music)
From Citylan
Jump to navigationJump to search
| dumper | f205v, Antro |
| date | 04/02/2012 |
| emulator | |
| dev |
| name | 1008 |
| description | Phoenix (Amstar, different music) |
| year | 1980 |
| manufacturer | Amstar |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 8085 | ic9 | 8-bit Microprocessor - main | |
| 1x | MN6221AB | ic49 | Melody-Alarm Generator - sound (Internal ROM not dumped) |
ROMs
| QTY | Type | position | status |
|---|
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
This is interesting! This PCB has a different background music then the usual Phoenix we all know and love. The background music is "Greensleeves" (google it).
The only difference I can see from a "normal" Phoenix PCB is the MN6221AB instead of the MN6221AA.
Same music as Assa (phoenix bootleg, different music)
Files
-

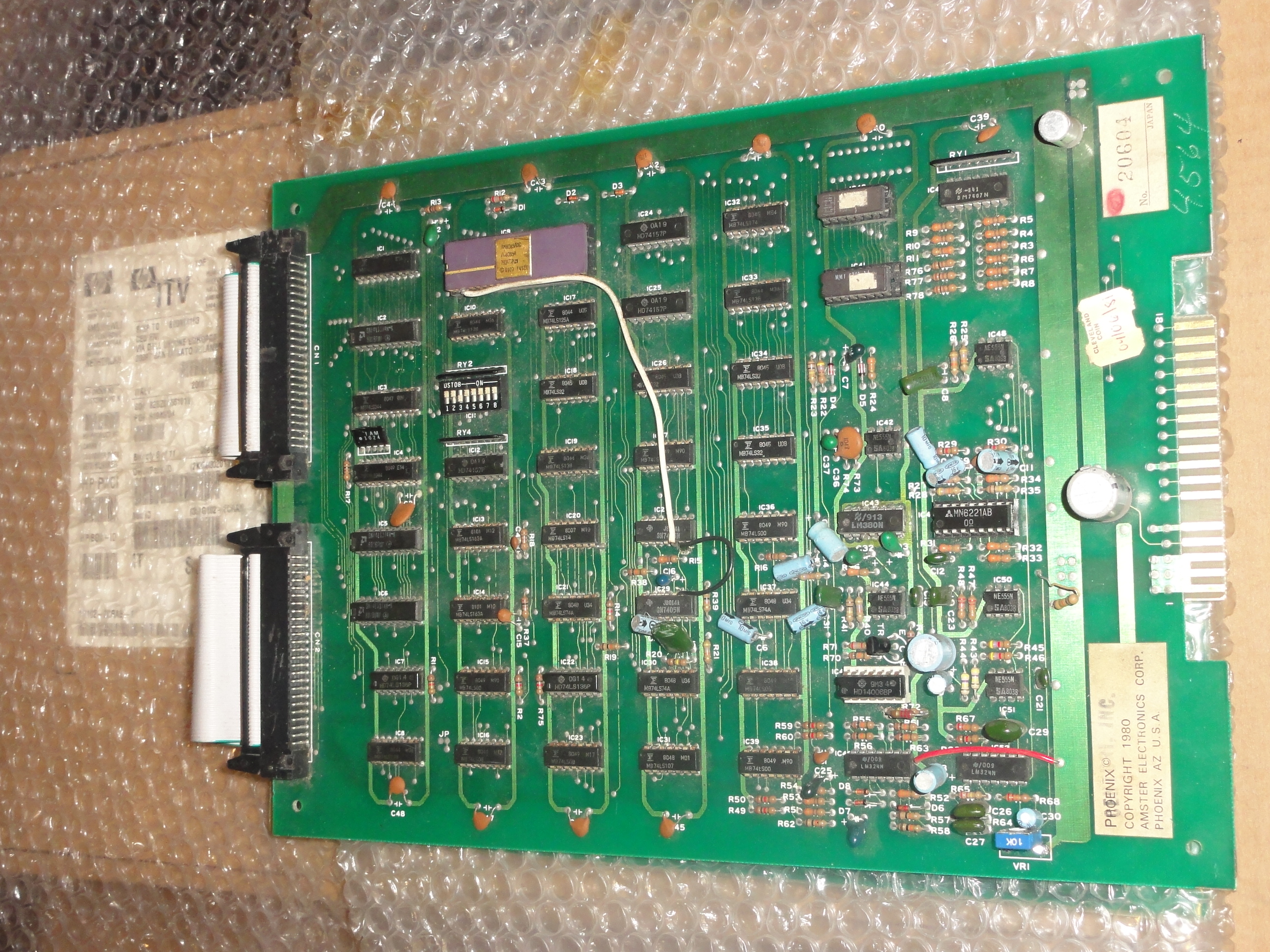

PCB component side
-

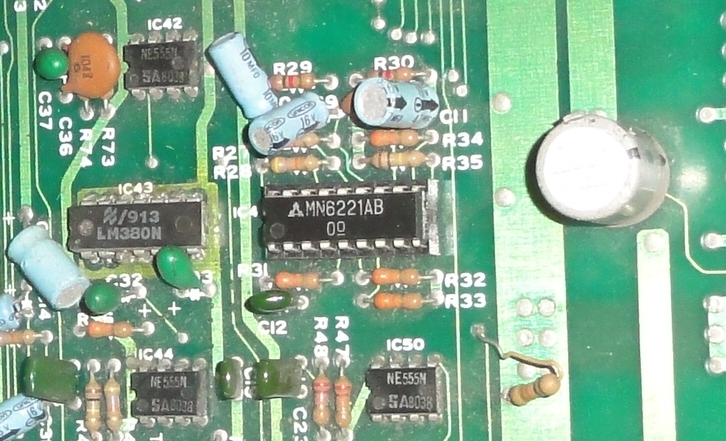

PCB component side detail
