Passing Shot (World, 4 Players) (FD1094 317-0074)
| dumper | f205v |
| date | 24/12/2005 |
| emulator | MAME 0.103 |
| dev | MAME Italia forum |
| name | passshta on ProgettoEMMA passshta on Arcade Database |
| description | Passing Shot (World, 4 Players) (FD1094 317-0074) |
| year | 1988 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | FD1094 317-0074 | main PCB 6c | Microprocessor - main | |
| 1x | LH0080BZ80B-CPU | main PCB 15d | 8-bit Microprocessor - sound | |
| 1x | YM2151 | main PCB 12d | FM Operator Type-M (OPM) - sound | |
| 1x | D7759C | main PCB 17d | ADPCM Speech Synthesizer LSIs - sound | |
| 1x | Y3012 | main PCB 18d | D/A Converter (DAC) - sound | |
| 2x | LM324N | main PCB 20c,20d | Quad Operational Amplifier - sound | |
| 1x | TDA2003 | main PCB 18b | Audio Amplifier - sound | |
| 1x | oscillator | 20.000MHz | main PCB 1b OSC1 | |
| 1x | oscillator | 8.000MHz | main PCB 13e OSC2 | |
| 1x | oscillator | 25.174MHz | main PCB 1g OSC3 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 10x | AM27512DC | ROMs PCB 5,8,16,17,18,20,22,24,25,26 | dumped |
| 1x | TMM27512D | ROMs PCB 21 | dumped |
| 2x | D27256 | ROMs PCB 11,12 | dumped |
| 3x | NMC27C256Q | ROMs PCB 13,14,15 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 6x | TMM2018D-45 | main PCB 2g,3g,4g,5g,6h,7h |
| 5x | TMM2115BP-10 | main PCB 9j,10j,14,d15h,16h |
| 2x | TC5565APL-12 | main PCB 9e,11e |
| 2x | D42832C-12L | main PCB 13h,13j |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | SEGA 315-5195 Memory Mapper | main PCB 2d | read protected |
| 1x | SEGA 315-5196 Sprite Generator | main PCB 2h | read protected |
| 1x | SEGA 315-5197 Tilemap generator | main PCB 18h | read protected |
| 1x | 315-5214 | main PCB 13f | (is it a PAL? - no markings) |
| 1x | PAL16R6LPC 315-5213 | main PCB | read protected |
Others
1x 28x2 edge connector (main PCB)
4x 50 pins flat cable connector from main PCB (CN1,CN2,CN3,CN4) to ROMs PCB (CN1,CN2,CN3,CN4)
1x 30 pins flat cable connector from main PCB (CN5) to piggyback PCB (CN2)
1x 40 pins flat cable connector from piggyback PCB (CN1) to not connected
2x 8 DIP switches banks (main PCB 12c,13c)
1x trimmer (volume)(main PCB VR1 20b)
1x red LED (main PCB)
Notes
main PCB is marked: "171-5357" and "(SYSTEM 16 BTYPE)" and "SEGA MADE IN JAPAN (C)SEGA 1986"
ROMs PCB is marked: "171-5358" and "(SYSTEM 16 BTYPE)" and "SEGA MADE IN JAPAN (C)SEGA 1986"
piggyback PCB is marked: "171-5596" and "834-6523" and "SEGA MADE IN JAPAN"
on piggyback PCB there is 1x SONY CXD1095
Files
-

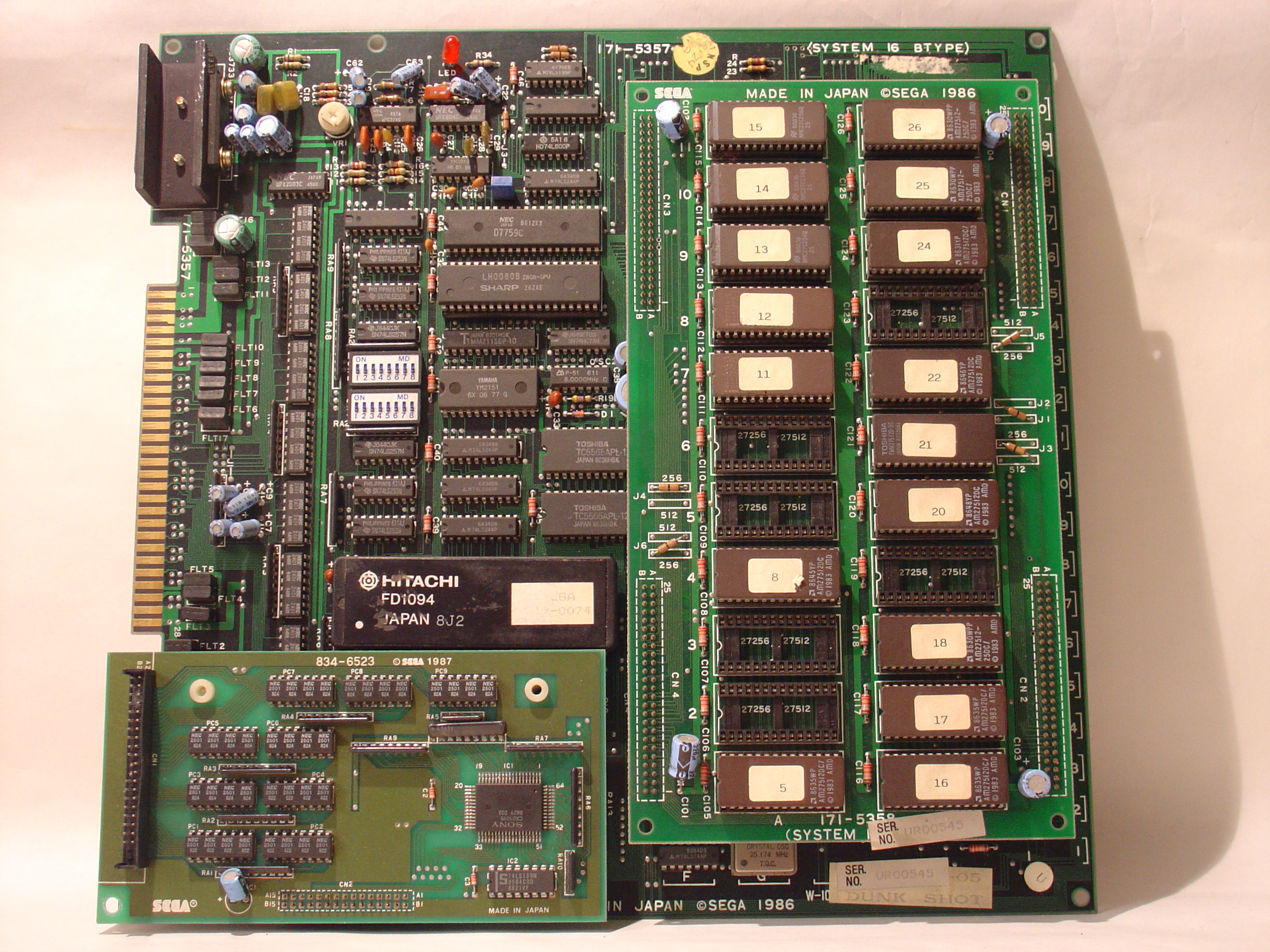

assembled PCBs component side
-

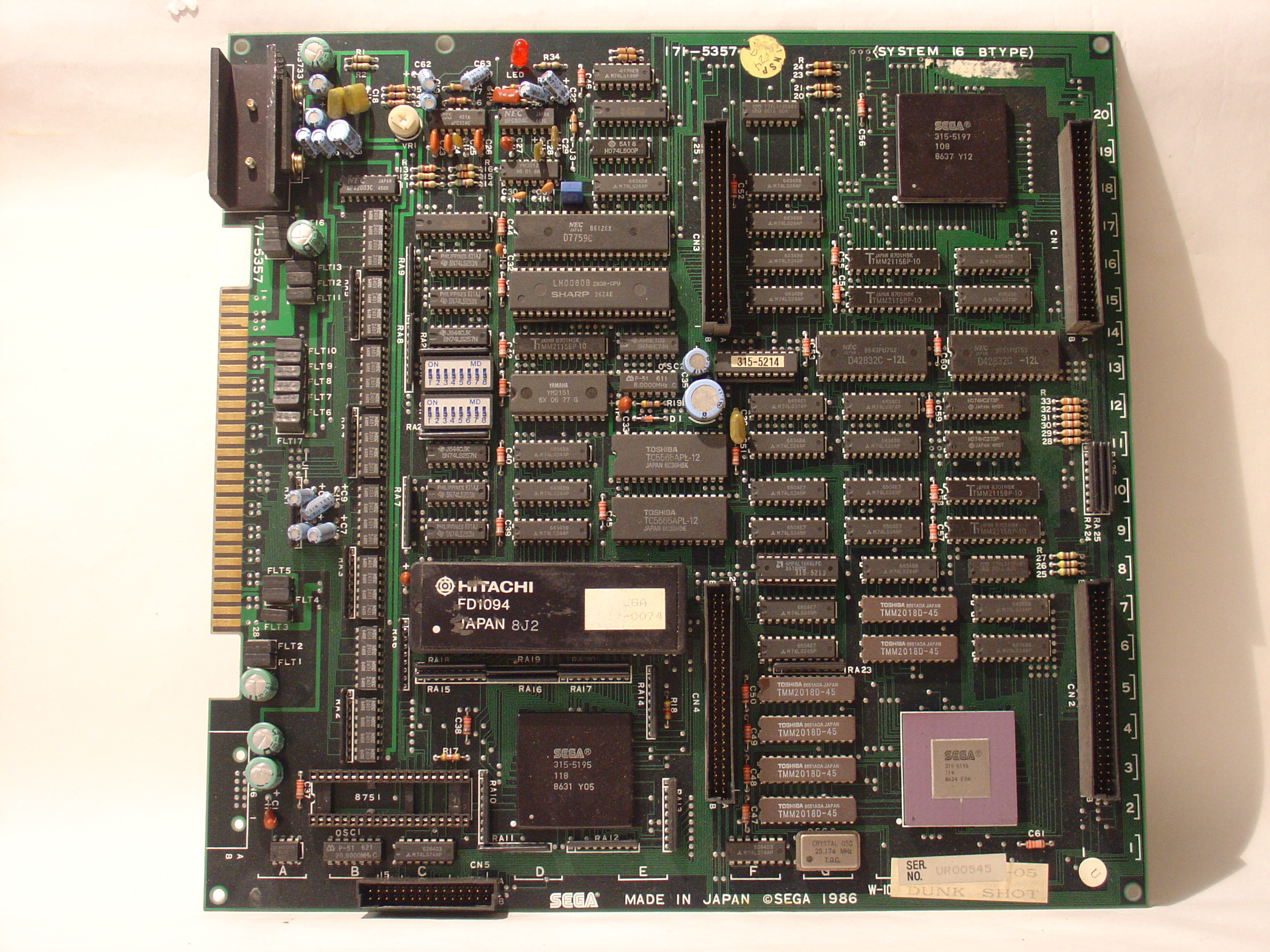

main PCB component side
-

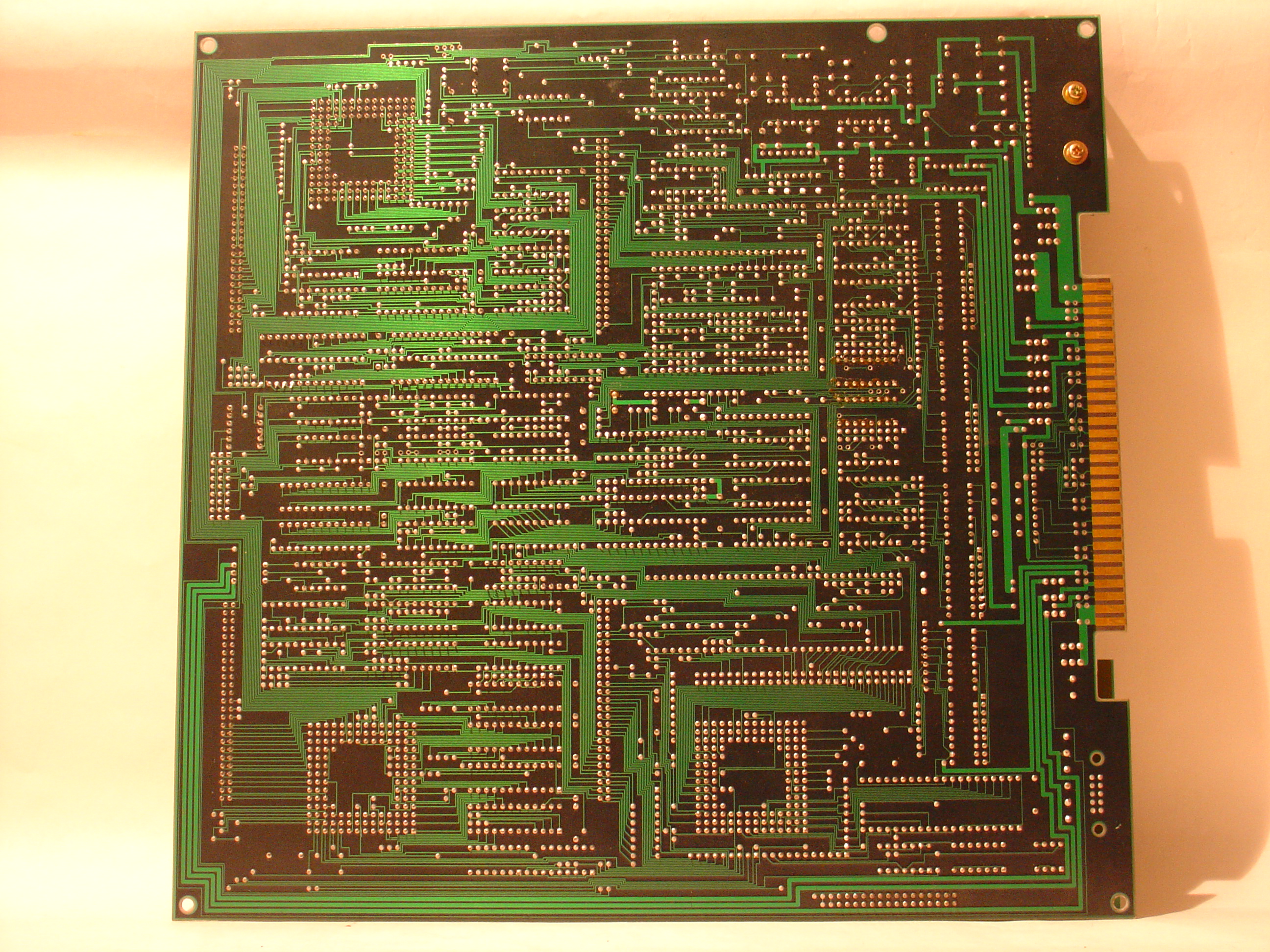

main PCB solder side
-
piggyback PCBs component side
-

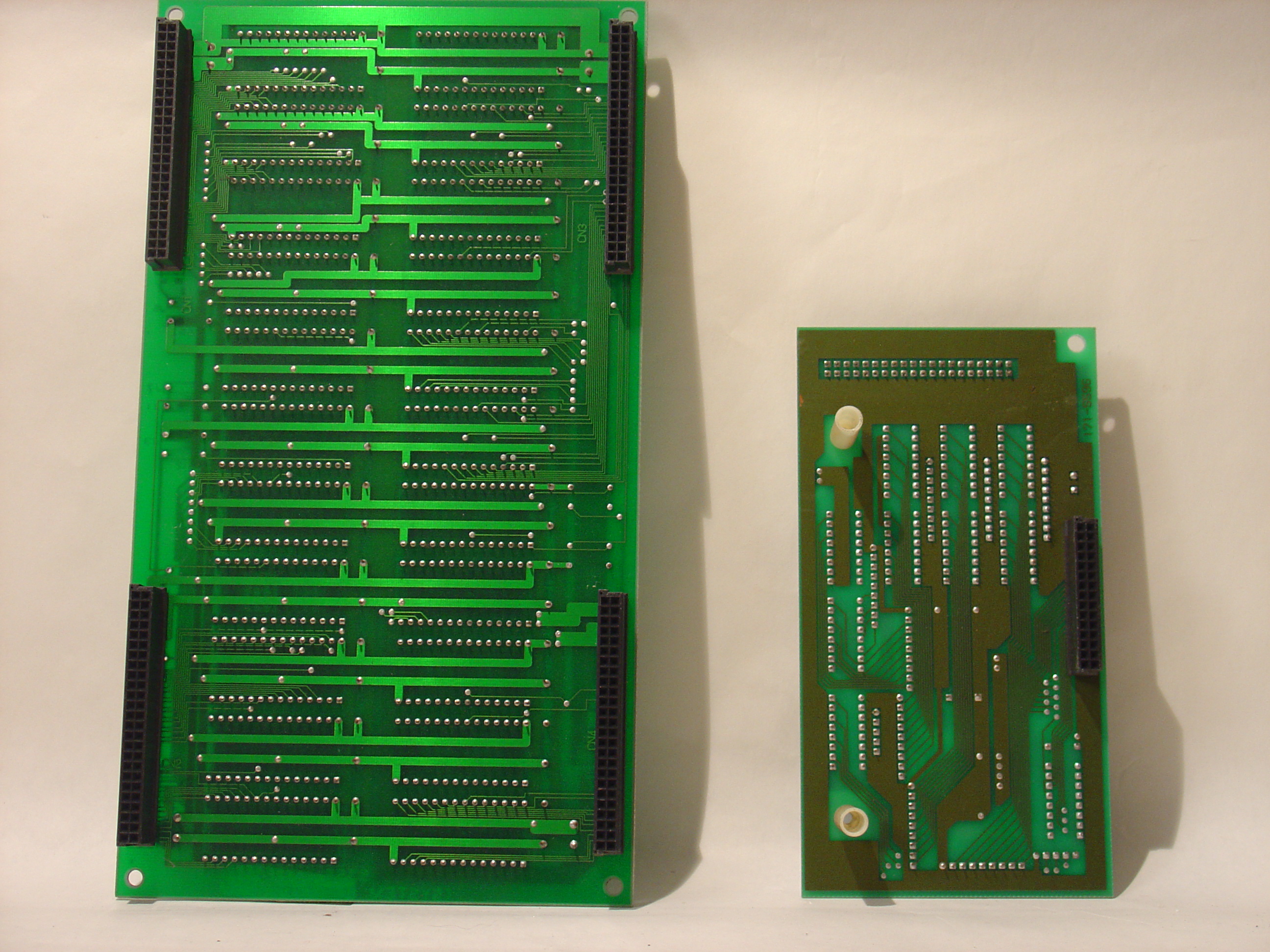

piggyback PCBs solder side
