Panda Train (Novamatic 1.7)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 10/12/2015 |
| emulator | MAME 0.169 |
| dev | Luca Elia |
| name | ptrain on ProgettoEMMA ptrain on Arcade Database |
| description | Panda Train (Novamatic 1.7) |
| year | 1999 |
| manufacturer | Subsino |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | AM188EM-20KC | u10 | 8-bit Microprocessor - main | |
| 1x | Subsino SS9601 9901WK002 | u16 | Video | |
| 1x | Subsino SS9802 | u1 | Video | |
| 1x | Subsino SS9803 | u29 | Video | |
| 1x | U6295 | u6 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM324 | u8 | Quad Operational Amplifier - sound | |
| 1x | TDA1519 | u9 | Audio Amplifier - sound | |
| 1x | oscillator | 20.000MHz | osc20 | |
| 1x | oscillator | 12.000MHz | osc12 | |
| 1x | oscillator | 8.4672 | x1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TMS27C020 | 1 | dumped |
| 5x | TMS27C040 | 2-6 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | MB84256C-10L | u13 |
| 2x | HM62H256DK-12 | u21 u22 |
| 1x | HM86171-80 | u26 |
PLDs
| QTY | Type | position | status |
|---|
Others
1x 28x2 JAMMA edge connector
1x 36x2 edge connector
1x 10x2 edge connector
1x pushbutton (SW5)
1x trimmer (volume)(VR1)
1x 8x2 switches DIP (SW1)
1x battery 3V
Notes
It's same hardware as "X-Train (Ver. 1.3)"
Files
-

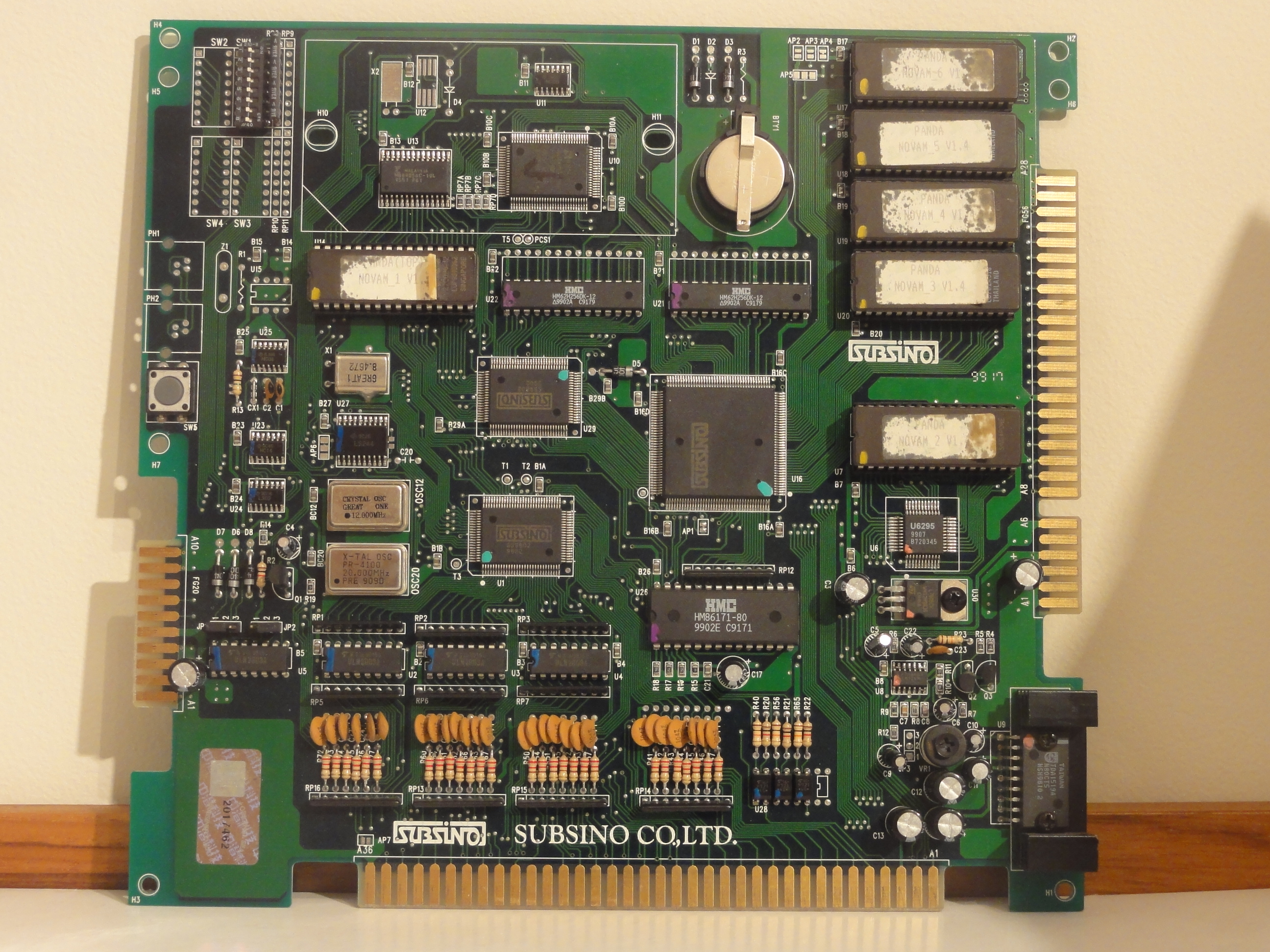

PCB component side
-

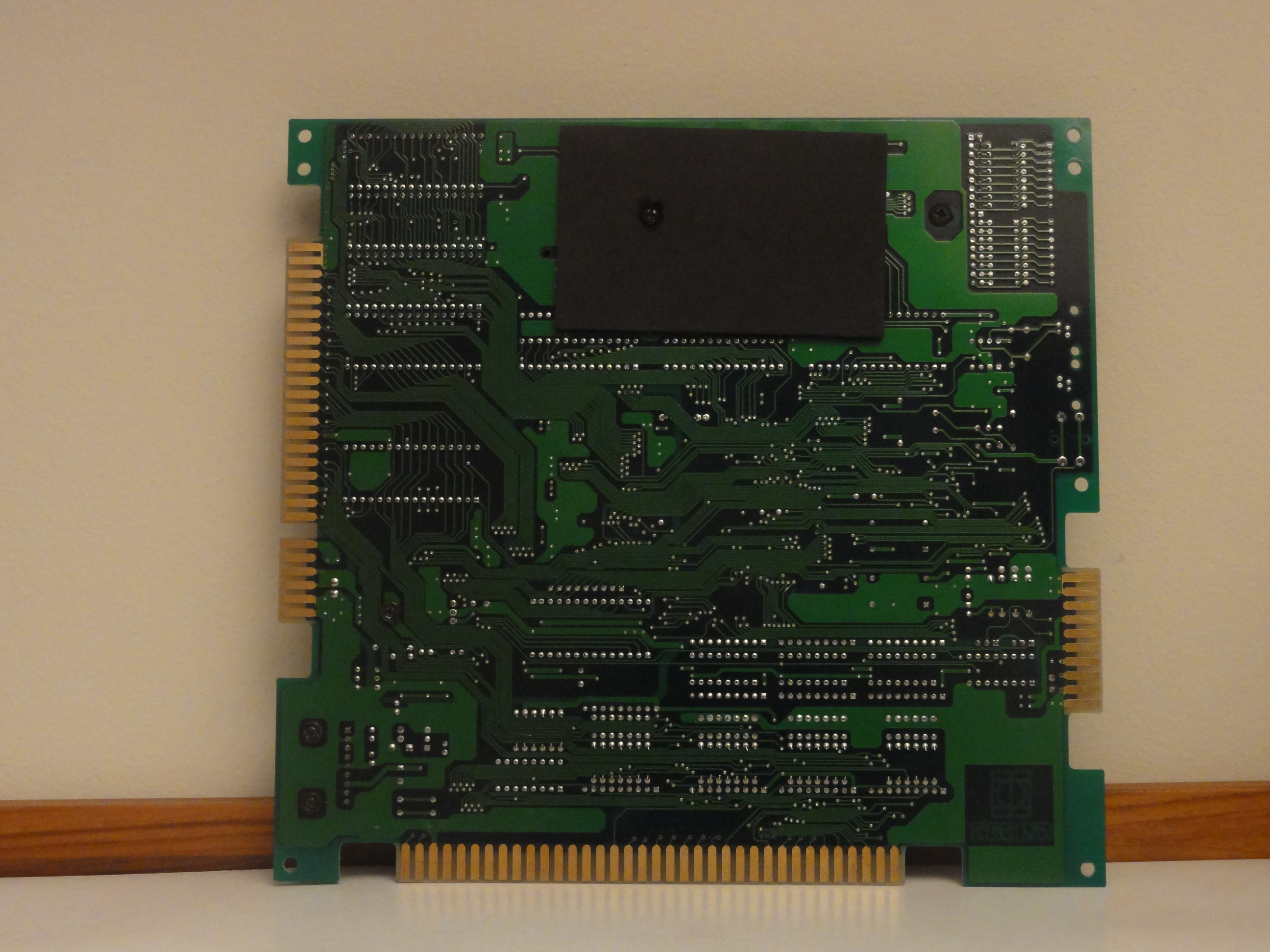

PCB solder side
-

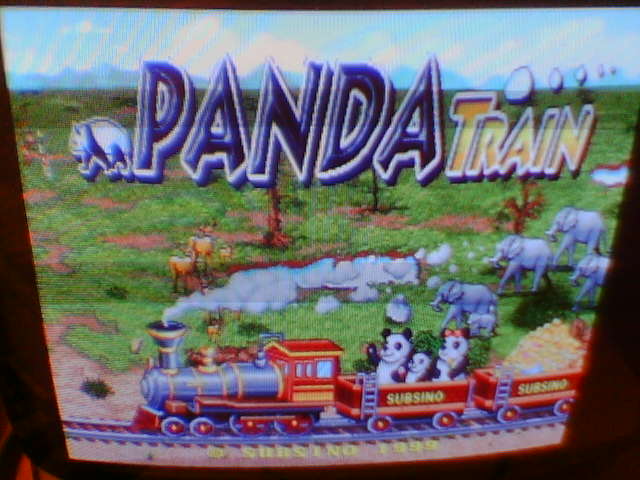

Title
-

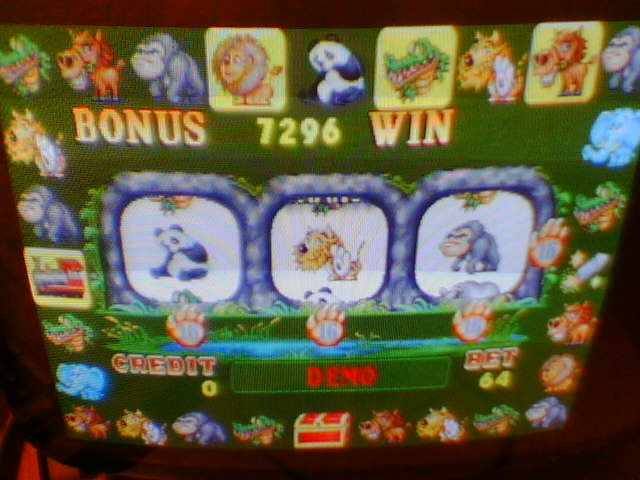

Demo
