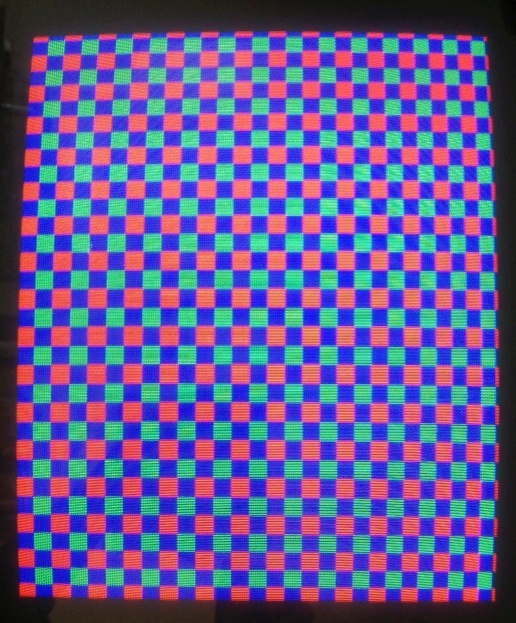

Paddle Mania

EMU Infos
dumper	f205v, Gnoppi
date	22/06/2009 - 02/12/2018 - 20/01/2019
emulator	MAME 0.36b1, MAME 0.59
dev	Bryan McPhail, Acho A. Tang

PCB Infos
name	paddlema on ProgettoEMMA paddlema on Arcade Database
description	Paddle Mania
year	1988.03.18
manufacturer

Technical references

CPUs

QTY	Type	clock	position	function
1x	SCN68000C8N64	5.987MHz(@15)	all PCBs 68000 1j	16/32-bit Microprocessor - main
1x	Z8400BB1-Z80BCPU	3.991MHz(@6)	all PCBs Z80 18h	8-bit Microprocessor - sound
1x	LM324N	-	all PCBs 324 13m	Quad Operational Amplifier - sound

1x	YM3812	55.43kHz(@20) - 997.8kHz(@23) - 3.991MHz(@24)	1653 1st PCB 3812 14l	FM Operator Type-L (OPL) - sound
1x	Y3014B	997.8kHz(@5)	1653 1st PCB 14m	D/A Converter (DAC) - sound
1x	TDA2003	-	1653 1st PCB 17n	Audio Amplifier - sound
1x	oscillator	1653 1st PCB 24.576	8j

1x	YM3812	55.43kHz(@20) - 997.8kHz(@23) - 3.991MHz(@24)	1653 2nd PCB 3812 14l	FM Operator Type-L (OPL) - sound
1x	Y3012	997.8kHz(@5)	1653 2nd PCB 14m	D/A Converter (DAC) - sound
1x	uPC1181H	-	1653 2nd PCB 17n	Audio Amplifier - sound
1x	oscillator	1653 2nd PCB 24.000	8j

1x	YM3526	55.43kHz(@20) - 997.8kHz(@23) - 3.991MHz(@24)	800, 1647 3612	FM Operator Type-L (OPL) - sound
1x	Y3014B	997.8kHz(@5)	800, 1647	D/A Converter (DAC) - sound
1x	TDA2003	-	800, 1647	Audio Amplifier - sound
1x	oscillator	24.000	800, 1647

ROMs

QTY	Type	position	status
13x	27512	all PCBs 1-13	dumped
1x	27256	all PCBs 14	dumped

3x	DM74S287N	1st PCB 7114 8m,9m,10m	dumped
2x	63S441N	1st PCB 7122 16d,17d	dumped

3x	N82S129N	2nd PCB 7114 8m,9m,10m	not dumped yet
2x	M3-7643B-5	2nd PCB 7122 16d,17d	not dumped yet

3x	AM27S21PC	800 1,2,3	not dumped yet
2x	AM27S33PC	800 4,5	not dumped yet

3x	6301-1N	1653 1,2,3	not dumped yet
2x	N82S137N	1653 4,5	not dumped yet

RAMs

QTY	Type	position
4x	HY6264LP-12	1st PCB 2064 2a,2b 6064 1d,1e
2x	MCM2018N45	1st PCB 20016 11f,13f
1x	CXK5816PN-10L	1st PCB 3812 16l

2x	HM3-2064-5	2nd PCB 6264 2a,2b
1x	MCM6064P12	2nd PCB 6264 1d
1x	TC5565APL-15	2nd PCB 6264 1e
2x	LC3517BSL-15	2nd PCB 2018 11f,13f
1x	CXK5816PN-10L	2nd PCB 6116 16l

3x	D4464C	800
1x	D4364C	800
2x	TMM2015BP	800
1x	CXK5816PN	800

4x	D4464C-15L	1647 6264
2x	TMM2015BP-10	1647 2018
1x	MCM2018N45	1647 6116

PLDs

QTY	Type	position	status
0x

Others

1x JAMMA edge connector
1x trimmer (volume 15m)
2x 8x2 switches DIP (DIPSW2 9k, DIPSW1 9l)

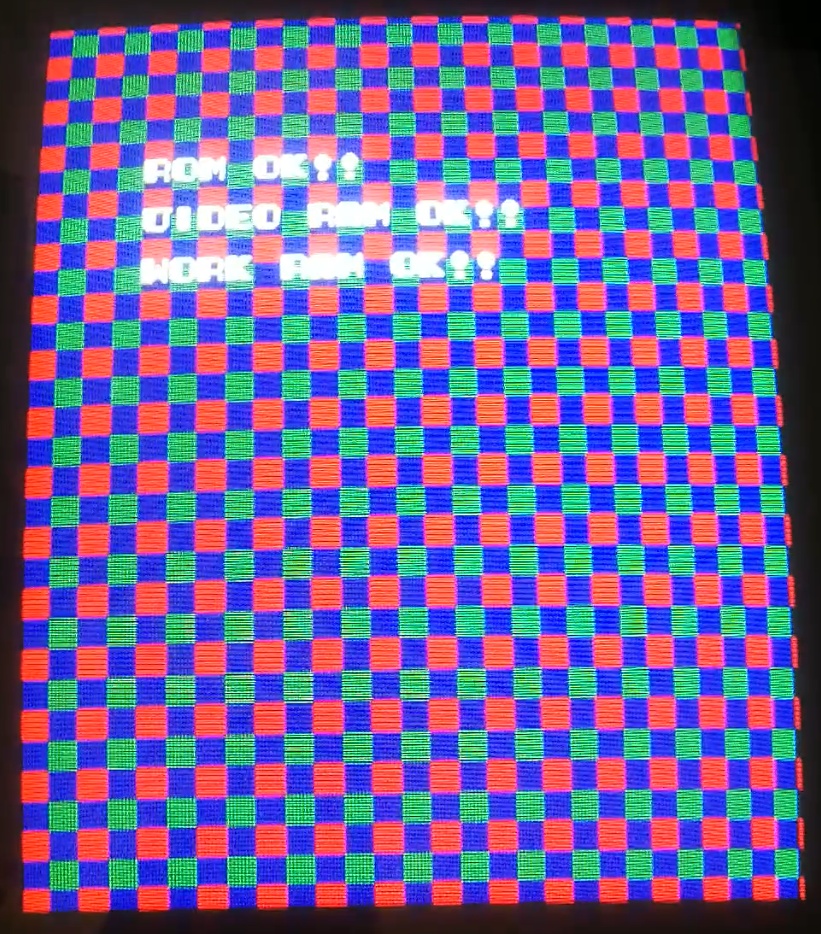

Notes

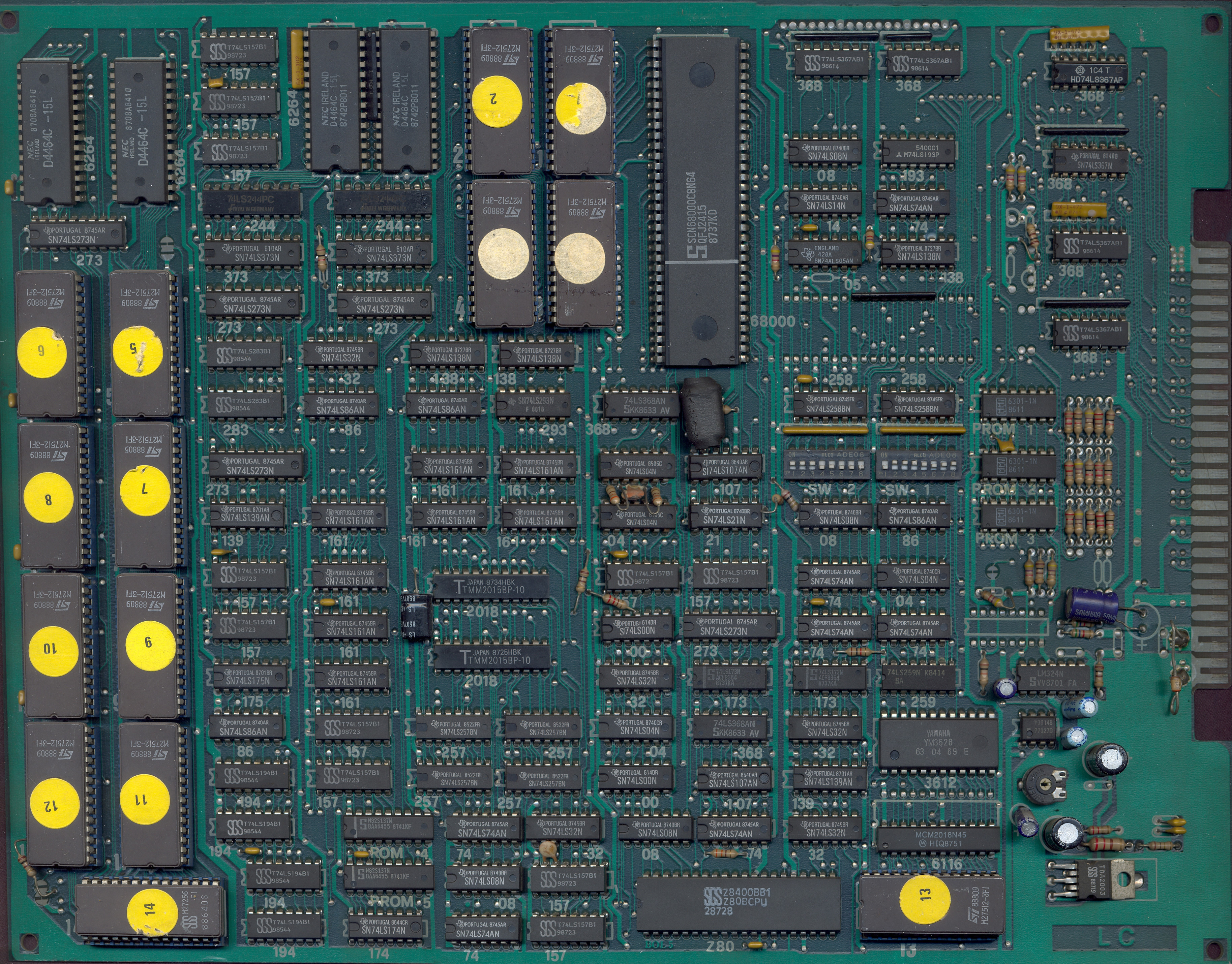

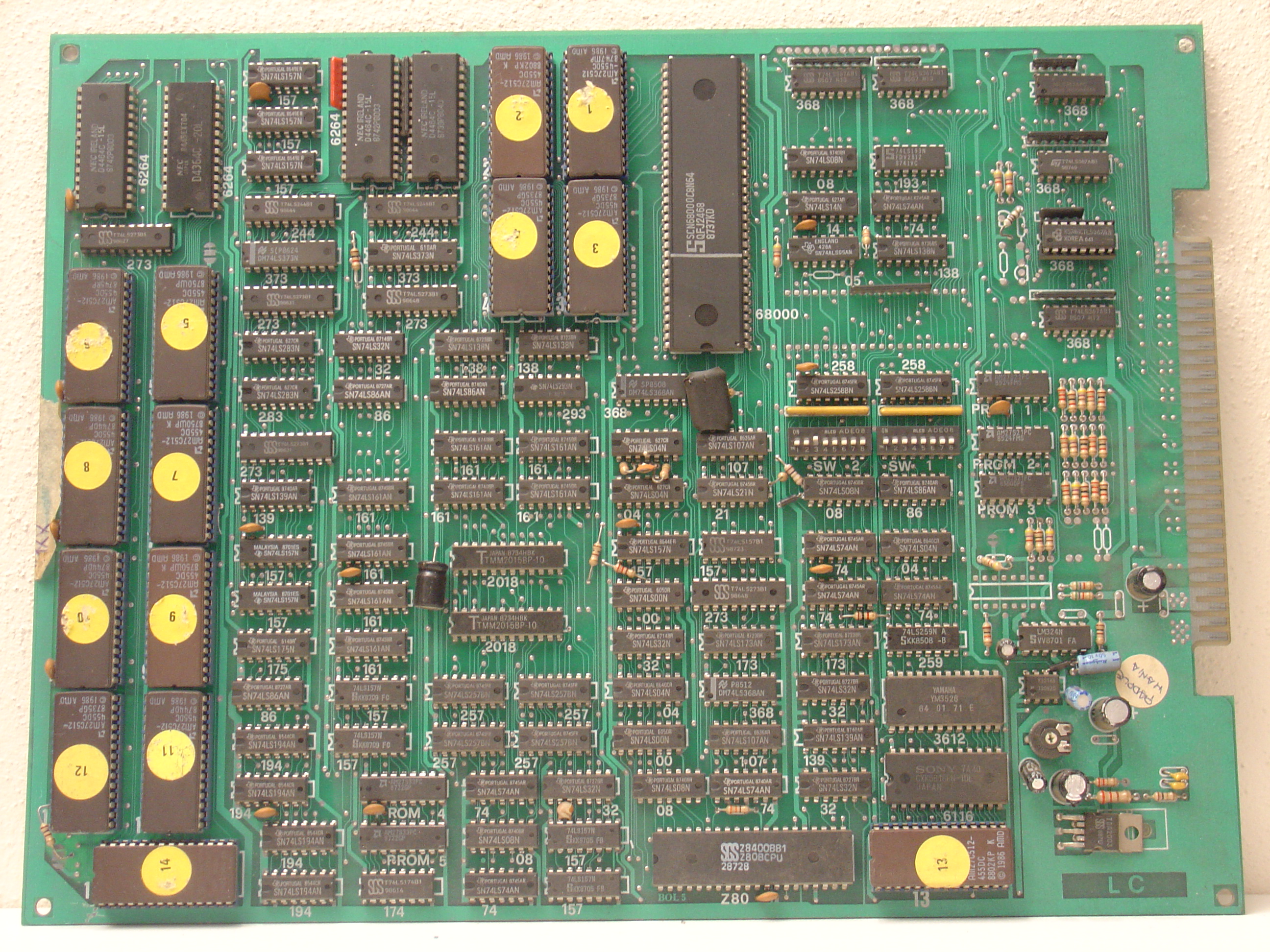

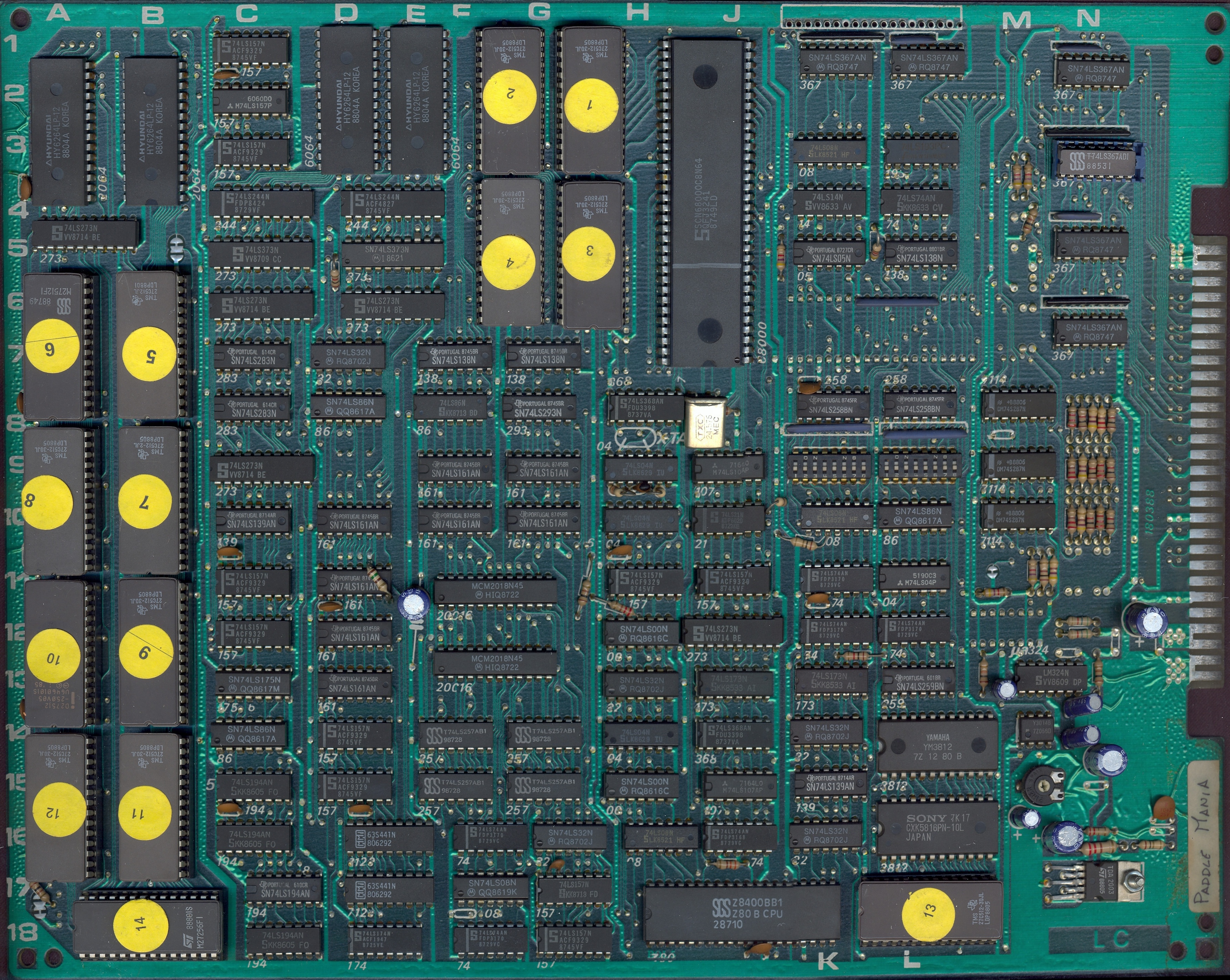

1st PCB is marked: "LC" and "180388" on component side ("LC" is the Italian for "Lato Componenti" which translates to "Components Side")

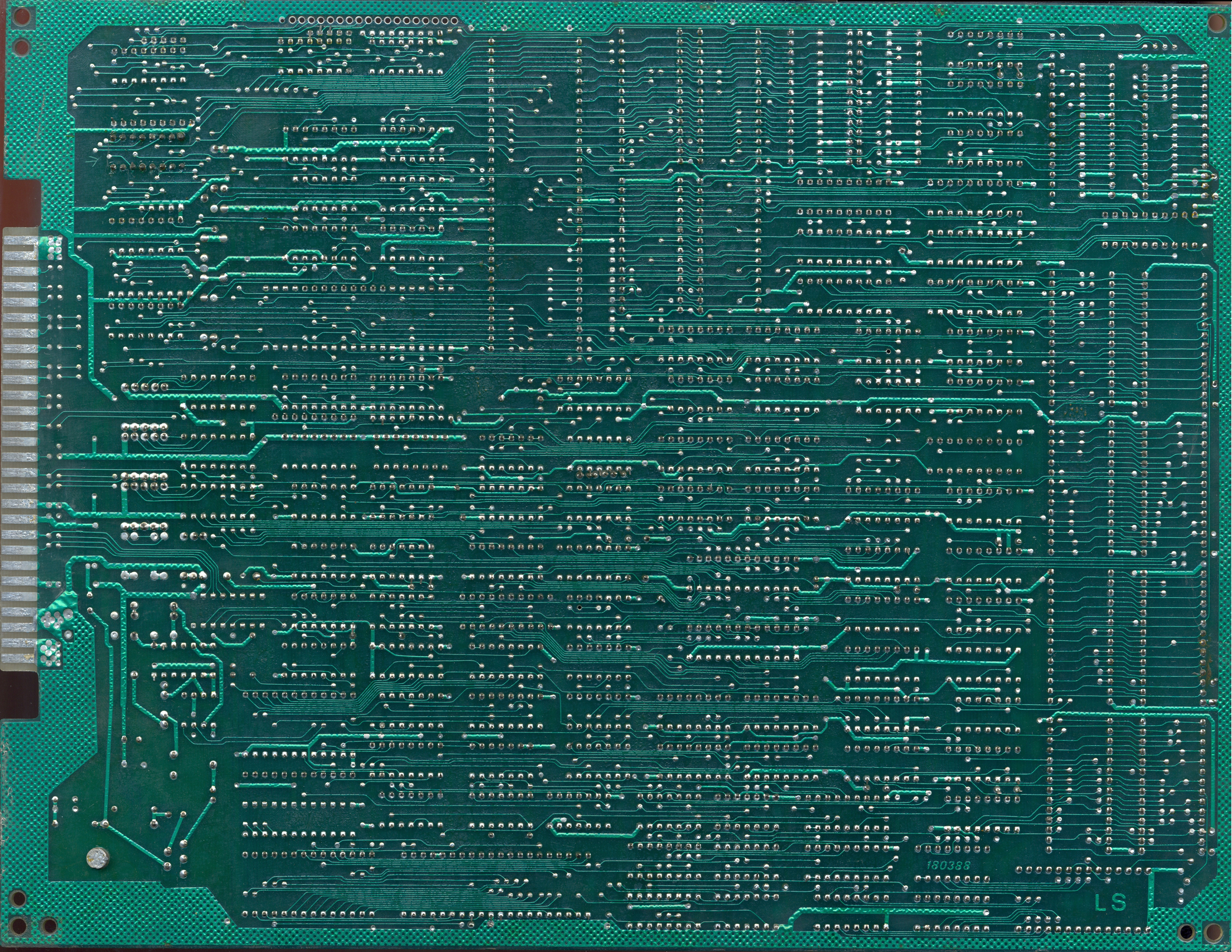

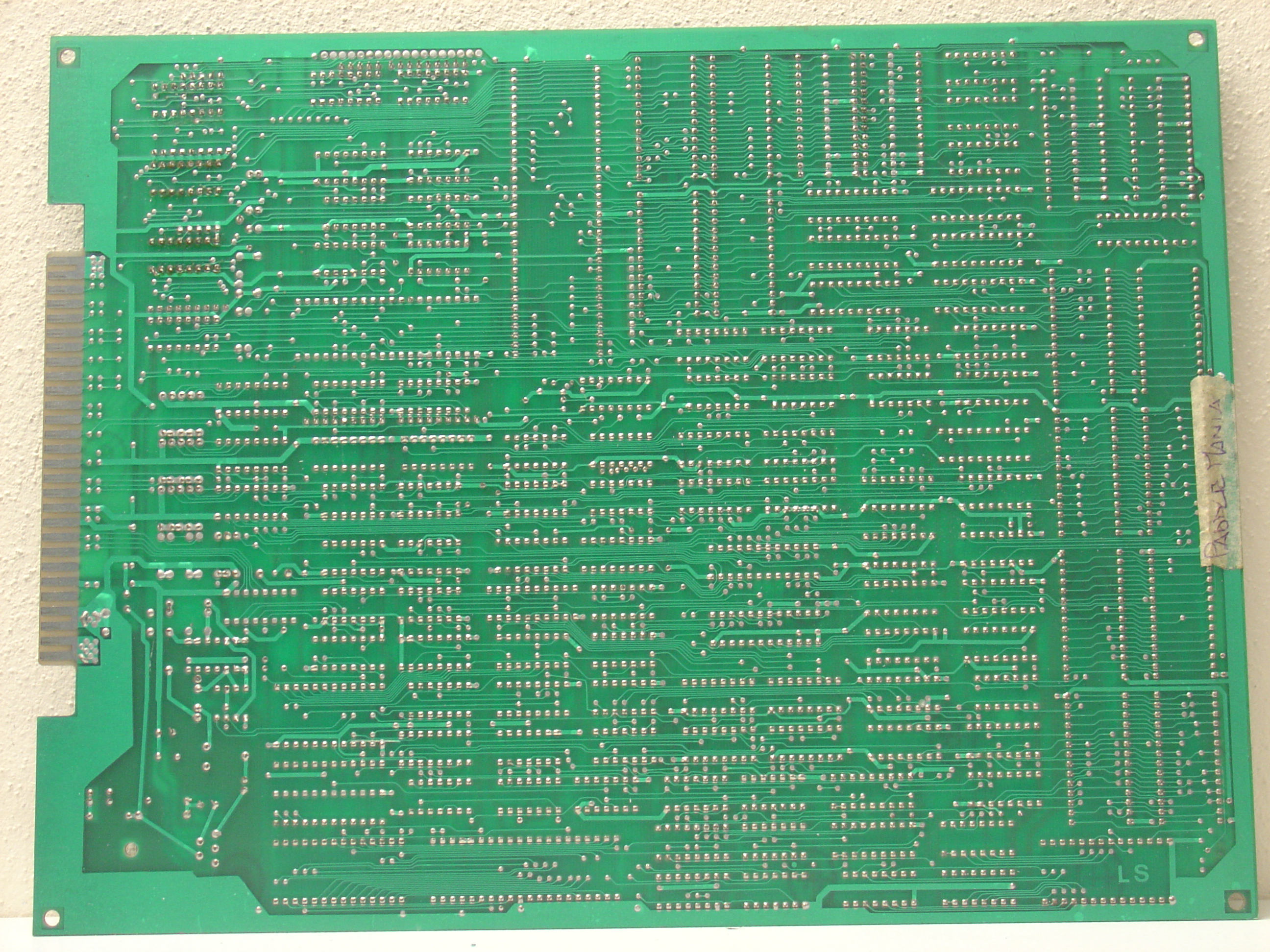

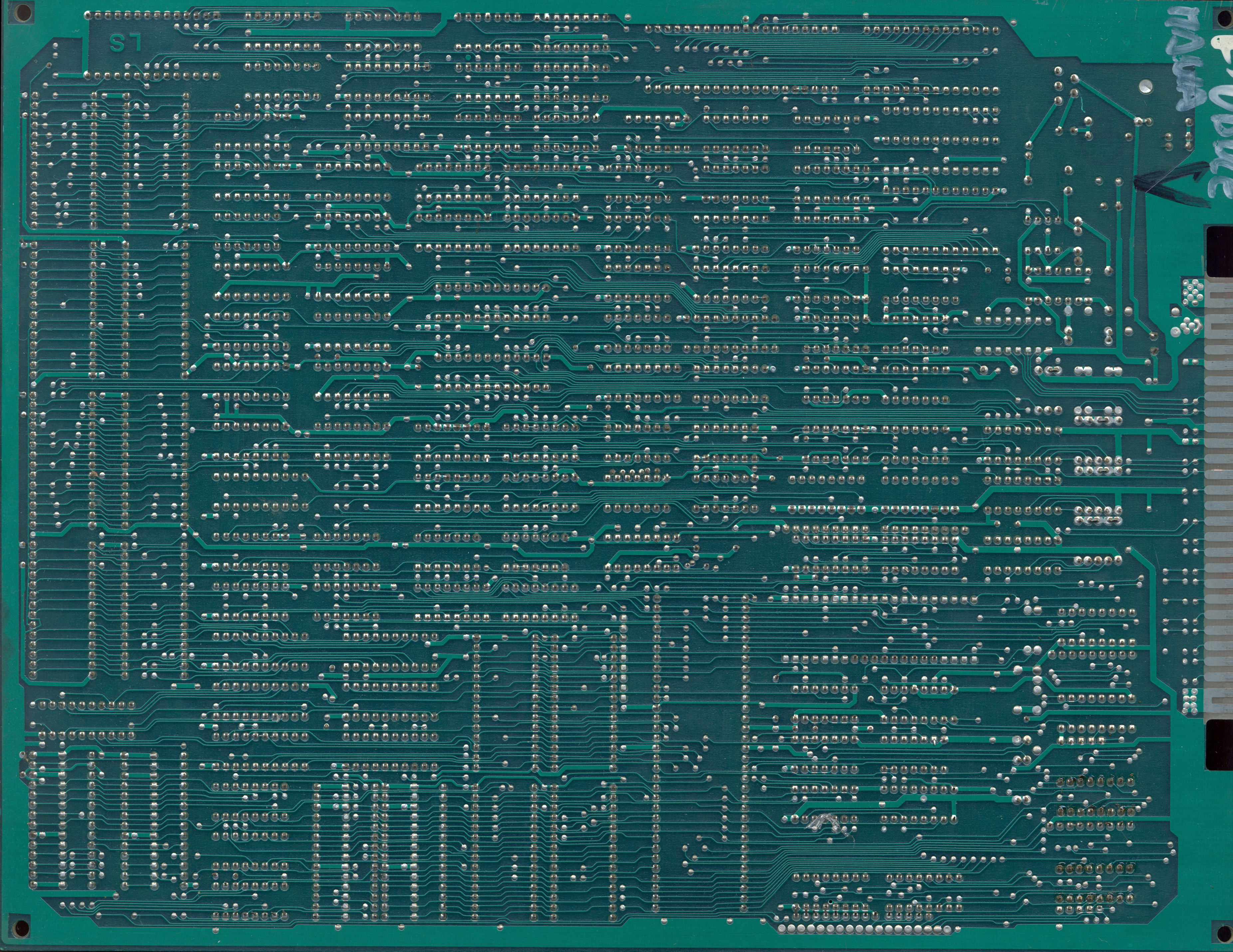

1st PCB is marked: "LS" on solder side ("LS" is the Italian for "Lato Saldature" which translates to "Solders Side")

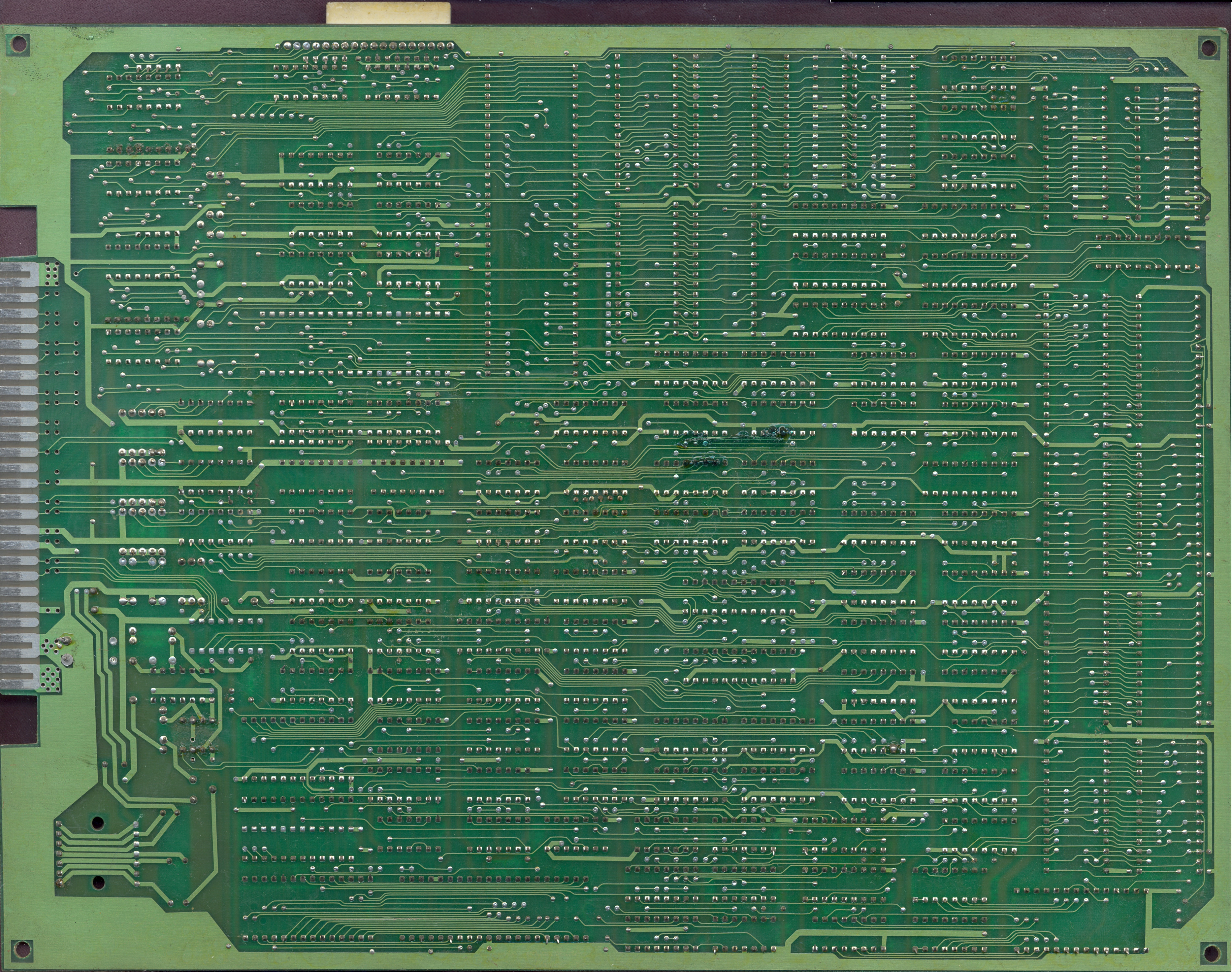

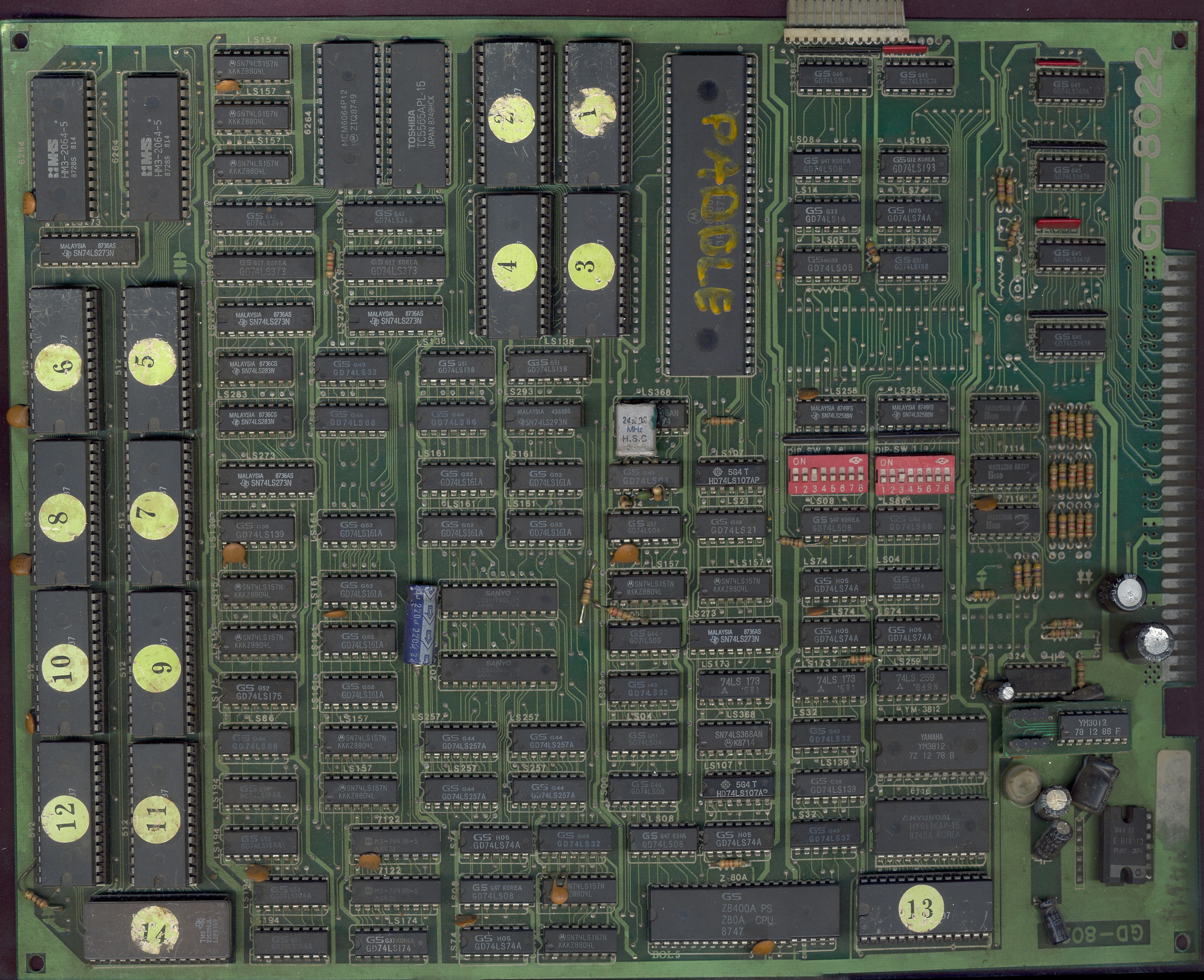

2nd PCB is marked: "GD-8022" on component side

label format is:

------
| 13 | -> rom number and position
------

update 20210123: dumped PROMs of 1st PCB. As they are the same as official Paddle Mania, we can safely assume that also 2nd PCB and Paddle Mania (bootleg, set 1) and Paddle Mania (bootleg, set 2) will have the same PROMs.

update 20210126: Thanks to some analysis made by Osso the old games "Paddle Mania (bootleg, set 1)", "Paddle Mania (bootleg, set 2)" and "Paddle Mania (bootleg, set 3)" have all been confirmed as Paddle Mania bootlegs, with same ROMs and missing Alpha MCU.
