Pac Man (U.Games bootleg of Puck Man)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 02/09/2019 |
| emulator | MAME 0.214 |
| dev | Osso |
| name | pacmanug on ProgettoEMMA pacmanug on Arcade Database |
| description | Pac Man (U.Games bootleg of Puck Man) |
| year | 1980 |
| manufacturer | U.Games |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z80 | 6b | 8-bit Microprocessor - main | |
| 1x | LM380 | - | 10a | Audio Amplifier - sound |
| 1x | oscillator | unmarked | 8b |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 11x | D2716-5 | 1p-10p, 12p | dumped |
| 1x | HN462716 | 9p | dumped |
| 1x | 82S123 | 7f | dumped |
| 2x | 6301-1J | 1m, 4a | dumped |
| 1x | 63s141J | 3m | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 6x | 2114UCB | 2k,2l,2m,2n,2p,2r |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
1x trimmer (volume)(9a)
1x 8 DIP switches bank (9d)
Notes
PCB is marked: "PUK" on component side
PCB is marked: "PUK" on solder side
handwritten label: ----------------- | 5 ON 1 COIN | | 5 OFF 2 COINS | -----------------
Files
-

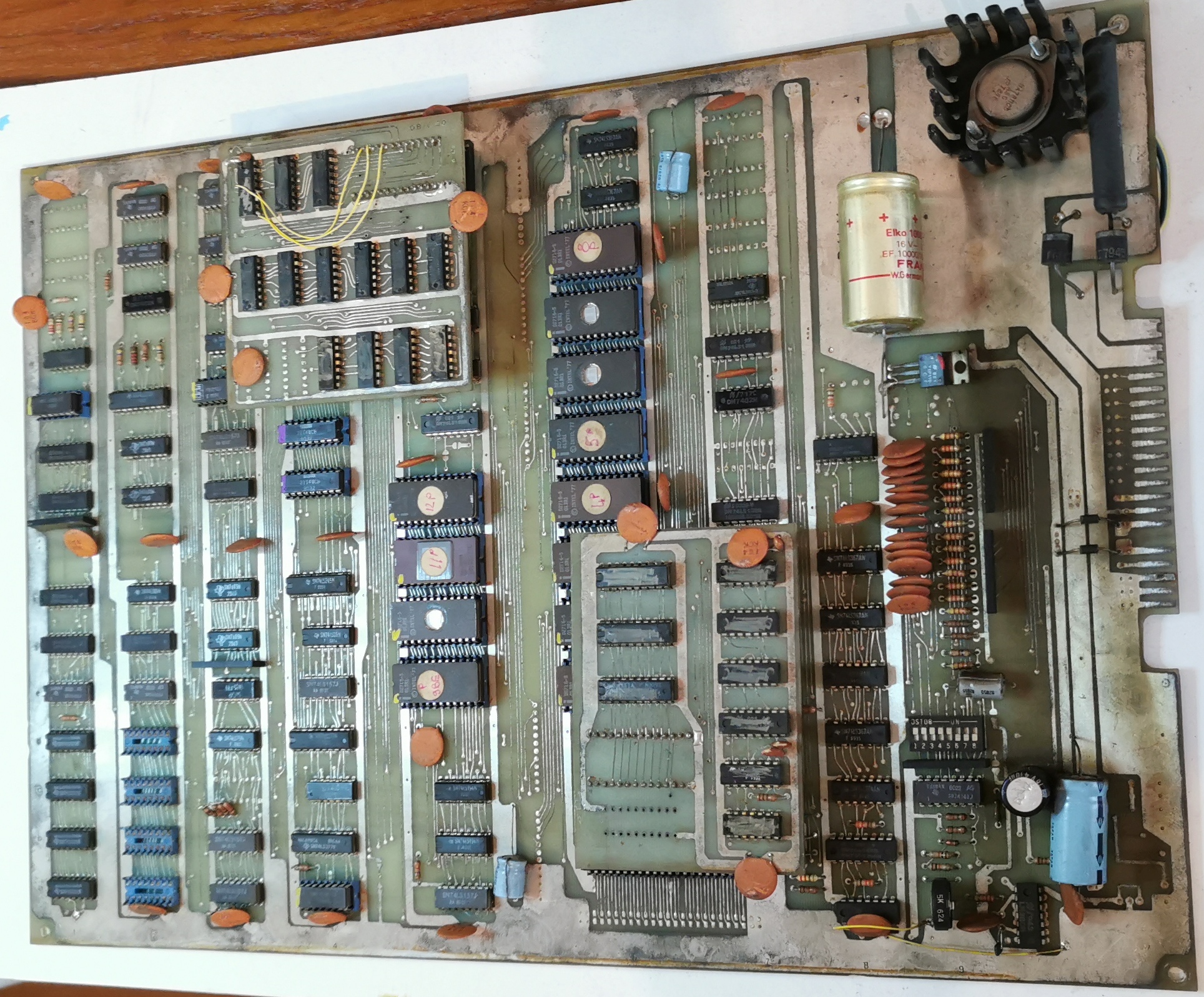

assembled PCBs
-

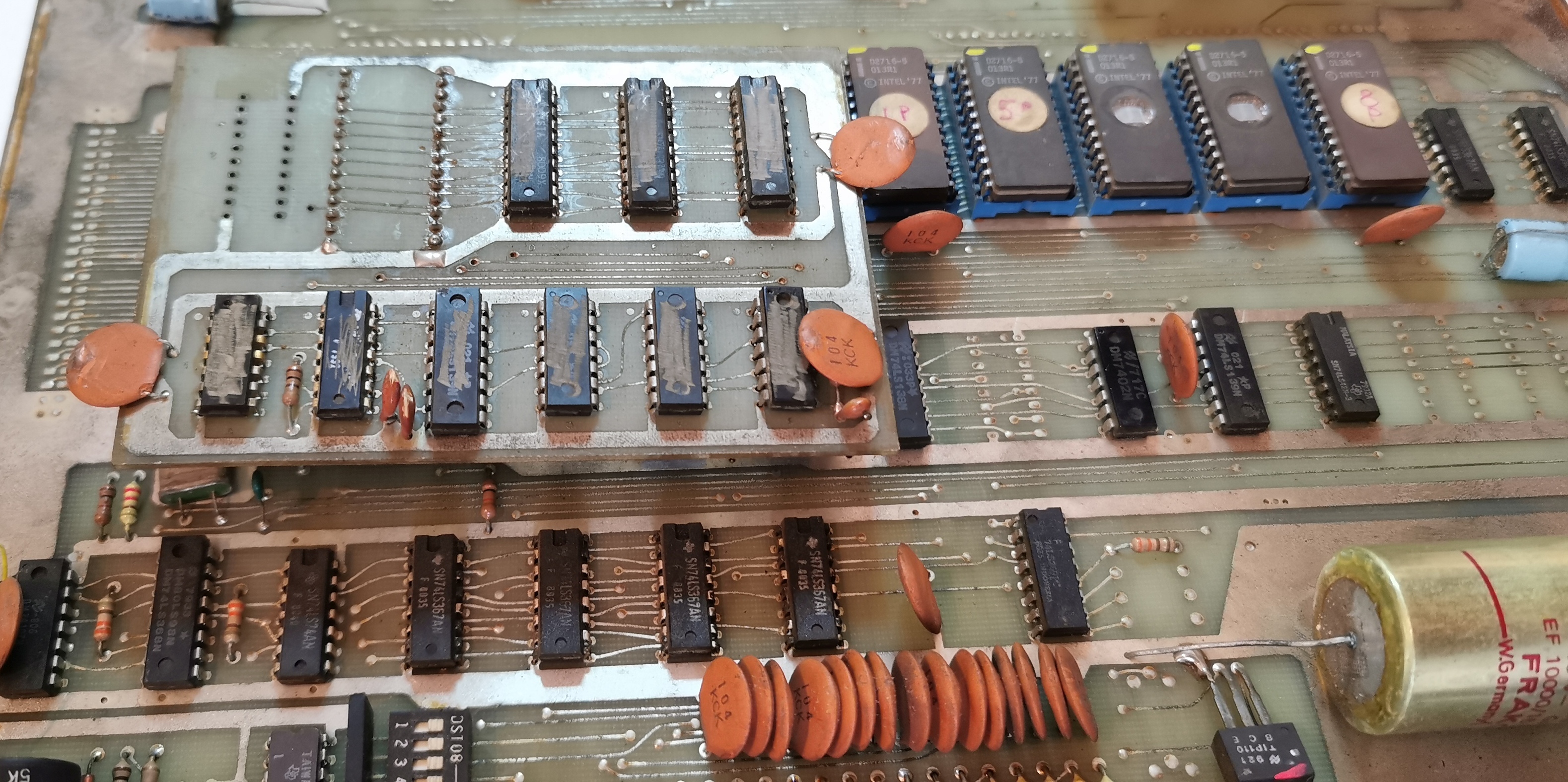

assembled PCBs detail 1
-

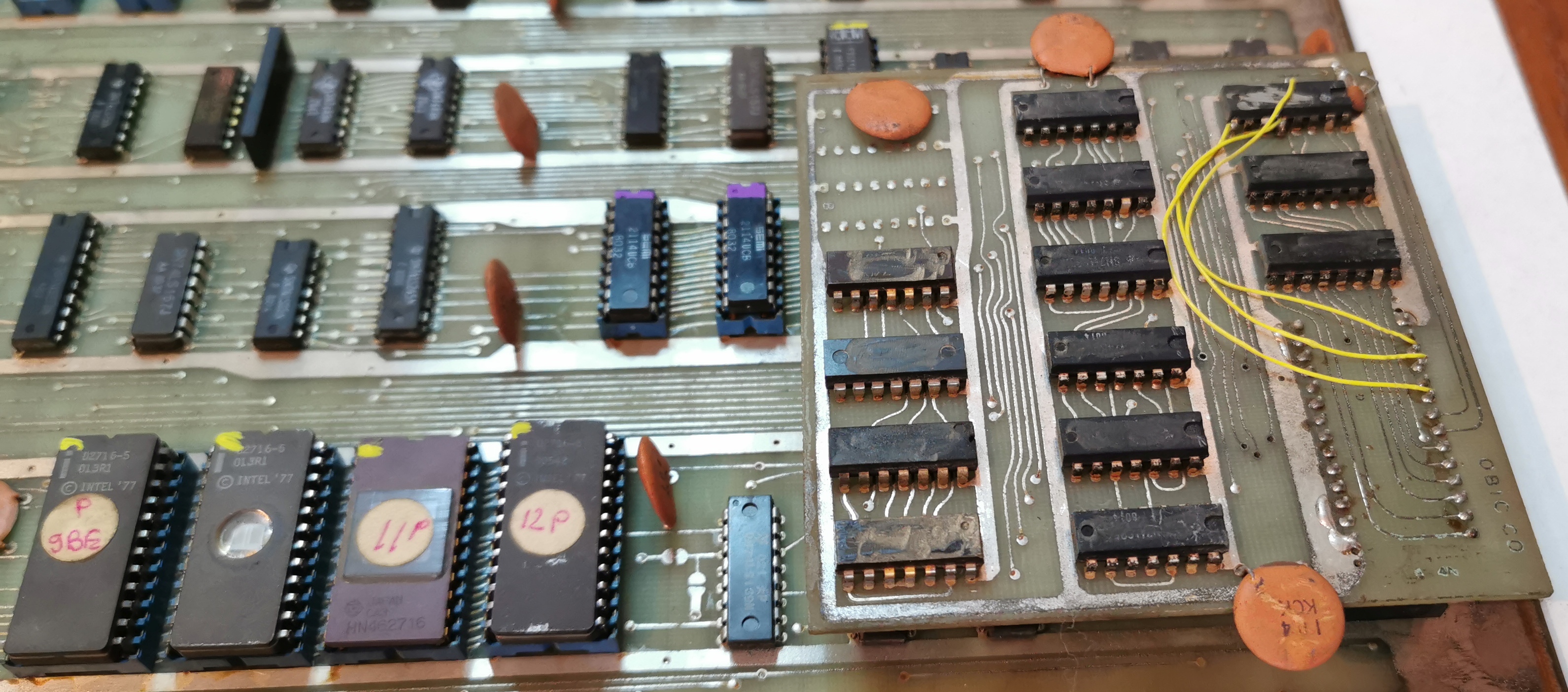

assembled PCBs detail 2
-

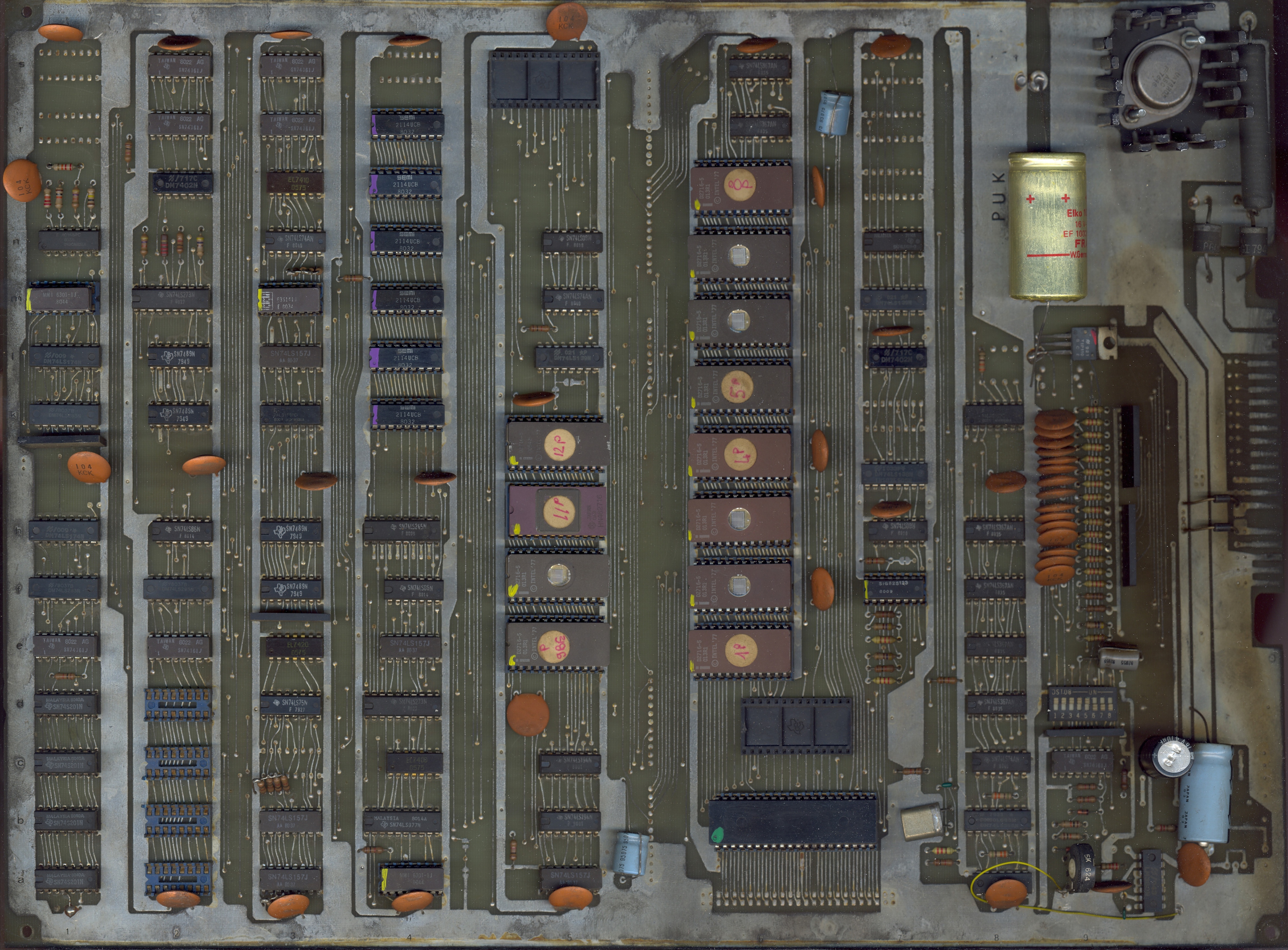

main PCB component side
-

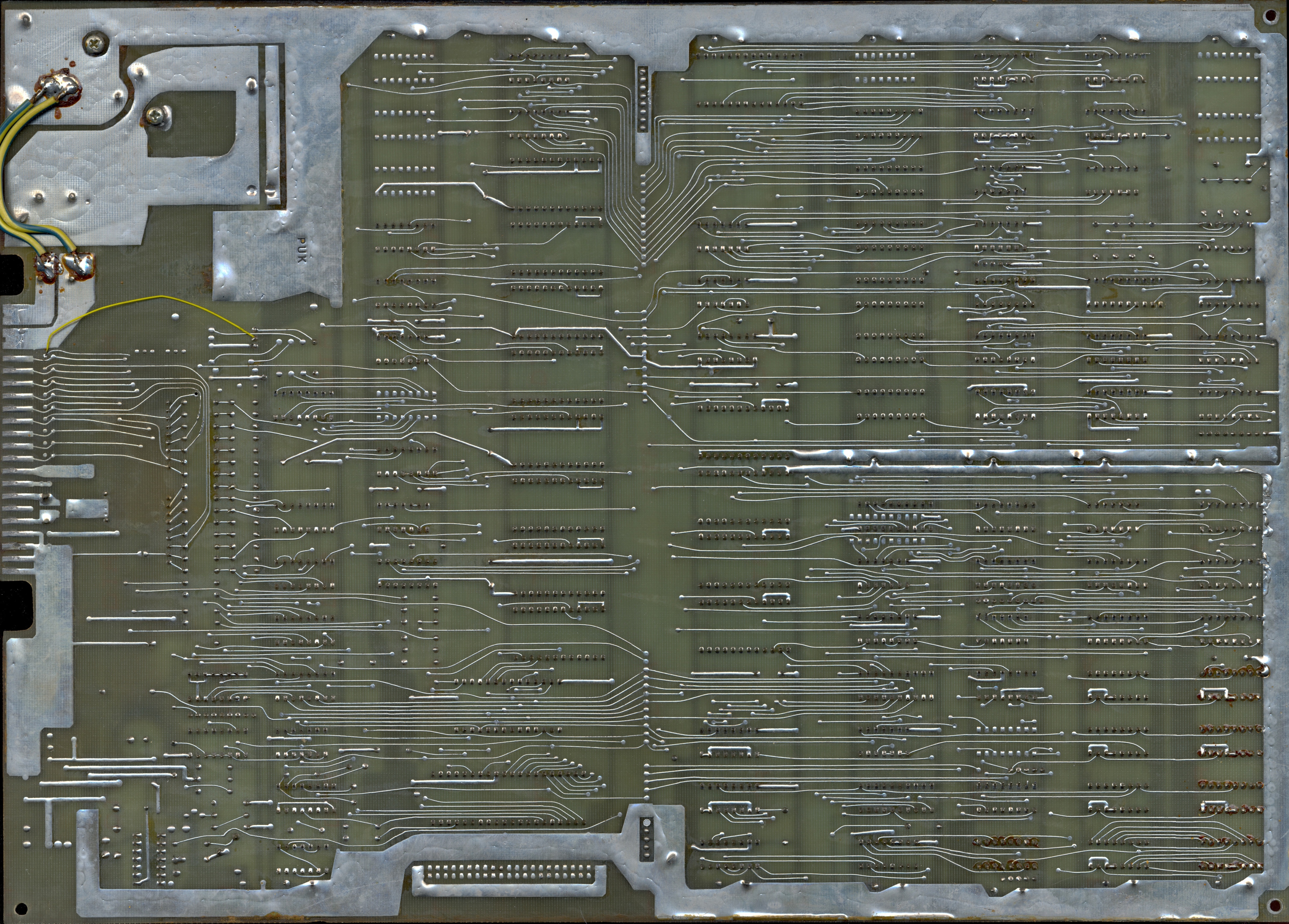

main PCB solder side
-

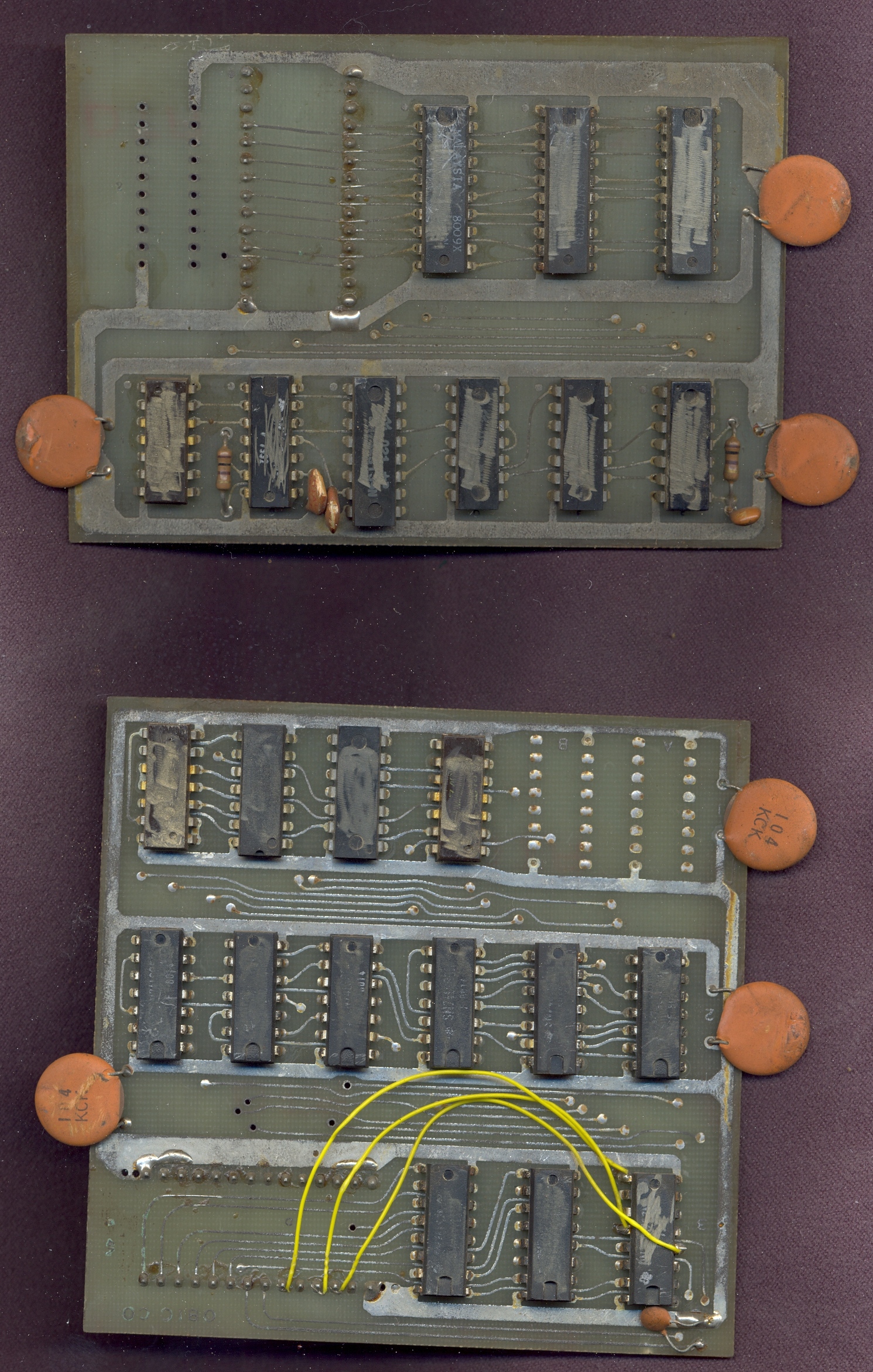

piggyback PCB component side
-

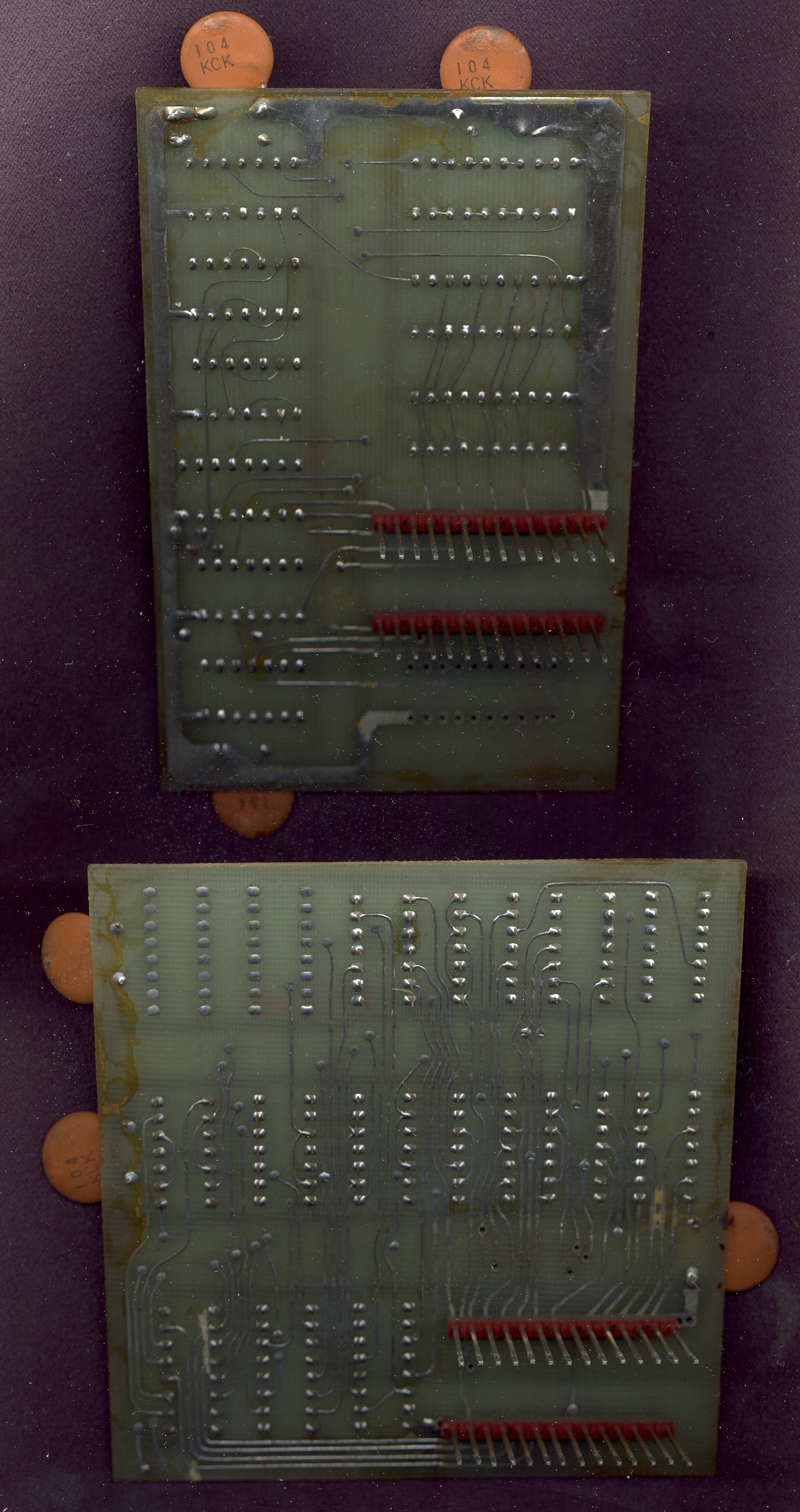

piggyback PCB solder side
