Ozma Wars (Sidam bootleg)
From Citylan
Jump to navigationJump to search
| dumper | |
| date | 28/12/2004 |
| emulator | |
| dev |
| name | 72 |
| description | Ozma Wars (Sidam bootleg) |
| year | 1979 |
| manufacturer | Sidam |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 8080 | 8-bit Microprocessor - main | ||
| 1x | oscillator | unmarked |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 6x | 2716 | not dumped | |
| 2x | PROMs | unconfirmed - not dumped yet |
RAMs
| QTY | Type | position |
|---|---|---|
| ?x | unconfirmed | still to be checked |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
1x trimmer (volume)
1x 8 DIP switches banks
Notes
PCB is marked: "S.I."
Game confirmed to be "Ozma Wars" (thank you ZEKE), unfortunately the PCB is malfunctioning, it resets every few seconds. It's still under further investigation....
Files
-

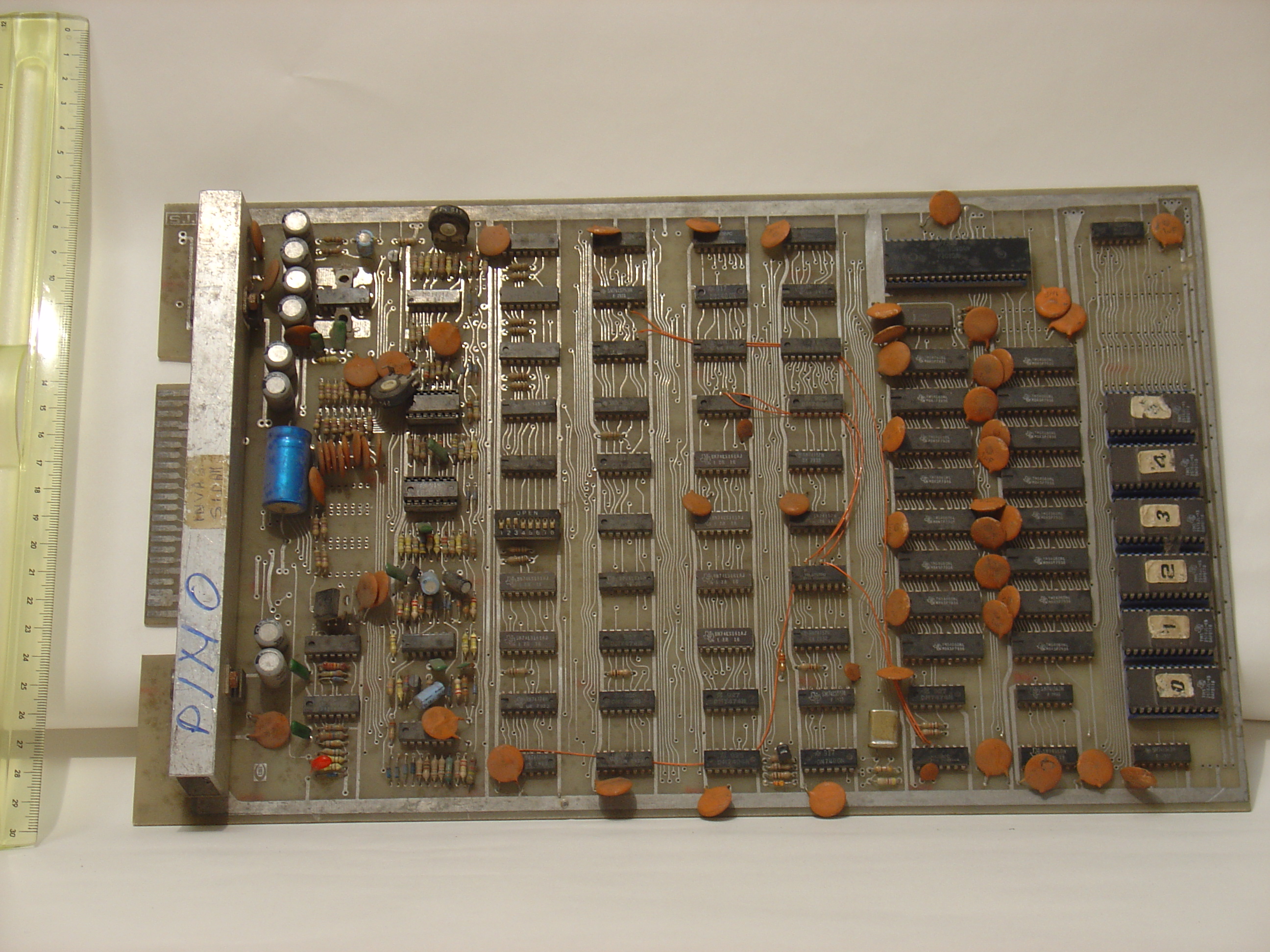

PCB component side
-

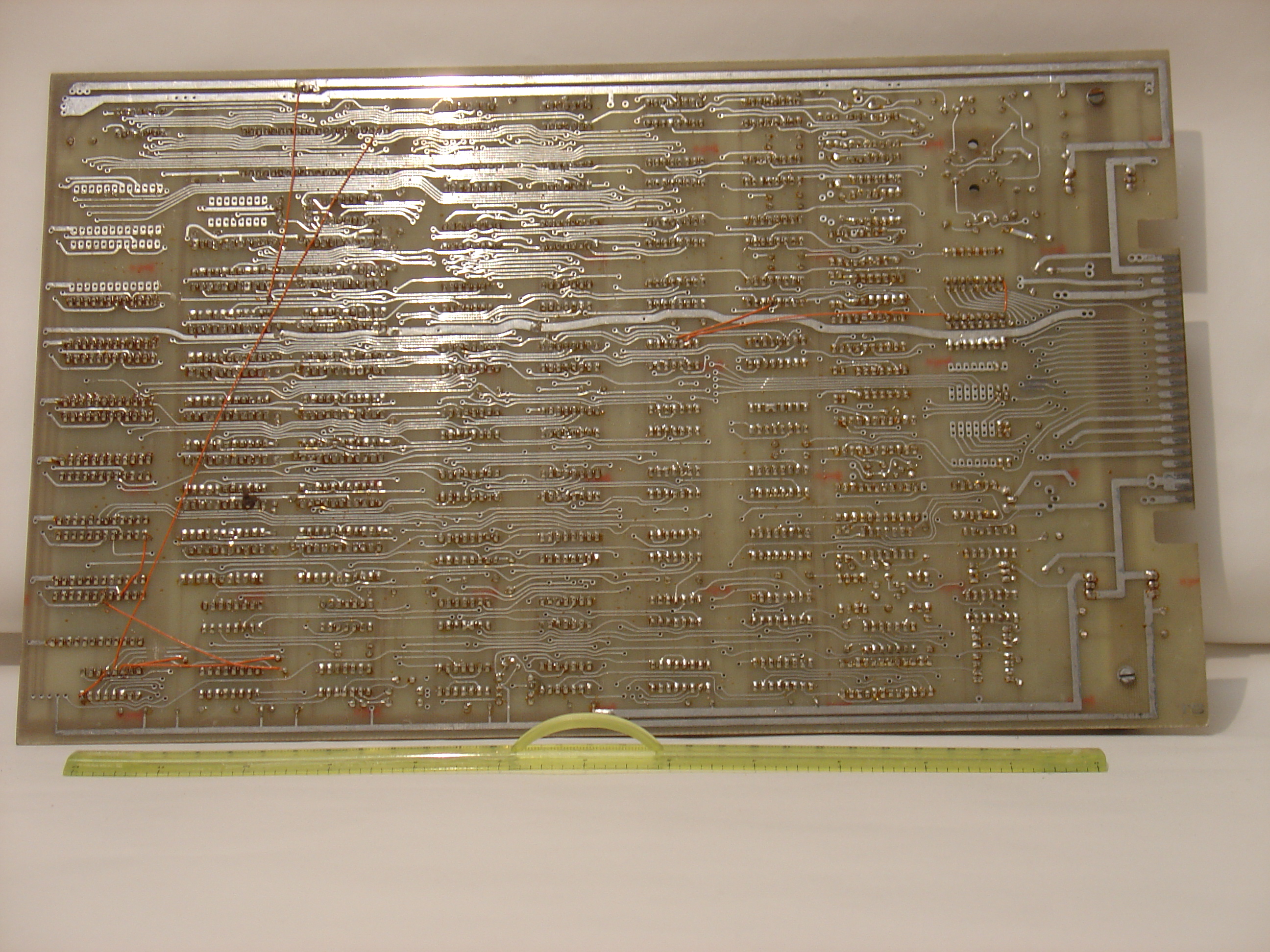

PCB solder side
-

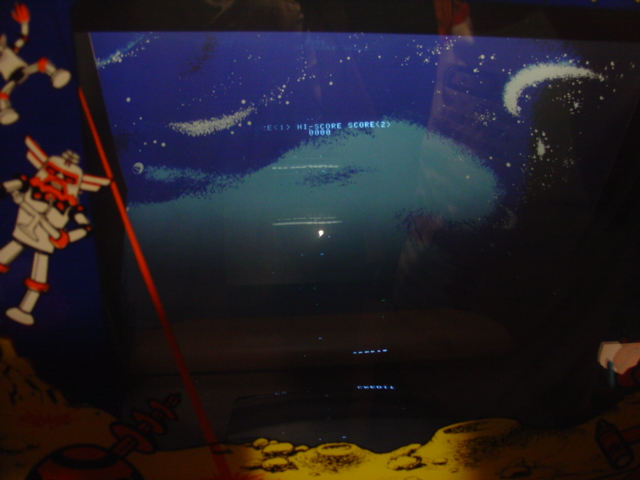

In game
