Ninja Assault (World, NJA2 Ver.A)
From Citylan
Jump to navigationJump to search
| dumper | rtw |
| date | 27/11/2012 |
| emulator | MAME 0.153 |
| dev | ShouTime |
| name | ninjaslt on Arcade Database |
| description | Ninja Assault (World, NJA2 Ver.A) |
| year | 2000.11.01 |
| manufacturer | Namco |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28MHz | osc1 (2h) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 9x | MaskROM 128Mb TSOP48 | MA2 - MA10 | dumped |
| 3x | DA28F640J5 | FL1,FL2,FL3 | dumped |
| 1x | X76F100 | 1f | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IS61V256-15J | 4n, 4p |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | CY37128 | NAODEC3(2j) | not dumped |
Others
Notes
It's a NAOMI cart.
Cart type: MASK C F3
Cart N°: 25469801 NJA2 Ver. A
Protection IC: SEGA 315-5881 (317-5068-COM)
Key: 0x000ca510
Files
-

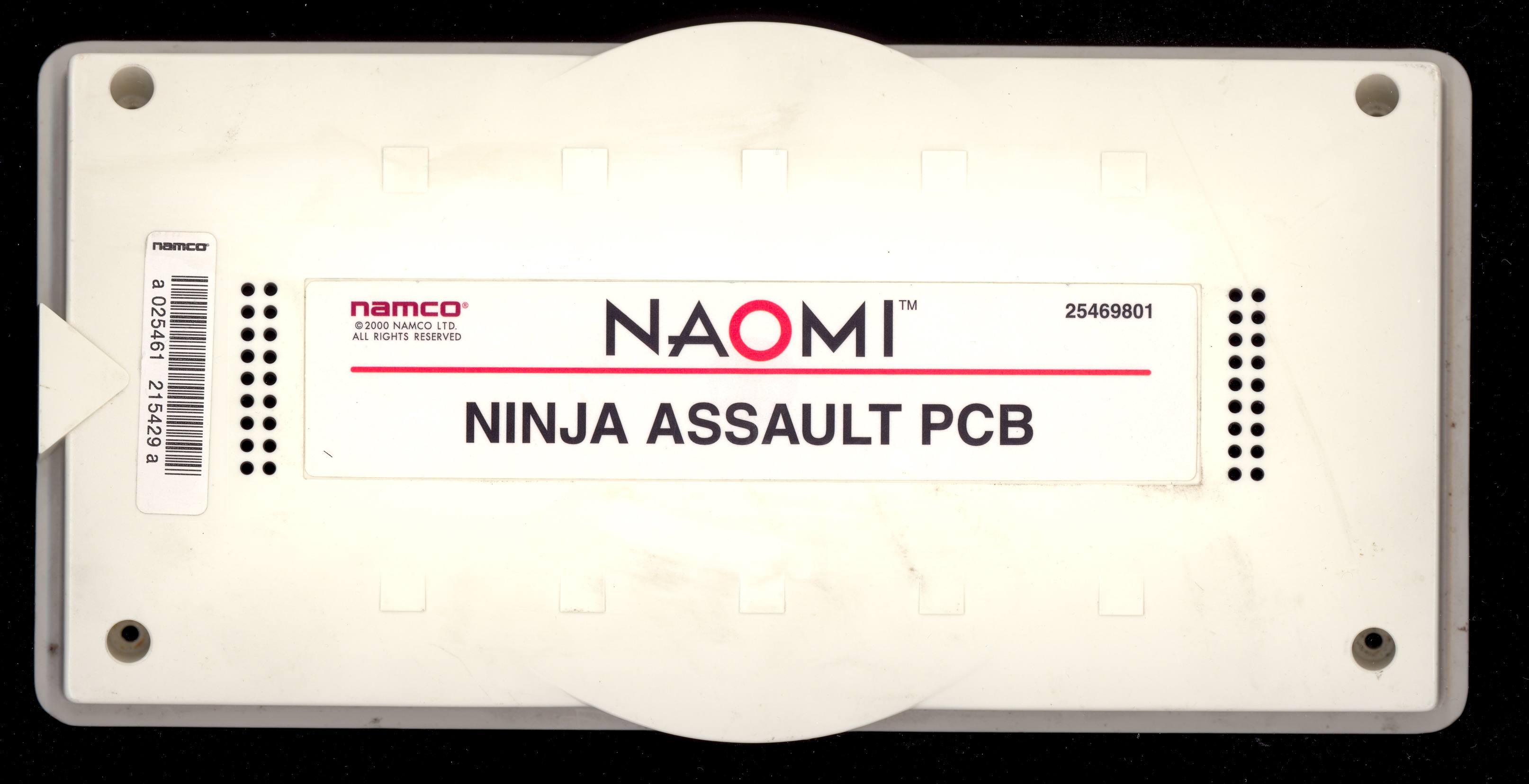

cart
-

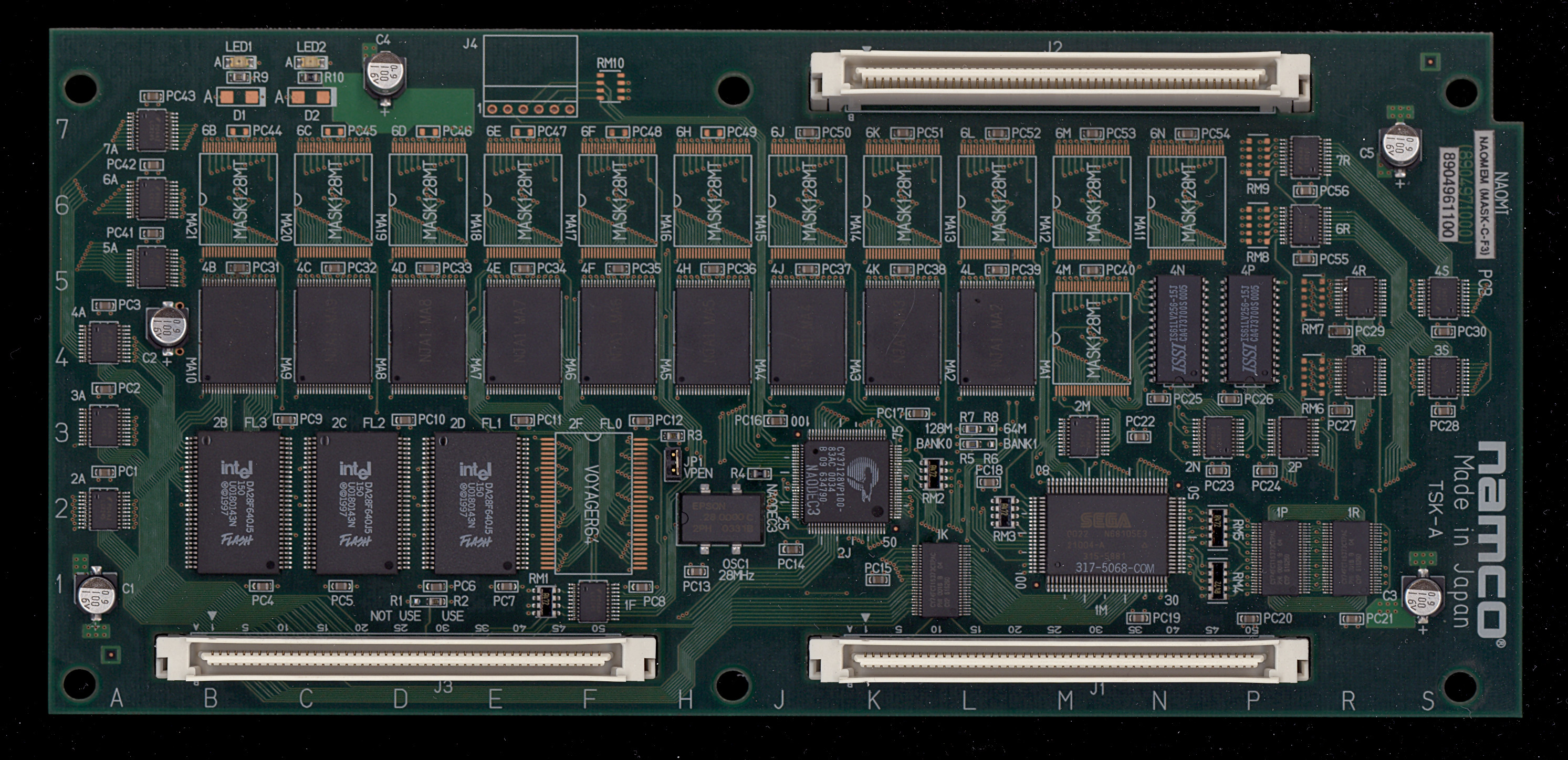

PCB component side
-

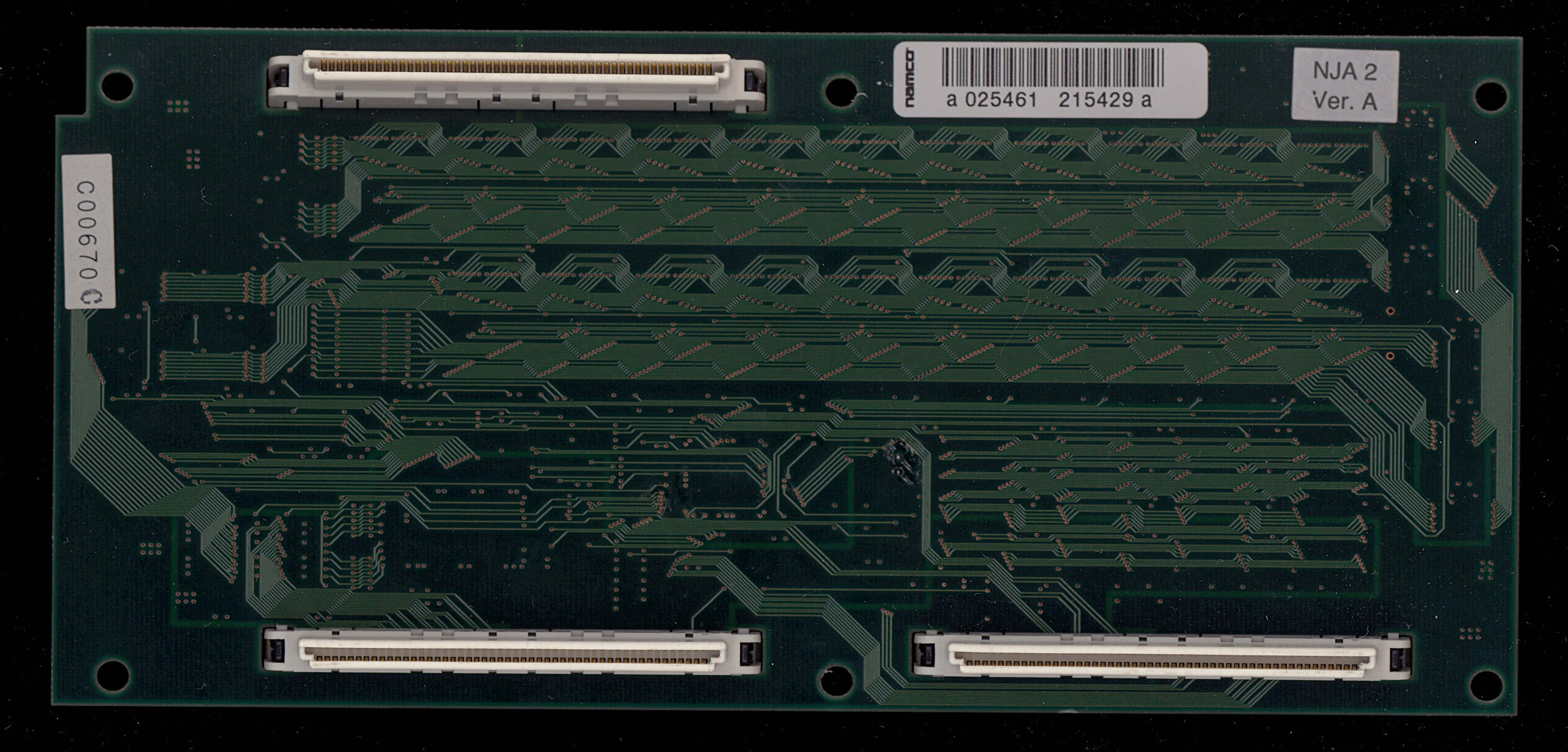

PCB solder side
-

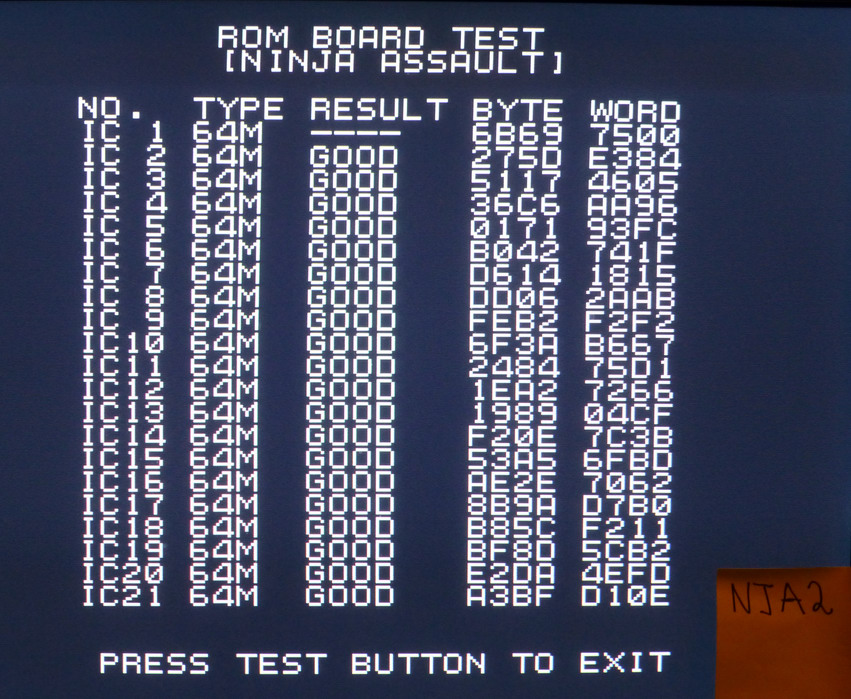

ROM board test
-
JYU PCB component side
-
HVBUF PCB component side
-
Readme
