New Cross Pang (set 1)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 07/04/2018 |
| emulator | MAME 0.197 |
| dev | Brian Troha |
| name | newxpang on ProgettoEMMA newxpang on Arcade Database |
| description | New Cross Pang (set 1) |
| year | 1999.01 |
| manufacturer | F2 System |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Hyperstone E1-16T | CPU2 | 32-bit Microprocessor - main | |
| 1x | AD-65 | ic11 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | KA51 | ic12 | FM Operator Type-M (OPM) - sound | |
| 1x | KA12 | ic13 | D/A Converter (DAC) - sound | |
| 2x | IL324N | ic14,ic15 | Quad Operational Amplifier - sound | |
| 1x | uPC1242H | ic16 | Audio Amplifier - sound | |
| 1x | oscillator | 50.000MHz | X50MHZ close to main | |
| 1x | oscillator | 28.000MHz | OSC2 28MHZ close to sound |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TMS27C020-15 | VROM1 | dumped |
| 1x | M27C4001-10FI | ROM2 | dumped |
| 4x | MX29F1610MC-12 | l00,l01,u00,u01 | dumped |
| 1x | 93C46CB1 | ic3 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | GM71C18163CJ6 | dram1 |
| 8x | N341256SJ-15 | cram1,cram2,mem1u,mem1l,mem2,mem3,mem6,mem7 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | QuickLogic QL2003-XPL84C | quic1 quic2 | FPGA not dumped |
| 1x | PALCE22V10H | gal1 | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)(VR1)
2x pushbutton (SETUP,RESET)
Notes
PCB is marked: "F-E1-16-002" on component side
Files
-

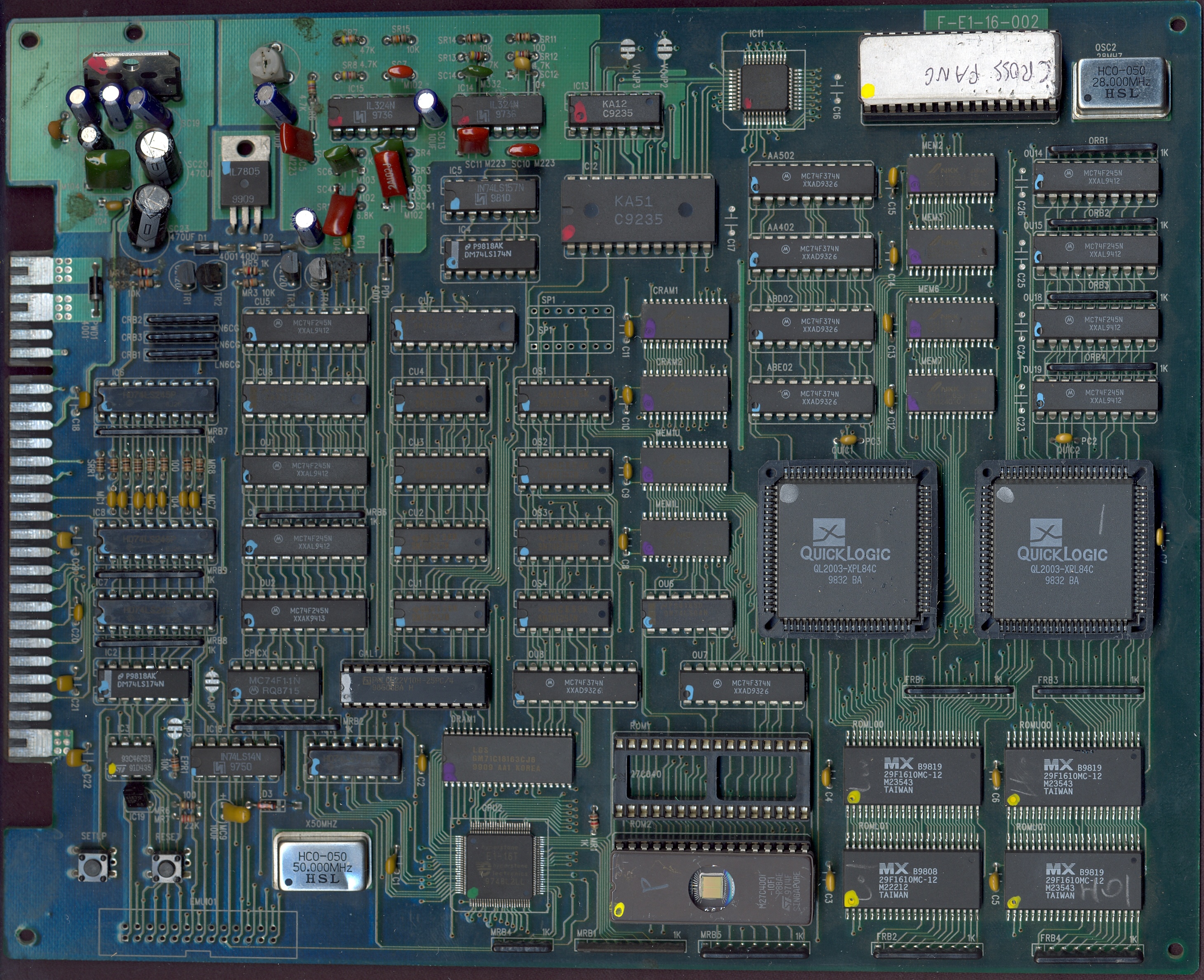

PCB component side
-

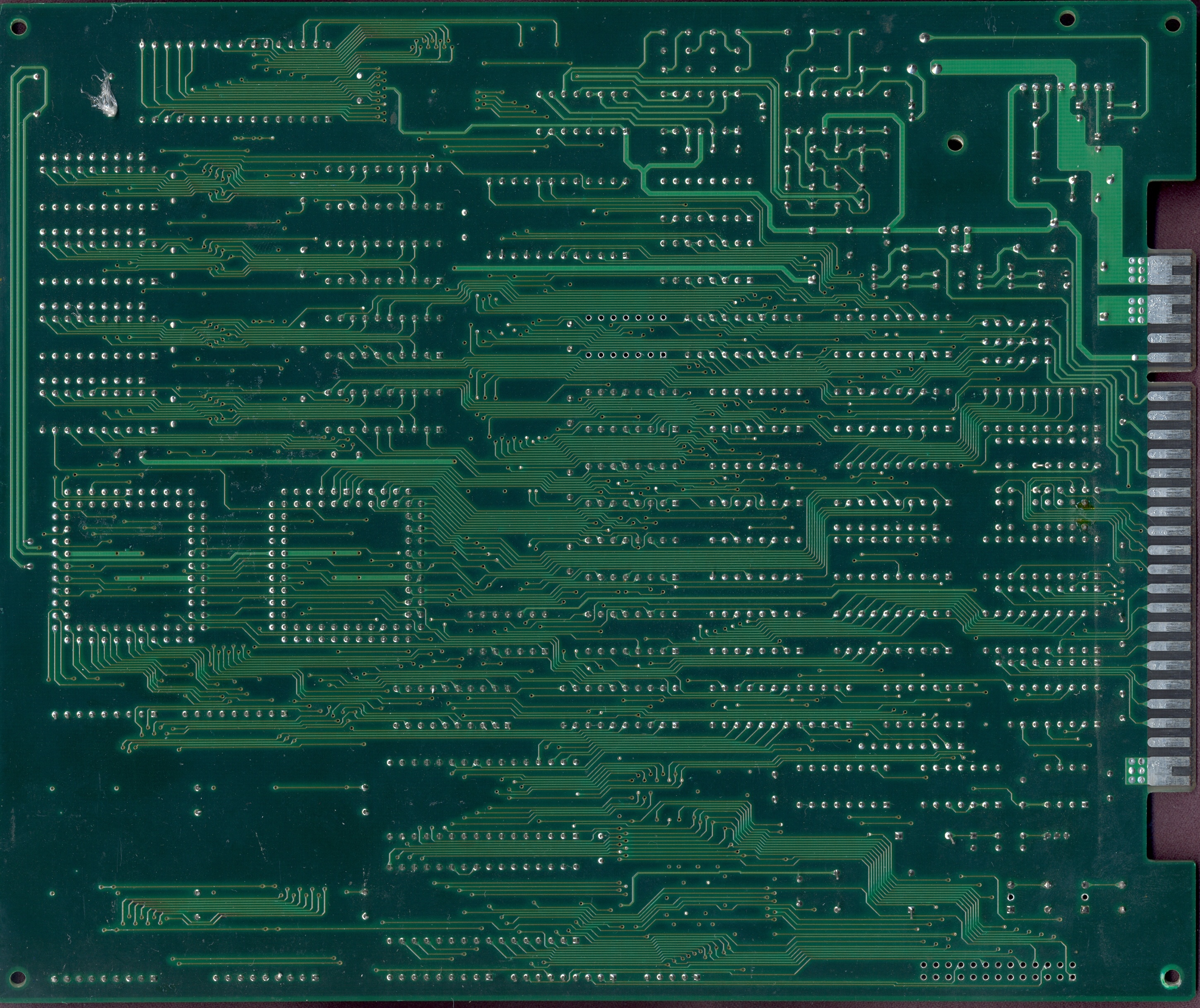

PCB solder side
-

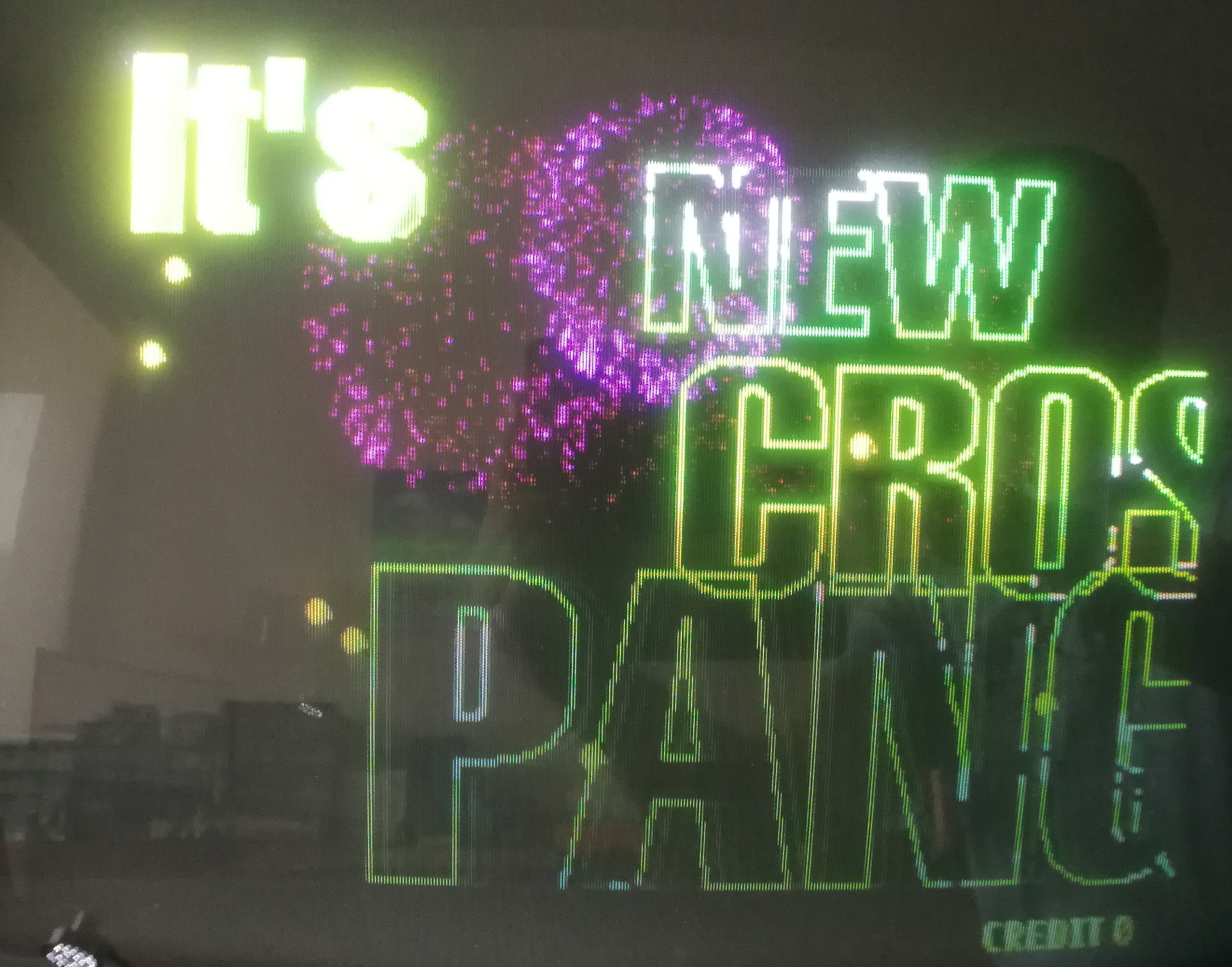

Title 1
-

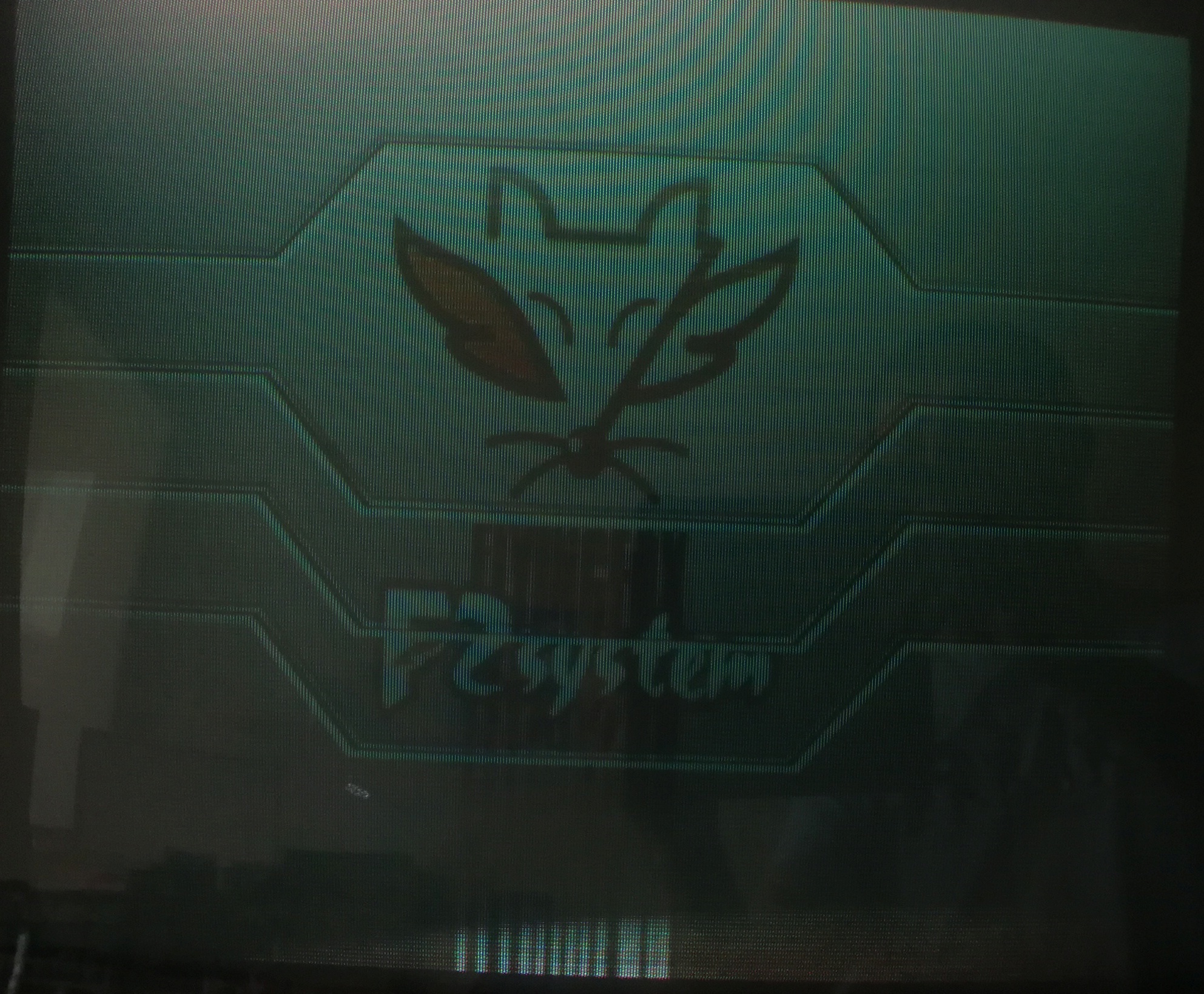

Title 2
-

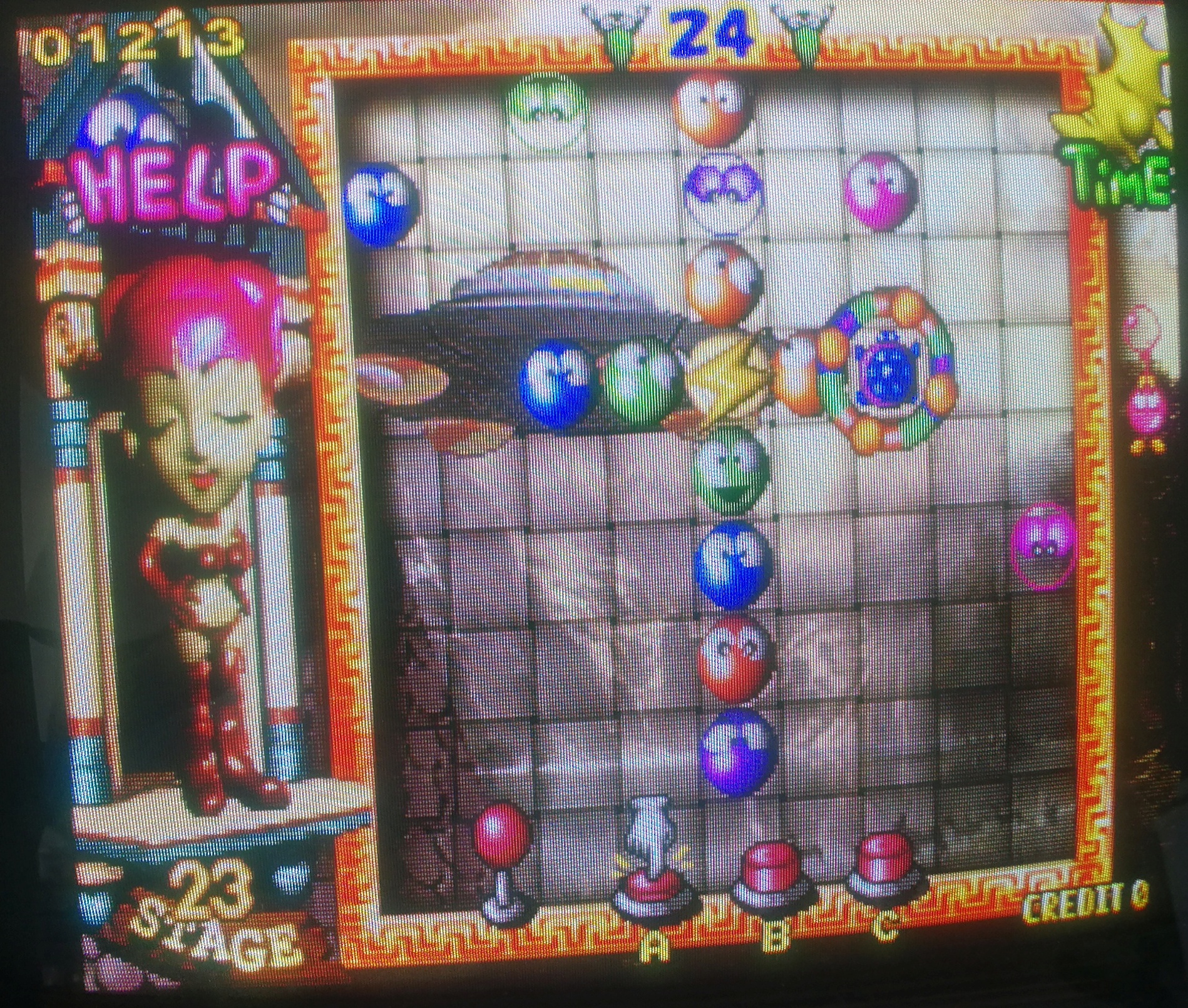

Attract mode 1
-

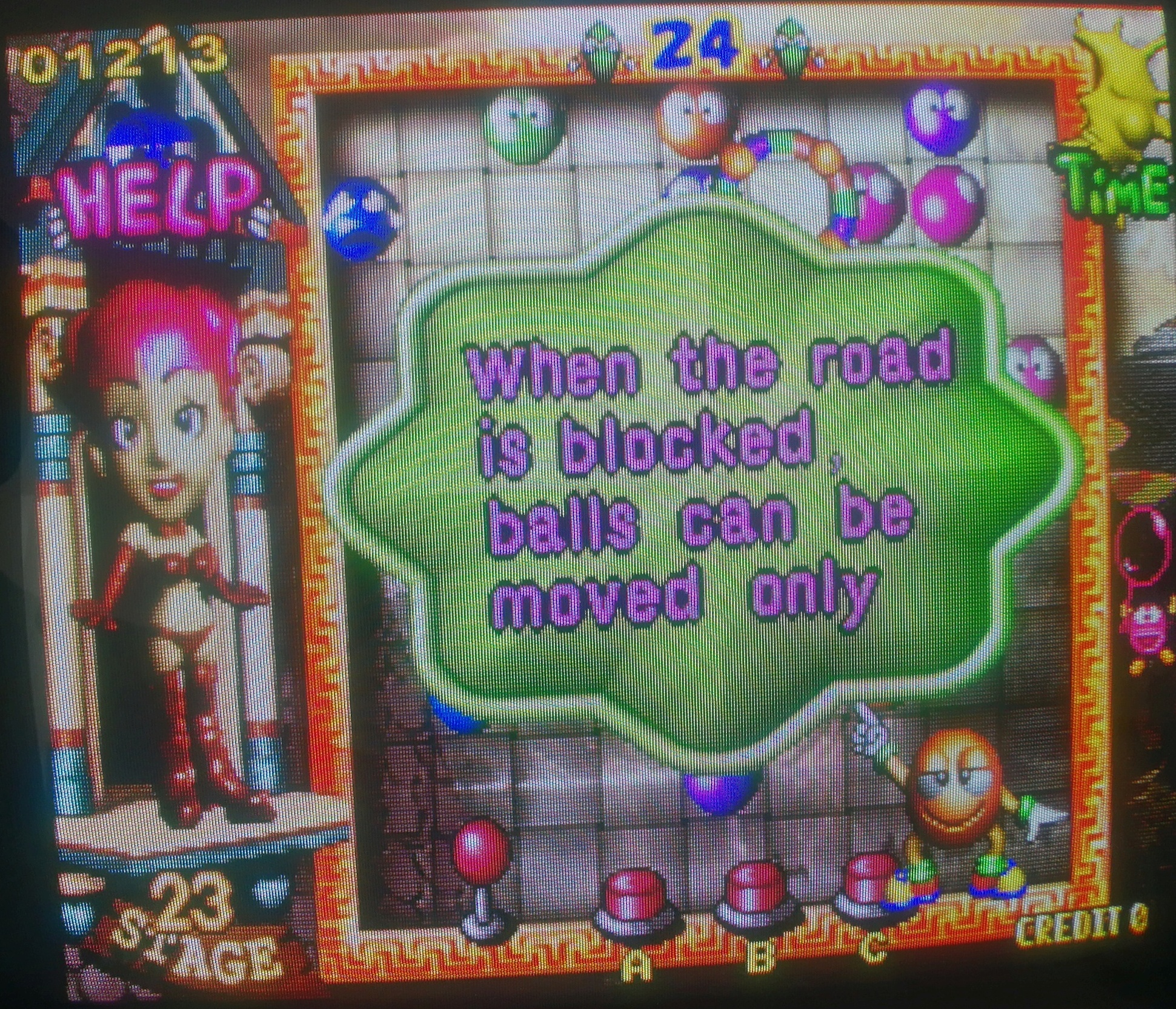

Attract mode 2
-

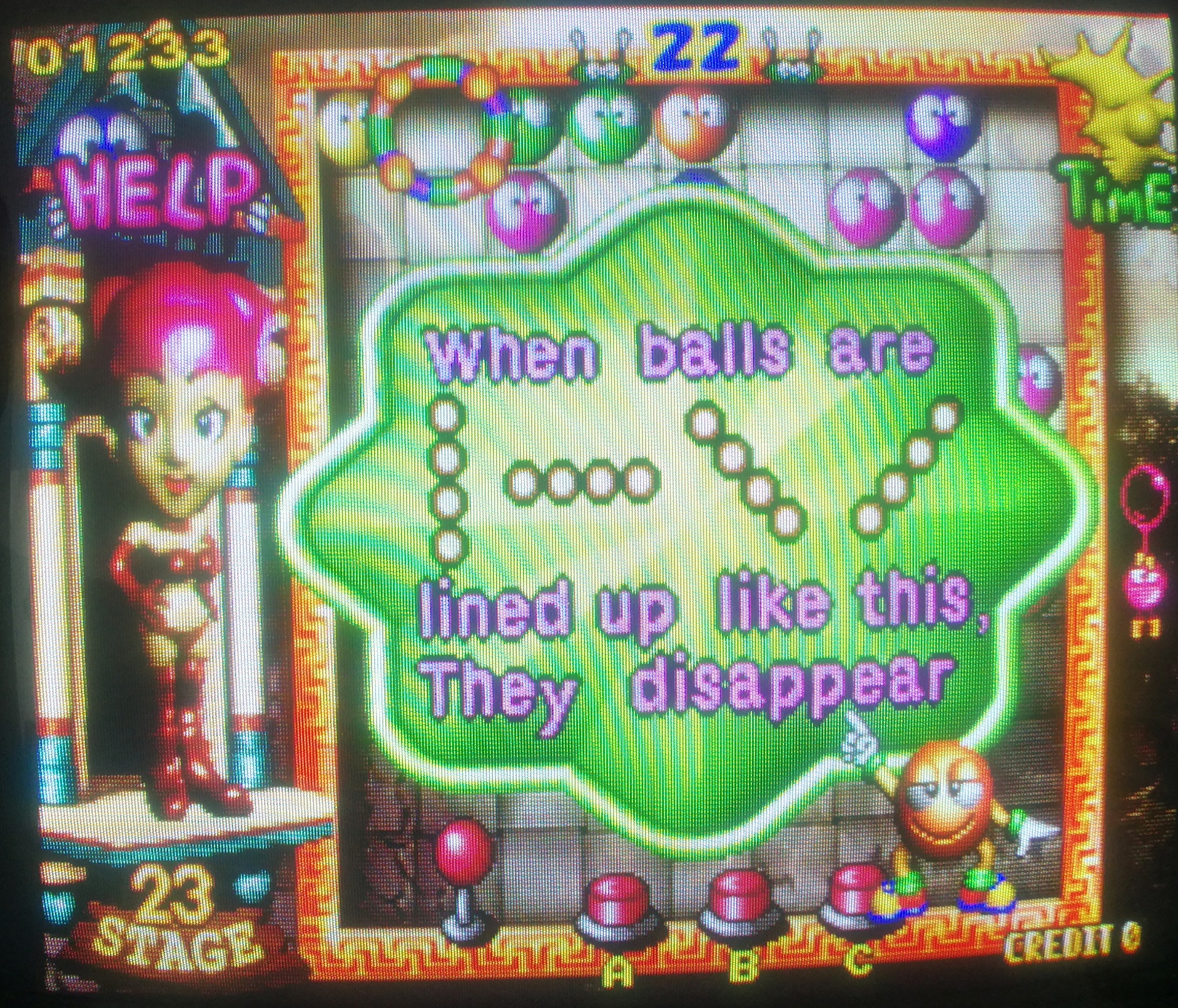

Attract mode 3
-

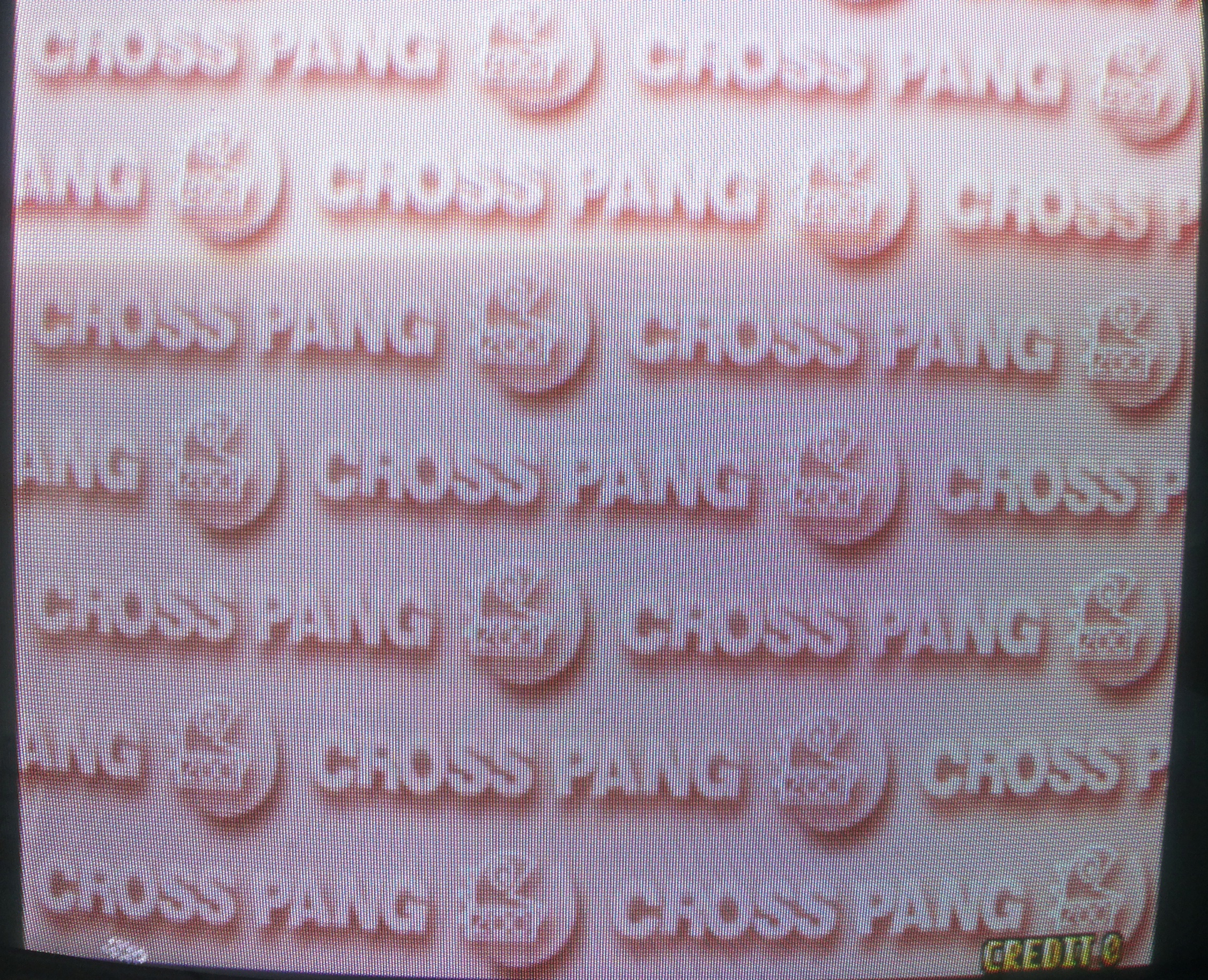

Intro 1
-

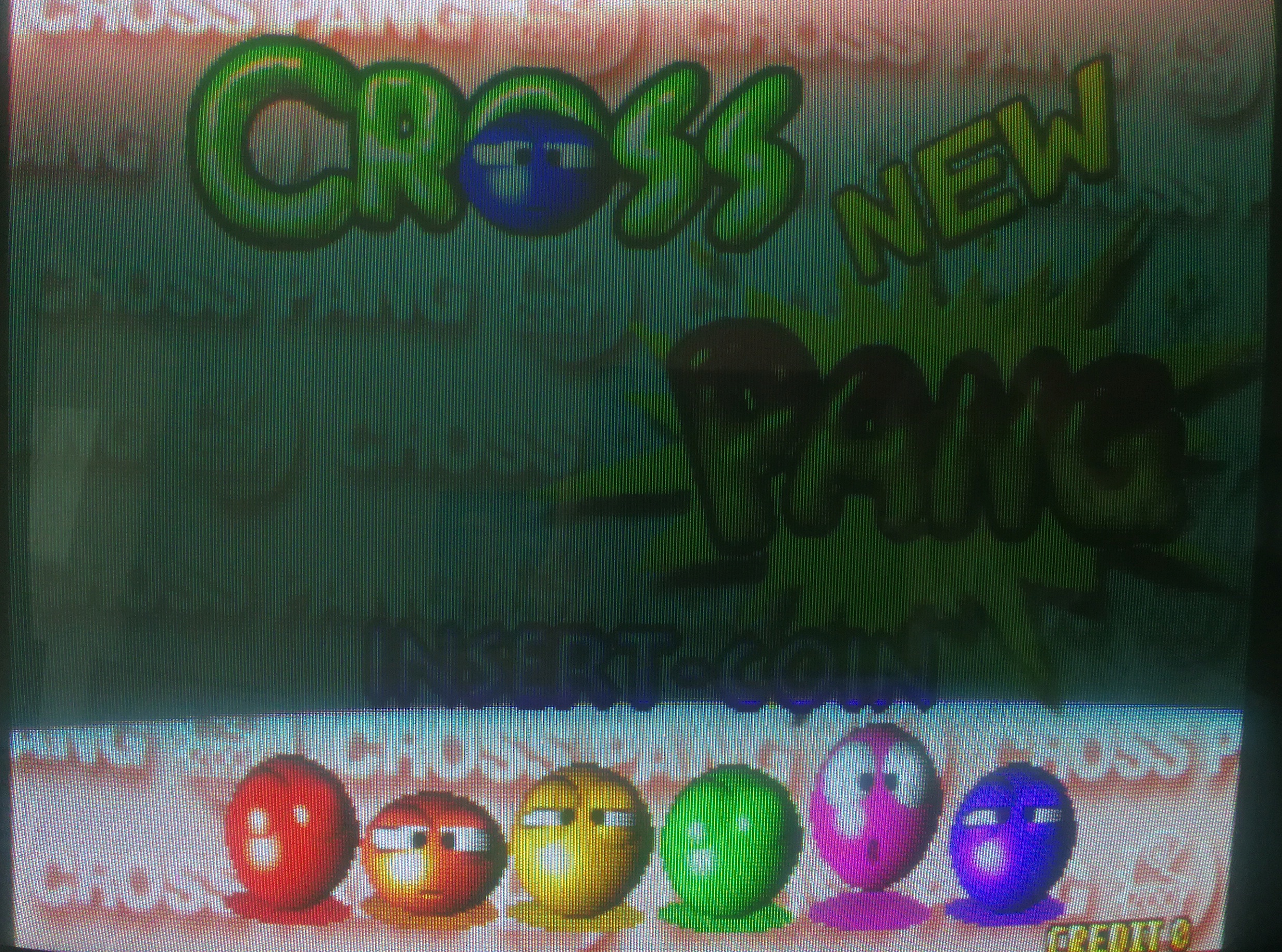

Intro 2
-

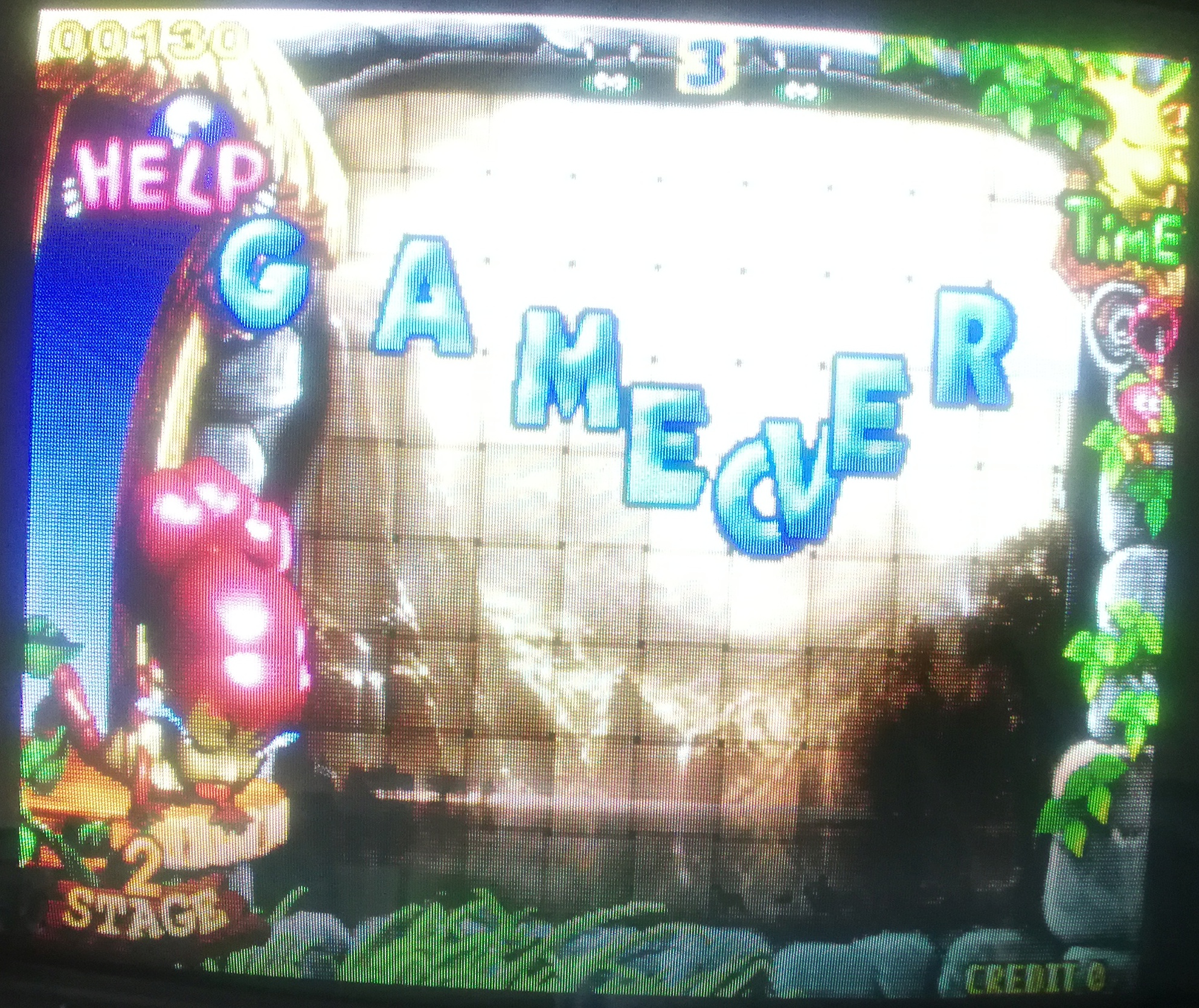

Game over
-

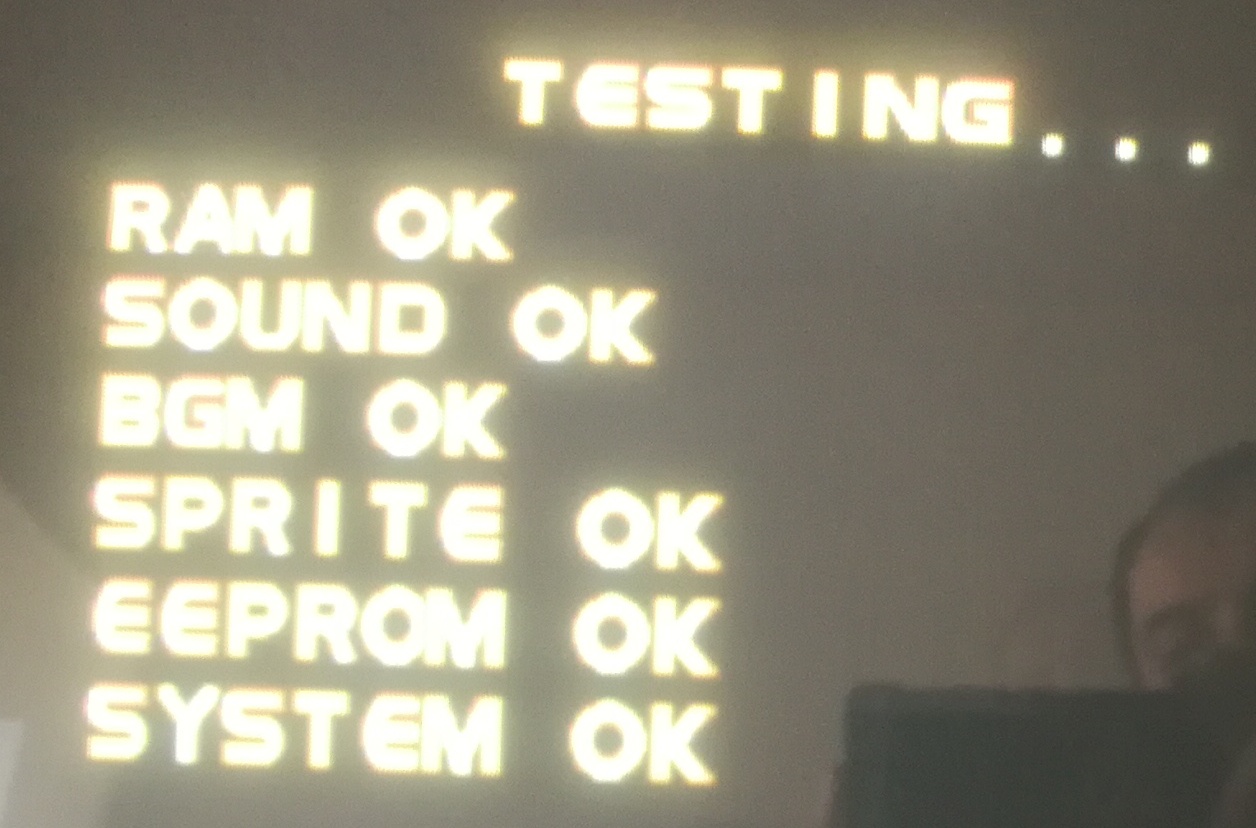

Test
