New 2001 (Italy, Ver. 200N)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 17/03/2016 |
| emulator | MAME 0.173 |
| dev | Luca Elia |
| name | new2001 on ProgettoEMMA new2001 on Arcade Database |
| description | New 2001 (Italy, Ver. 200N) |
| year | 2000 |
| manufacturer | Subsino |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Subsino SS9689 (H8/3048) | u16 | main | |
| 1x | Subsino SS9802 9948 QFP100-(30x20)-20x14mm | u1 | video | |
| 1x | Subsino SS9904 QFP100-(30x20)-20x14mm | u8 | unknown - maybe audio | |
| 1x | Subsino SS9601 QFP120-(30x30)-14x14mm | u23 | video | |
| 1x | Subsino SS9803 QFP100-(30x20)-20x14mm | u29 | video | |
| 1x | Subsino S-1 DIP8-300mil | u11 | audio OP AMP or DAC? maybe an YM3014 clone. | |
| 1x | ST324 | u12 | Quad Operational Amplifier - sound | |
| 1x | TDA1519 | u14 | Audio Amplifier - sound | |
| 1x | oscillator | 44.100 | osc48 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27C020 | 1 | dumped |
| 1x | 27C4001 | 2 | dumped |
| 4x | 27C2001 | 3,4,5,6 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | HM62H256AK-15 | u30,u31 |
| 1x | CXK58257AM-10L | u22 |
| 1x | HM86171-80 | u35 |
PLDs
| QTY | Type | position | status |
|---|
Others
1x 28x2 JAMMA edge connector
1x 36x2 edge connector
1x 10x2 edge connector
1x 6 legs connector
1x pushbutton (SW1)
1x trimmer (volume)(VR1)
1x 8x2 switches DIP(DS1)
3x 3 legs jumper (JP1,JP2,JP4)
1x battery 3V
Notes
Files
-

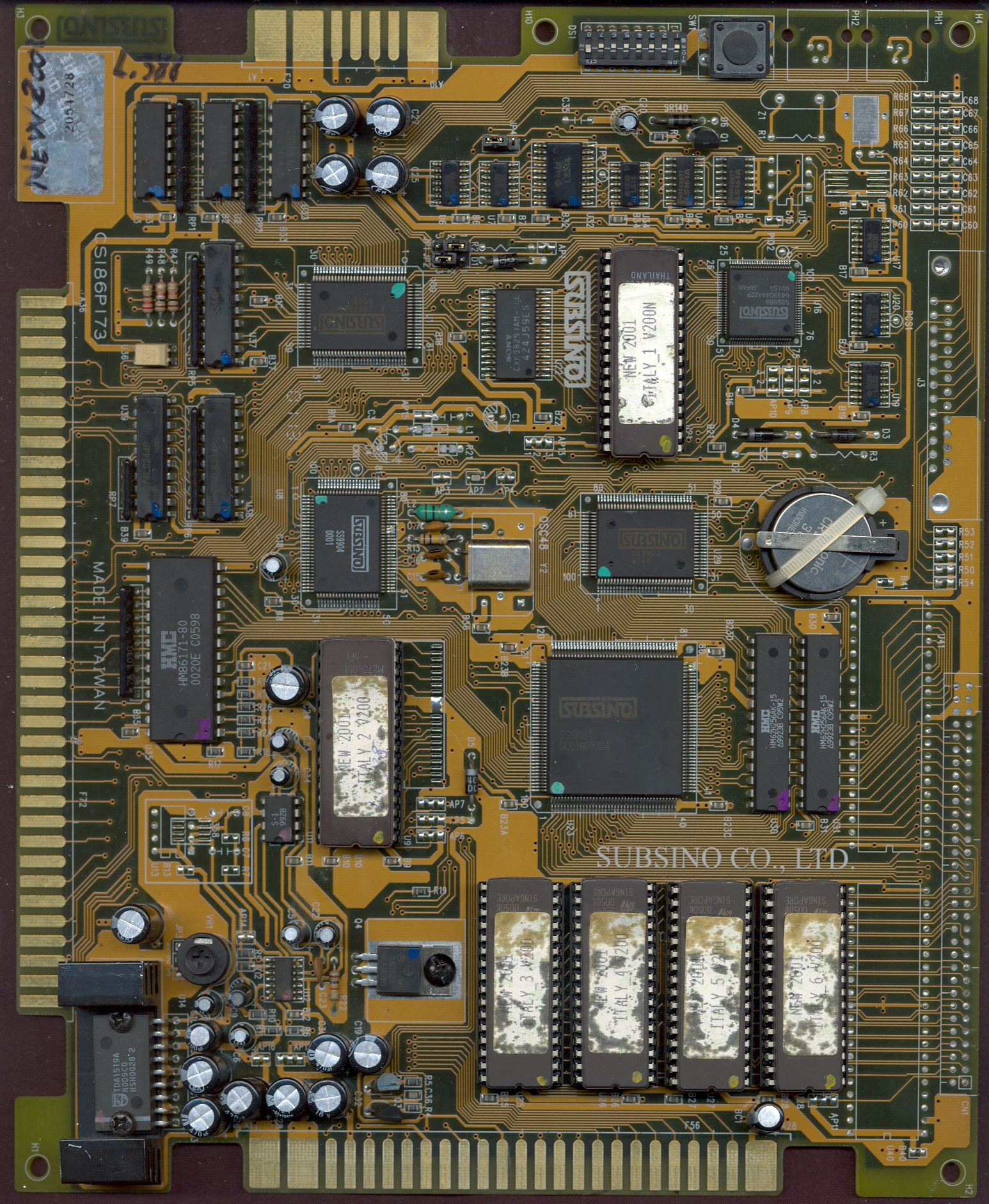

PCB component side
-

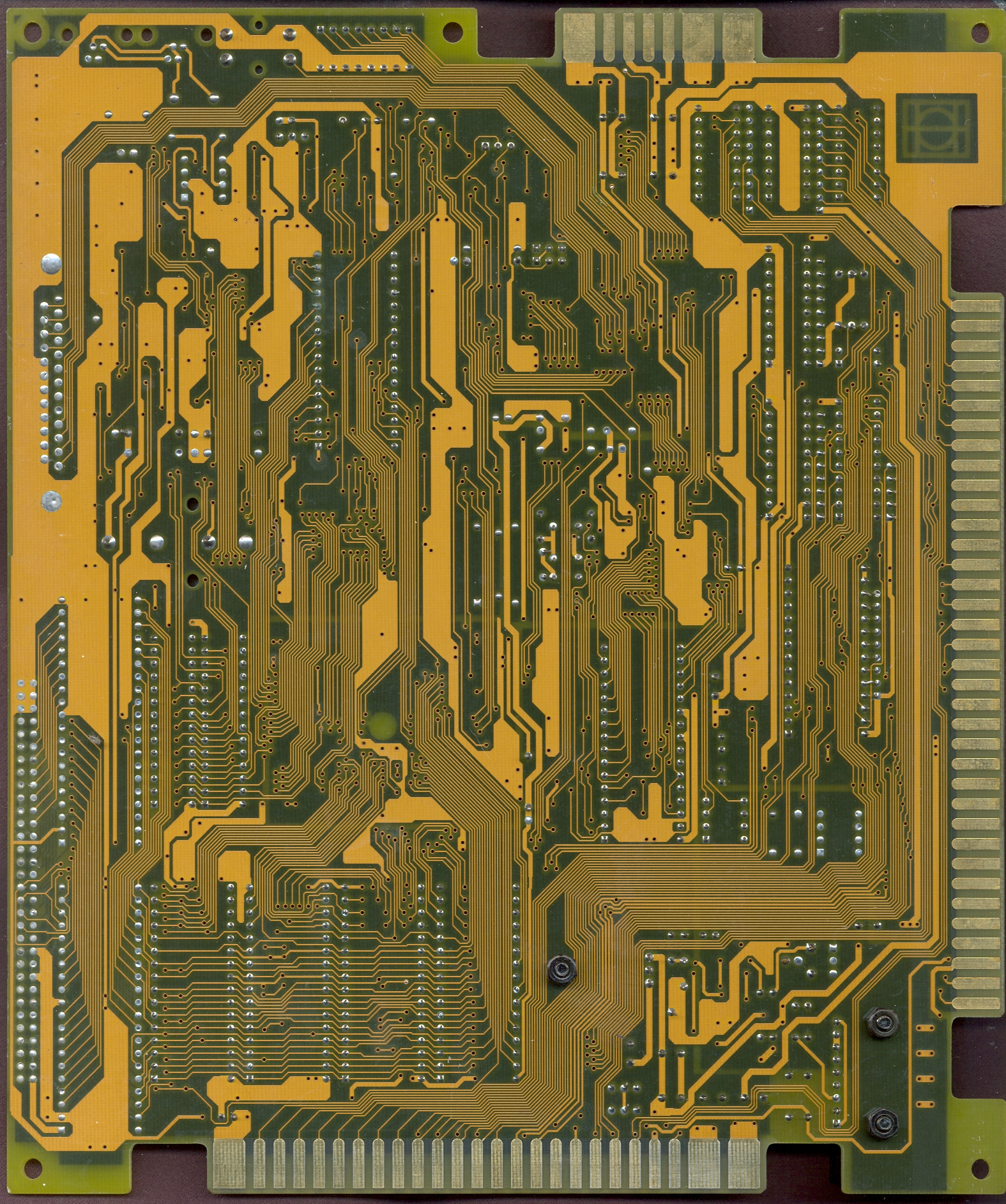

PCB solder side
-

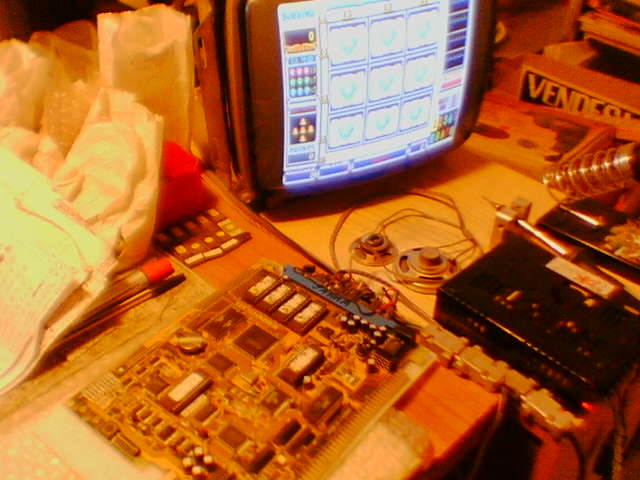

In game
