Naomi DIMM Firmware Updater (2.13) (GDS-0023A)
From Citylan
Jump to navigationJump to search
| dumper | MajorPBX |
| date | 28/06/2019 |
| emulator | MAME 0.221 |
| dev | MetalliC |
| name | ngdup23a on Arcade Database |
| description | Naomi DIMM Firmware Updater (2.13) (GDS-0023A) |
| year | 2001.12.28 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | PIC16C622A | (317-0314-COM)(253-5508-0314) | 8bit CMOS Microcontroller (internal ROM extracted) |
ROMs
| QTY | Type | position | status |
|---|
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
It's a NAOMI disk.
Disk type: CD
Disk N°: GDS-0023A
Disk ID: BDM
Key: 895102310BECA880
Listing of cdrom
Disk Info: Hardware Identifier : "SEGA SEGAKATANA" Hardware Vender ID : "SEGA ENTERPRISES" Media ID : "F2FB" Media Information : "GD-ROM1/1" Compatible area symbols : "J" Peripheral Information : "0000000" Product number : "GDS-0023A" Version number : "V1.002" Release date (dd/mm/yyyy): 28/12/2001 First read file : "" Maker Identifier : "" Game Title : "NAOMI GDROM FIRM UPDATE" HD area TOC: HD tracks : 3 to 3 track 3 : Start LBA 45000 , End LBA 549300, ctrl 0x4 Last Sector : LBA 549150 Listing of cdrom CD-ROM INFO Title NAOMI GDROM FIRM UPDATE Media ID F2FB Media Config GD-ROM1/1 Regions J Peripheral String 0000000 Product Number GDS-0023A Version V1.002 Release Date 20011228 Manufacturer ID TOC DISC Track Start Sector End Sector Track Size track01.bin 150 599 1058400 track02.raw 750 2882 5016816 track03.bin 45150 549299 1185760800
Files
-

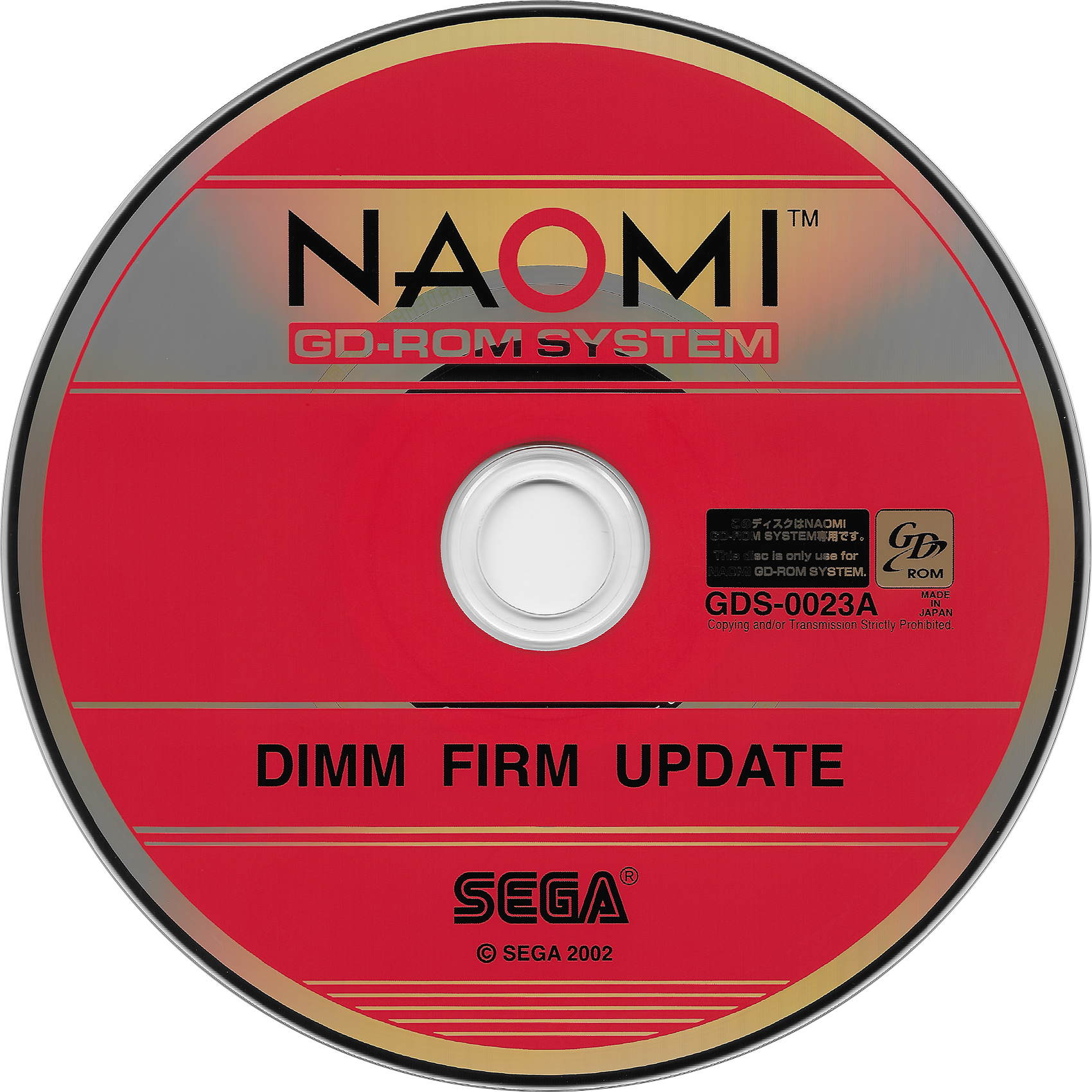

disk front
-

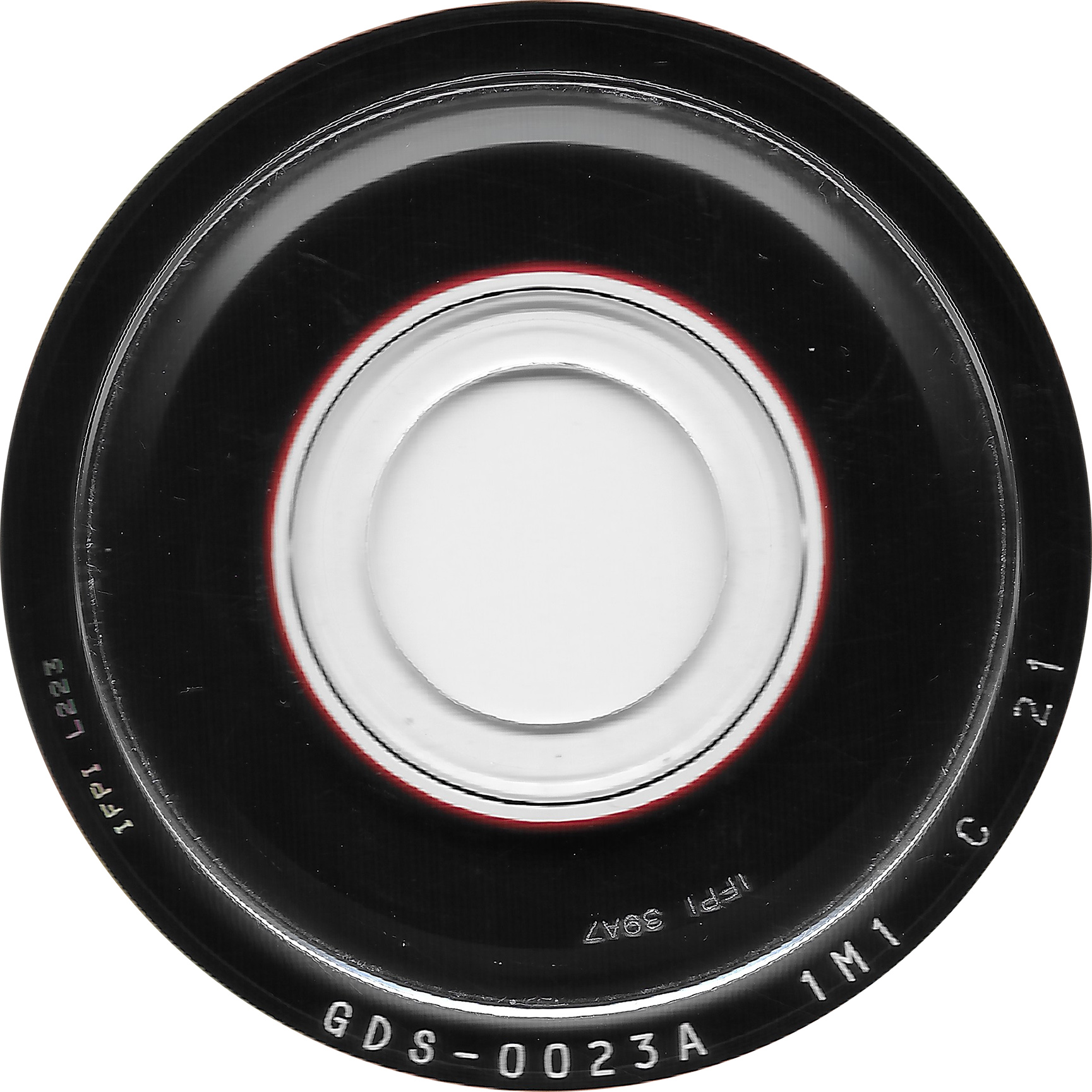

disk code
-

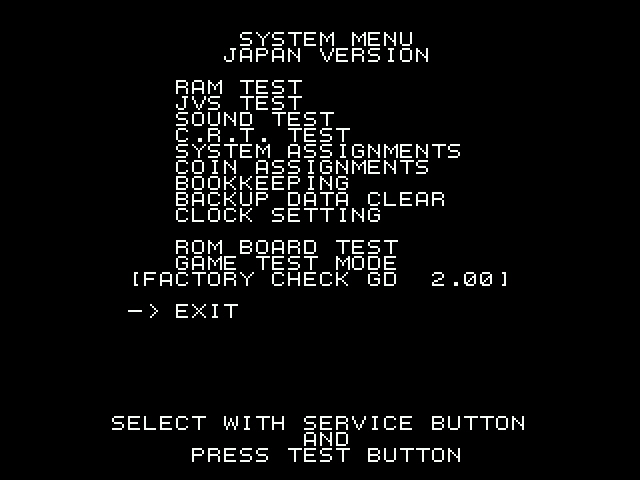

test mode
-
Readme
-
Readme
