Naomi Bios epr-21576d
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| dump date | 09/01/2019 |
| emulator | MAME 0.125u7 |
| dev | Brian Troha, Guru |
| name | naomi on ProgettoEMMA naomi on Arcade Database |
| description | Naomi Bios epr-21576d |
| year | 1998 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C160 | ic27 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
It's a NAOMI motherboard.
Files
-

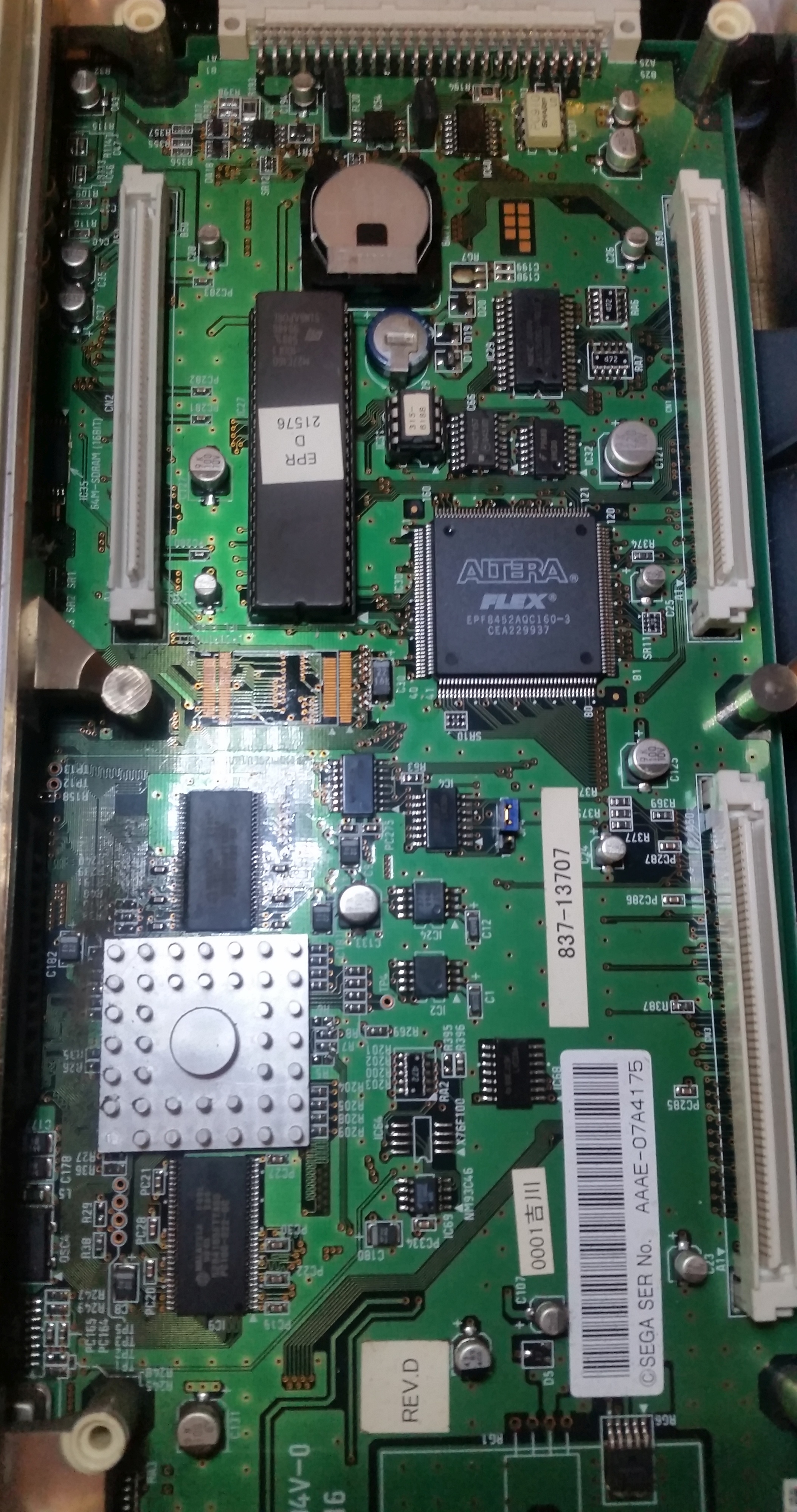

PCB component side
1651
