Naomi 2 Bios
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| dump date | 22/10/2009 |
| emulator | MAME 0.125u7 |
| dev | Brian Troha, Guru |
| name | naomi2 on ProgettoEMMA naomi2 on Arcade Database |
| description | Naomi 2 Bios |
| year | 2001 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C160 | ic27 | dumped |
| 1x | 93C46 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
Working
Naomi 2 motherboard
BIOS epr-23607b.ic27
update 20110103 I got a new Naomi, with BIOS epr-23608a.ic27.
Files
-

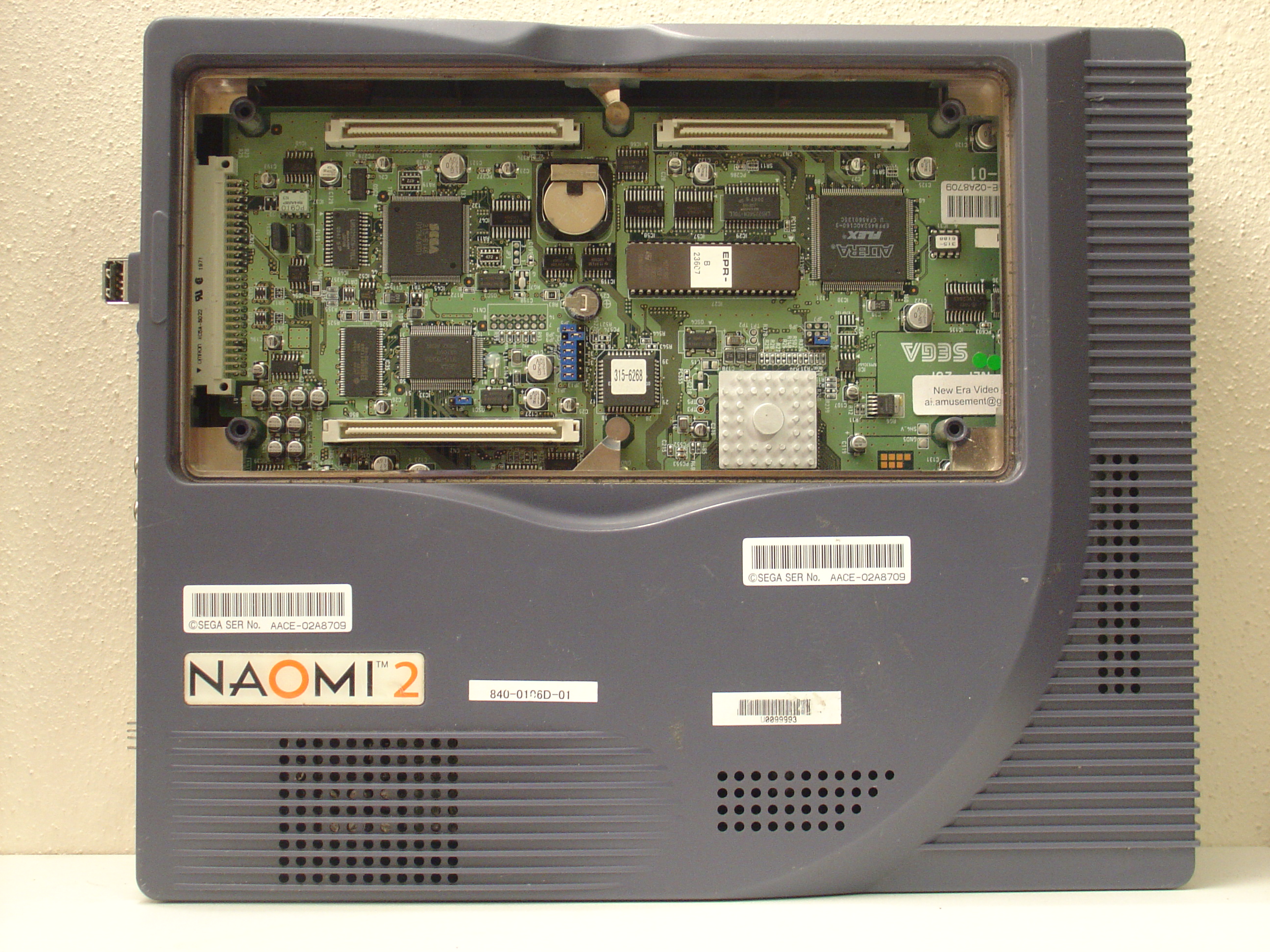

PCB component side
-

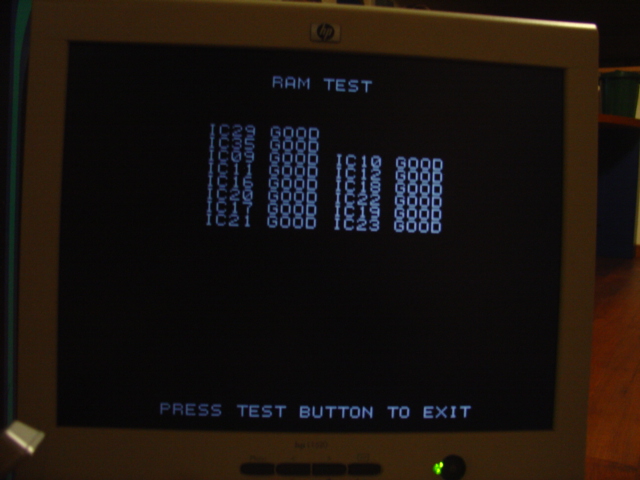

RAM test
-
ROMs
