Mushiking The King Of Beetles - Mushiking IV / V / VI (World)
From Citylan
Jump to navigationJump to search
| dumper | RTW |
| date | 11/11/2017 |
| emulator | MAME 0.192 |
| dev | MetalliC |
| name | mushik4e on ProgettoEMMA mushik4e on Arcade Database |
| description | Mushiking The King Of Beetles - Mushiking IV / V / VI (World) |
| year | 2006 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | PIC16C621A | 317-0437-COM.ic3 | EPROM-Based 8-Bit CMOS Microcontroller (not dumped) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XCF01SVG | ic4 | not dumped |
| 2x | S29GL512N10T | FPR-24417.ic8, FPR-24418.ic9 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XC3S50 | ic2 | not dumped |
Others
Notes
It's a NAOMI cart.
Cart type: 171-8346C
Cart N°: 840-0180C
Files
-

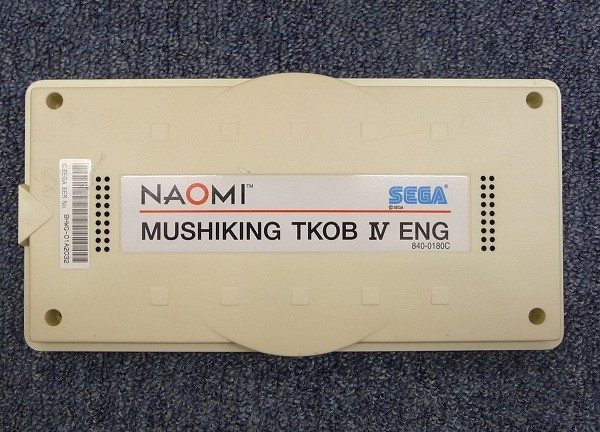

Cart 1
-
Cart 2
-

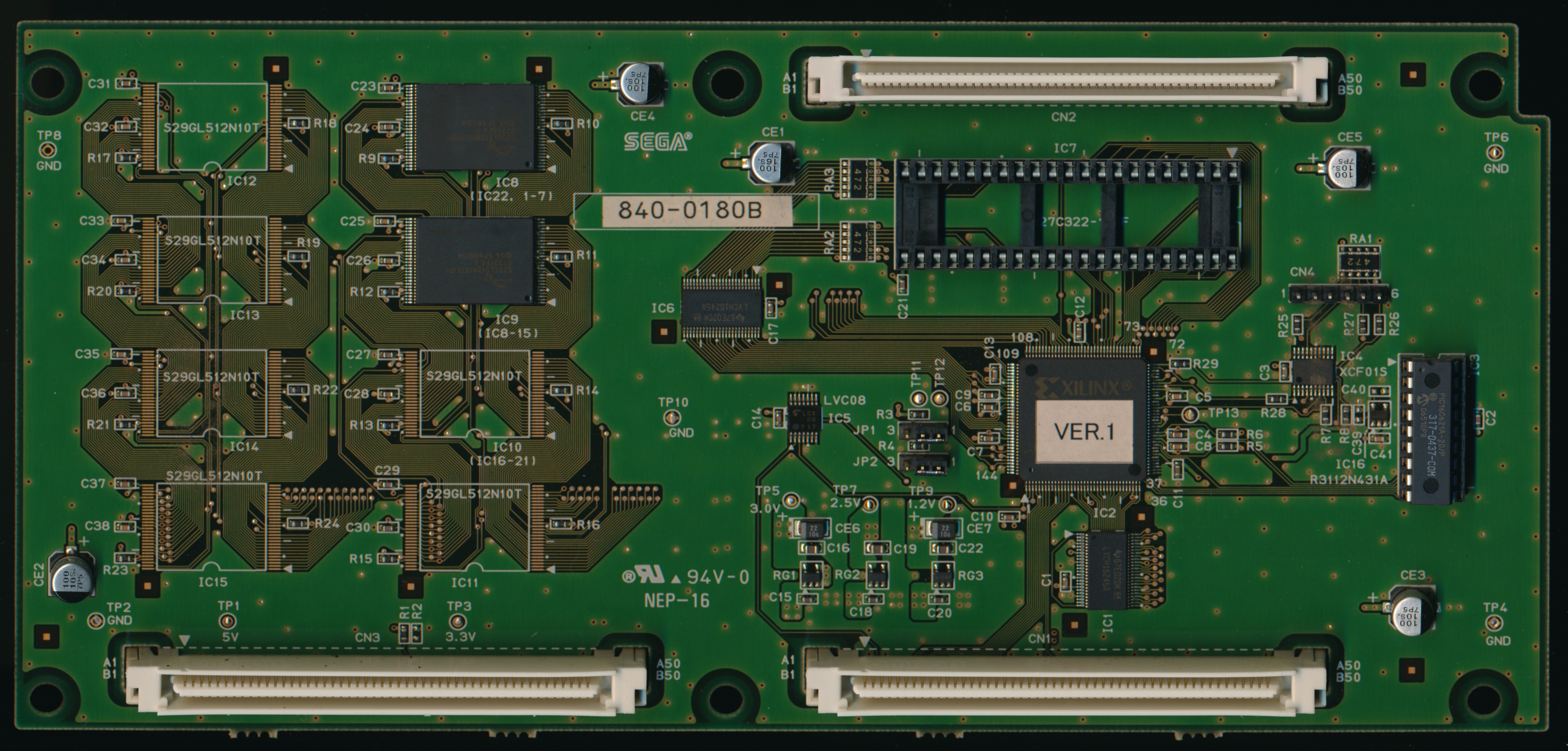

PCB component side
-

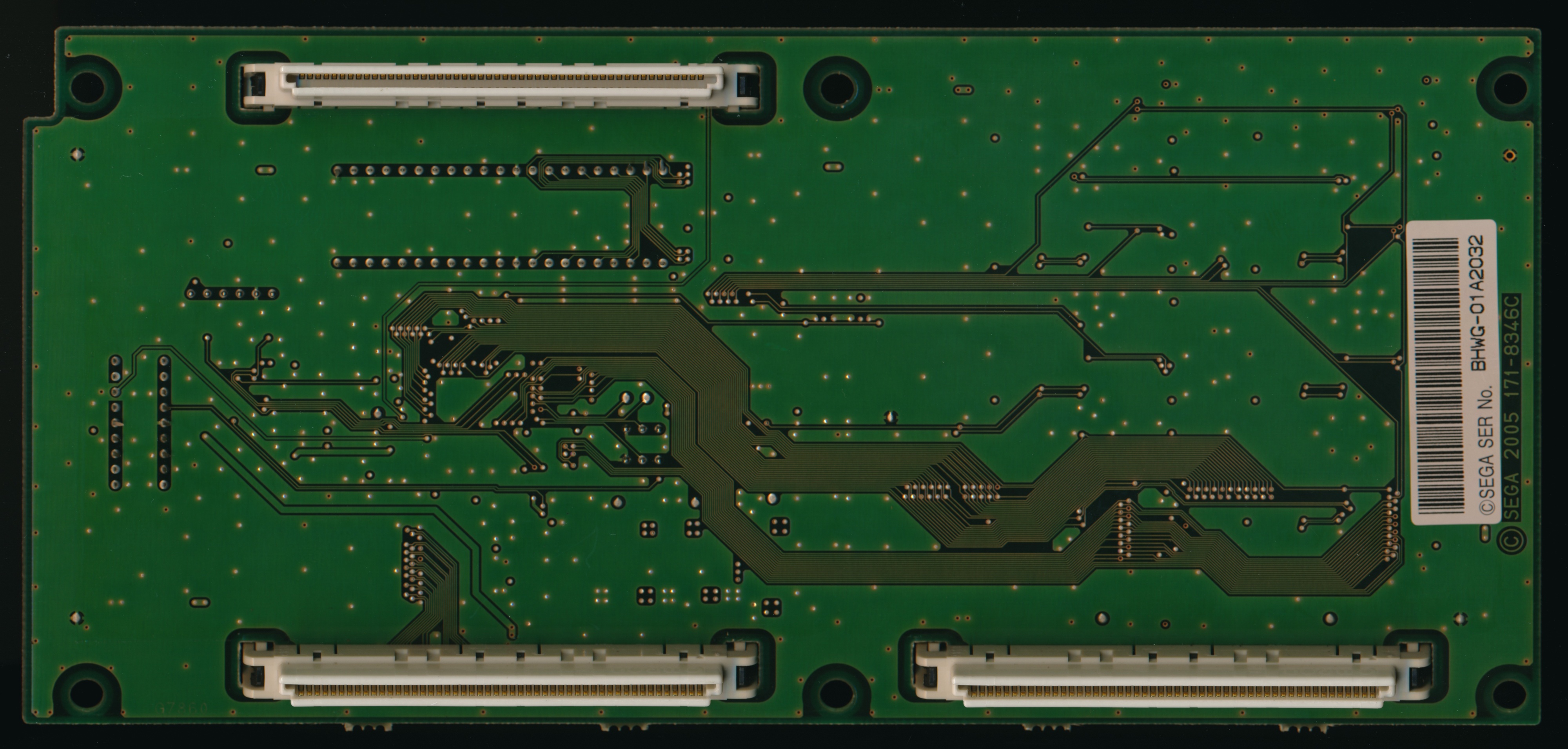

PCB solder side
-

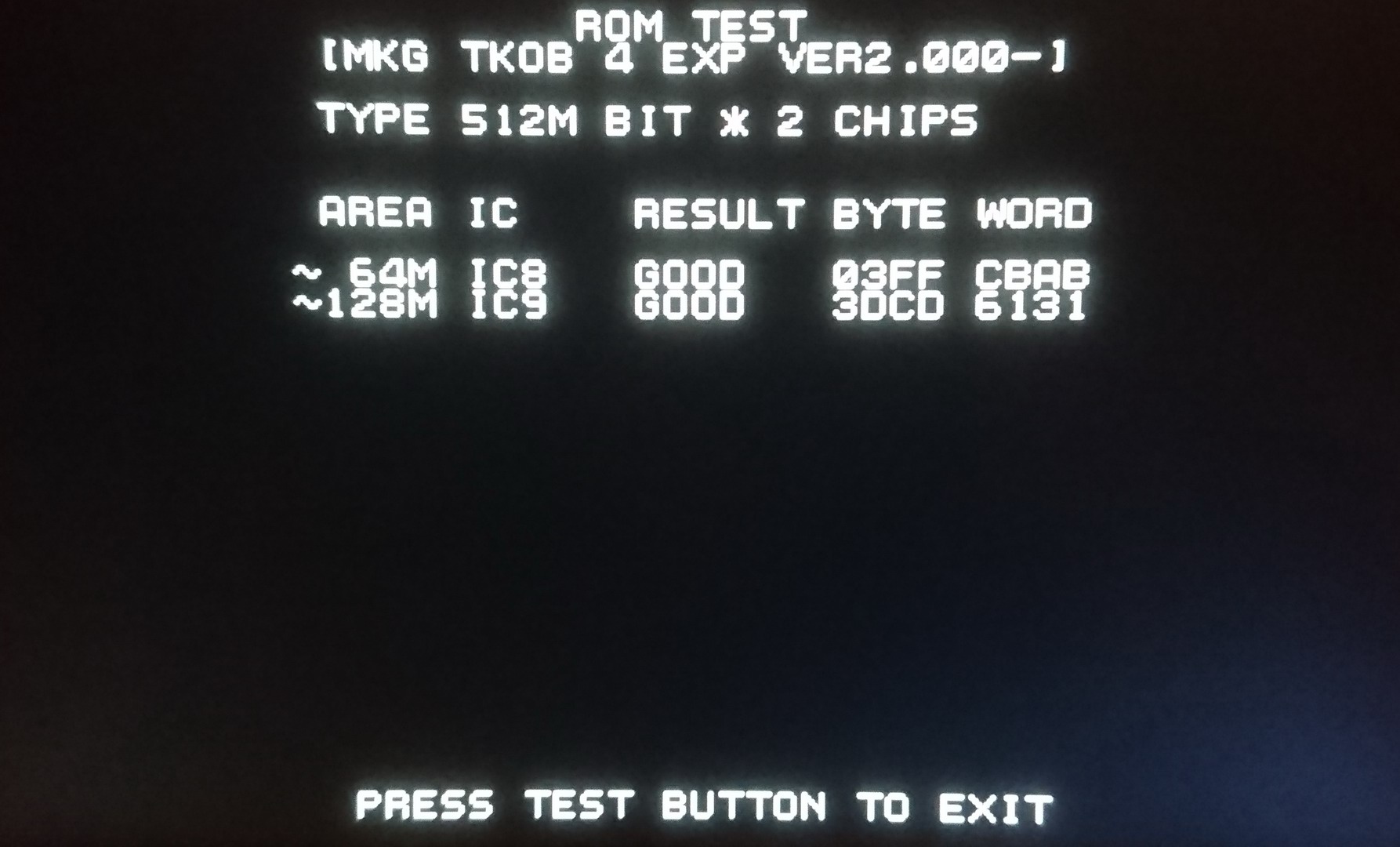

ROM Test
-
Readme
