Mushiking The King Of Beetles - Mushiking II / III / III+ (Ver. 2.001) (World)
From Citylan
Jump to navigationJump to search
| dumper | Rtw |
| date | 22/09/2011 |
| emulator | MAME 0.153 |
| dev | R. Belmont |
| name | mushik2e on ProgettoEMMA mushik2e on Arcade Database |
| description | Mushiking The King Of Beetles - Mushiking II / III / III+ (Ver. 2.001) (World) |
| year | 2005.09.15 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | PIC16C621A | 317-0437-COM.ic3 | EPROM-Based 8-Bit CMOS Microcontroller (not dumped) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | 24357.ic7 | dumped |
| 1x | XCF01SVG | ic4 | not dumped |
| 2x | S29GL512N10T | FPR-24333.ic8, FPR-24334.ic9 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XC3S50 | ic2 | not dumped |
Others
Notes
It's a NAOMI cart.
Cart type: 171-8346C
Cart N°: 840-0164C
IC4# is marked "18"
not for Japan, version can be changed in secret menu
secret change game version (II/III/III+) menu: in game test mode highlight EXIT then press P1+P2 buttons 2 30 times
Files
-

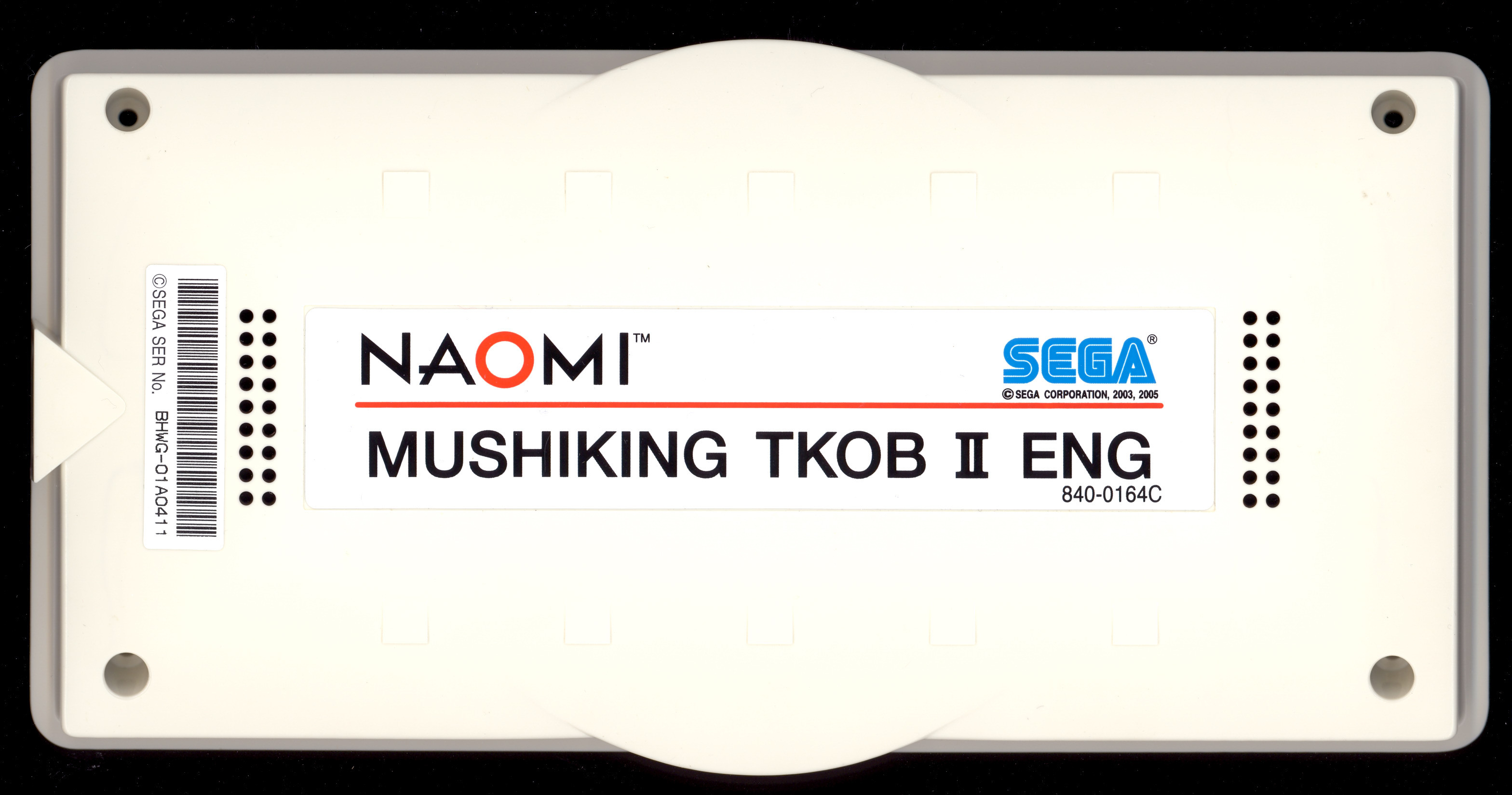

Cart
-
Cart
-

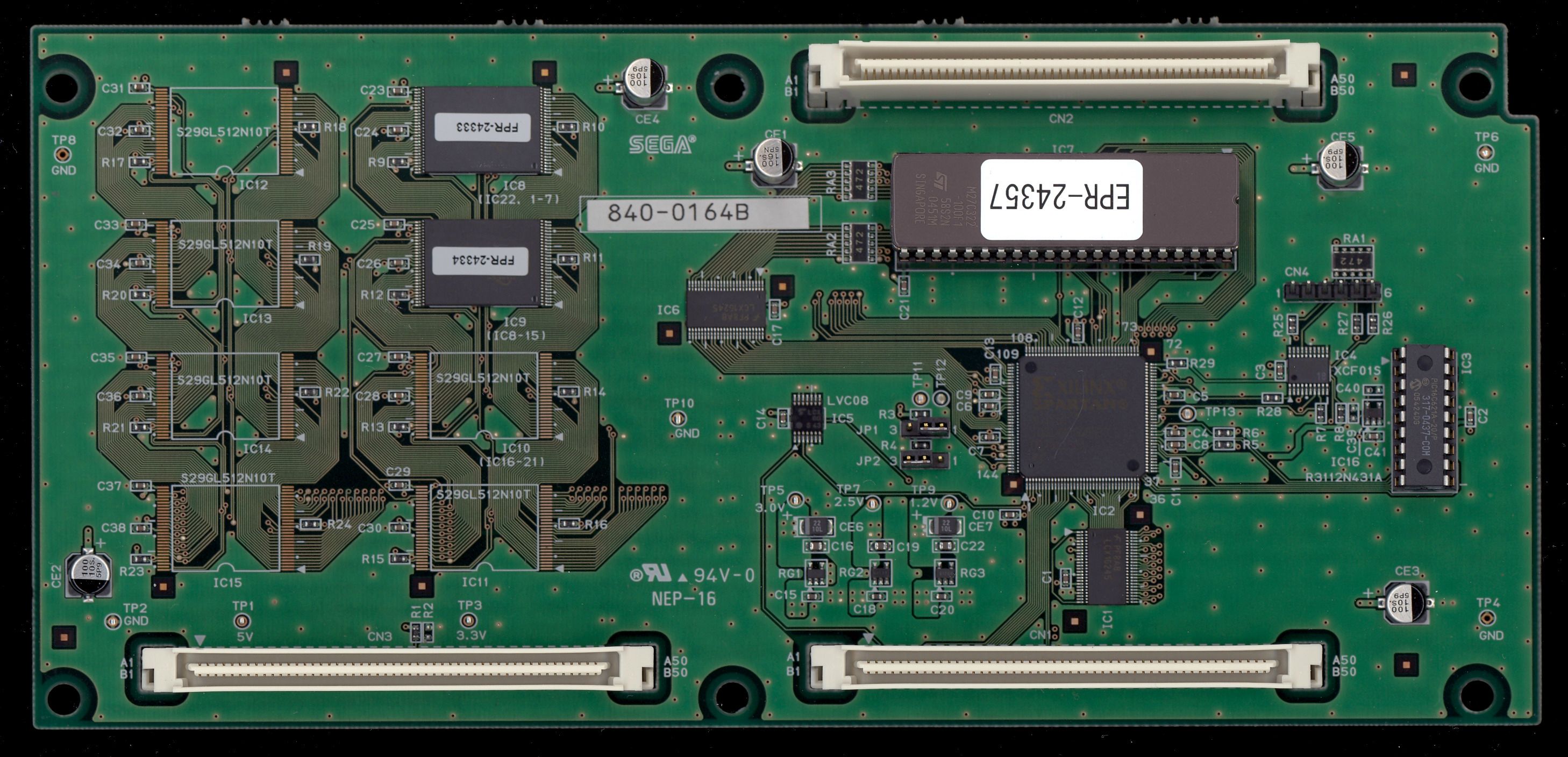

PCB component side
-
PCB component side
-

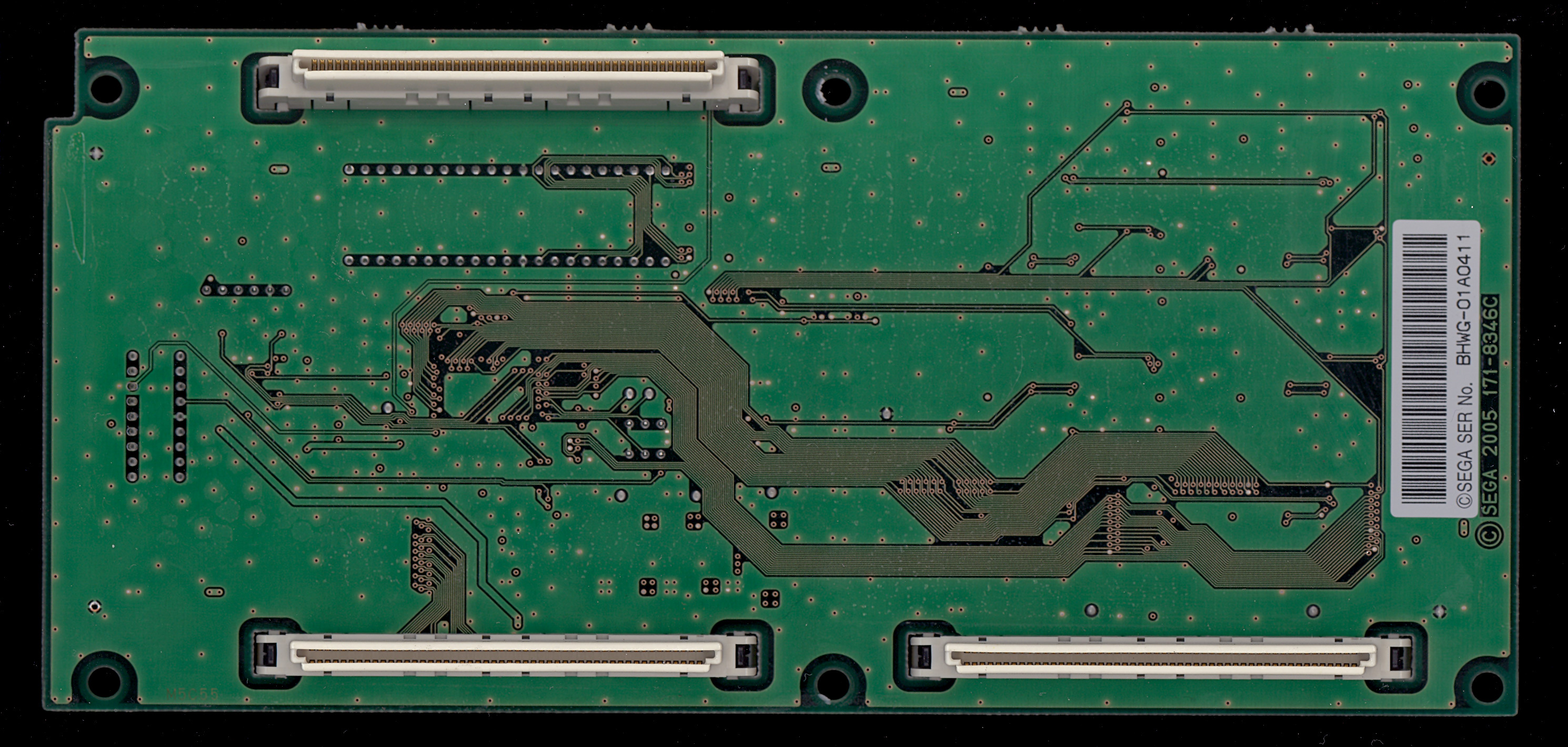

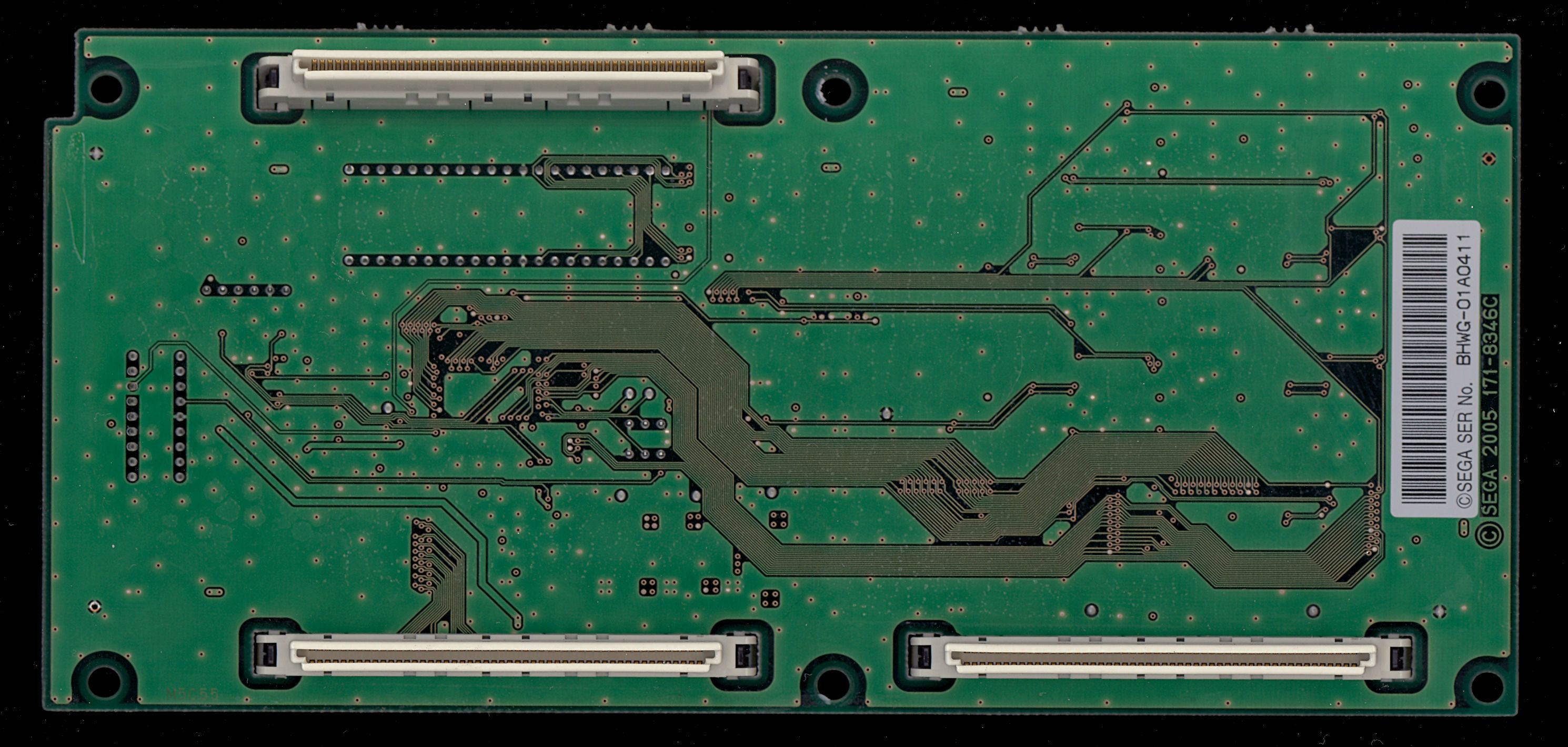

PCB solder side
-
PCB solder side
-

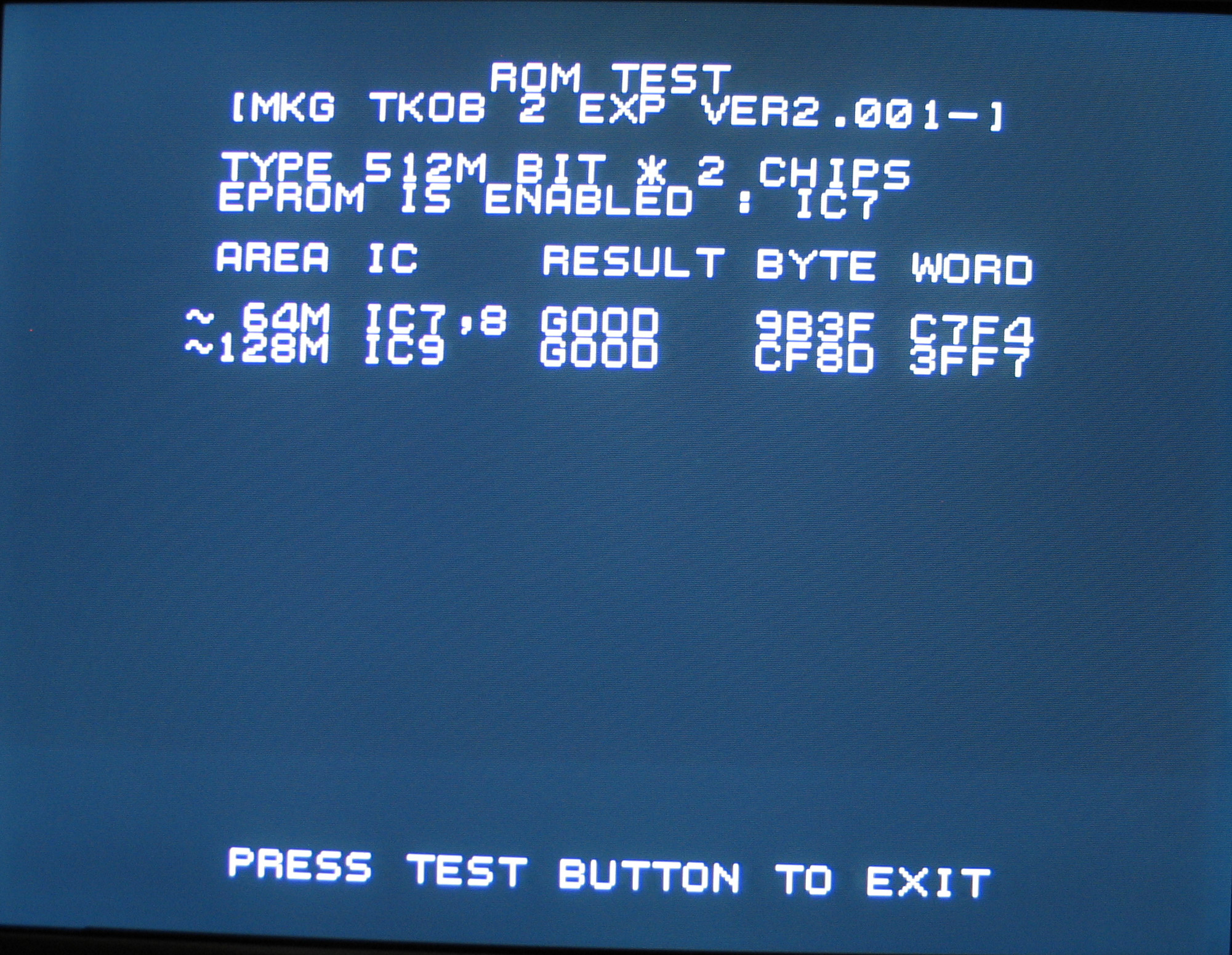

ROM BOARD TEST
-
