Mushiking The King Of Beetle (2K3 2ND Ver. 1.003-, World)
From Citylan
Jump to navigationJump to search
| dumper | f205v, rtw |
| date | 20/10/2011 |
| emulator | MAME 0.144u7 |
| dev | f205v, The Dumping Union |
| name | mushike on ProgettoEMMA mushike on Arcade Database |
| description | Mushiking The King Of Beetle (2K3 2ND Ver. 1.003-, World) |
| year | 2003.10.08 – 21:33:51 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 50.000MHz | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | epr-24217.ic11 | dumped |
| 6x | M27W064 | mpr-24218.ic17s,ic18,ic19s,ic20,ic21s,mpr-24223.ic22 | dumped |
| 1x | 25LC040 | ic13 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | IDT71V256 | ic15 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | A54SX32A 317-0394-COM | ic1 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7978B
Cart N°: 840-0150C
Key: 0x3892fb3a
update 20170604: dumped 25LC040, better scans
Files
-

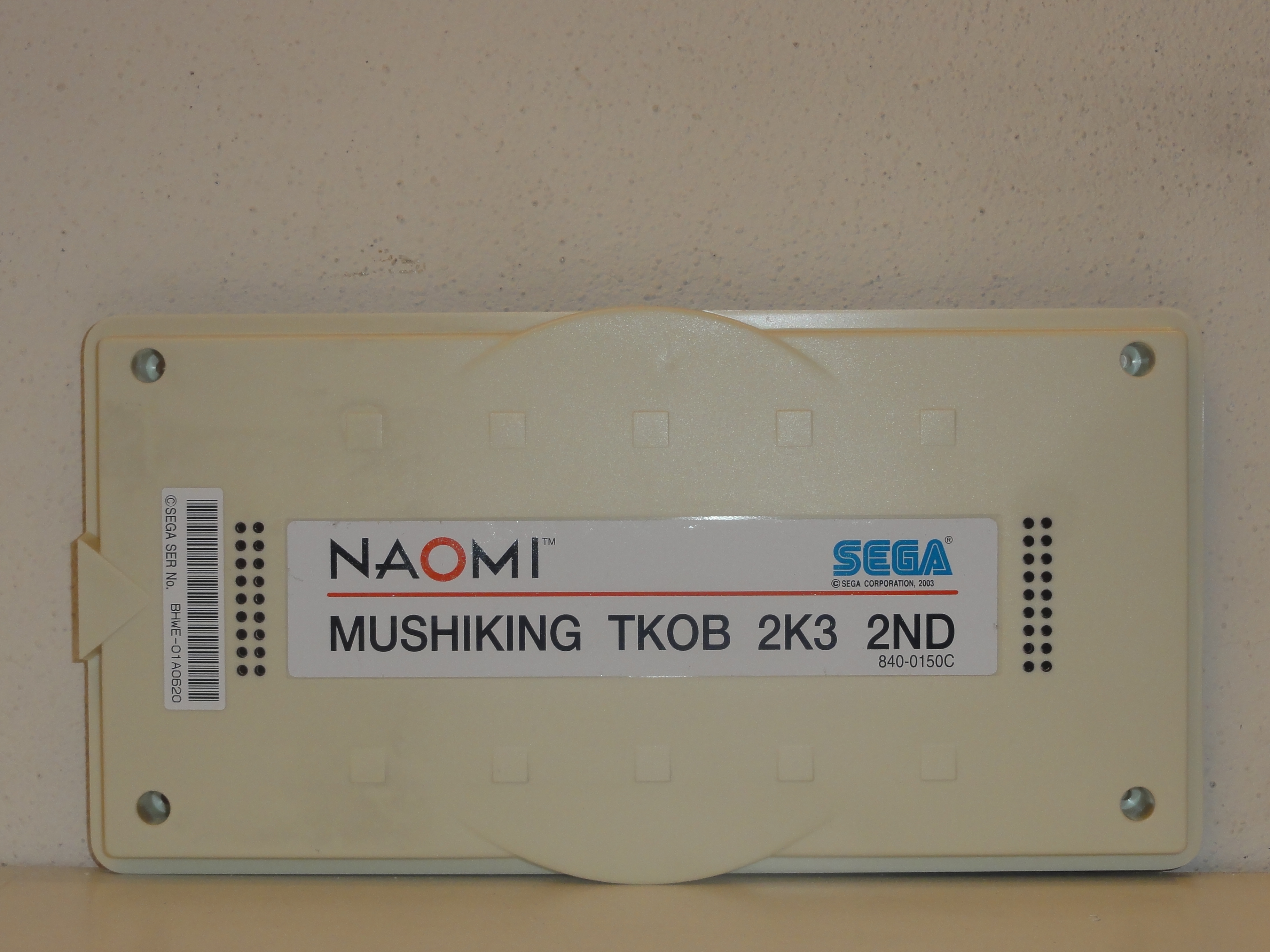

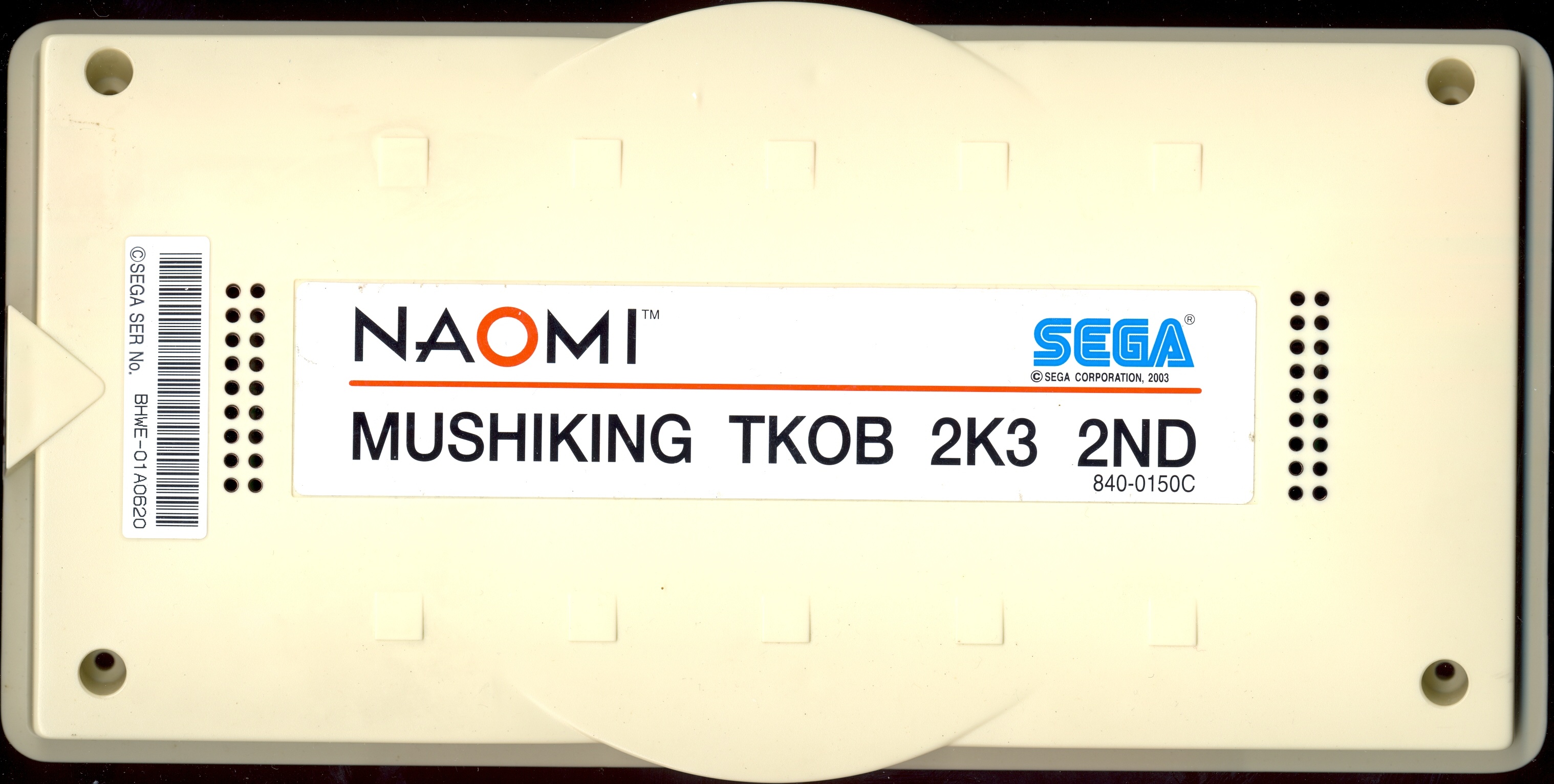

Cart 1
-
Cart 2
-

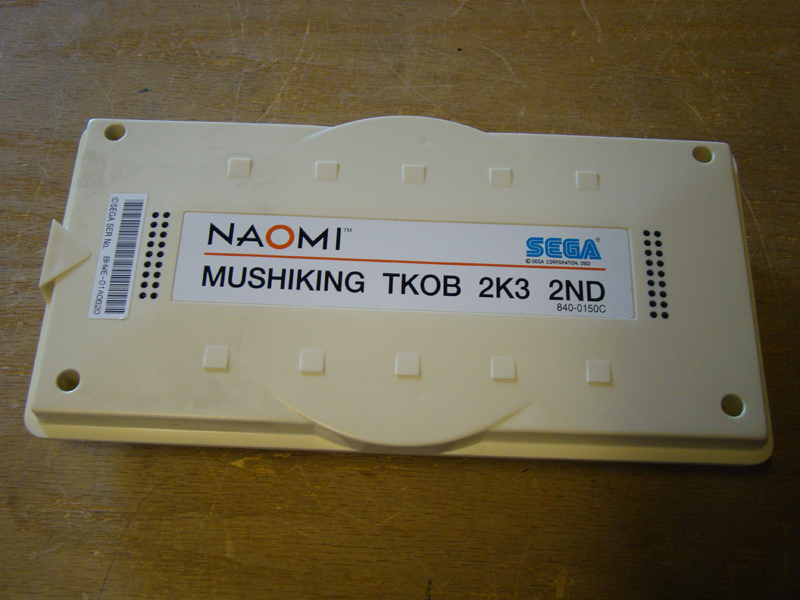

Cart 3
-

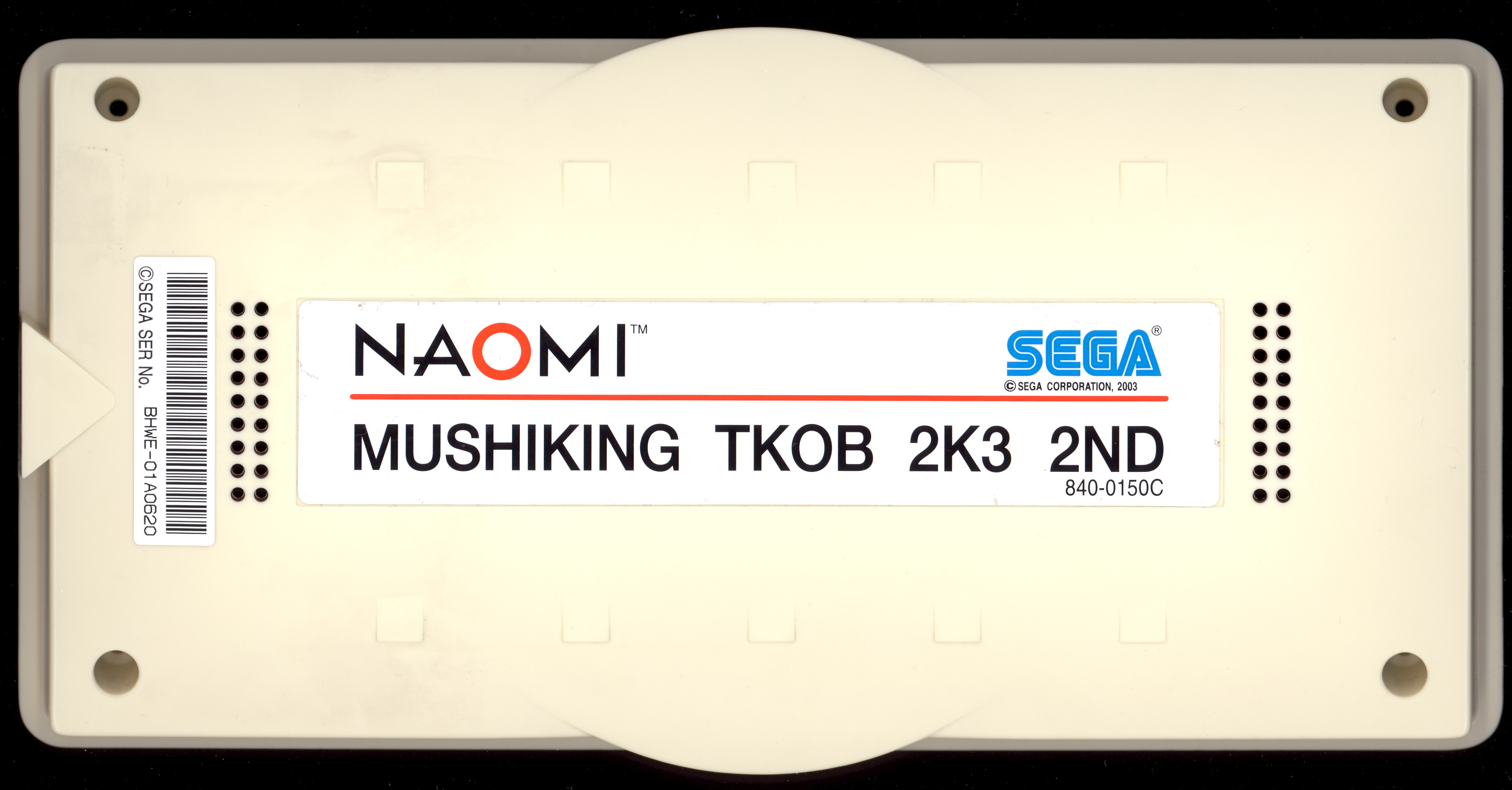

Cart 4
-

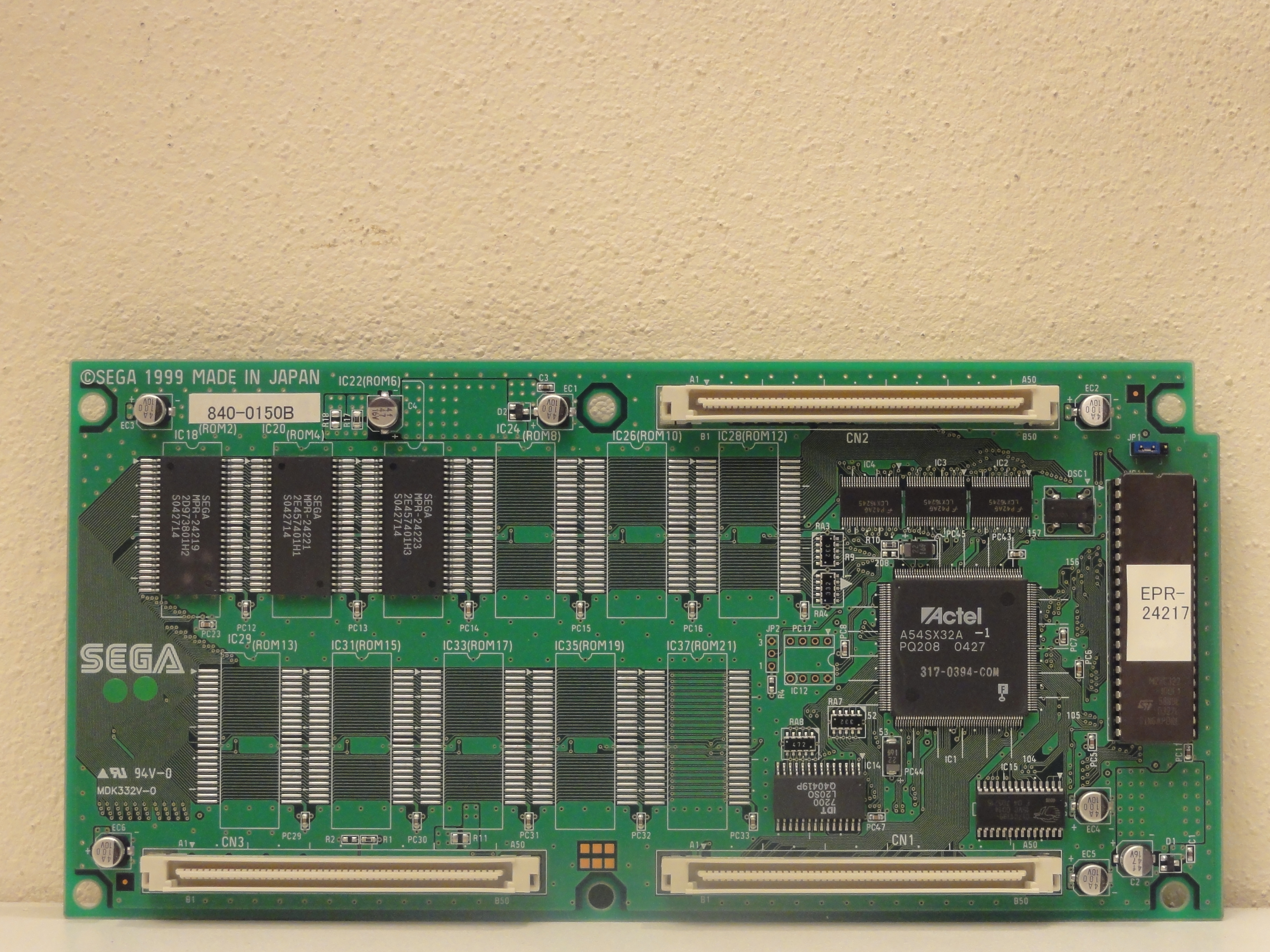

PCB component side 1
-

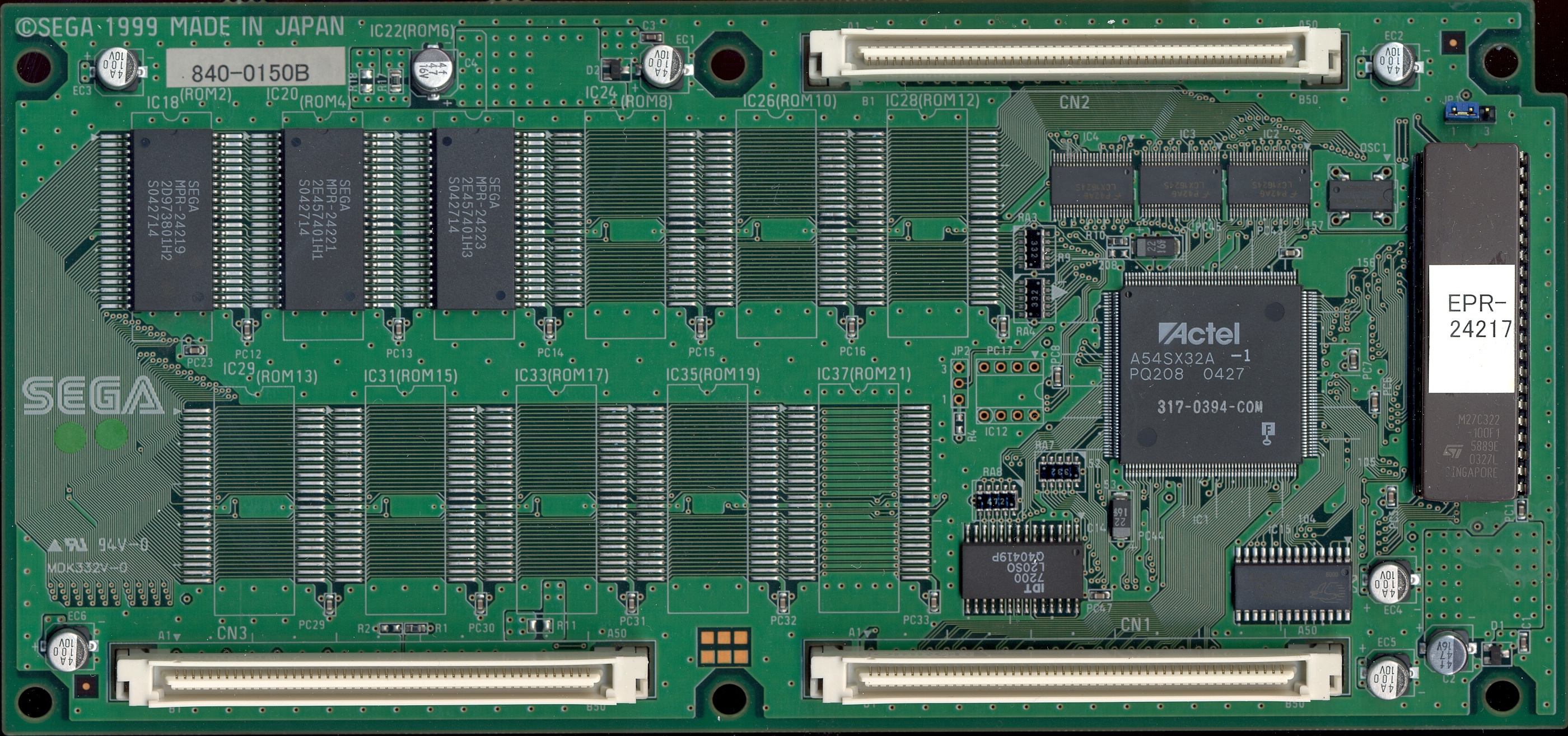

PCB component side 2
-

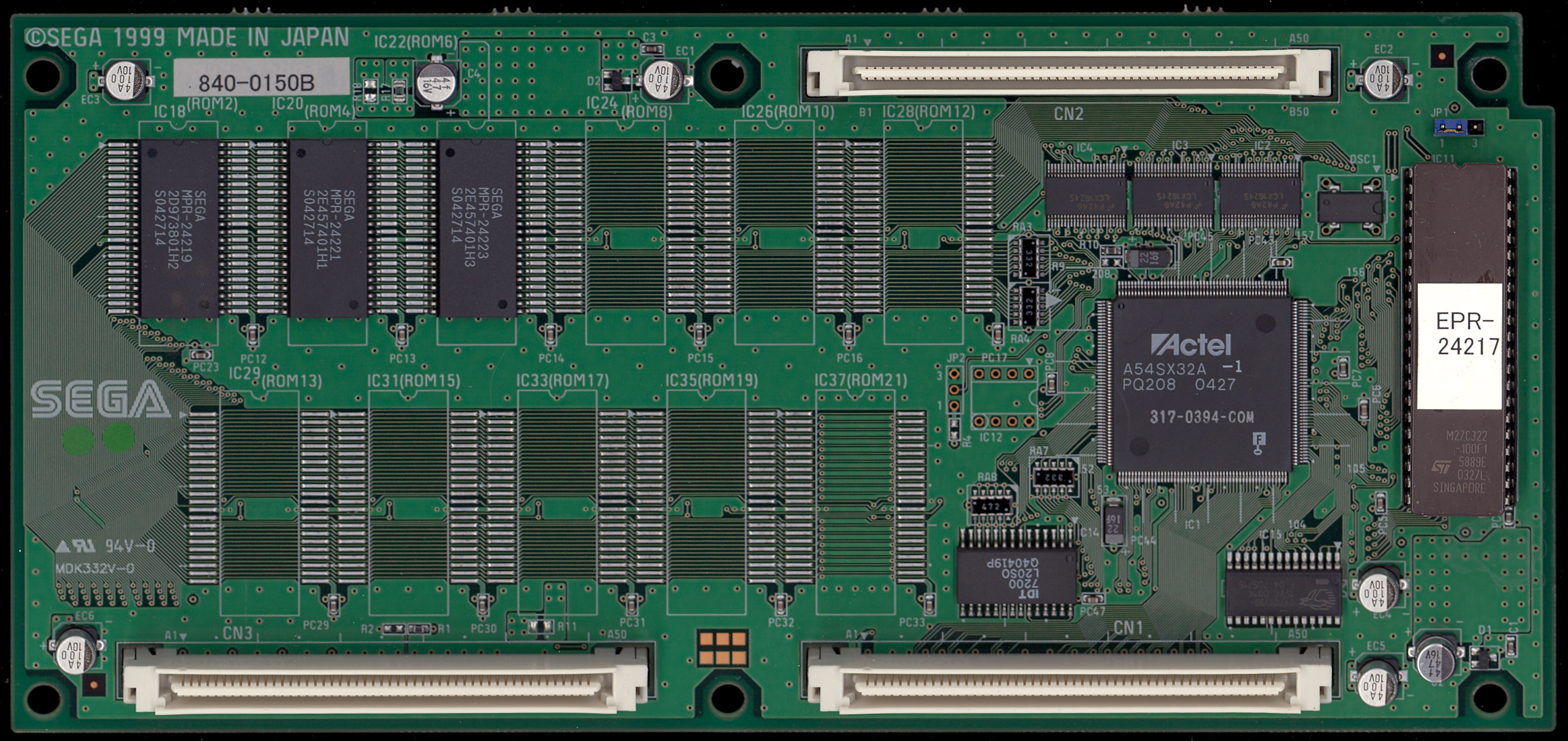

PCB component side 3
-

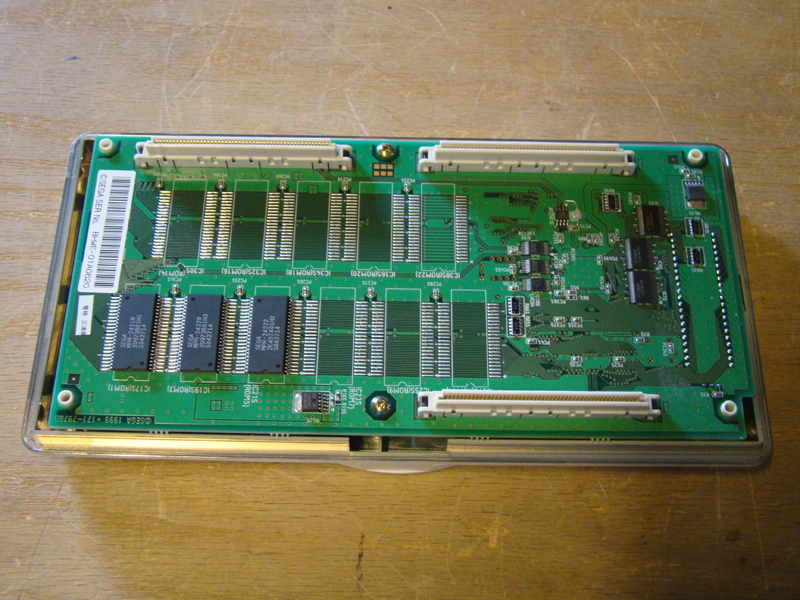

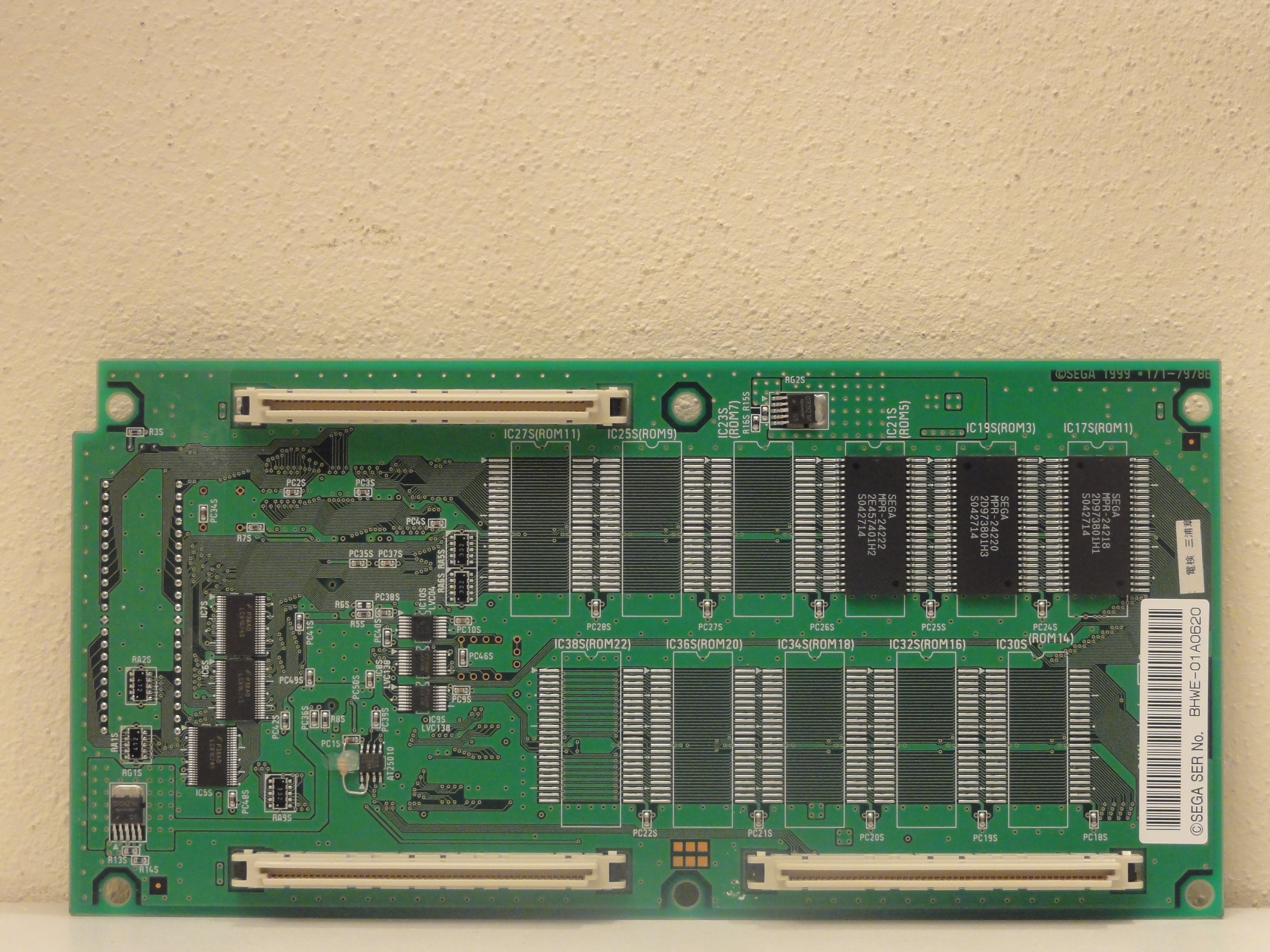

PCB solder side 1
-

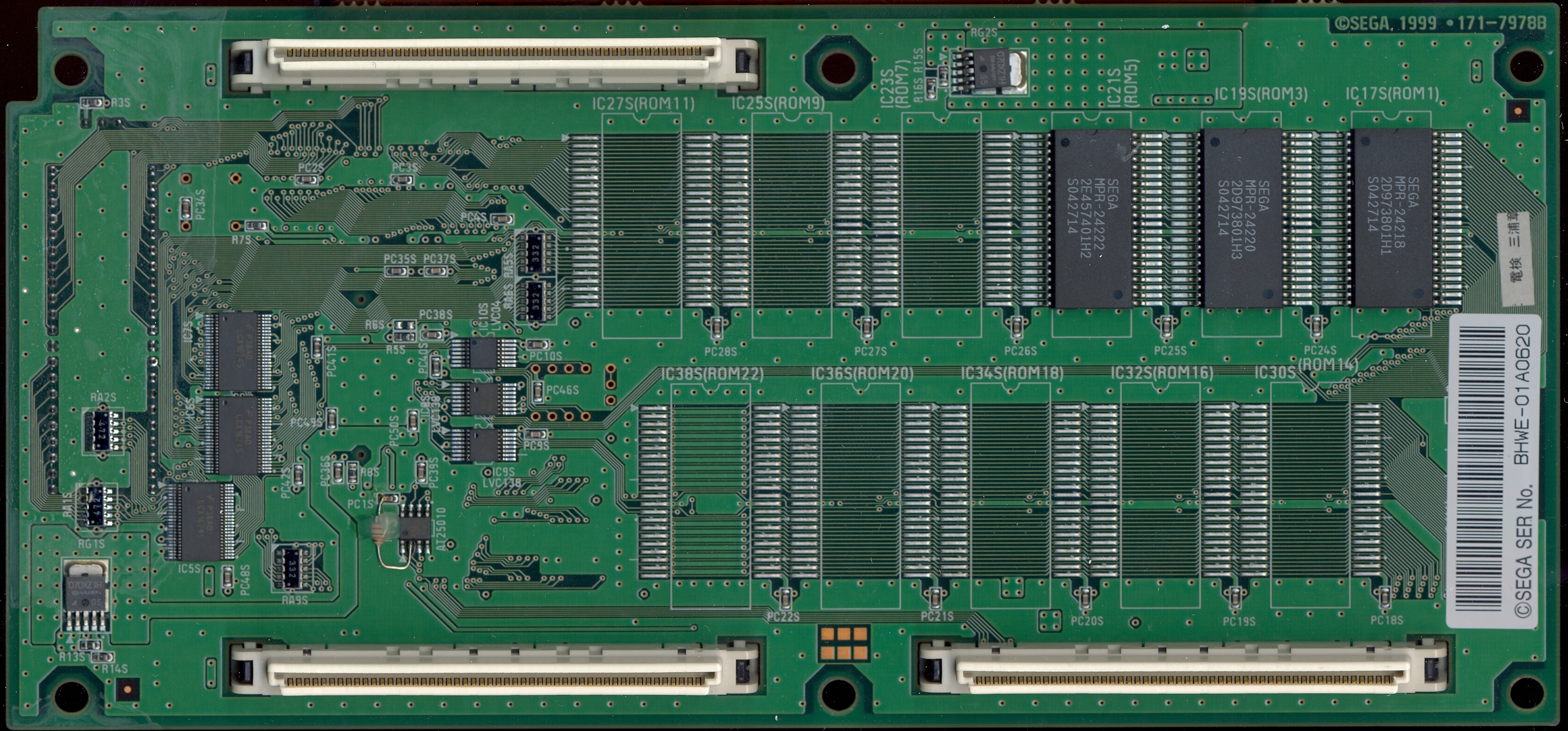

PCB solder side 2
-

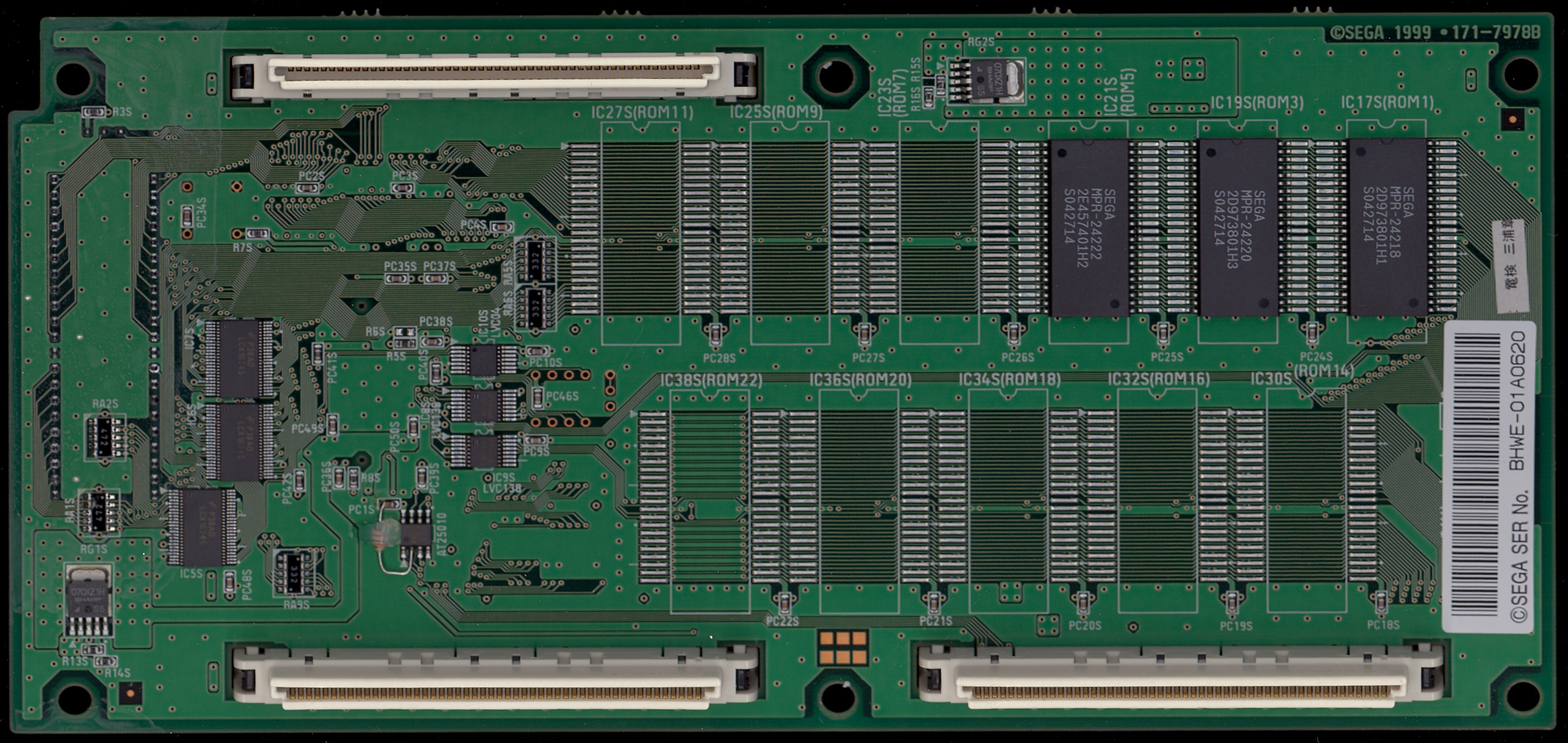

PCB solder side 3
-
PCB solder side 4
-

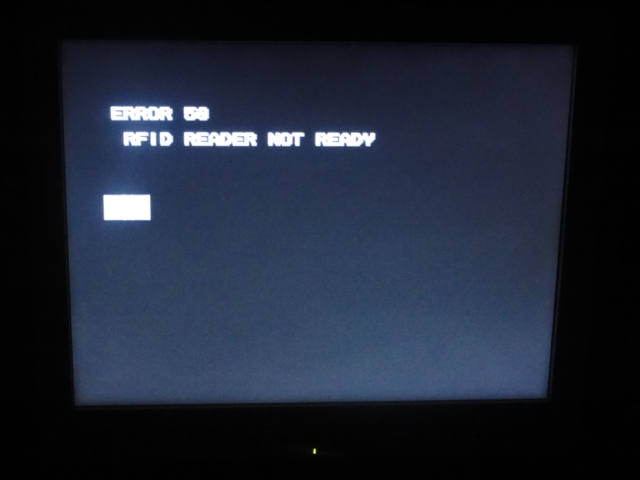

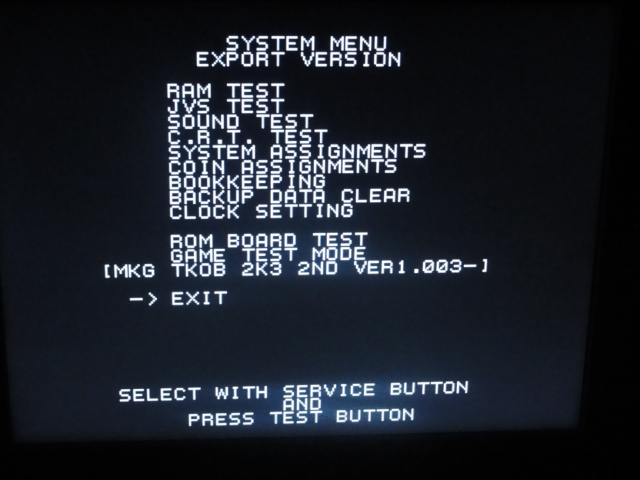

Boot
-
System menu
-

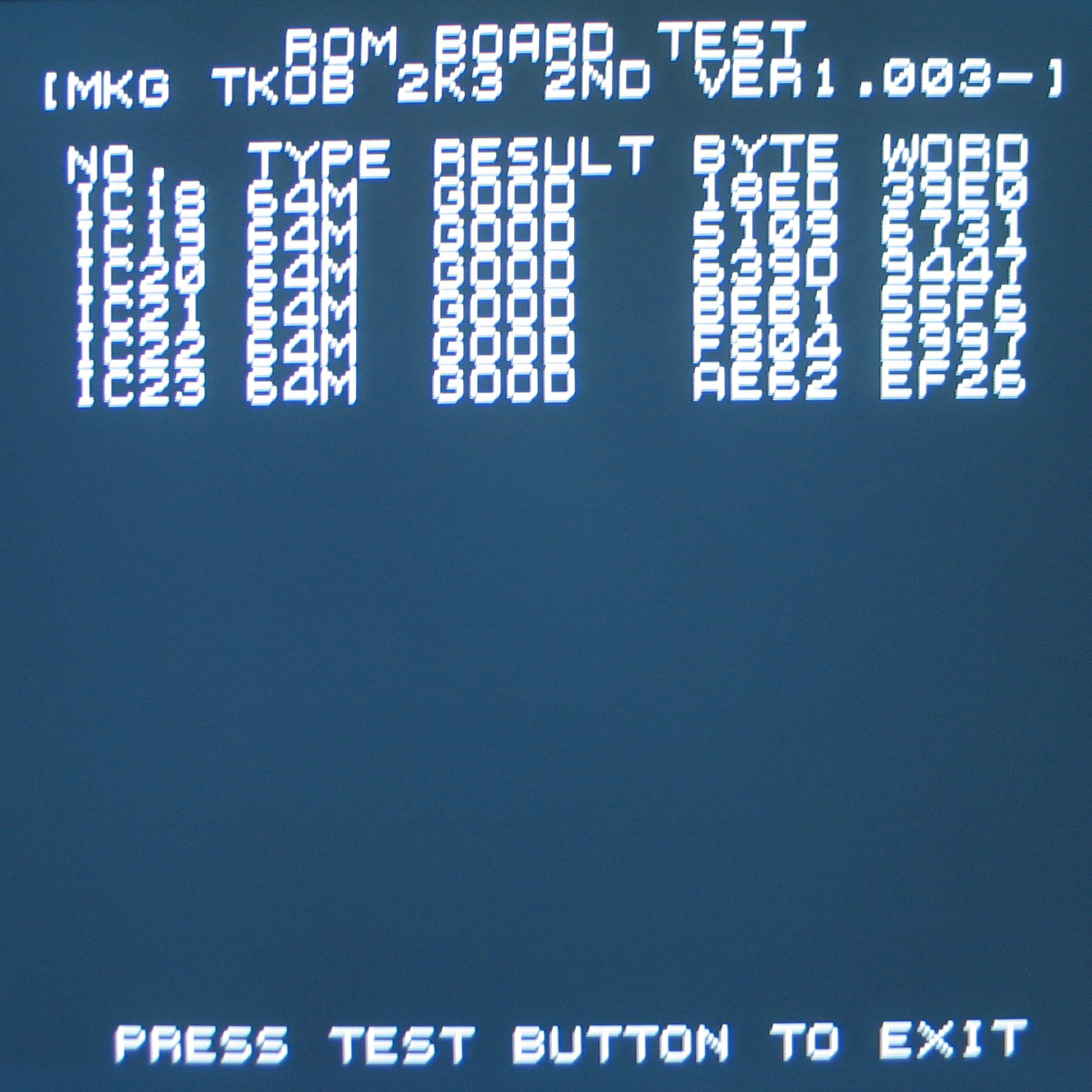

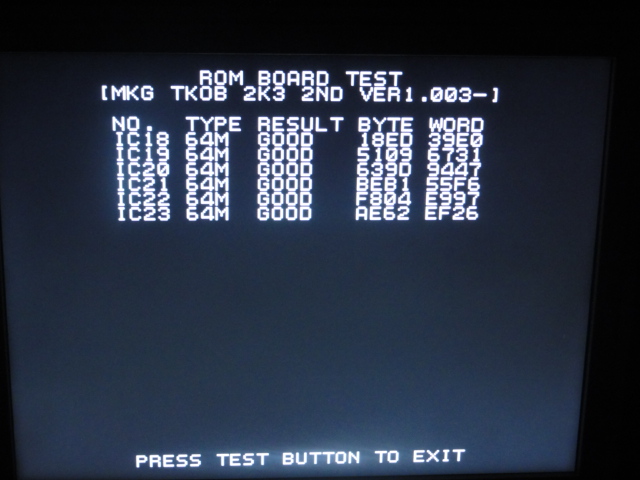

ROM board test 1
-

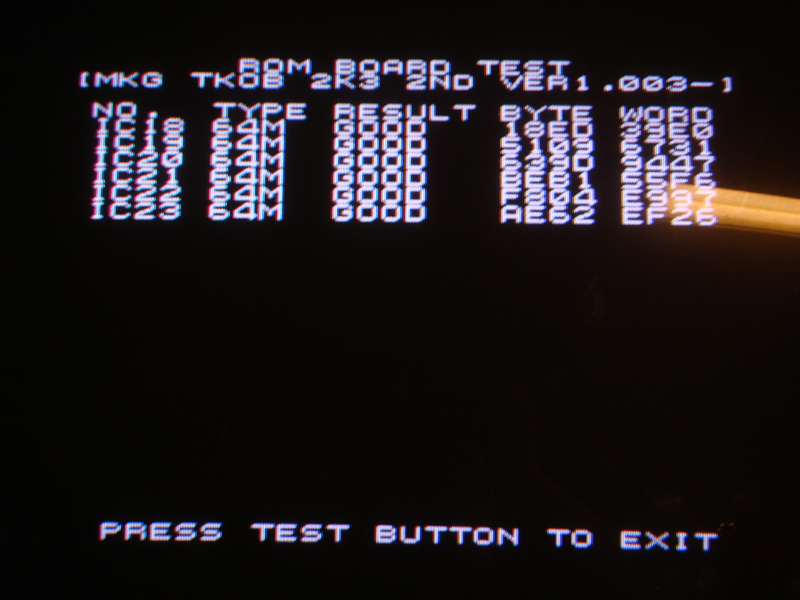

ROM board test 2
-
ROM board test 3
-

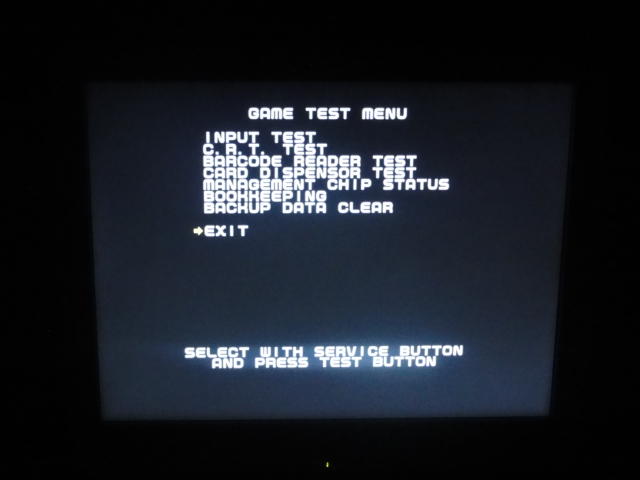

Game test menu
-

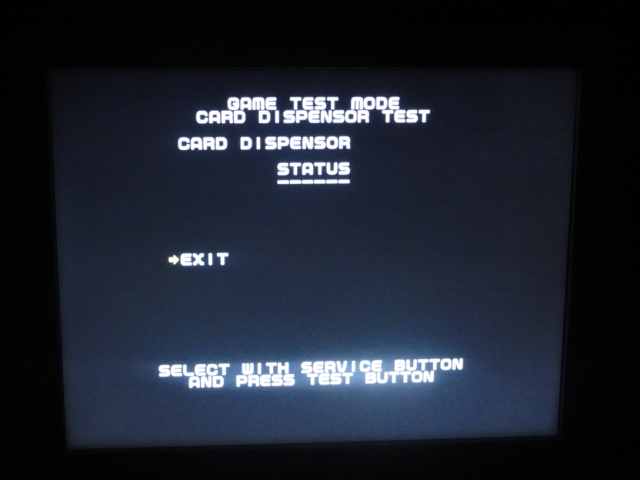

Card dispensor test
-

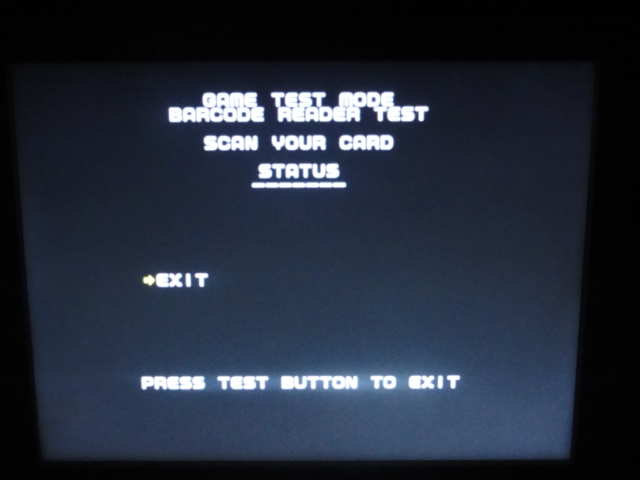

barcode reader test
-

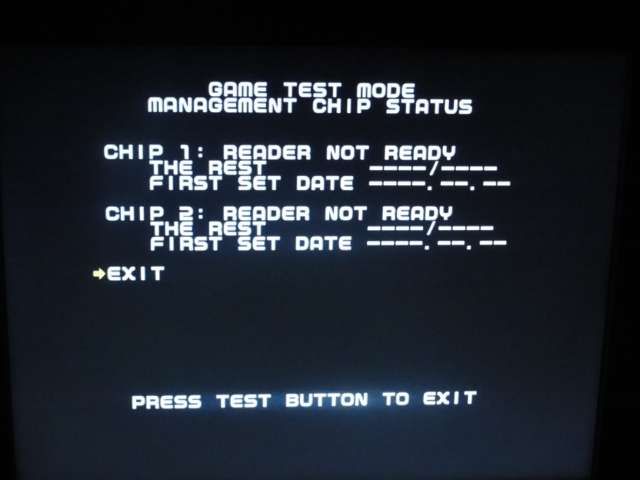

management chips status
