Mushiking The King Of Beetle (2K3 2ND Ver. 1.002-, World)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| dump date | 30/05/2019 |
| emulator | MAME 0.211 |
| dev | MetalliC |
| name | mushikeo on ProgettoEMMA mushikeo on Arcade Database |
| description | Mushiking The King Of Beetle (2K3 2ND Ver. 1.002-, World) |
| year | 2003.10.08 - 21:33:51 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 50MHz | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | epr-24217.ic11 | dumped |
| 6x | M27W064 | opr-24218.ic17s,ic18,ic19s,ic20,ic21s,opr-24223.ic22 | dumped |
| 1x | 25LC040 | ic13s | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | IDT71V256 | ic15 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | A54SX32A 317-0394-COM | ic1 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7978B
Cart N°: 840-0150C
Key: 0x3892fb3a
No cart, only PCB with label: 840-0150B
Files
-
PCB component side
-

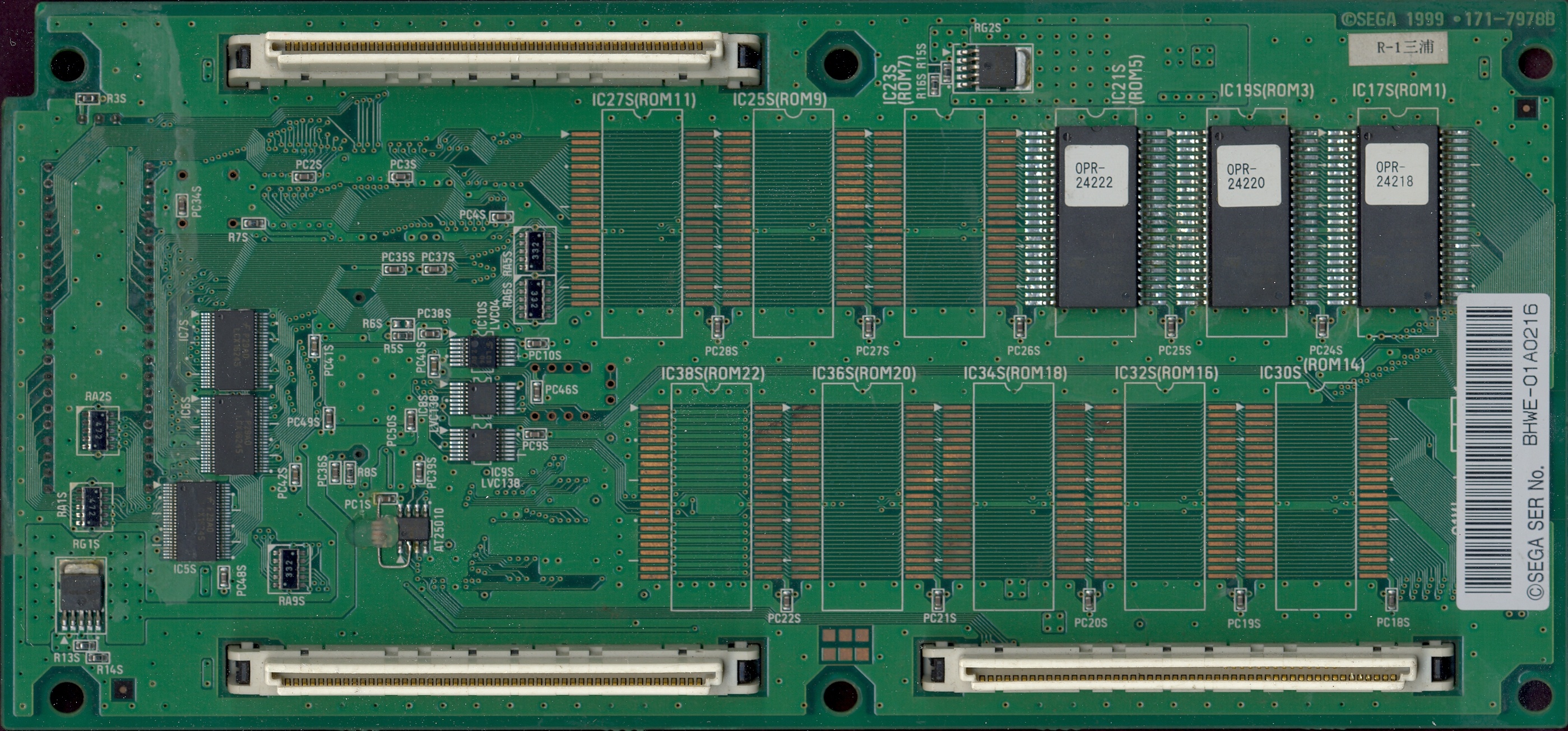

PCB solder side
