Mushiking The King Of Beetle (2K3 2ND Ver. 1.000-, Korea)
From Citylan
Jump to navigationJump to search
| dumper | rtw, Jorge valero |
| dump date | 20/09/2021 |
| emulator | MAME 0.236 |
| dev | MetalliC |
| name | mushikk on ProgettoEMMA mushikk on Arcade Database |
| description | Mushiking The King Of Beetle (2K3 2ND Ver. 1.000-, Korea) |
| year | 2004.06.08 – 18:07:49 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 50MHz | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | epr-24265.ic11 | dumped |
| 6x | MX23L641 | mpr-24266.ic17s,ic18,ic19s,ic20,ic21s,mpr-24271.ic22 | dumped |
| 1x | 25LC040 | ic13s | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | IDT71V256 | ic15 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | A54SX32A 317-0394-COM | ic1 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7978B
Cart N°: 840-0155C
Key: 0x3892fb3a
Files
-

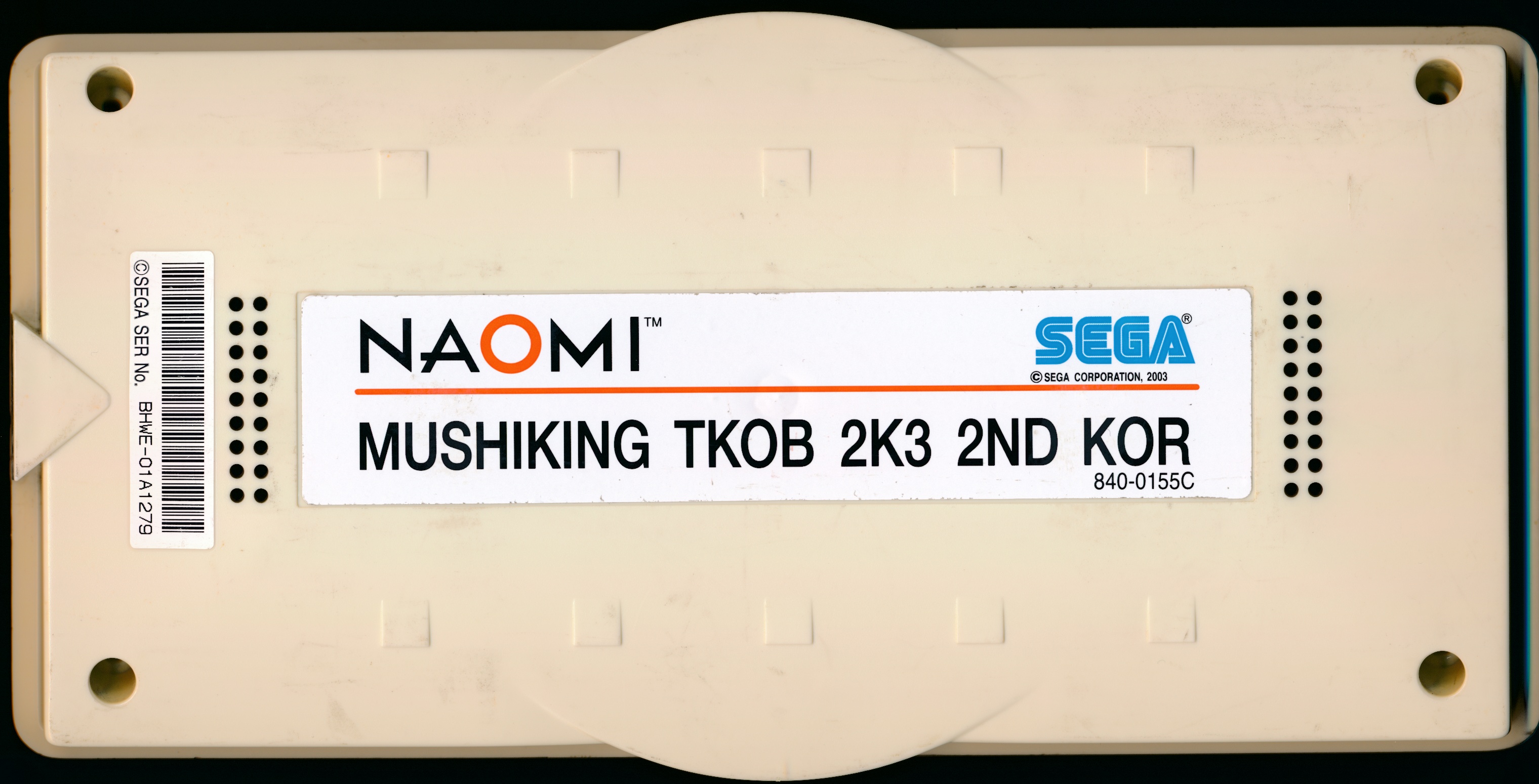

cart
-

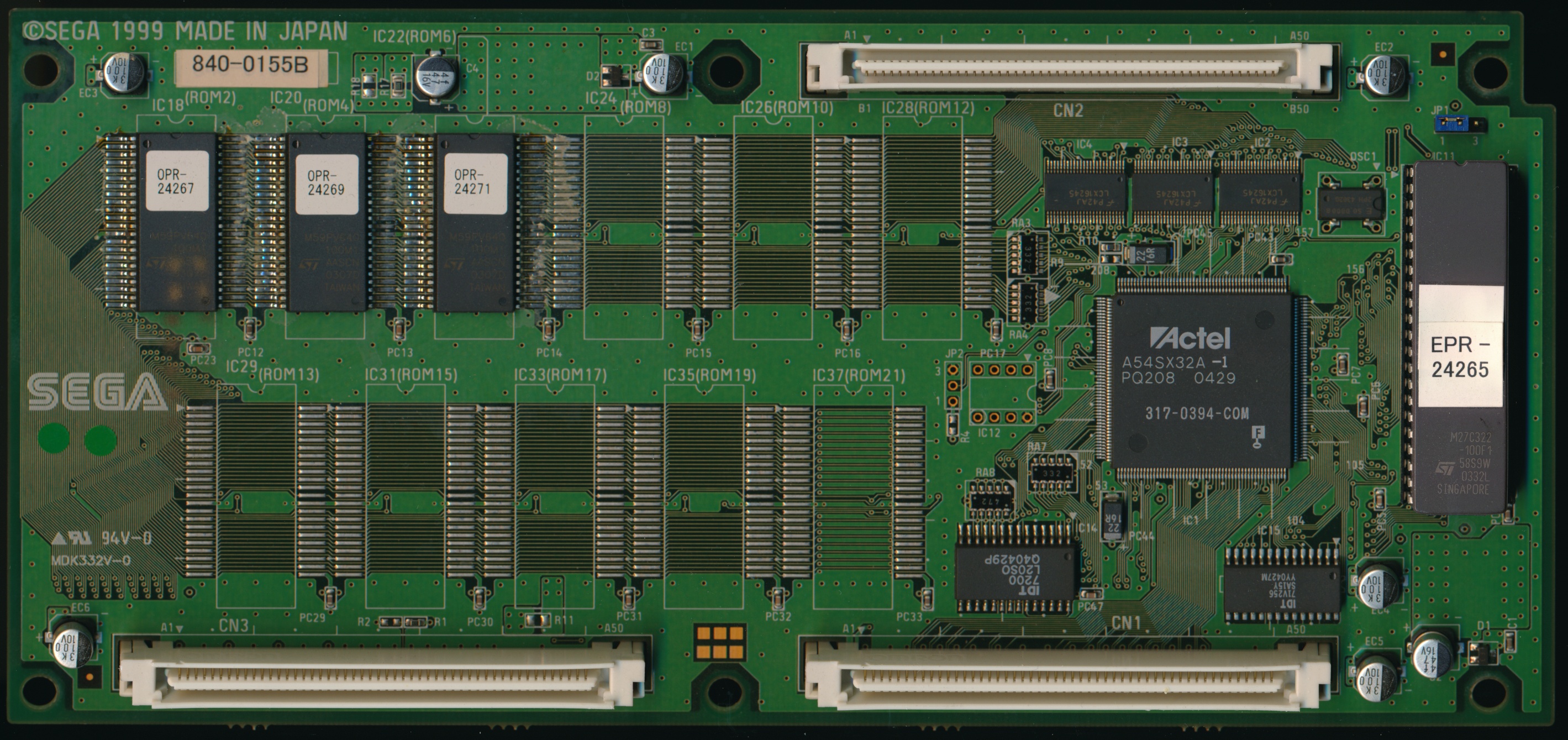

PCB component side
-

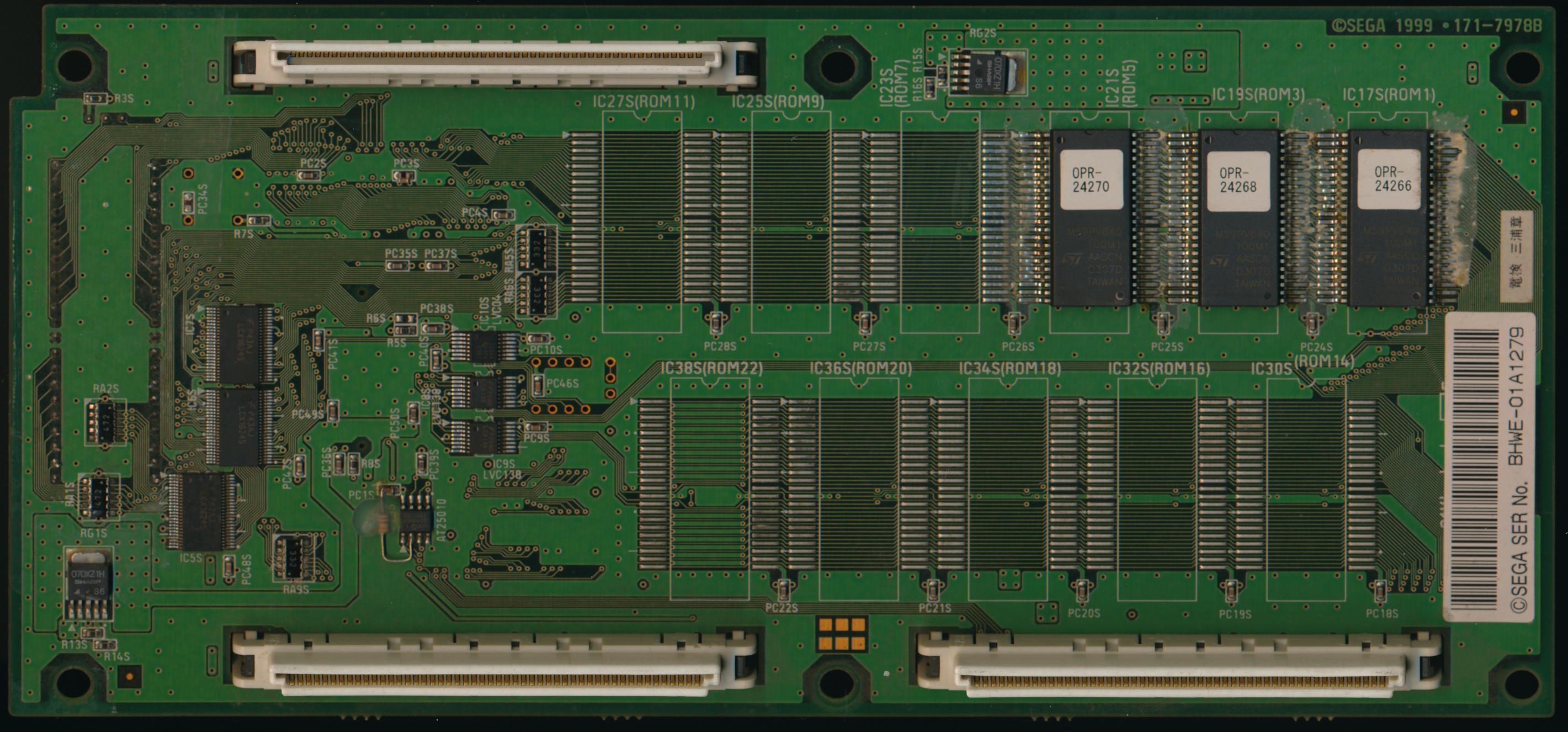

PCB solder side
-

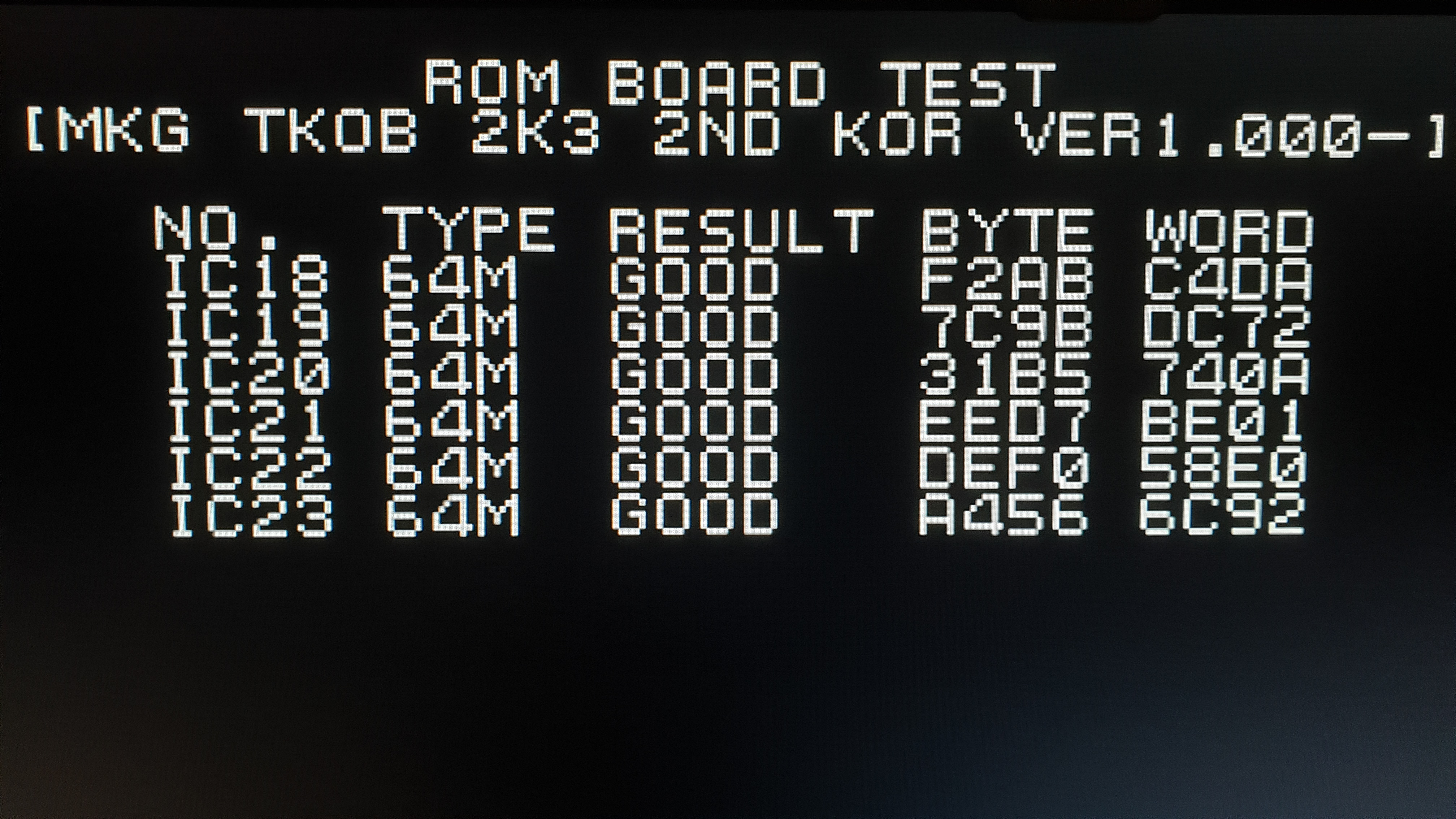

ROM board test
-
Readme
