Mortal Kombat (Yawdim bootleg, set 6)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 20/12/2015 |
| emulator | |
| dev |
| name | 1346 |
| description | Mortal Kombat (Yawdim bootleg, set 6) |
| year | 1992 |
| manufacturer | Yawdim |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z0840006PSC | 8-bit Microprocessor - sound | ||
| 1x | TMS34010FNL-50 | missing | Graphics System Processor - Video | |
| 1x | MSM6295 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
| 1x | LM358P | Dual Operational Amplifier - sound | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 8.00MHz | ||
| 1x | oscillator | 48.00MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27512 | u167 missing | sound |
| 1x | 27010 | u159 missing | sound |
| 1x | 27040 | u160 missing | sound |
| 2x | 27040 | u25,u26 missing | main |
| 12x | 27040 | u43-u54 | gfx dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 3x | HM3-65764H-5 | |
| 1x | SRAM 2k x 8 | u164 missing |
| 16x | KM41C464P-10 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 10x | PALCE22V10H-25PC/4 | 1,2,3,5,9,10,11,12,13,14 | dumped |
| 2x | GAL16V8B-25LP | 4,7 | dumped |
| 3x | GAL16V8B-25LP | 6,8,15 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 7 legs connector
1x trimmer (volume)
1x 8x2 switches DIP
1x 4x2 switches DIP
Notes
Files
-

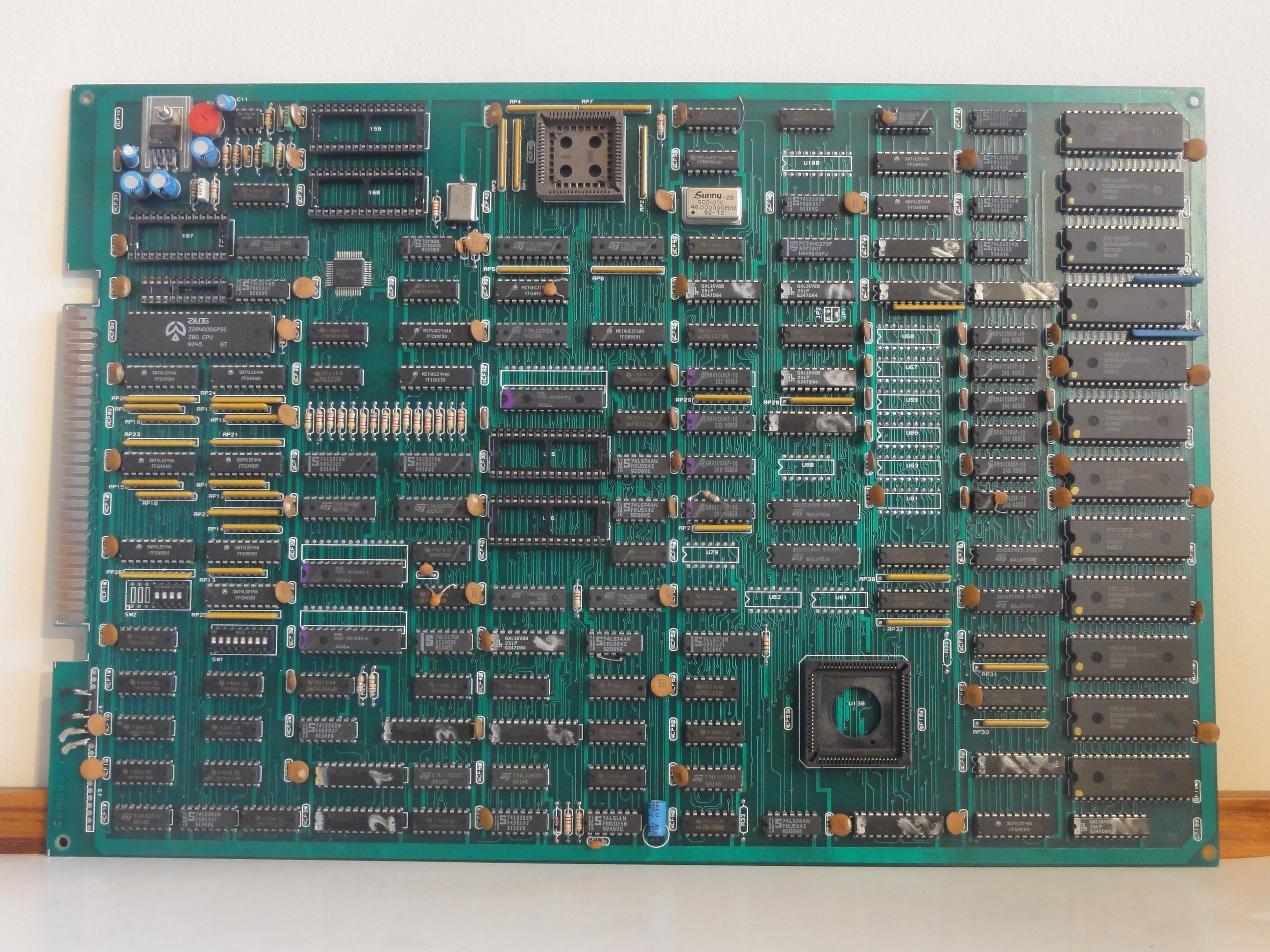

PCB component side
-

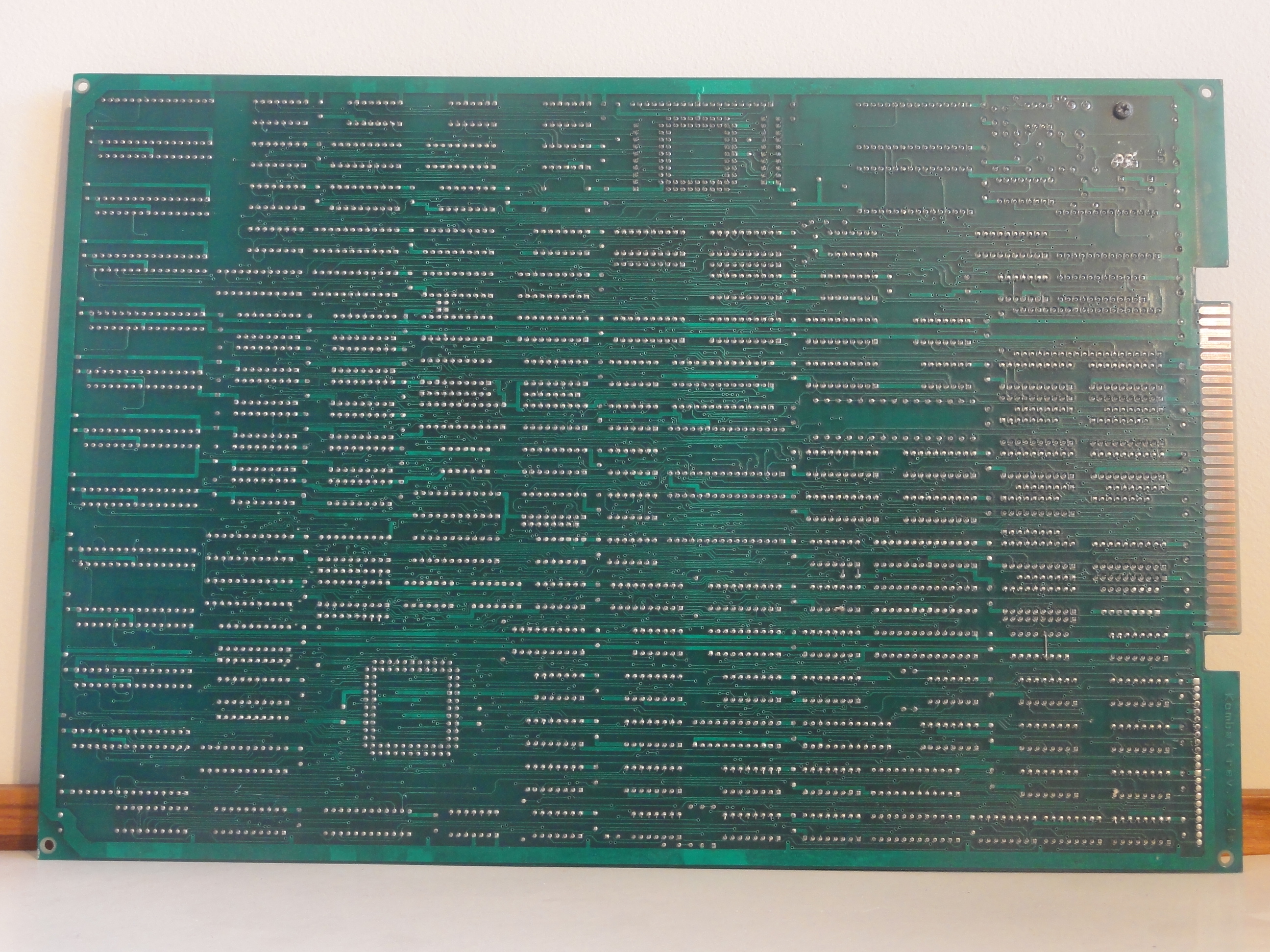

PCB solder side
-
