Mortal Kombat (Yawdim bootleg, set 5)
From Citylan
Jump to navigationJump to search
| dumper | f205v, maru79 |
| date | 23/04/2016 |
| emulator | FB Neo v1.0.0.03 |
| dev | JacKc |
| name | v1.0.0.003 on FB Neo |
| description | Mortal Kombat (Yawdim bootleg, set 5) |
| year | 1992 |
| manufacturer | Yawdim |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z0840006PSC | 8-bit Microprocessor - sound | ||
| 1x | TMS34010FNL-50 | Graphics System Processor - Video | ||
| 1x | MSM6295 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
| 1x | LM358P | Dual Operational Amplifier - sound | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 8.00MHz | ||
| 1x | oscillator | 48.182MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TMS27C512 | 1 | dumped |
| 1x | AM27C010 | 2 | dumped |
| 10x | AM27C040 | 3,6,7,8,9,12,14,15,16,17 | dumped |
| 5x | M27C4001 | 4,5,10,11,13 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 3x | CY7C185-45PC | |
| 1x | SYC6116L | |
| 16x | HY53C464LS-80 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TPC1020AFN-084C | read protected | |
| 7x | GAL22V10B-25LP | read protected | |
| 3x | PALCE22V10H-25PC/4 | read protected | |
| 4x | GAL20V8A-25LP | read protected | |
| 2x | GAL16V8A-25LP | read protected | |
| 1x | GAL16V8S-20HB1 | read protected | |
| 2x | GAL16V8AS-15HB1 | 6,8,15 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 10 legs connector
1x trimmer (volume)
1x 8x2 switches DIP
1x 4x2 switches DIP
Notes
This is another Yawdim version, with a mix-up of the roms we already have in set 1 and set 2
Files
-

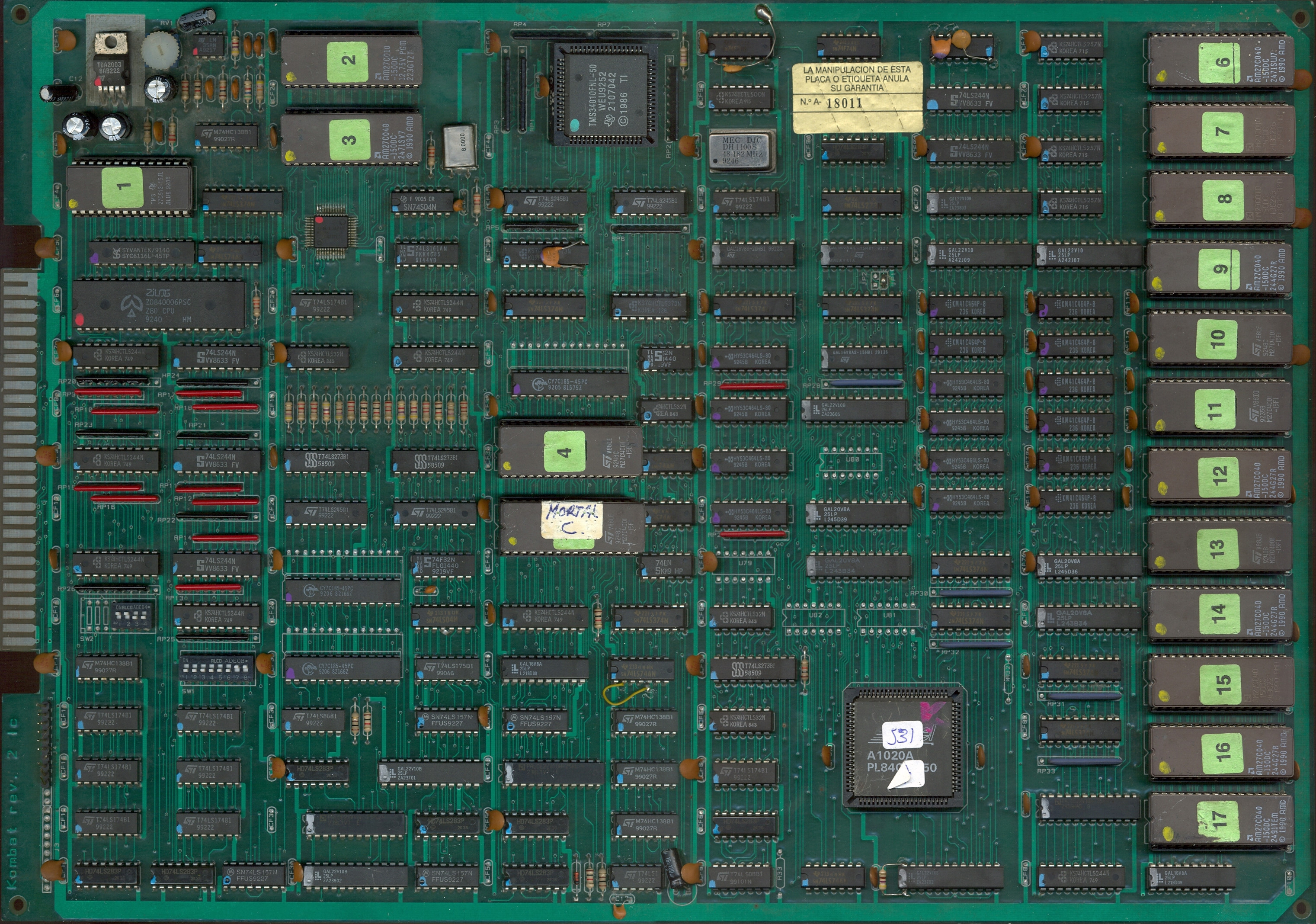

PCB component side
-

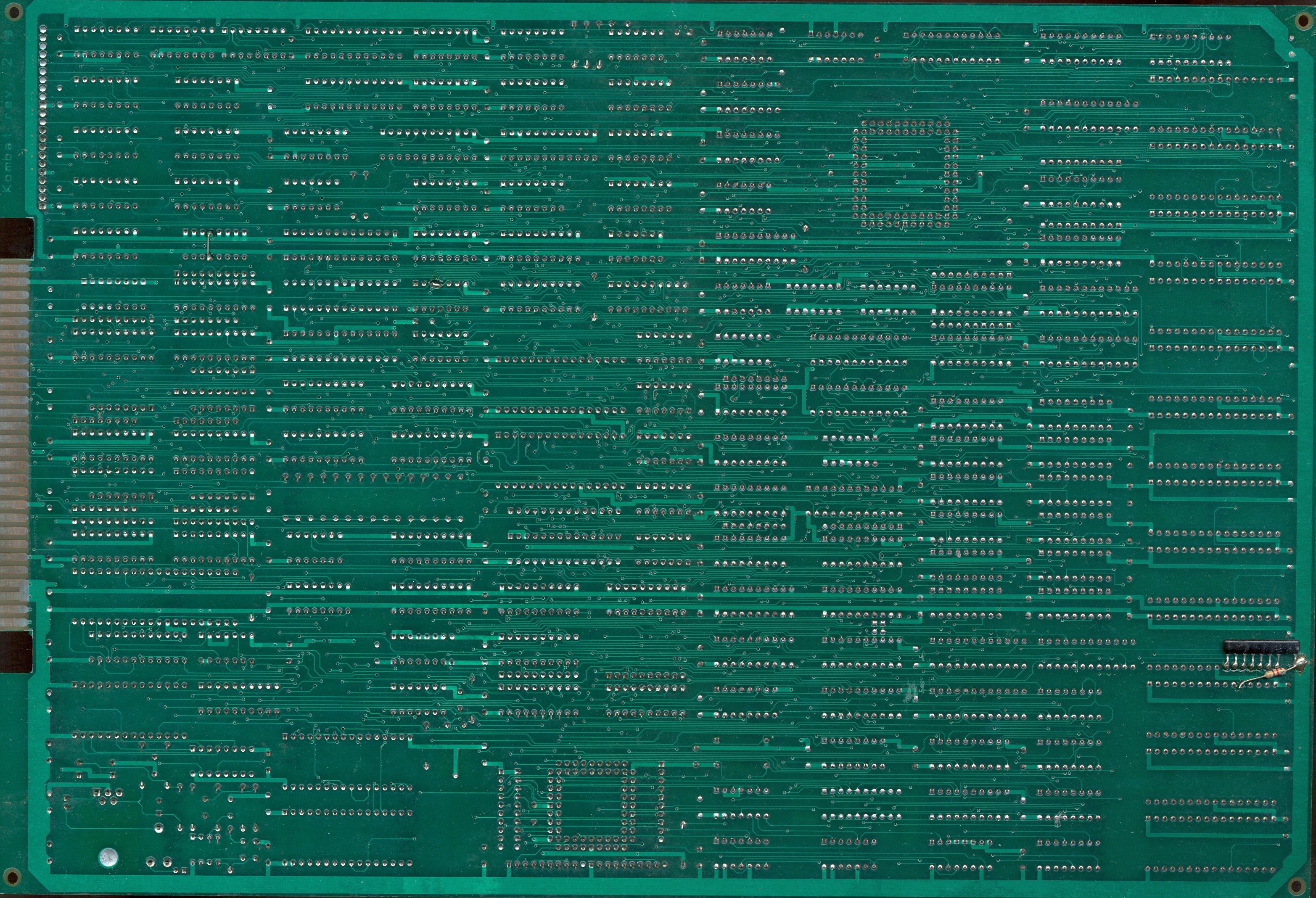

PCB solder side
