Mortal Kombat (Yawdim bootleg, set 4)
From Citylan
Jump to navigationJump to search
dumper | f205v, MARU79 |
date | 06/01/2015 |
emulator | MAME 0.164 |
dev | Luca Elia |
name | mkyawdim4 on ProgettoEMMA mkyawdim4 on Arcade Database |
description | Mortal Kombat (Yawdim bootleg, set 4) |
year | 1992 |
manufacturer | G.G.I. Corporation |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
1x | Z0840006PSC | 8-bit Microprocessor - sound | ||
1x | TMS34010FNL-50 | Graphics System Processor - Video | ||
1x | MSM6295 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
1x | LM358 | Dual Operational Amplifier - sound | ||
1x | TDA2003 | Audio Amplifier - sound | ||
1x | oscillator | 8.00MHz | ||
1x | oscillator | 48.00MHz |
ROMs
QTY | Type | position | status |
---|---|---|---|
1x | TMS27C512 | 1 | dumped |
1x | AM27C010 | 2 | dumped |
1x | AM27C040 | 3 | dumped |
14x | TMS27C4001 | 4-17 | dumped |
RAMs
QTY | Type | position |
---|---|---|
3x | CY7C185-45PC | |
1x | SYC6116L-45TP | |
16x | HY53C464LS-80 |
PLDs
QTY | Type | position | status |
---|---|---|---|
1x | TPC1020AFN-084C | read protected | |
1x | GAL22V10-25LP | read protected | |
8x | GAL22V10B-25LP | read protected | |
1x | GAL16V8A-25LP | read protected | |
1x | GAL16V8S-20HB1 | read protected | |
3x | ST16AS15HB1 | u10,u18,u143 | dumped |
4x | GAL20V8A-25LP | 1-4 | dumped |
Others
1x 28x2 JAMMA edge connector
1x 10 legs connectr
1x trimmer (volume)
1x 8x2 switches DIP
1x 4x2 switches DIP
Notes
2nd PCB is marked: "Kombat rev. 2 1s" both on component and solder side
2nd PCB is labeled: "MORTAL KOMBAT D." and "10043-05040" and "GG Licensed by - No. 123168 - G.G.I. CORPORATION" on component side
update 20180304: thanks to MaRu79 we found a 2nd PCB for the same game: confirmed dump, added pictures, identified manufacturer.
Files
-

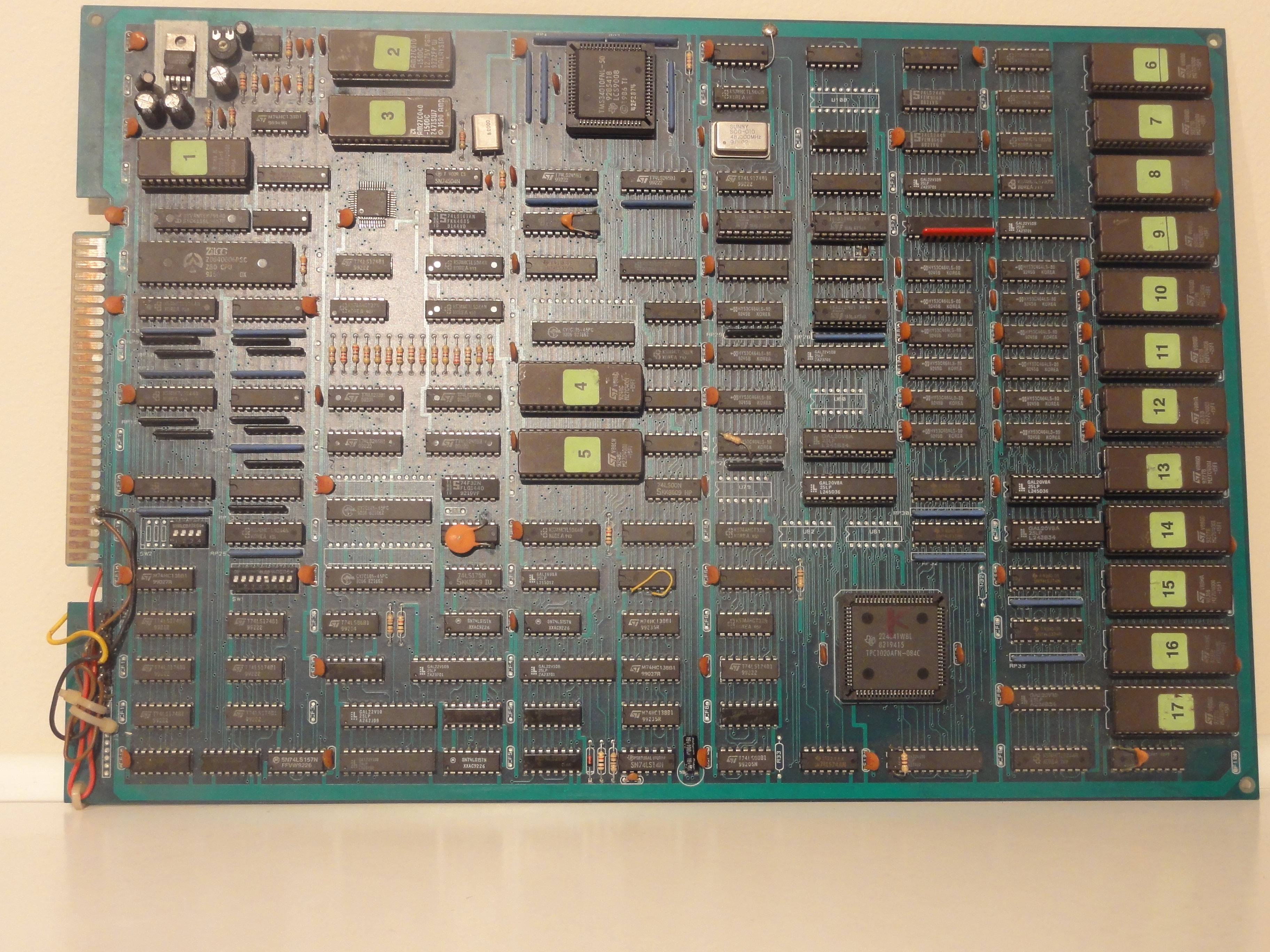

1st PCB component side
-

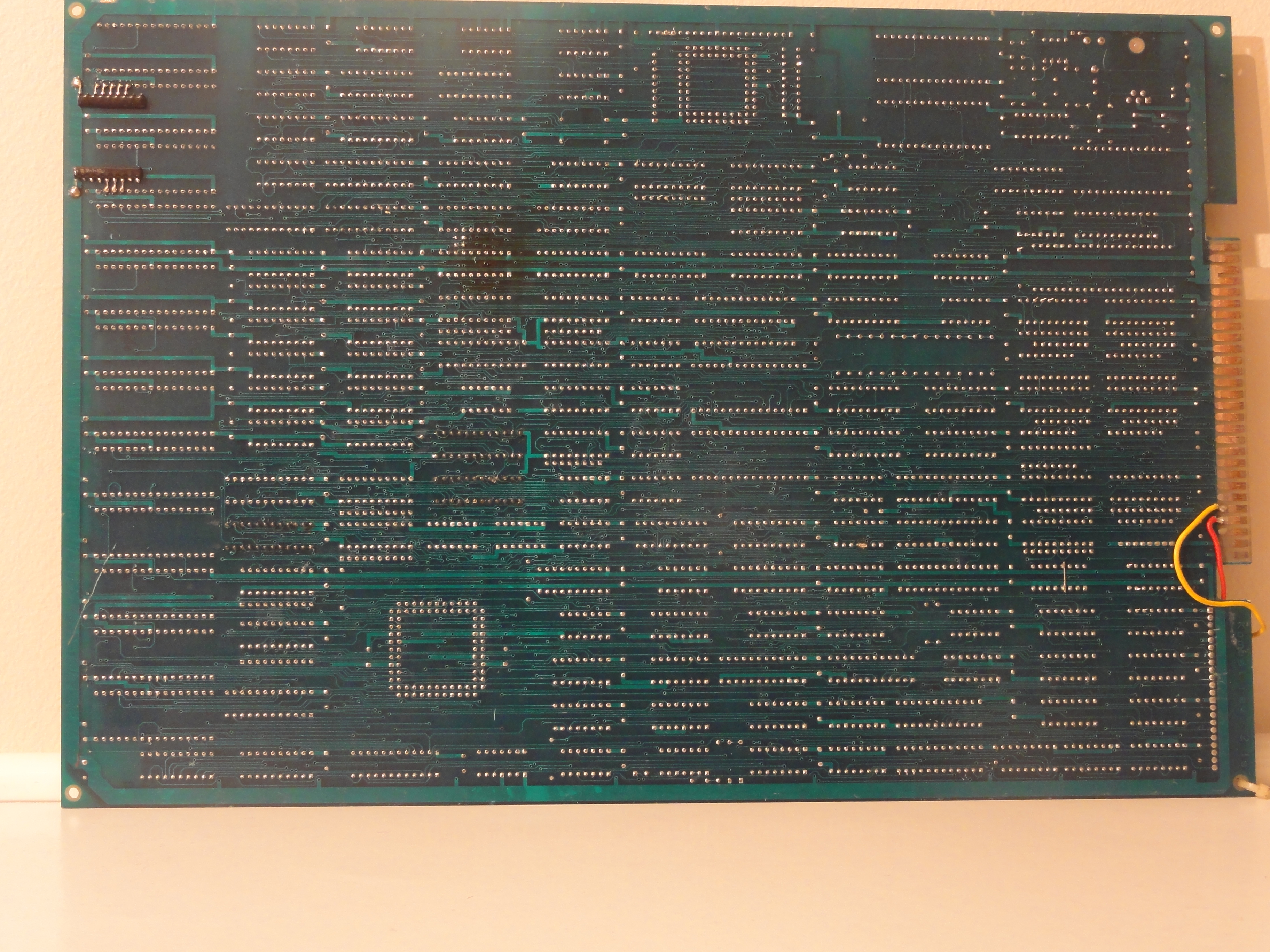

1st PCB solder side
-

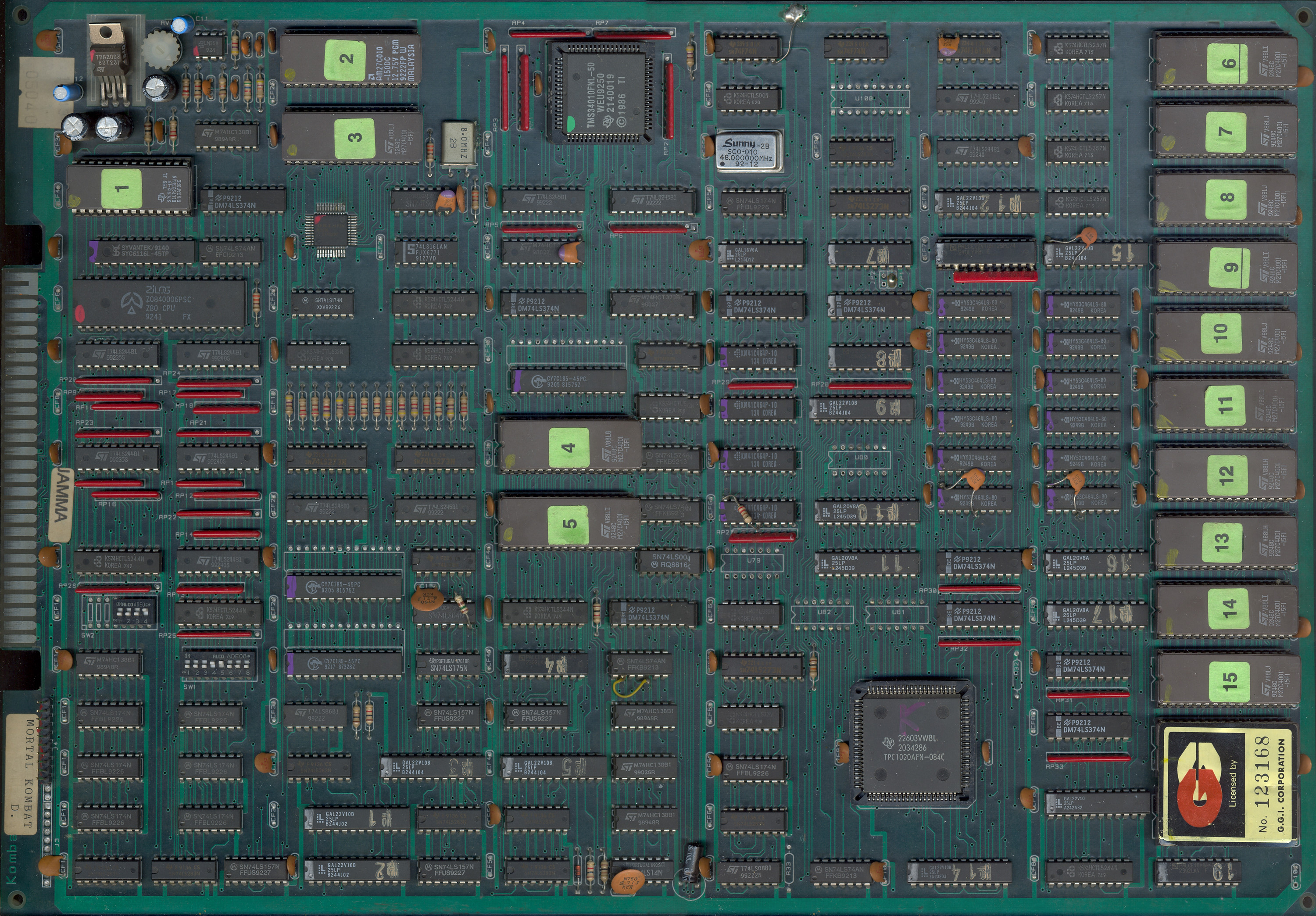

2nd PCB component side
-

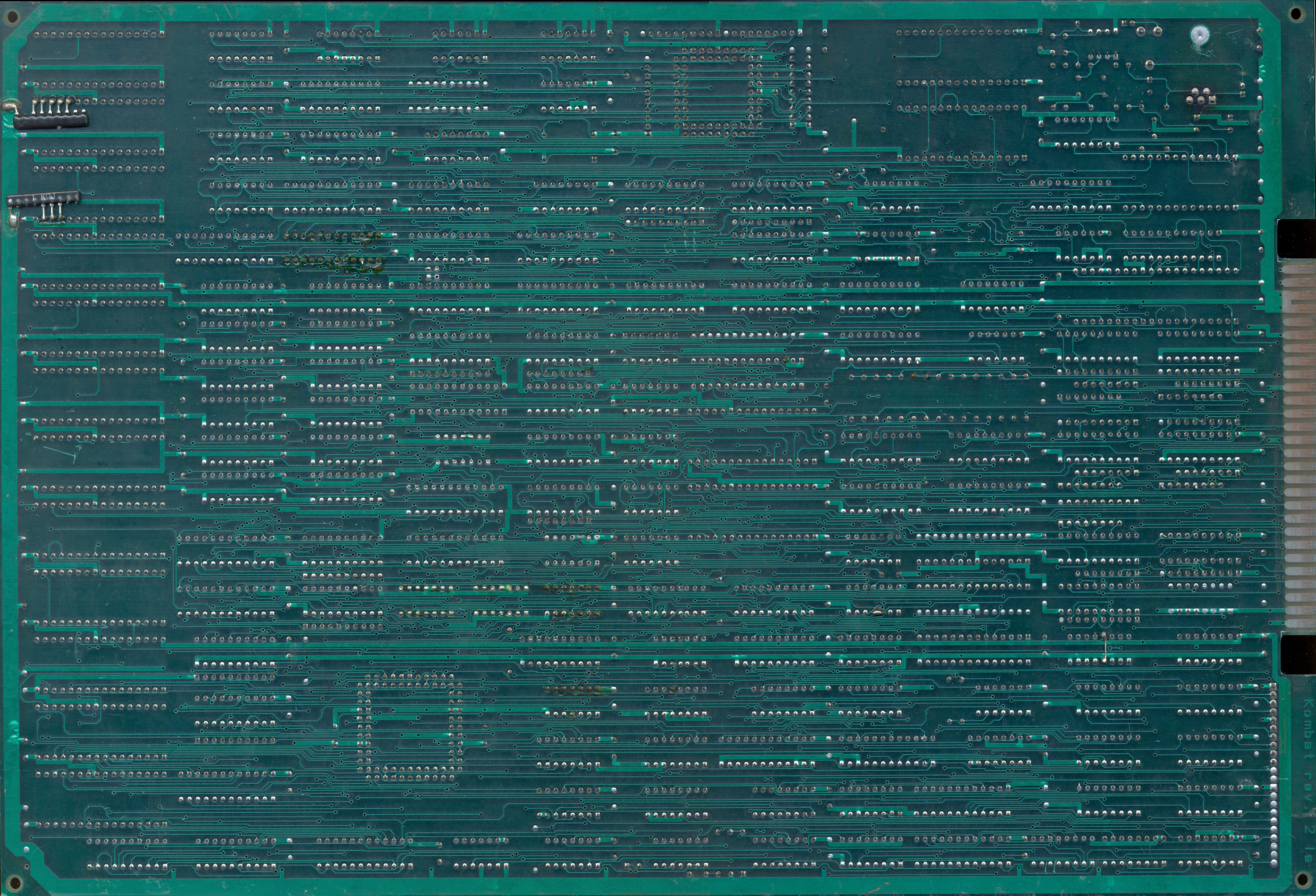

2nd PCB solder side
-

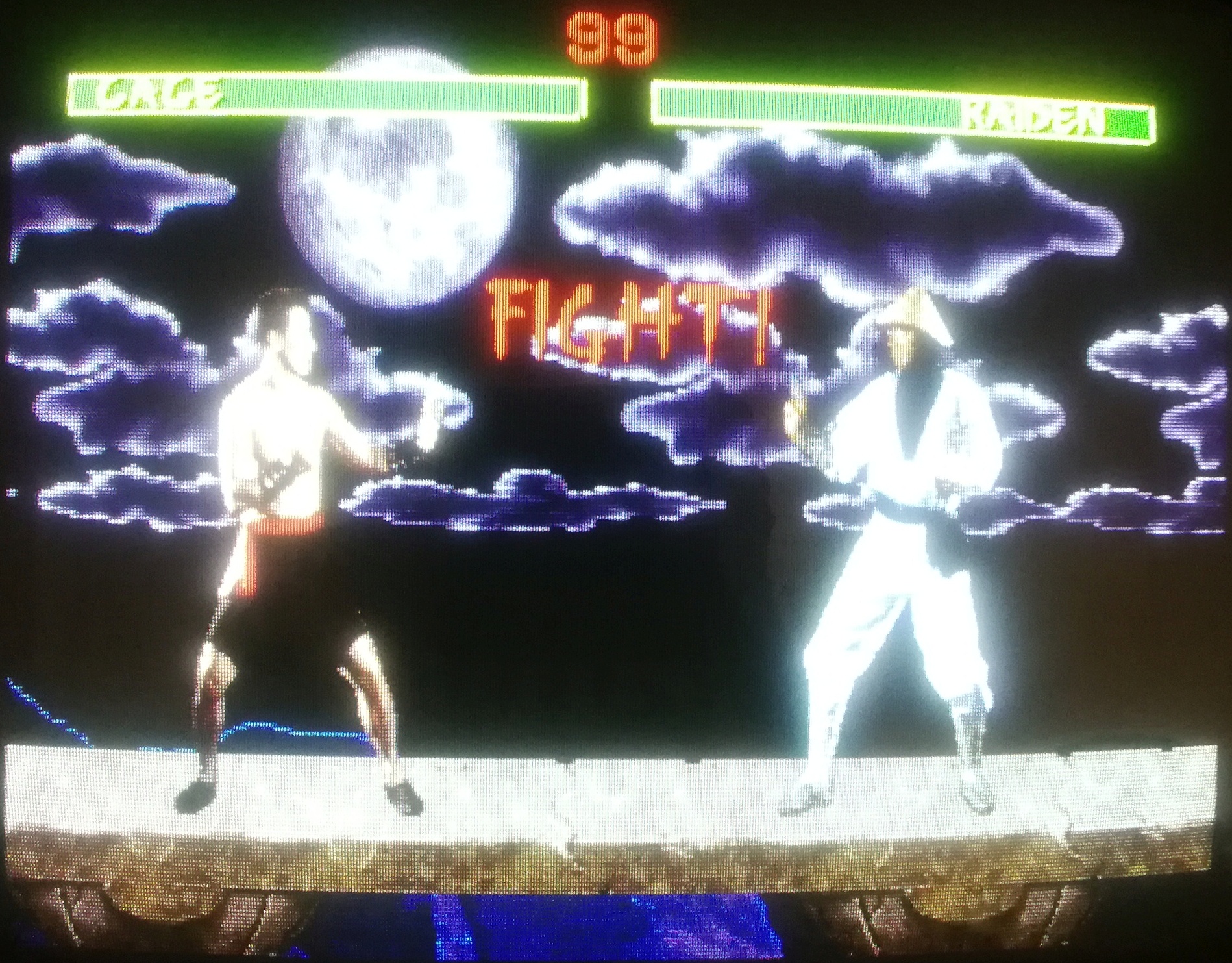

Attract mode 1
-

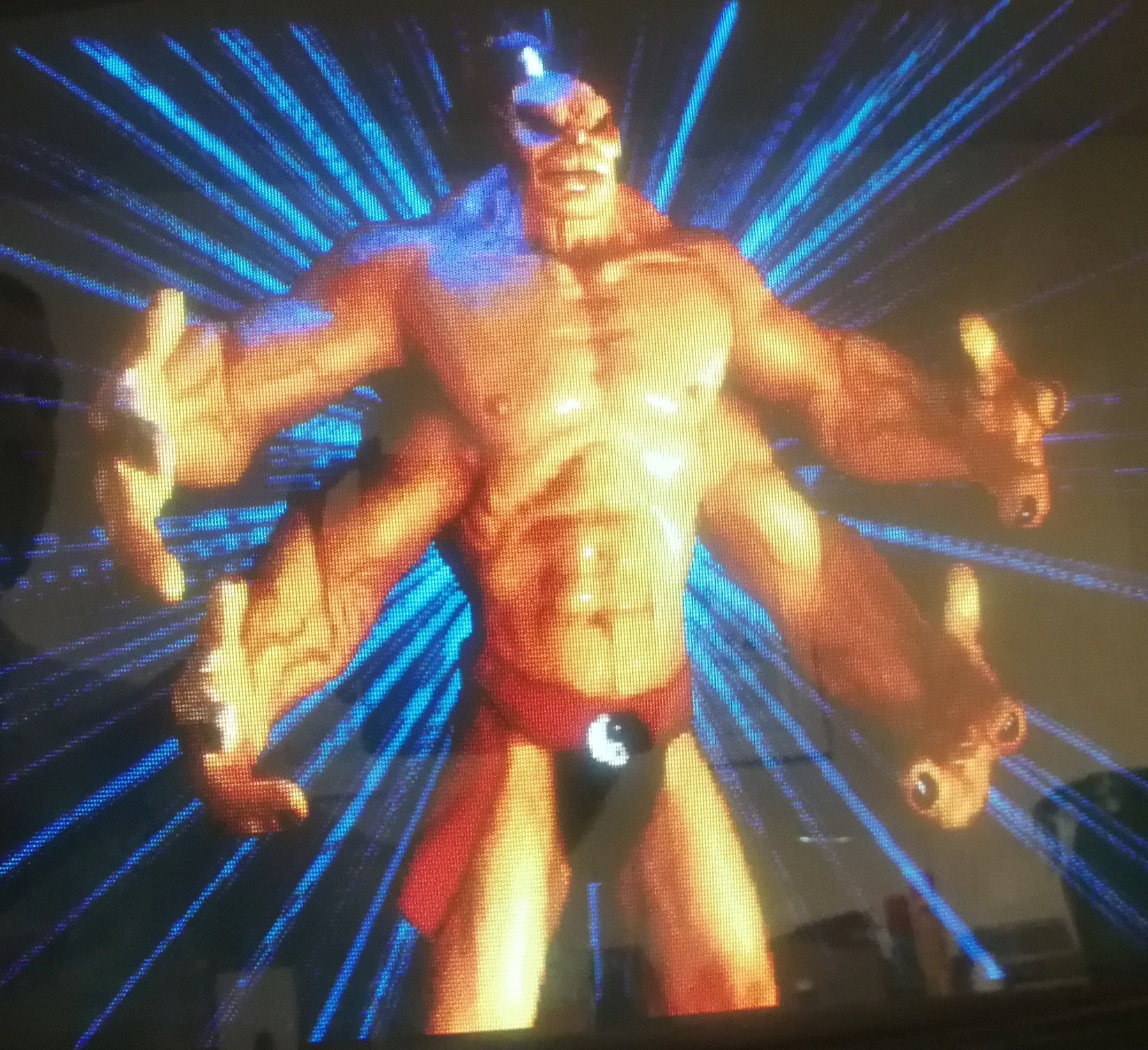

Attract mode 2
-

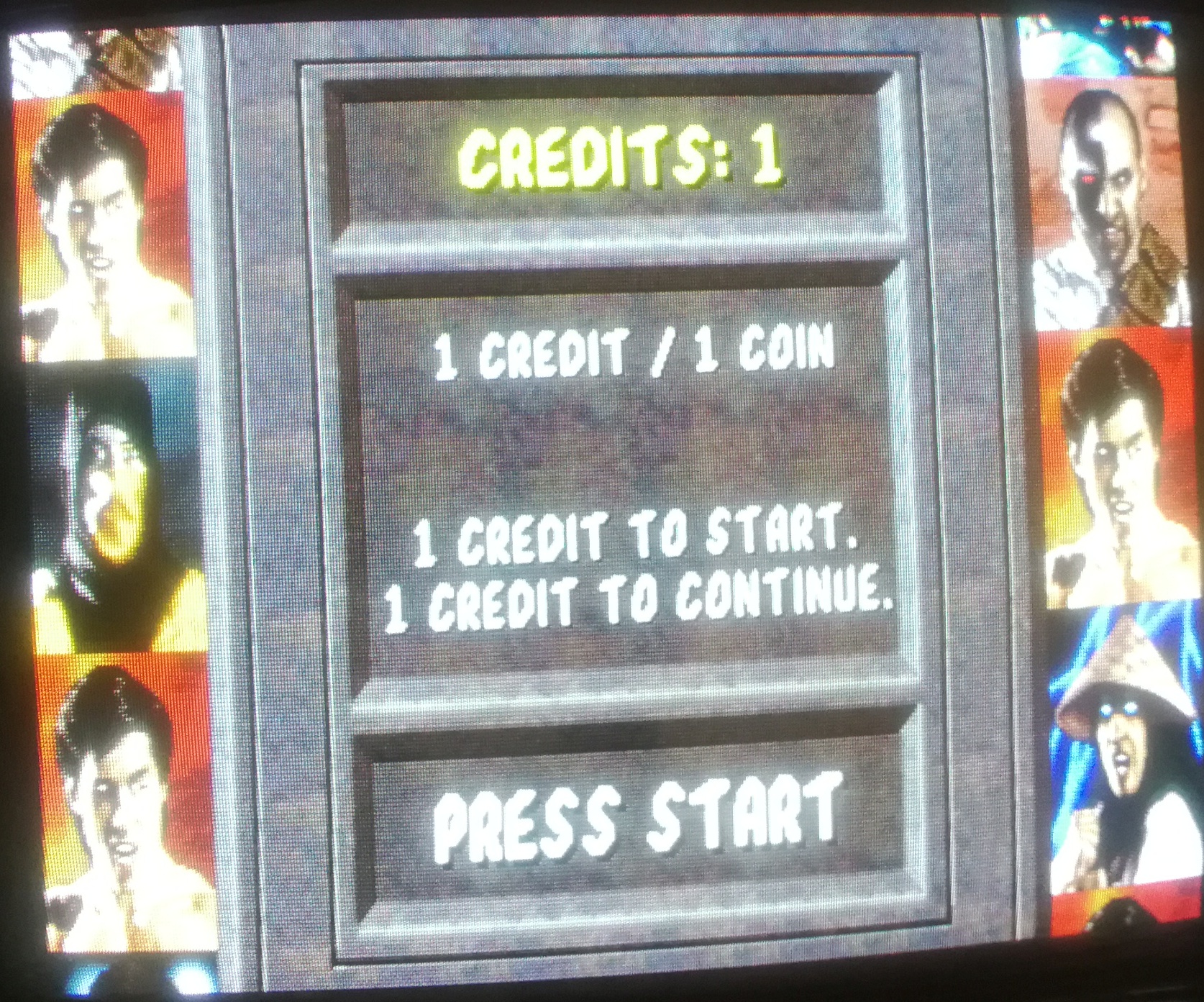

Attract mode 3
-

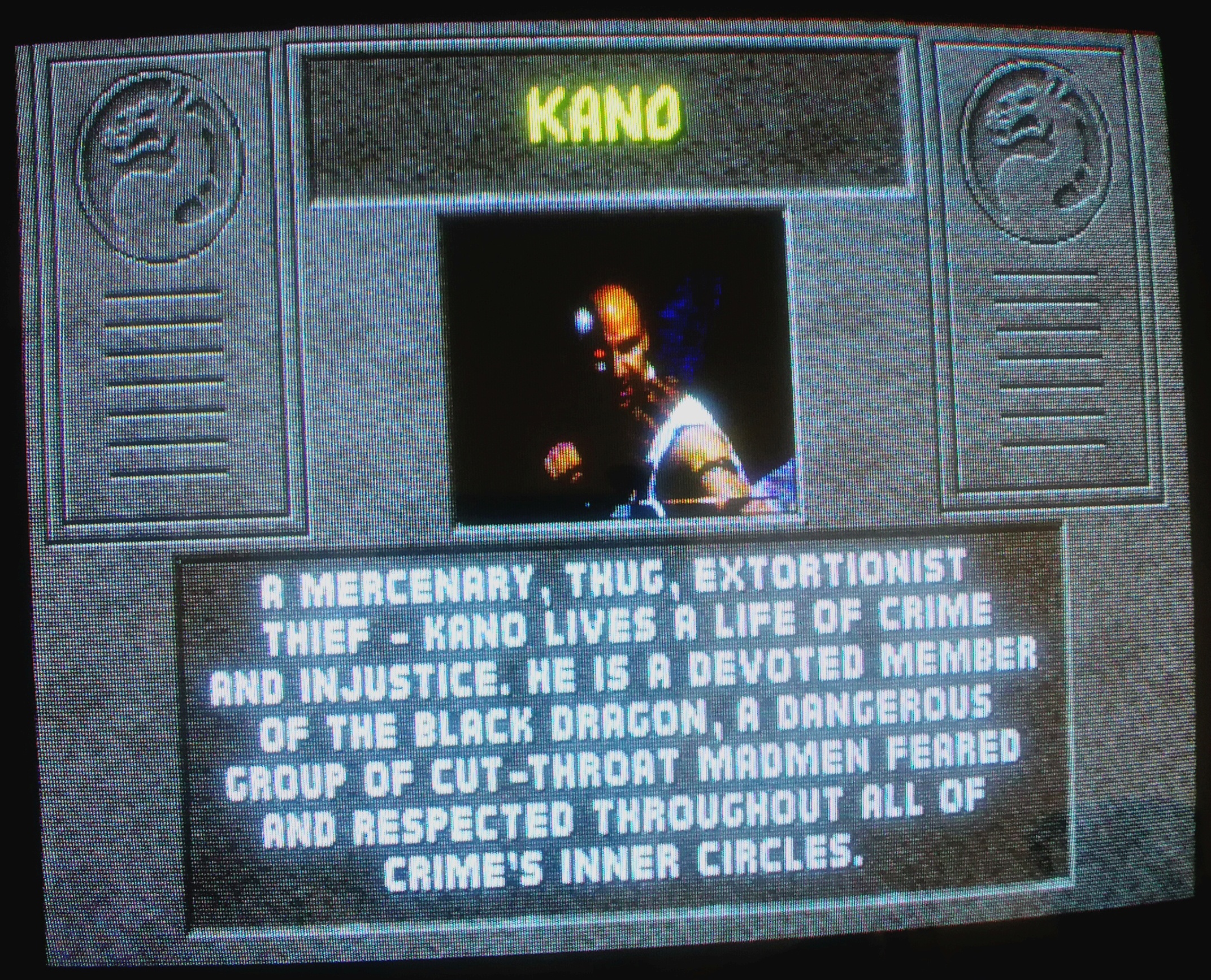

Attract mode 4
-

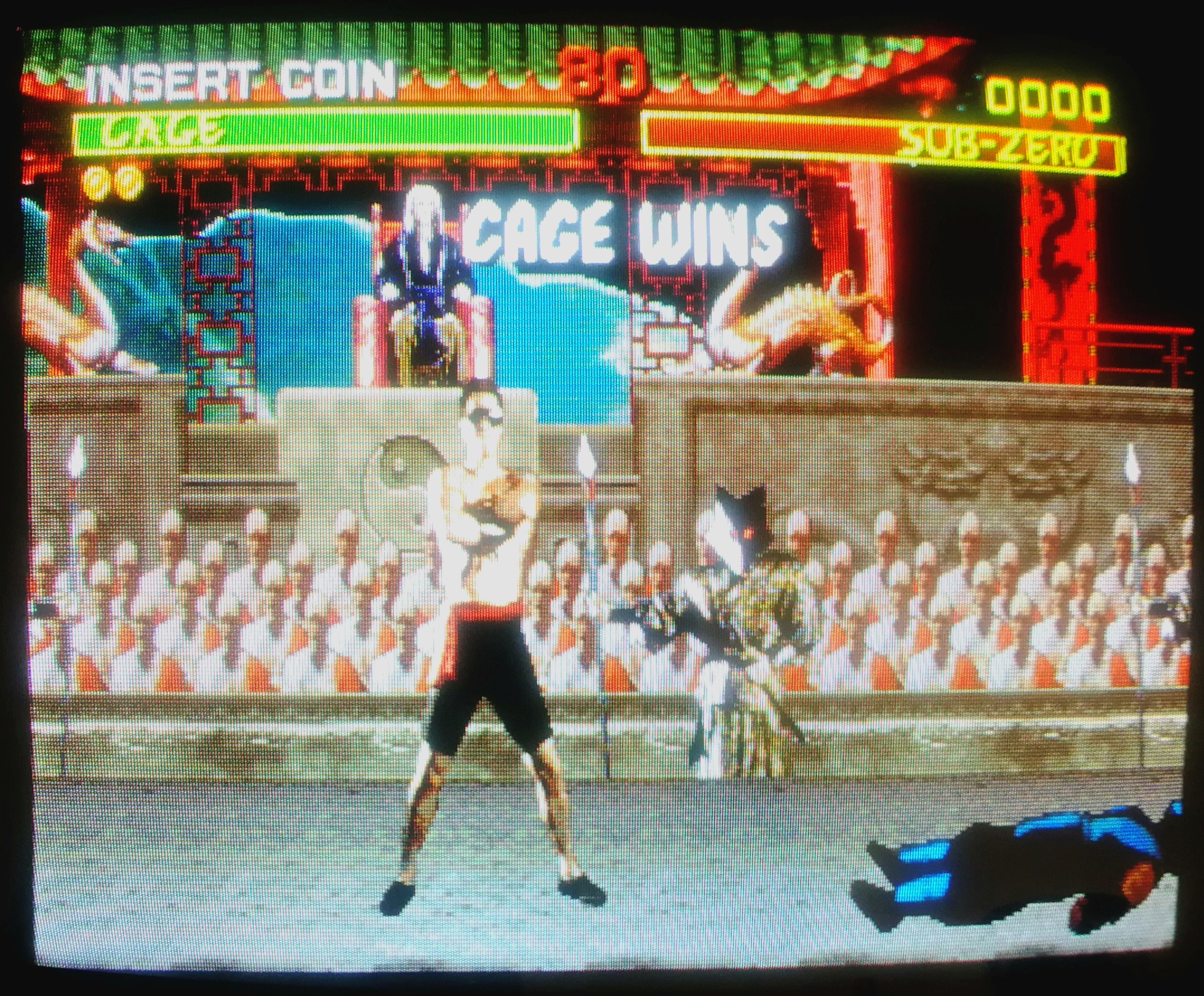

In game 1
-

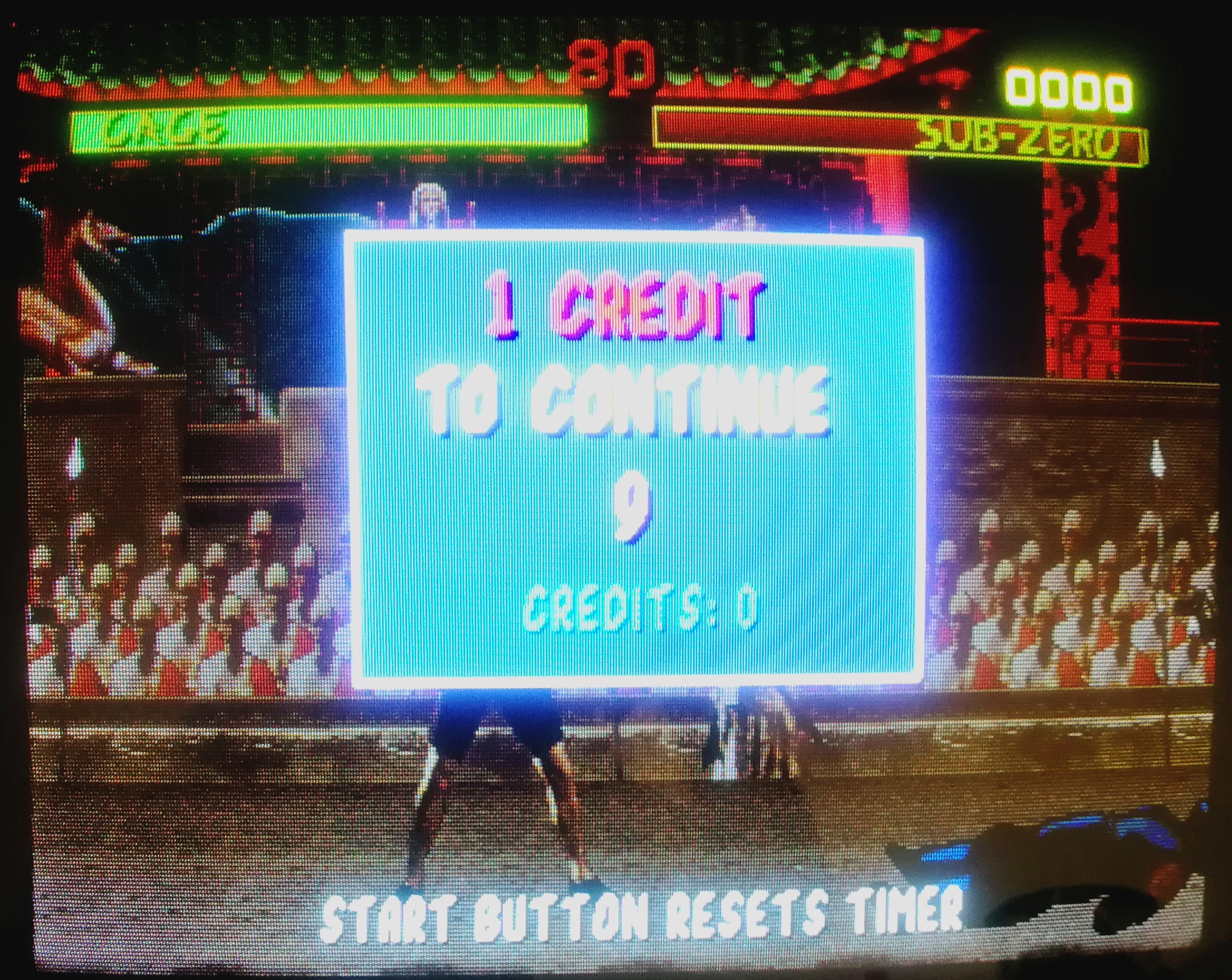

In game 2
-

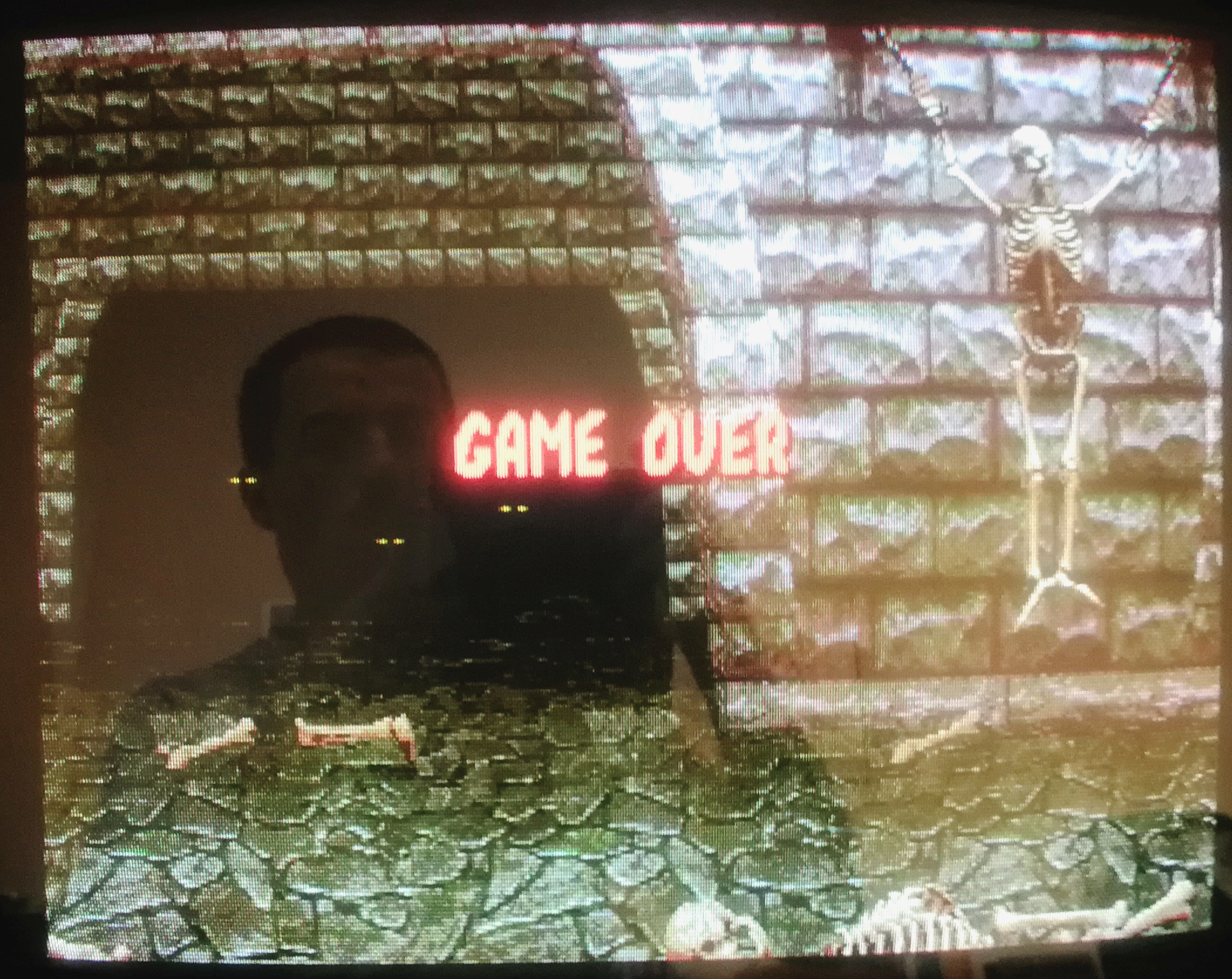

Game over
-

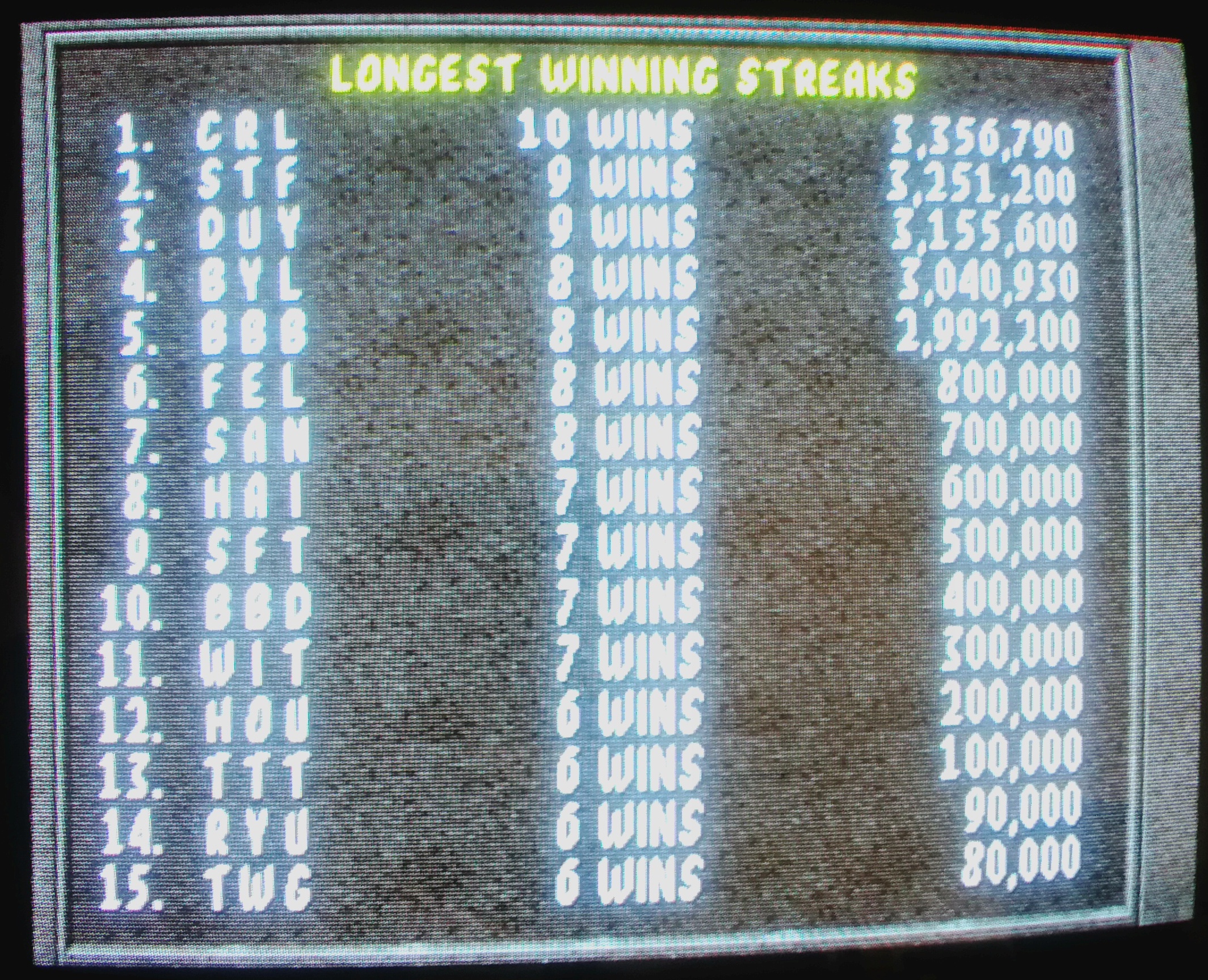

Hiscore
