Mortal Kombat (Yawdim bootleg, set 1)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 27/03/2012 |
| emulator | MAME 0.94 |
| dev | Aaron Giles |
| name | mkyawdim on ProgettoEMMA mkyawdim on Arcade Database |
| description | Mortal Kombat (Yawdim bootleg, set 1) |
| year | 1992 |
| manufacturer | Yawdim |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z8400B | 8-bit Microprocessor - sound | ||
| 1x | TMS34010 | Graphics System Processor - Video | ||
| 1x | 6295 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
| 1x | LM358 | Dual Operational Amplifier - sound | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 8.00MHz | ||
| 1x | oscillator | 48.00MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | AM27C512 | 14 | dumped |
| 1x | TMS27C010 | 15 | dumped |
| 15x | AM27C040 | 16-30 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 3x | HM3-65764H-5 | |
| 1x | HM3-65728K-5 | |
| 16x | KM41C464P-10 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TPC1020AFN-084C | read protected | |
| 6x | PALCE22V10 | 1,2,13,14,15,18 | read protected |
| 4x | GAL22V10 | 3,5,9,12 | read protected |
| 5x | GAL16V8 | 4,6,7,8,19 | read protected |
| 3x | PALCE20V8 | 10,11,16 | read protected |
| 1x | GAL20V8 | 17 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 15 legs connectr
1x trimmer (volume)
1x 8x2 switches DIP
1x 4x2 switches DIP
Notes
The only difference from the game already in MAME is that EPROM 16 is 4 times bigger, with the very same data repeated on each quarter.
Files
-

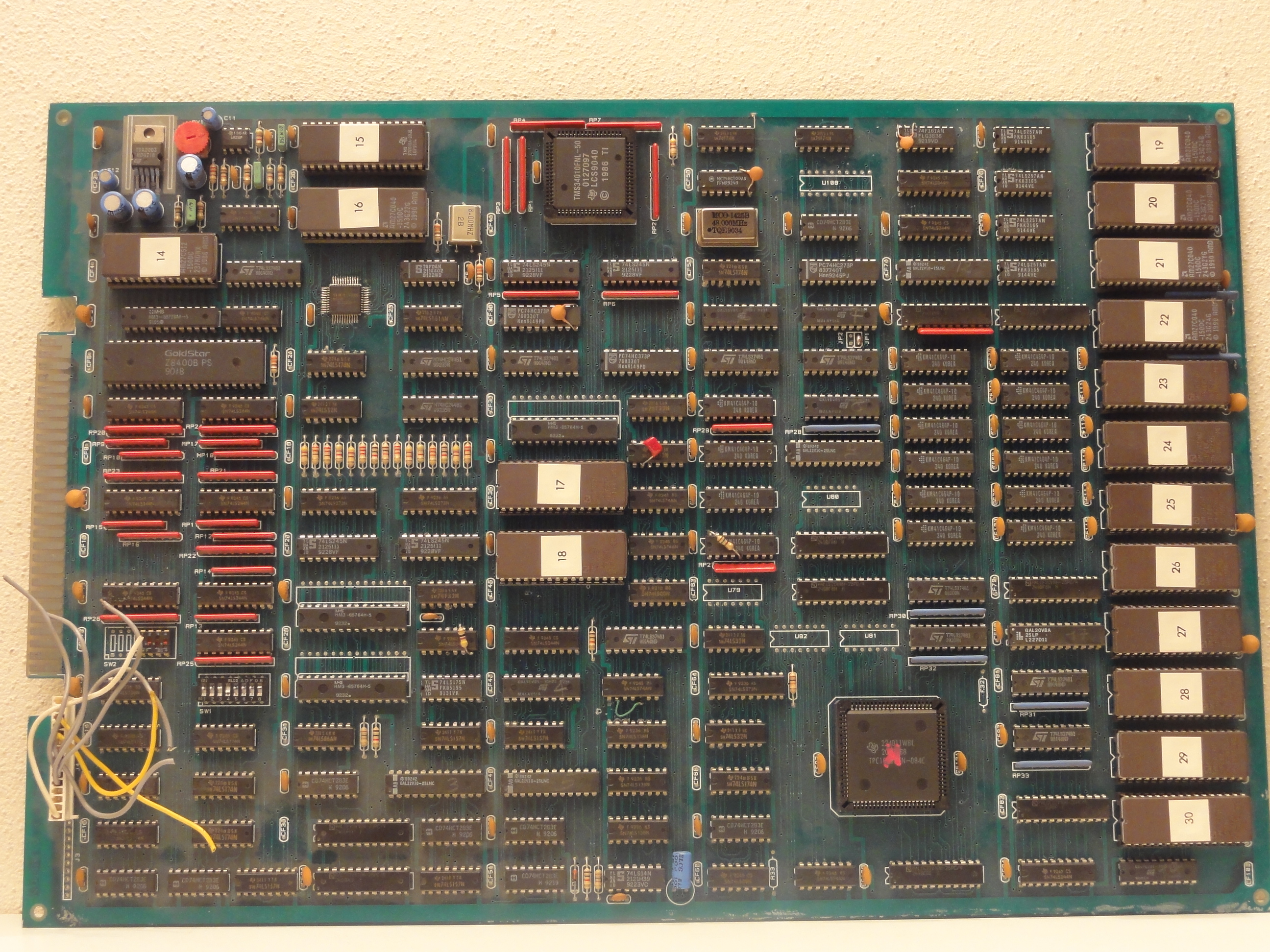

PCB component side
-

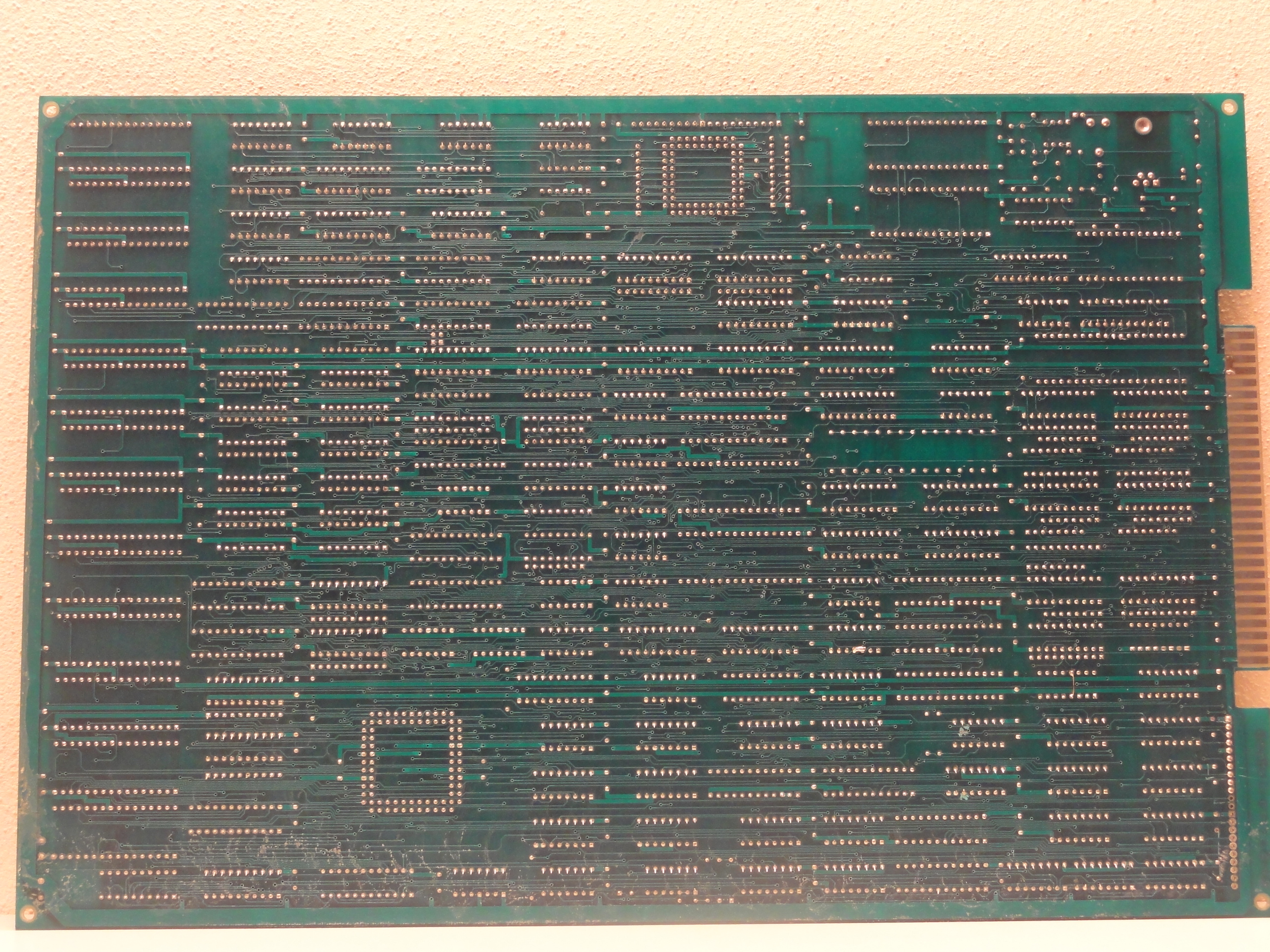

PCB solder side
-
