Moon Light (v.0629, low program)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 15/09/2005 |
| emulator | MAME 0.100u2 |
| dev | Roberto Fresca |
| name | moonlght on ProgettoEMMA moonlght on Arcade Database |
| description | Moon Light (v.0629, low program) |
| year | 199x |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z0840006PCS | 8-bit Microprocessor - main | ||
| 1x | M6295 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
| 1x | LM358N | Dual Operational Amplifier - sound | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 12.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 4x | MX26C1000A | 4,27,28,29 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | LH5116-10 | |
| 1x | HT6166-7LL | |
| 1x | U6264ADC |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | A40MX04-PL84 | read protected | |
| 2x | PALCE22V10H-25PC/4 | read protected |
Others
1x 28x2 JAMMA edge connector
1x pushbutton
1x trimmer (volume)
5x 8x2 switches DIP
1x battery 5.5V
Notes
Files
-

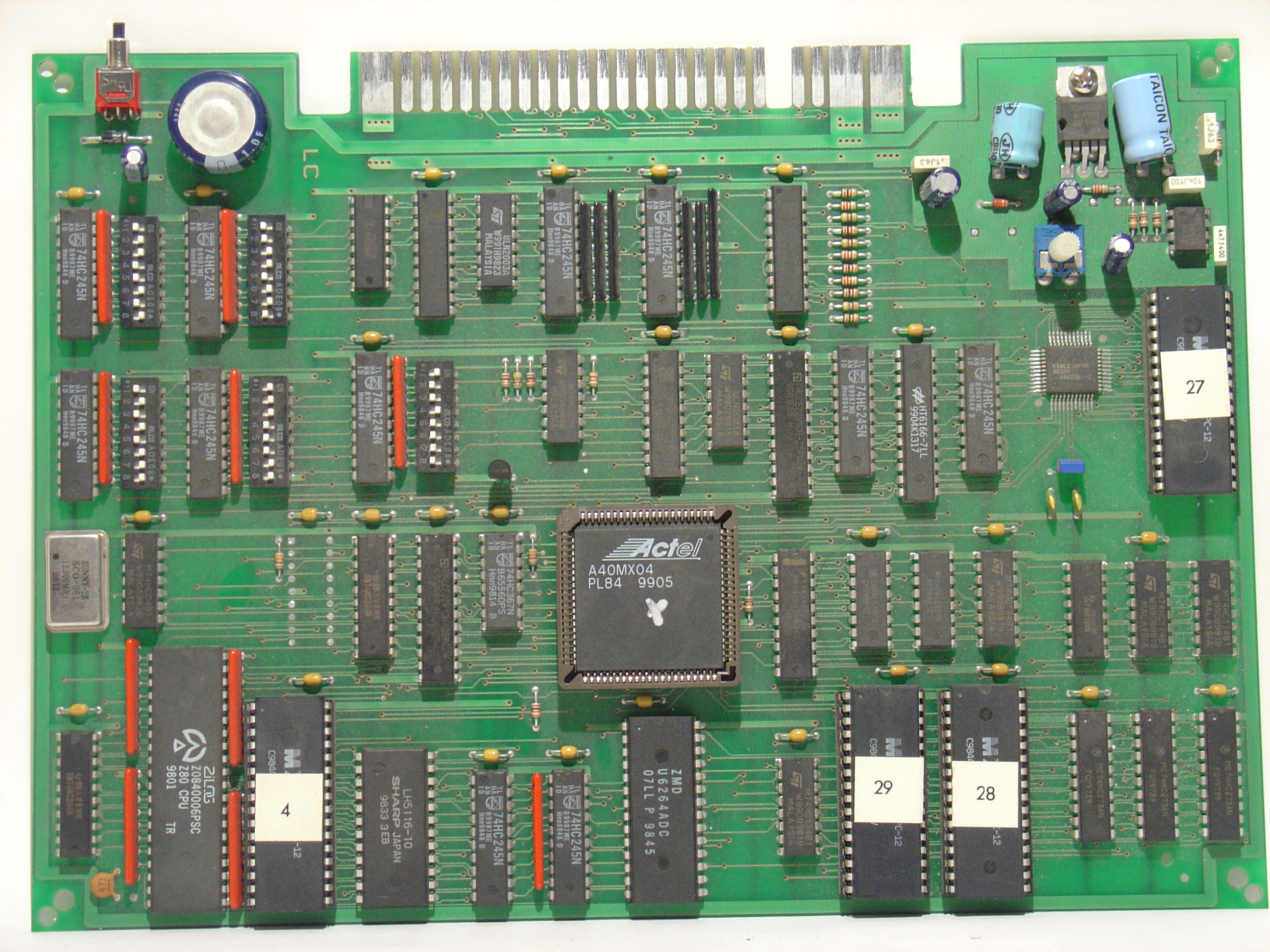

PCB component side
-

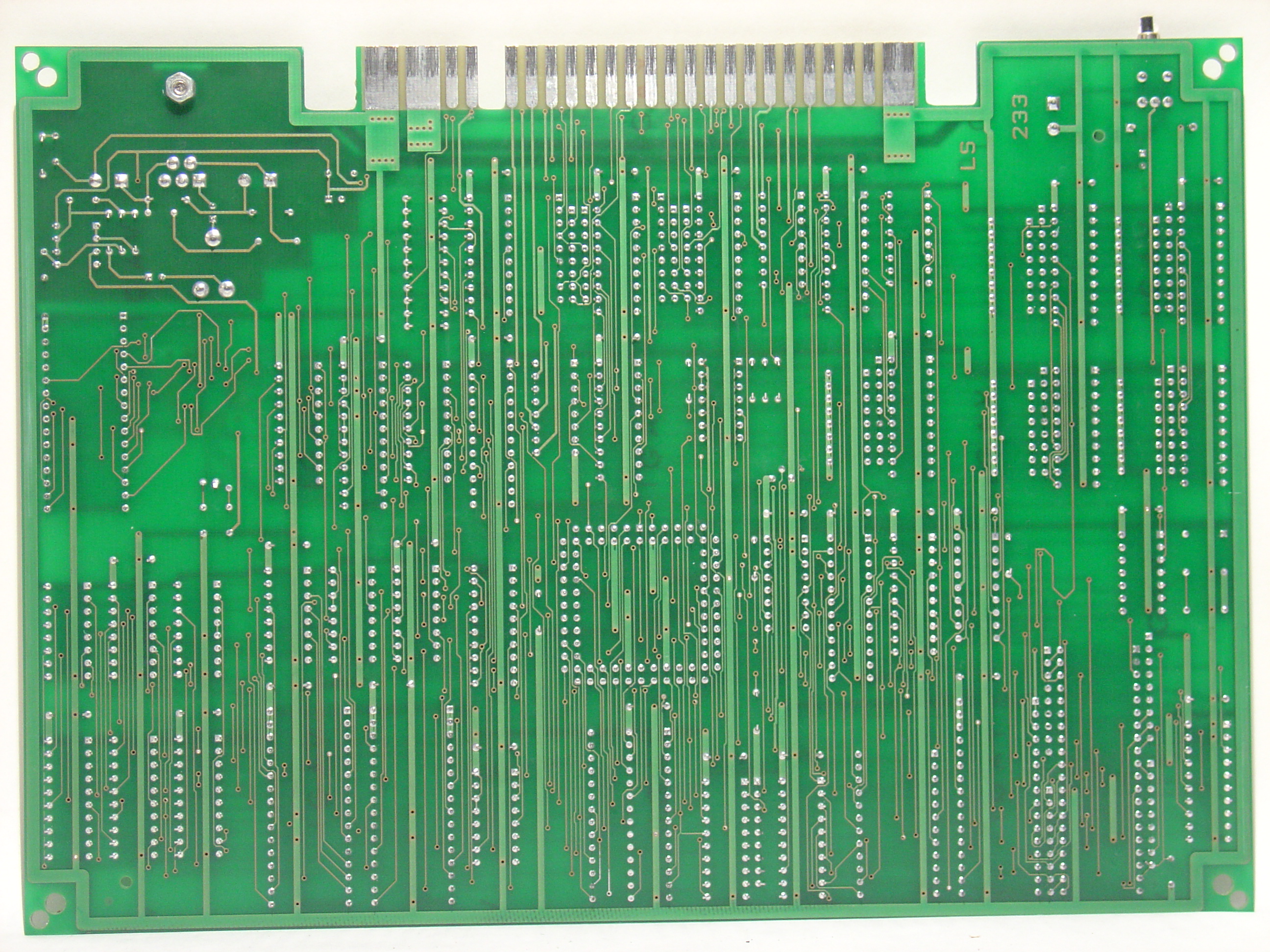

PCB solder side
-

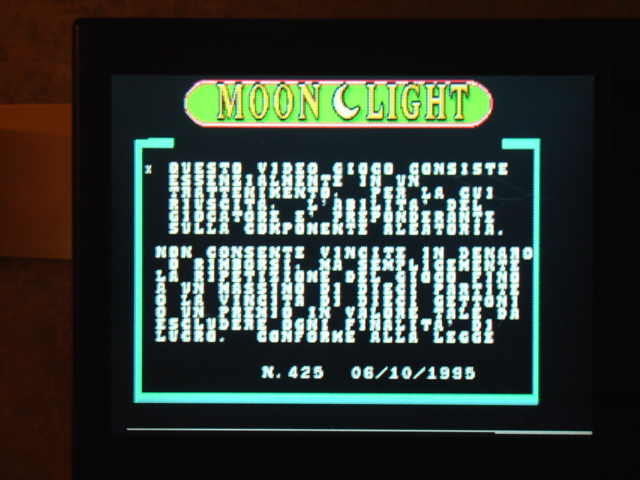

Title
-

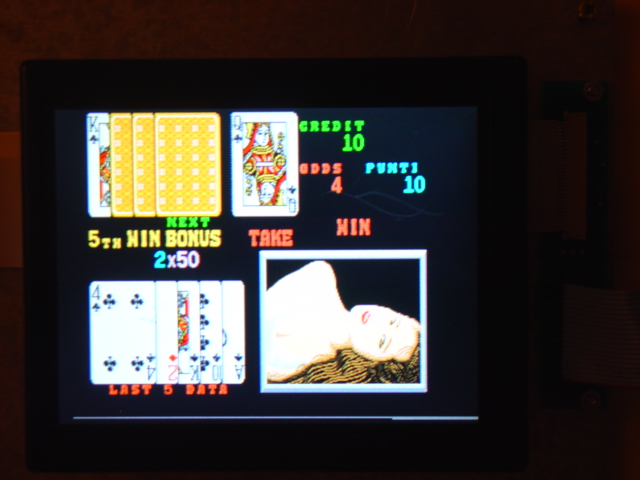

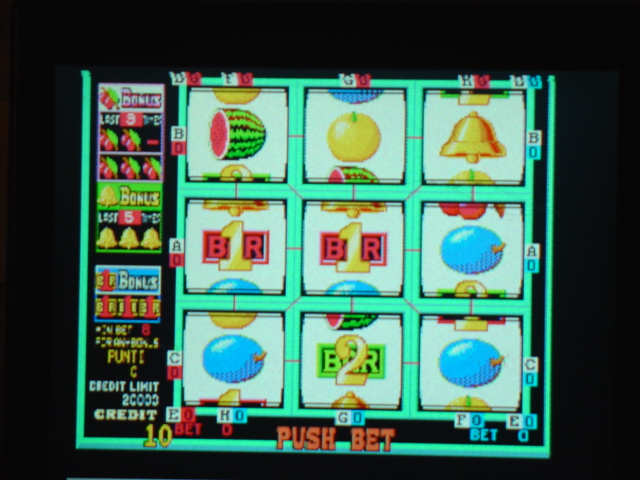

In game 1
-

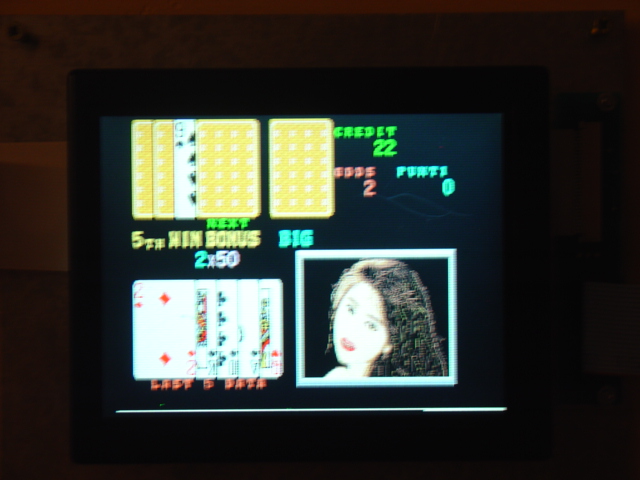

In game 2
-
