Moon Light (v.02L0A, high program, alt gfx)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 22/01/2016 |
| emulator | MAME 0.171 |
| dev | Roberto Fresca |
| name | moonlghtb on ProgettoEMMA moonlghtb on Arcade Database |
| description | Moon Light (v.02L0A, high program, alt gfx) |
| year | 199x |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z0840006PCS | 8-bit Microprocessor - main | ||
| 1x | PIC16C54-Xt/P | 8bit CMOS Microcontroller (internal ROM not dumped) | ||
| 1x | M6295 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
| 1x | LM358N | Dual Operational Amplifier - sound | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 12.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | M27C1001 | main, sound | dumped |
| 2x | M27C4001 | gfx1, gfx2 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | HM3-6116L-5 | |
| 1x | Cy7C128A-35PC | |
| 1x | U6264ADC |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | A1020B-PL84C | read protected | |
| 2x | PALCE22V10H-25PC/4 | read protected |
Others
1x 28x2 JAMMA edge connector
1x pushbutton
1x trimmer (volume)
5x 8x2 switches DIP
1x battery 5.5V
Notes
Files
-

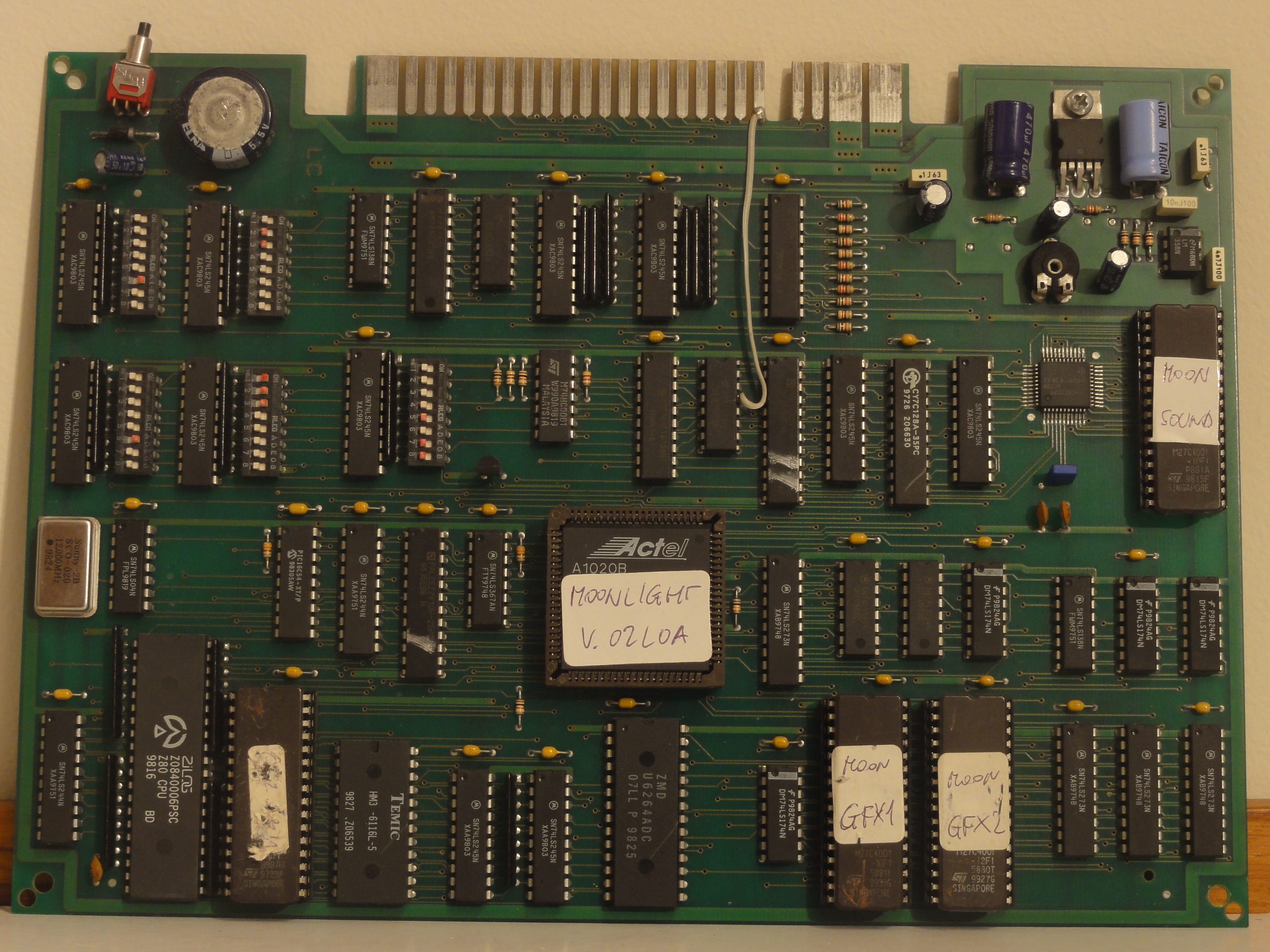

PCB component side 1
-

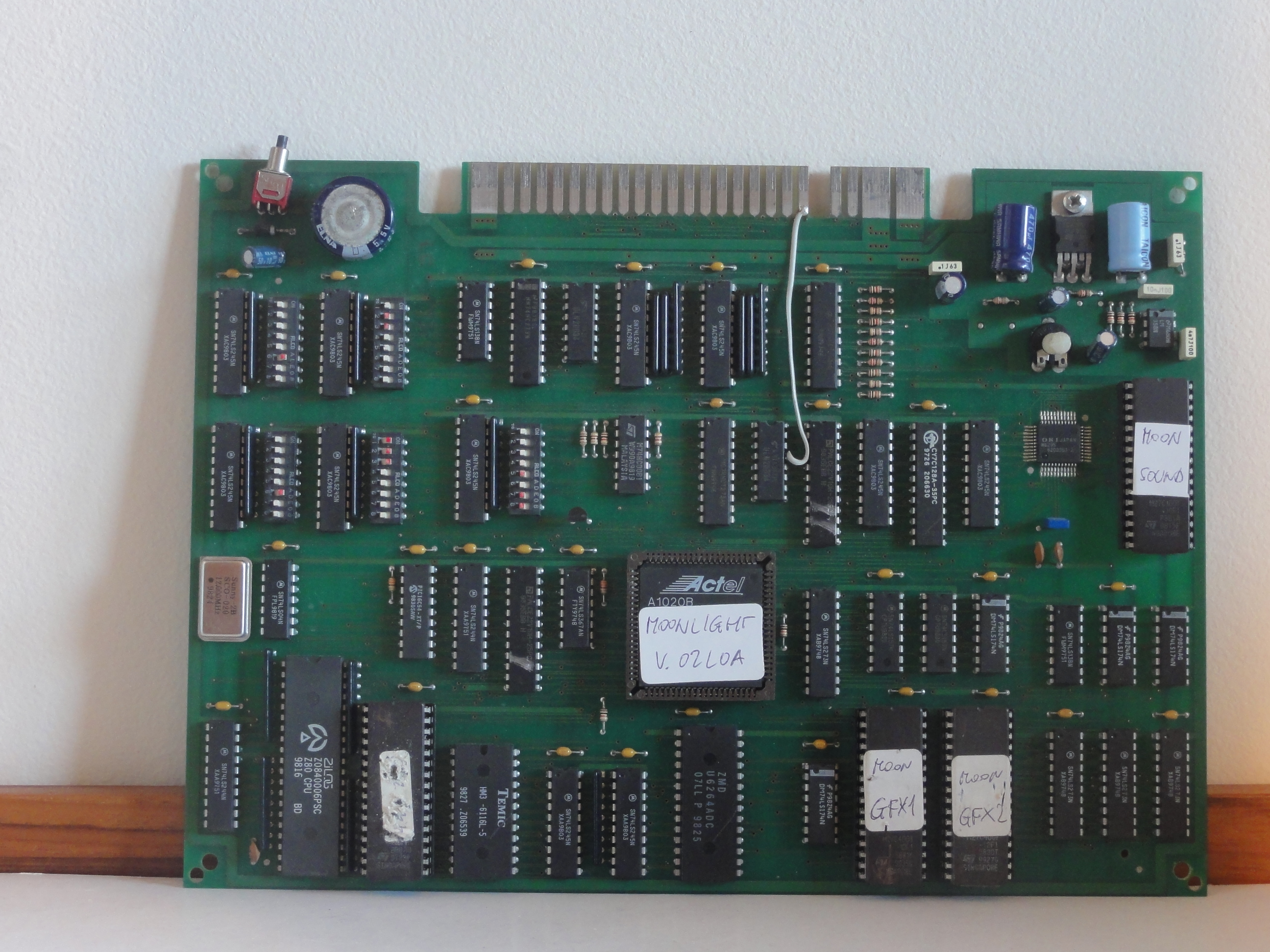

PCB component side 2
-

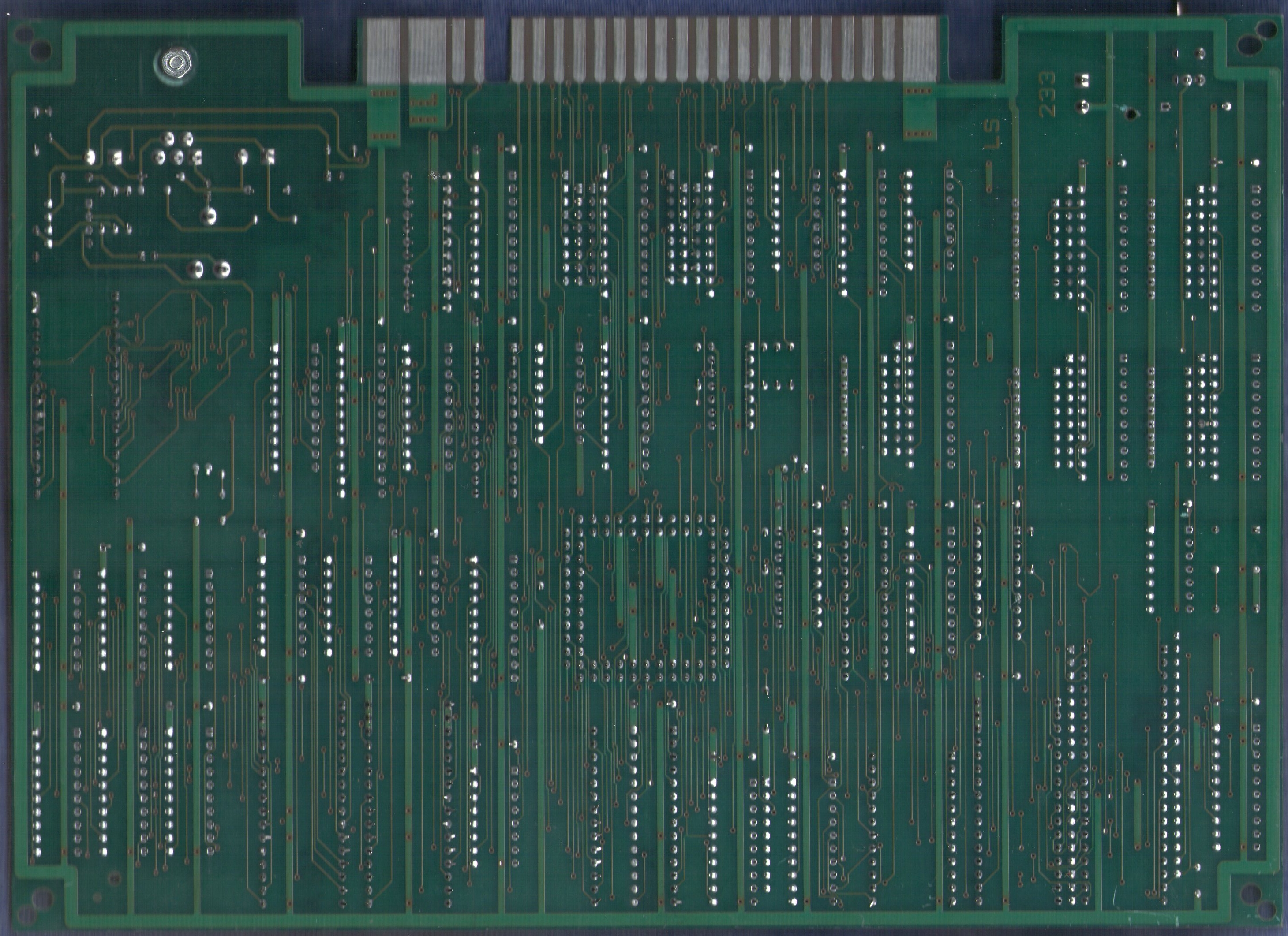

PCB solder side 1
-

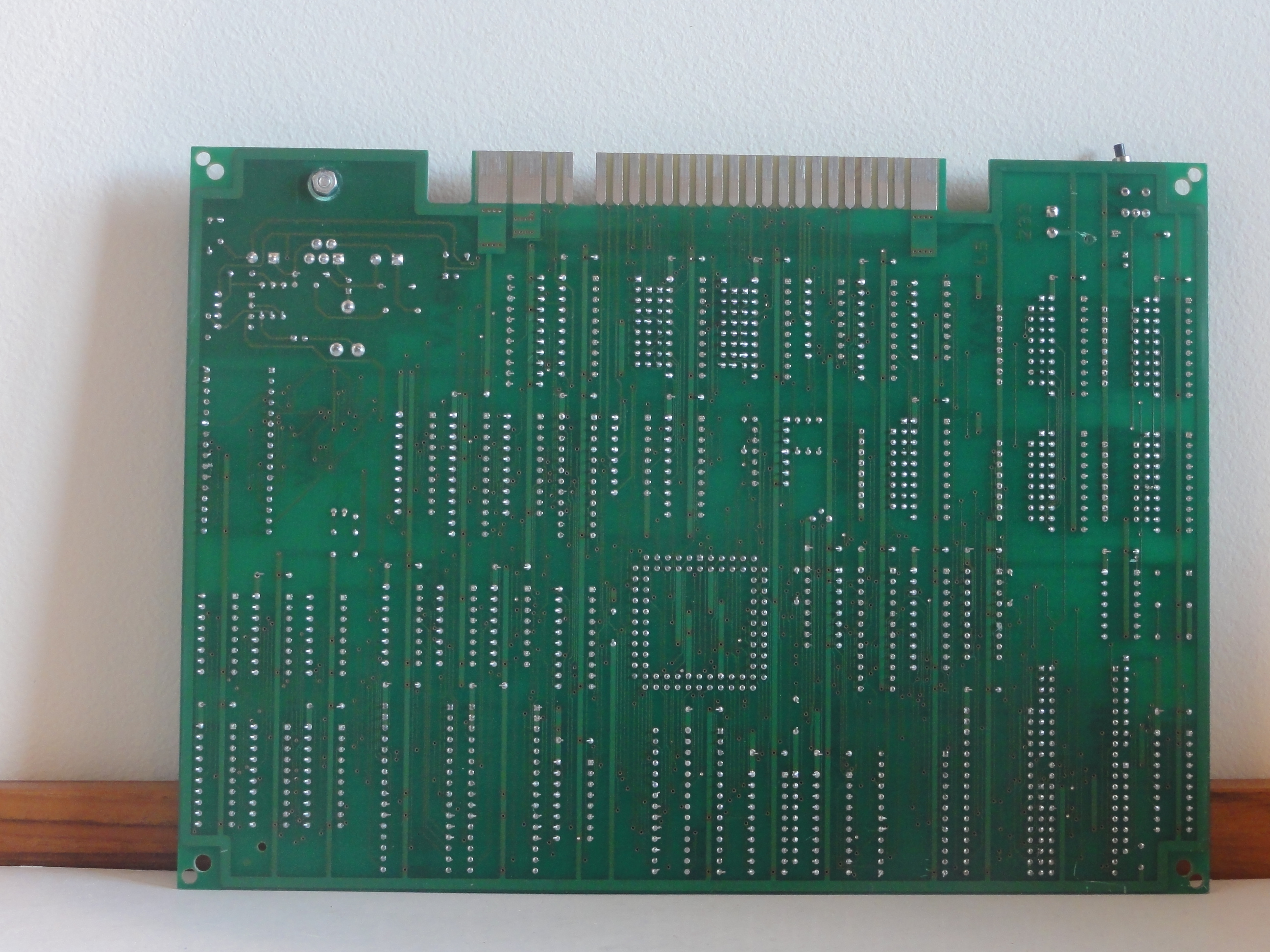

PCB solder side 2
-

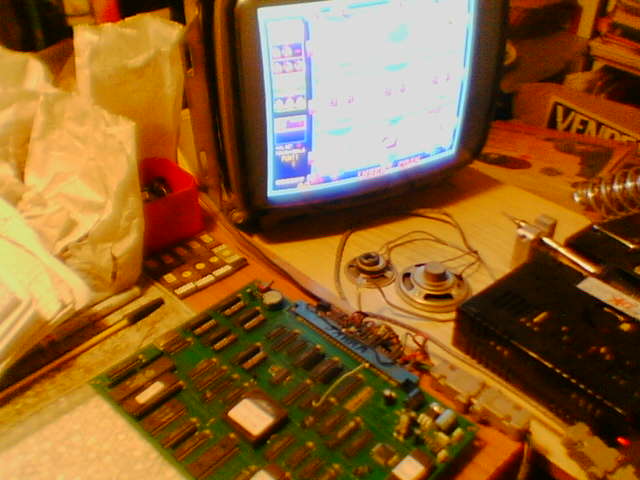

In game
