Moon Crest (bootleg of Moon Cresta)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 10/07/2007 |
| emulator | MAME 0.147u4 - MisfitMAME 0.122.B |
| dev | Robert |
| name | mooncrs4 on ProgettoEMMA mooncrs4 on Arcade Database - [E577] - mooncrs4 |
| description | Moon Crest (bootleg of Moon Cresta) - Moon Crest E577 |
| year | 1980 |
| manufacturer | SG-Florence |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z80 | 7a | 8-bit Microprocessor - main | |
| 1x | LM324 | Quad Operational Amplifier - sound | ||
| 1x | LM380 | Audio Amplifier - sound | ||
| 1x | oscillator | 18432 | 1f |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 6x | 2732 | 1l,1j,7k,7j,7h,7f | dumped |
| 1x | 74S288 | 6l | not dumped yet |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
1x 22x2 edge connector
1x trimmer (volume)
Notes
Files
-

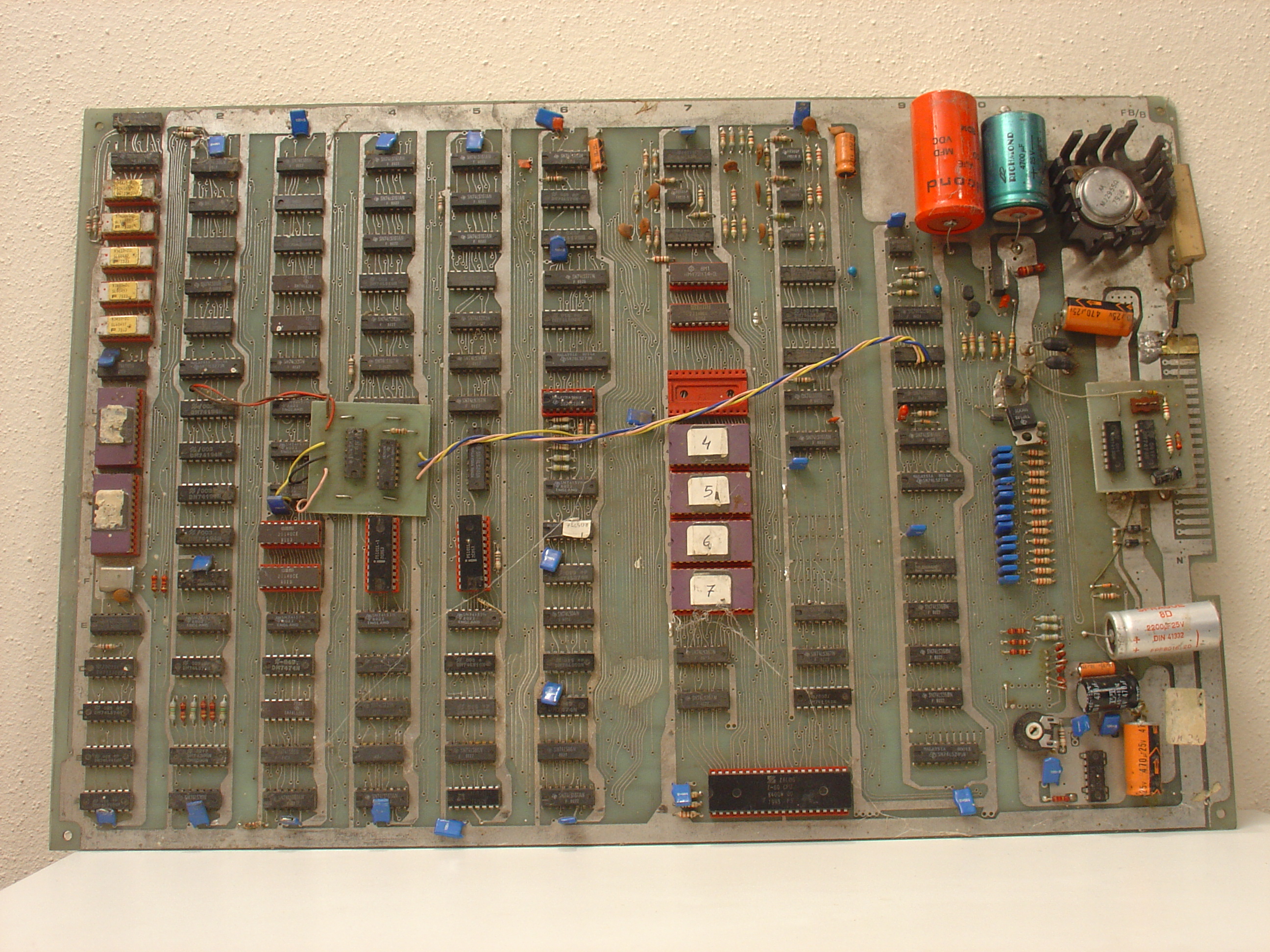

PCB component side
-

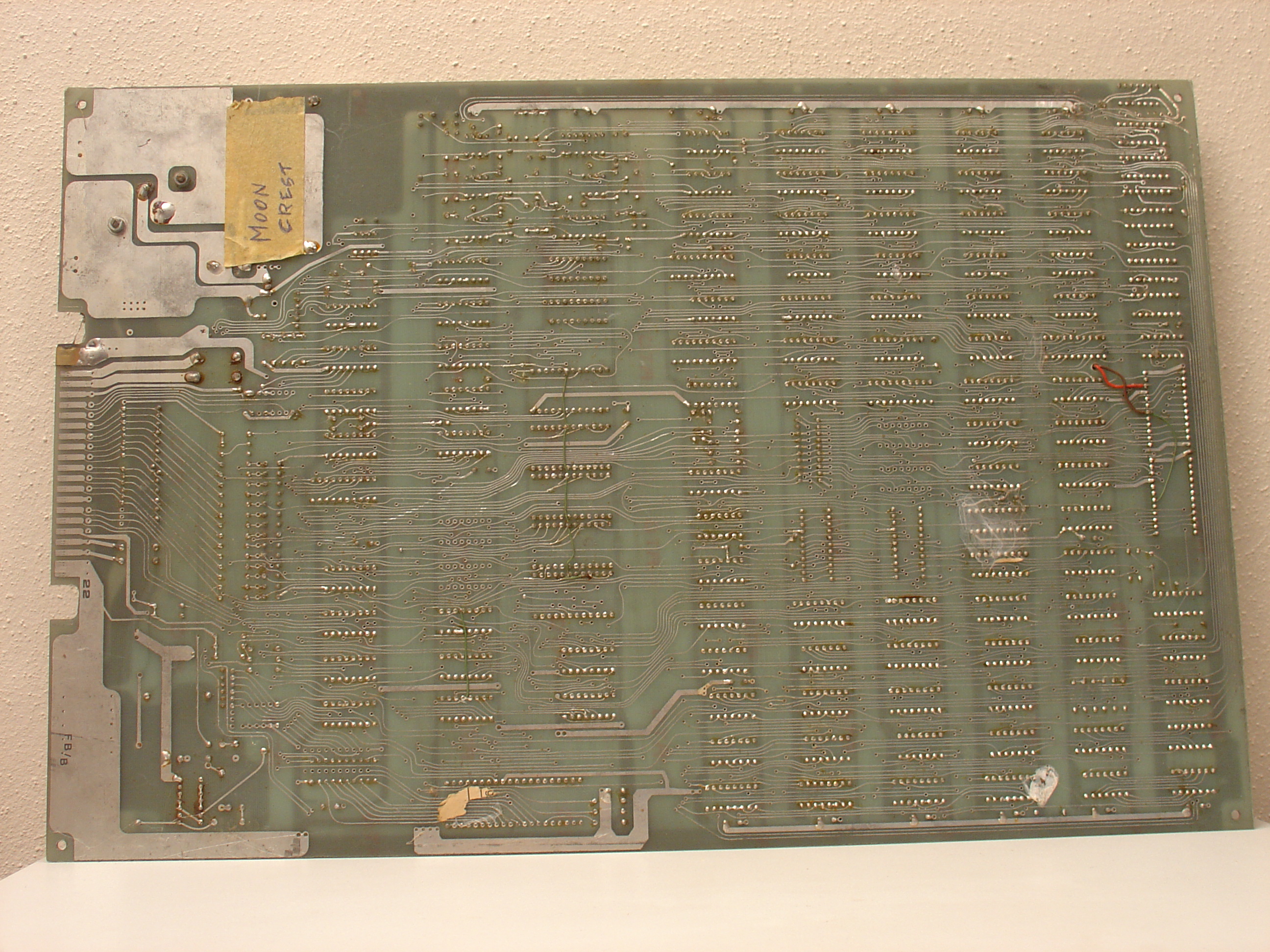

PCB solder side
577
