Mongolfier New (Italian)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 23/12/2006 |
| emulator | MAME 0.111u1 |
| dev | Roberto Fresca |
| name | mongolnw on Arcade Database |
| description | Mongolfier New (Italian) |
| year | 199x |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | G65SC02P-2 | u14 | 8-bit Microprocessor - main | |
| 1x | MC68B45P | u6 | CRT Controller (CRTC) | |
| 2x | EF6821P | u29,u30 | Peripheral Interface Adapter | |
| 1x | KC89C72 | u31 | Programmable Sound Generator - sound | |
| 1x | TDA2003 | u35 | Audio Amplifier - sound | |
| 1x | TSC87C52-16CB | u40 | 8-bit Microcontroller - main (internal ROM dumped) | |
| 1x | oscillator | 16.0000MHz | Y1 | |
| 1x | oscillator | Y2 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | M27C512 | u2,u3,u16 | dumped |
| 1x | AM27S29PC | u24 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | M5M5256BP-10L | u5 |
| 1x | M48Z08-100PC1 | u37 dumped |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | PALCE16V8H-15PC/4 | u15 | read protected |
Others
1x 28x2 JAMMA edge connector (CN1)
1x trimmer (volume)(R5)
2x 8 DIP switches banks (S1,S2)
1x 4 DIP switches bank
1x green LED (D7)
1x jumper (3 legs)(J1)
Notes
PCB is marked: "L4L3 -LC- B005" on component side
PCB is marked: "B005 -LS- L1L2" on solder side
update 20070119: The microcontroller dump is now available
Files
-

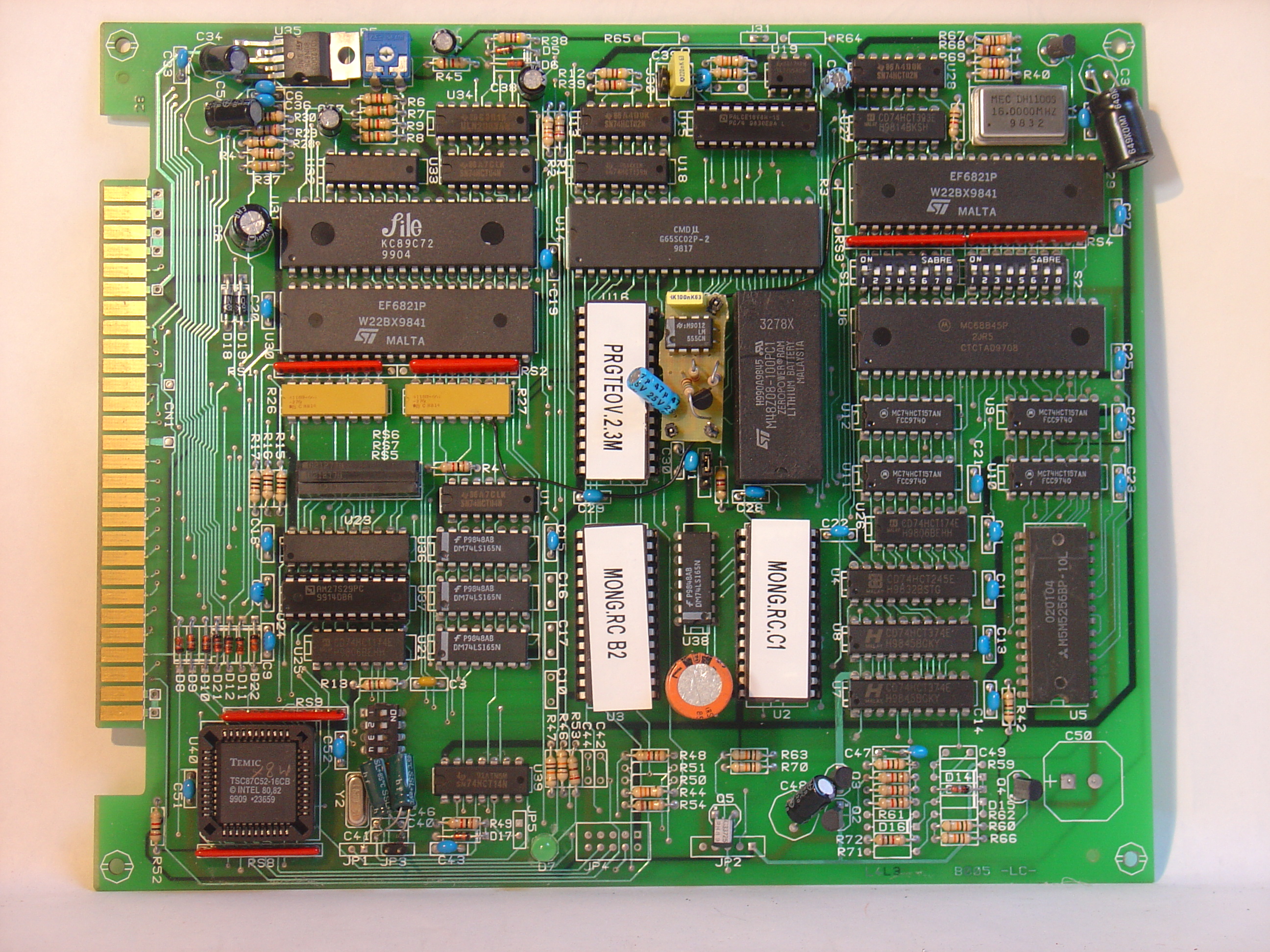

PCB component side
-

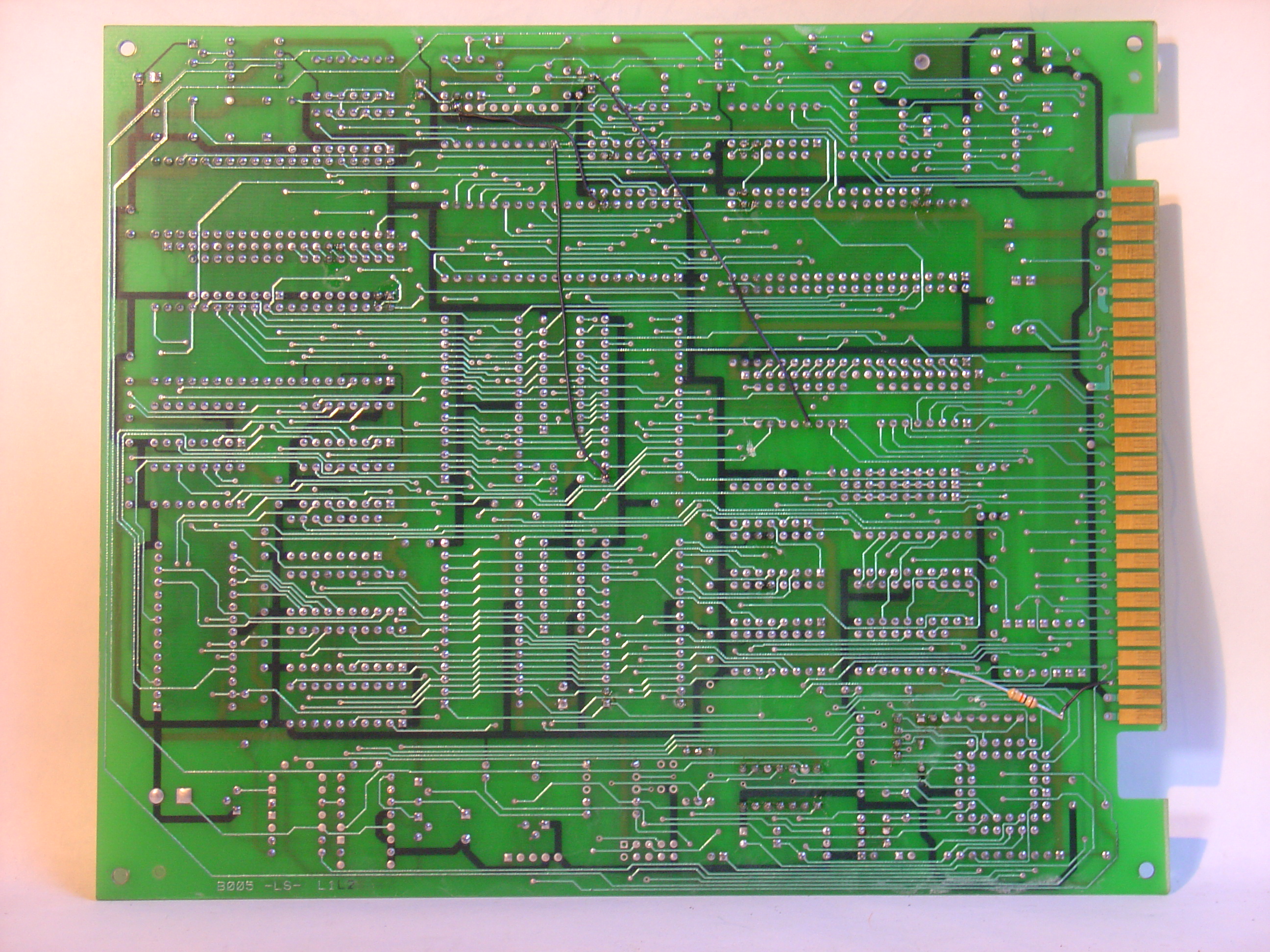

PCB solder side
-

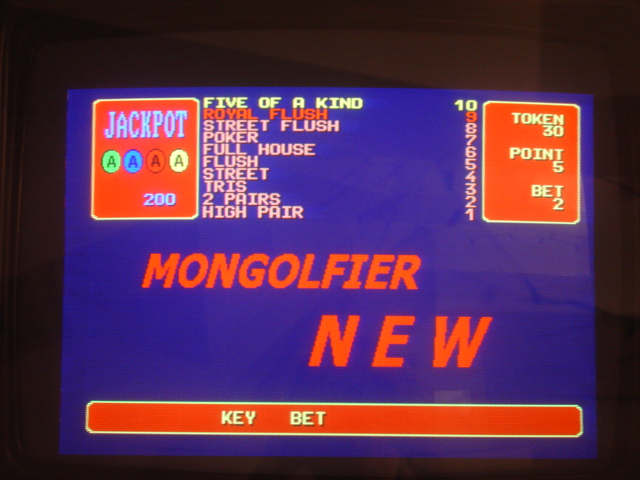

Title
-

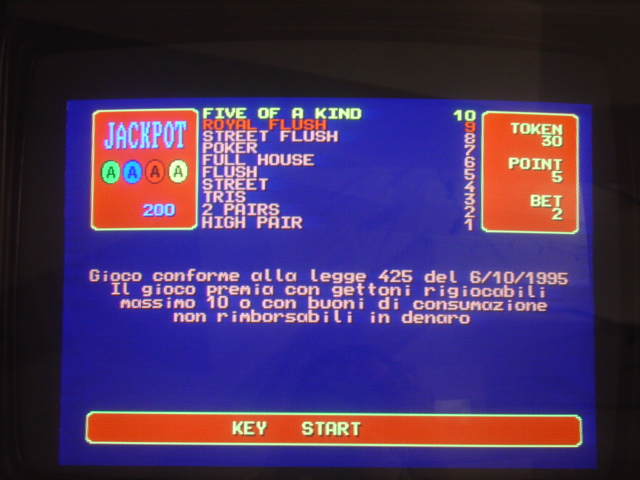

Attract mode 1
-

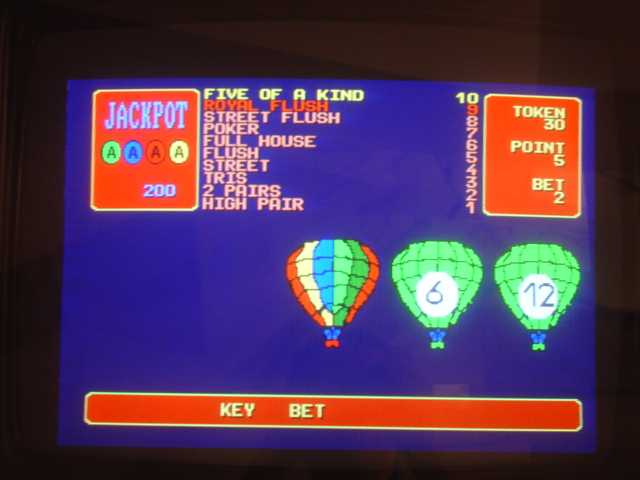

Attract mode 2
-
Readme
