Missile Combat (Sidam bootleg)
From Citylan
Jump to navigationJump to search
| dumper | f205v, robotype |
| date | 14/07/2011 |
| emulator | MAME 0.143u4 |
| dev | f205v, robotype |
| name | mcombats on ProgettoEMMA mcombats on Arcade Database |
| description | Missile Combat (Sidam bootleg) |
| year | 1980 |
| manufacturer | Sidam |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 6502A | 3b | 8-bit Microprocessor - main | |
| 1x | AY-3-8912 | 1j | Programmable Sound Generator - sound | |
| 1x | oscillator | 10000 | 1f |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | MK2716 | 0-1 | dumped |
| 4x | TMS2516 | 2-5 | dumped |
| 1x | 6331-1 | 6f | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 8x | MK4116N-3IRL | 7d-12d |
PLDs
| QTY | Type | position | status |
|---|
Others
1x 22x2 edge connector
1x trimmer (volume)
2x 8x2 switches DIP
Notes
PCB is marked: "VIDEOTRON BOLOGNA 002"
ROM 3 from location 0x6BA to location 0x6C4 (12 pokes) is: *** SIDAM **
Files
-

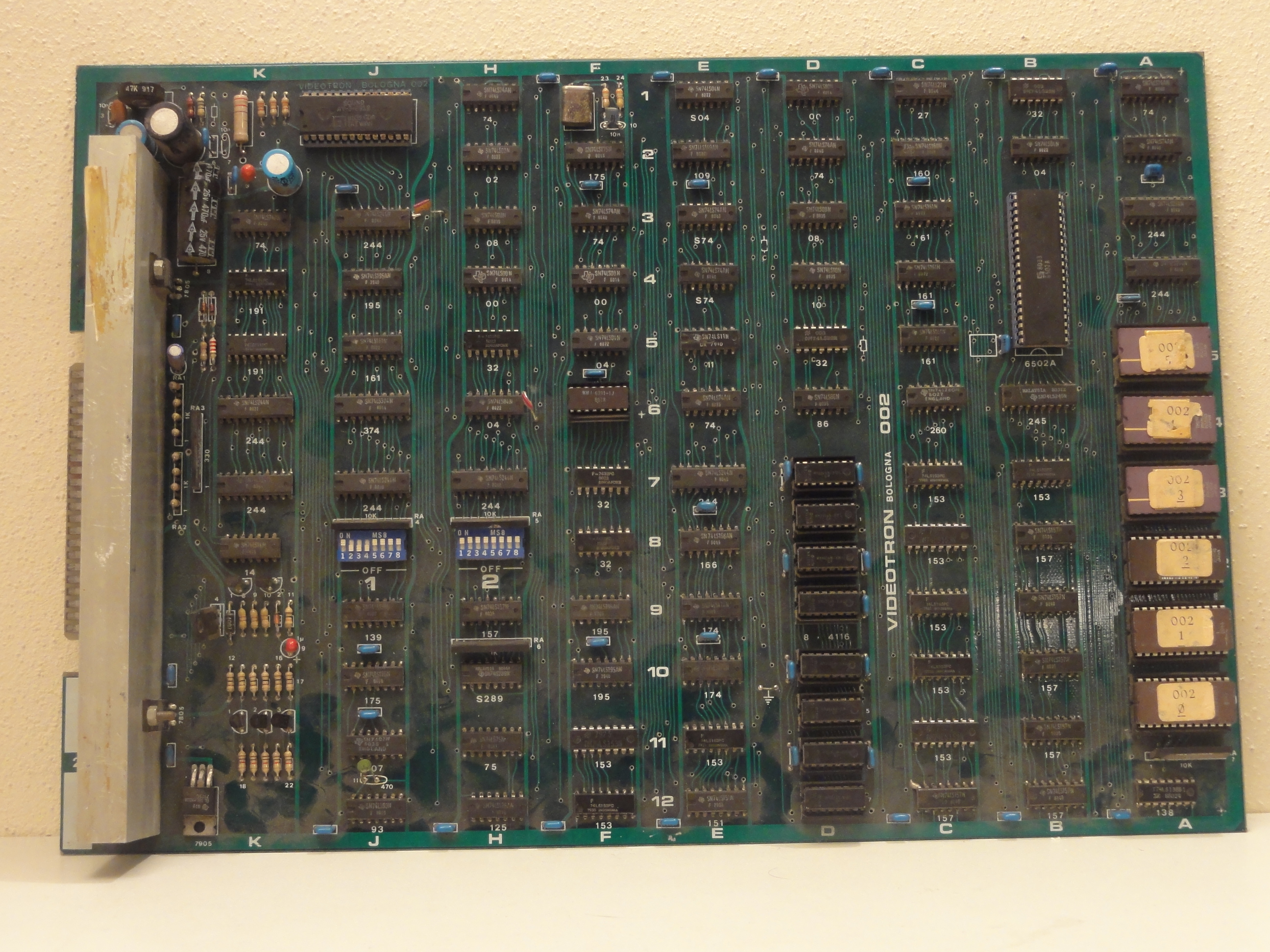

PCB component side
-
