Millennium Nuovo 4000 (Version 1.8)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 27/03/2008 |
| emulator | MAME 0.128u5 |
| dev | David haywood, Angelo Salese |
| name | mil4000a on ProgettoEMMA mil4000a on Arcade Database |
| description | Millennium Nuovo 4000 (Version 1.8) |
| year | 2000 |
| manufacturer | Sure Milano |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68HC000FN12 | u61 | 16/32-bit Microprocessor - main | |
| 1x | PIC16C65A-20/P | u60 | 8bit CMOS Microcontroller - main (internal ROM not dumped) | |
| 1x | U6295 | u53 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358 | - | u59 | Dual Operational Amplifier - sound |
| 1x | TDA2003 | - | TD1 | Audio Amplifier - sound |
| 1x | oscillator | 14.31818 | xl1 | |
| 1x | oscillator | 12.000MHz | xl2 | |
| 1x | blu resonator | 1000J | y1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 7x | V29C51001T | 2,3,4,5,6,27,28 | dumped |
| 1x | 27C020 | 1 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | HM3-65728BH-5 | u42,u43 |
| 2x | HM6264LP-70 | u77,u78 |
| 2x | V62C518256L-35P | u7,u8 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | PALCE22V10H | u74 | read protected |
| 2x | A40MX04-PL84 | u2,u3 | read protected |
Others
1x 28x2 JAMMA edge connector
1x RS232 (9pins) connector (JP5) along with a ICL232CPE controller(u61)
1x pushbutton (reset)
1x trimmer (volume)
1x 3 legs jumper
Notes
PCB is marked: "CE SURE SRL CHP4 1.5", "CHP4 1.4" and "LC" on component side ("LC" is the Italian for "Lato Componenti" which translates to "Components Side")
PCB is marked: "LS" on solder side ("LS" is the Italian for "Lato Saldature" which translates to "Solders Side")
PCB is labelled: "Millennium 4000" and "SURE srl - Via Savona 134 - 20144 Milano - Tel 02/47791836-26" on component side
update 20231111: better description
Files
-

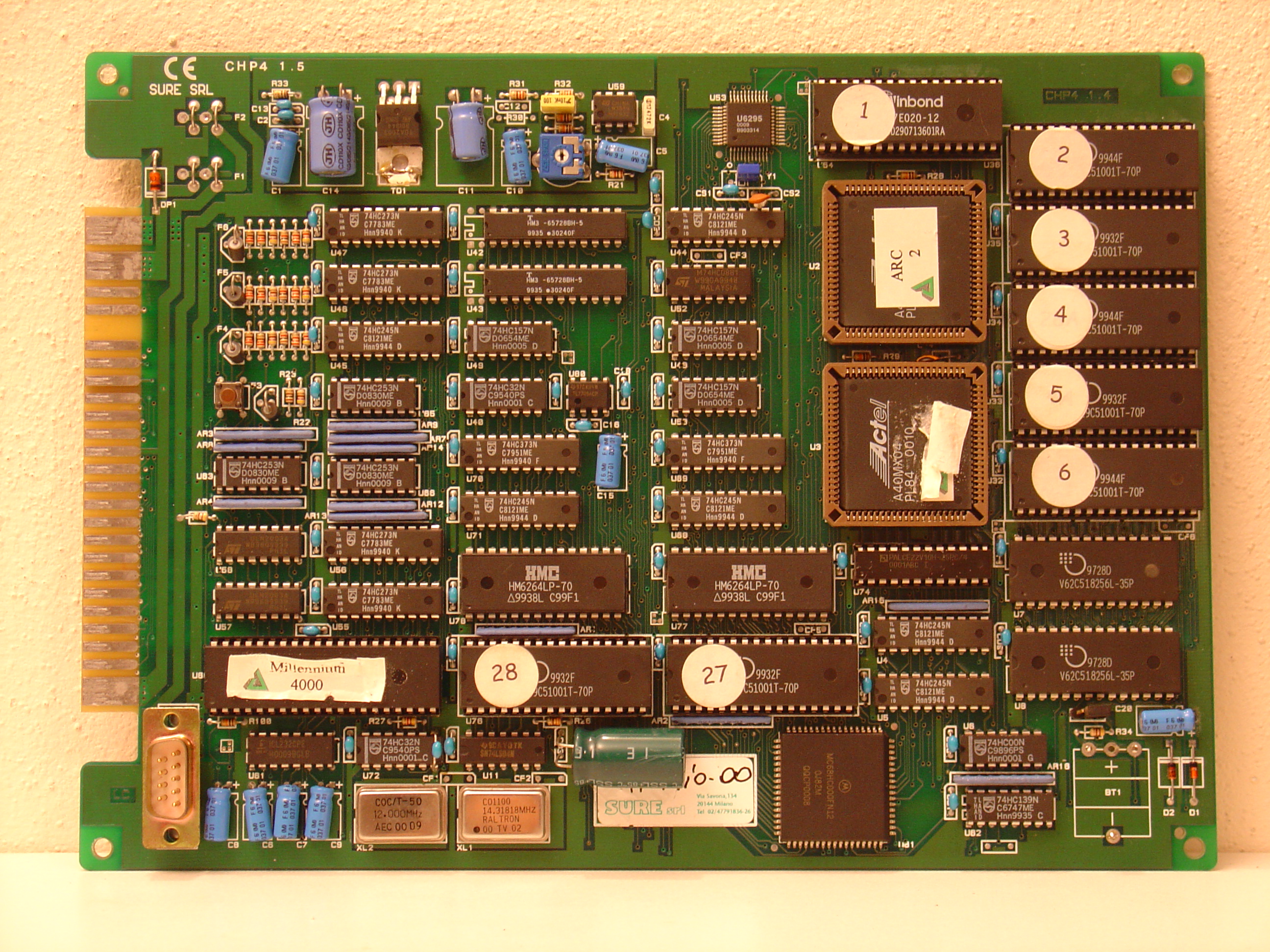

PCB component side
-

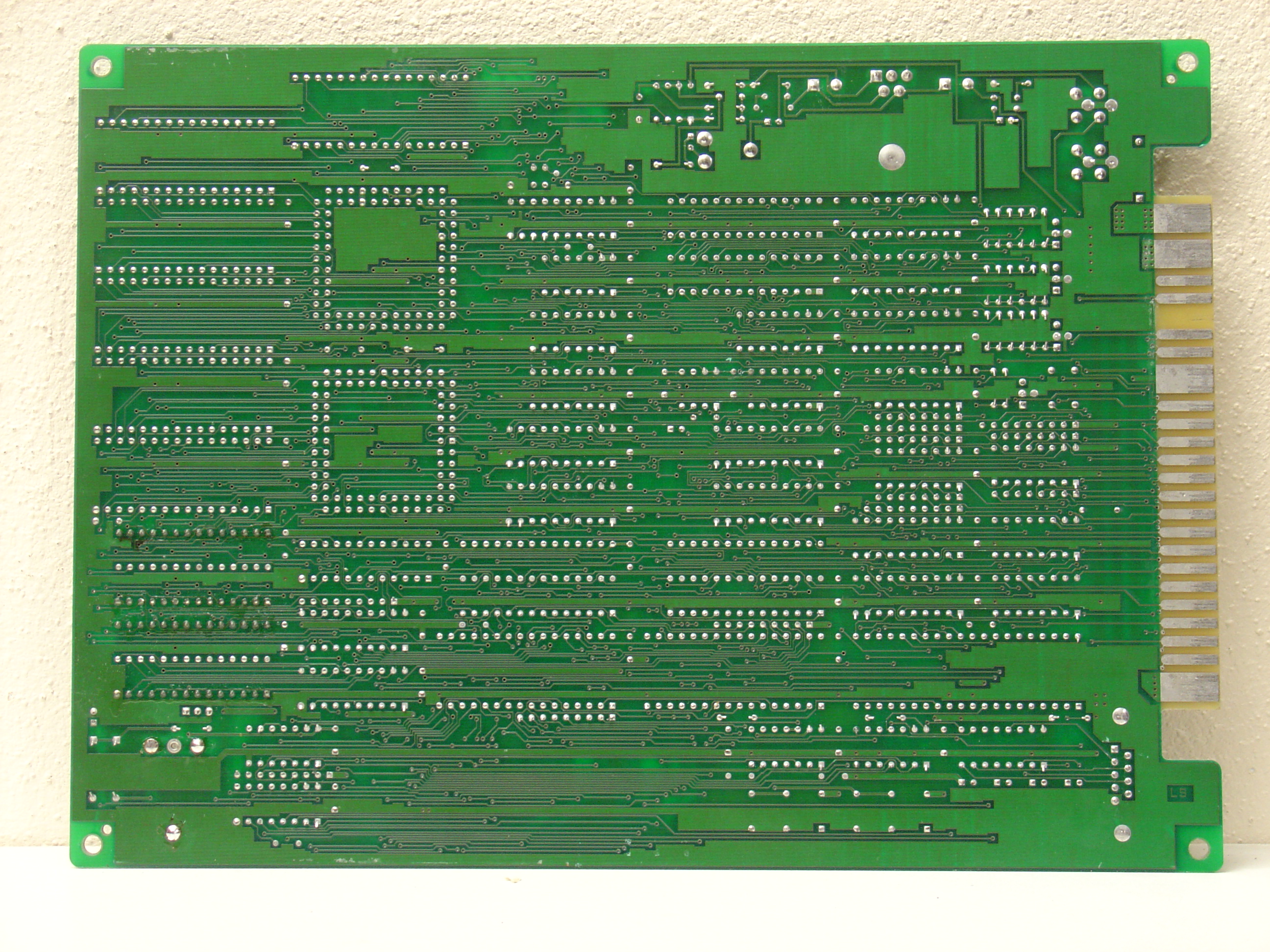

PCB solder side
-

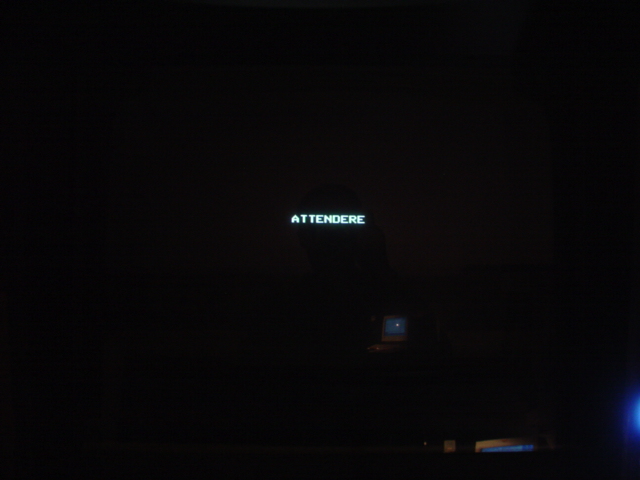

Boot screen
-

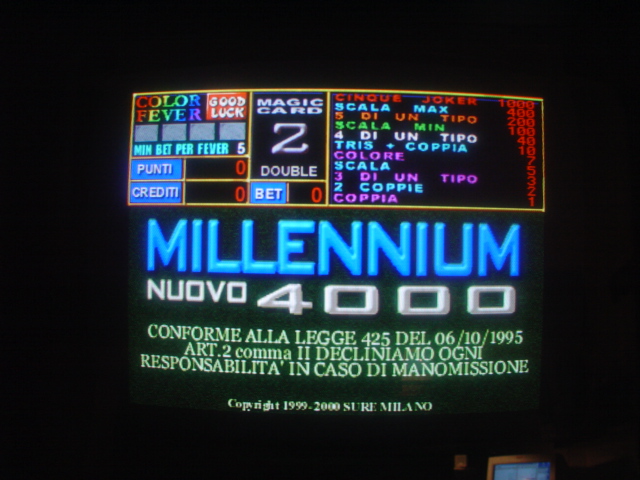

Title
-

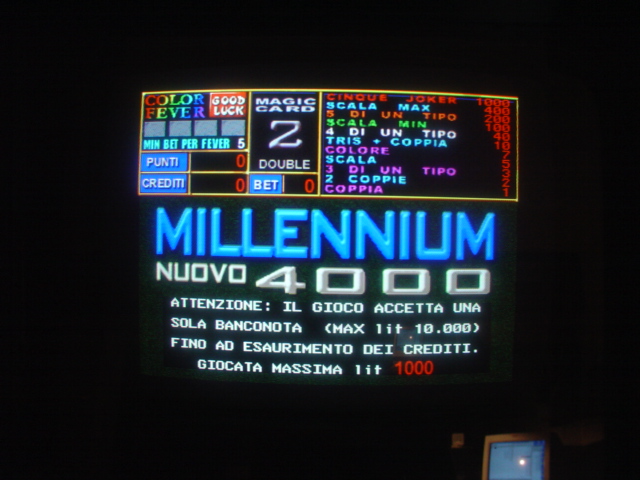

Intro
-

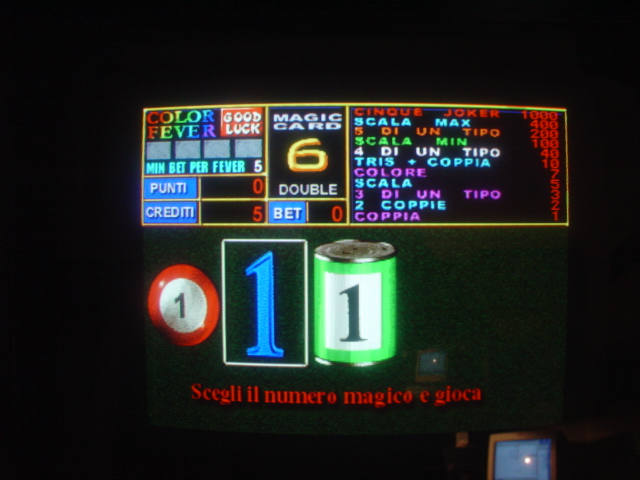

In game
-

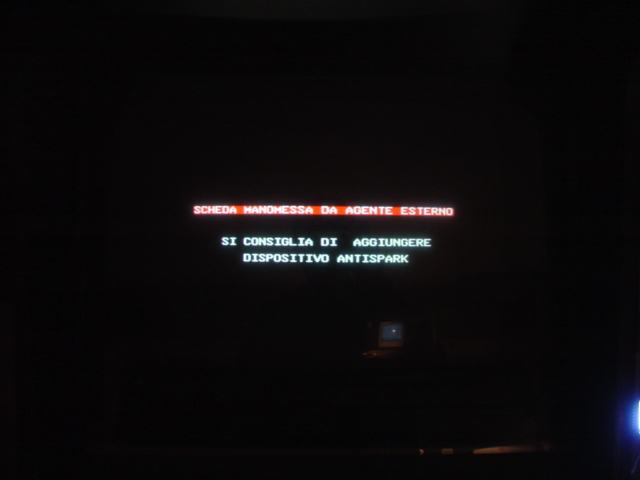

error
