Midnight Resistance (Japan?)
From Citylan
Jump to navigationJump to search
| dumper | f205v, Corrado Tomaselli |
| date | 17/11/2005 |
| emulator | |
| dev |
| name | 296 |
| description | Midnight Resistance (Japan?) |
| year | 1989 |
| manufacturer | Data East |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P12 | 12F | 16/32-bit Microprocessor - main | |
| 1x | Data East custom L7B0073 | 4B | DECO custom graphics chip | |
| 3x | Data East custom L7B0072 | 10D,15D,20D | DECO custom graphics chip | |
| 1x | YM2203C | 4J | FM Operator Type-N (OPM) - sound | |
| 1x | YM3812 | 6J | FM Operator Type-L II (OPL II) - sound | |
| 2x | YM3014 | 4K,6K | D/A Converter (DAC) - sound | |
| 1x | M6295 | 1J | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | HuC6280 | 1E | 8-bit Microprocessor - sound | |
| 2x | NEC uPC3403 | 3K,5L | Quad Operational Amplifier - sound | |
| 1x | Audio Power Amplifier | 1L | Audio Power Amplifier - sound | |
| 1x | oscillator | 1.0000MHz | XTAL1 5H | |
| 1x | oscillator | 24.0000MHz | XTAL2 8K | |
| 1x | oscillator | 20.0000MHz | XTAL4 10K |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | 27512 | 4,5,16 | dumped |
| 3x | 57c1001 | 12,14,17 | dumped |
| 12x | TC541001 | 0,1,2,3,6,7,8,9,10,11,13,15 | dumped |
| 1x | MB7114H | 22F | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 5x | TMM2063AP-10 | 8B,9B,3F,11J,12J |
| 2x | TMM2018AP-35 | 21J,22J |
| 8x | HM3-65728K-5 | 13B,14B,17B,18B,4D,5D,6F,7F |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | PAL16R4ACN | PAL1 | dumped |
| 5x | PAL16L8ACN | PAL2-6 | dumped |
Others
1x 28x2 JAMMA edge connector
3x 13 legs rotary joystick connectors
1x trimmer (volume)(6M)
2x 8 DIP switches banks(14L,17L)
Notes
PCB is marked: "DATA EAST", "DE-0323-4" and "MADE IN JAPAN" on component side
PCB is labelled: "45 - (C)1989 - DATA EAST", "ORIGINAL PRODUCT SEAL B 361783 DECO DATA EAST CORPORATION" and "AAMA EXPORT 001783" on component side
label format is: --- --------------- | FH | -> game code | 16- | -> rom number | DATA EAST | -> producer ---------------
ATTENTION!!!
Some roms must be defective, since before 2° level boss the PCB loops the background without end, and you can't go ahead.
We tried this dump in MAME and the behaviour is the same.
Files
-

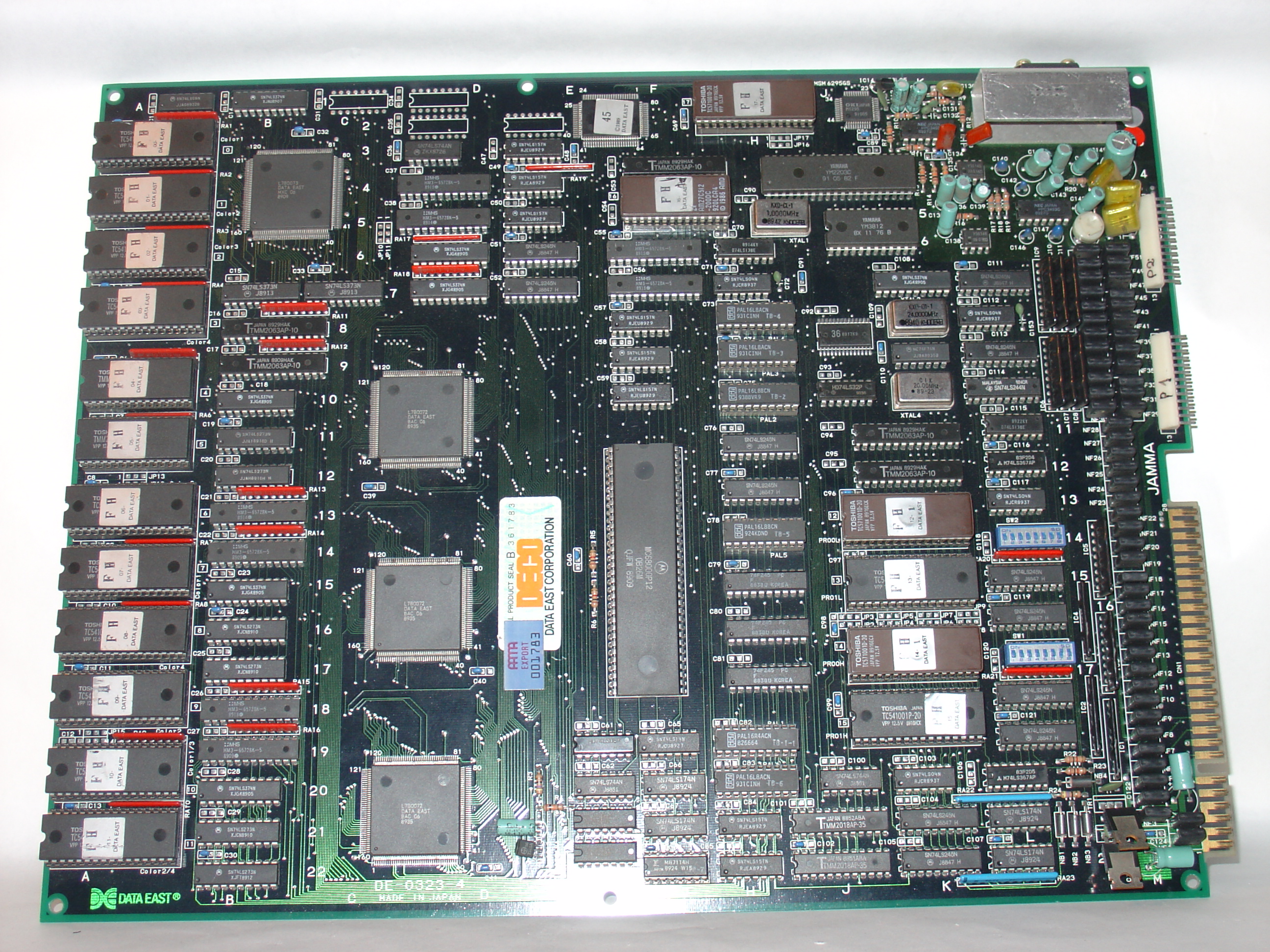

PCB component side
-

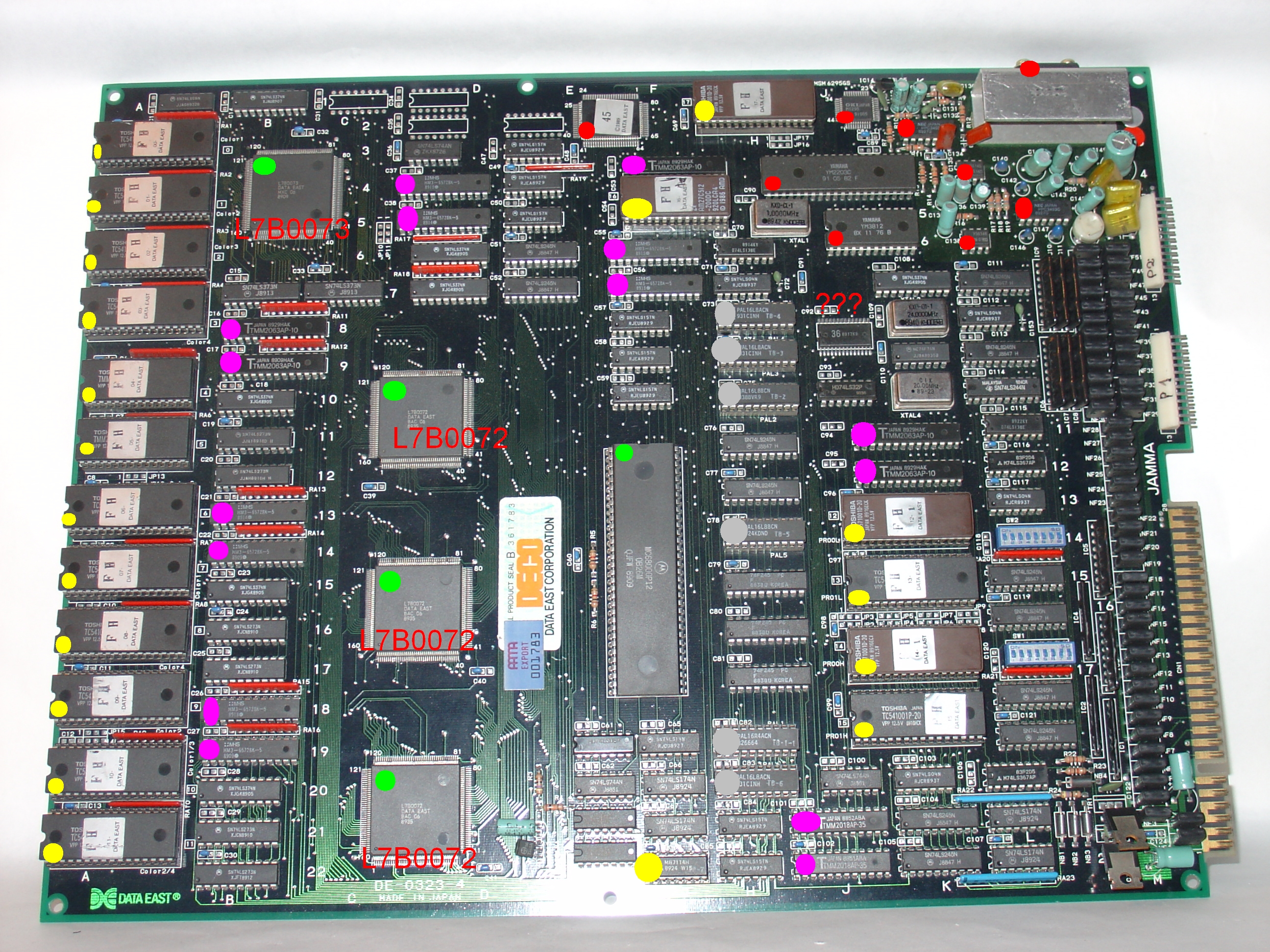

PCB component side notes
-
ROMs
296
