Michael Jackson's Moonwalker (bootleg)
From Citylan
Jump to navigationJump to search
| dumper | Tirino73 |
| date | 10/07/2014 |
| emulator | MAME 0.36b1 |
| dev | Andrew Prime |
| name | mwalkbl on ProgettoEMMA mwalkbl on Arcade Database |
| description | Michael Jackson's Moonwalker (bootleg) |
| year | 1990 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 68000P10 | MHz | 16/32-bit Microprocessor - main | |
| 1x | Z80A | MHz | 8-bit Microprocessor - sound | |
| 1x | OKI6295 | MHz | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | oscillator | 20.000MHz | main board | |
| 1x | oscillator | 8.000MHz | main board | |
| 1x | oscillator | 24.000MHz | bottom board |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | 27512 | 5, 11 | dumped |
| 21x | 27010 | 10, 12-31 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
This romset comes from a bootleg pcb.This is the complement of which lacks in the existing set (mwalkbl)<br sound section was been heavily modified: sound program to use only samples and some musics are cut (not present).Sprite eproms are splitted from original set.
Files
-

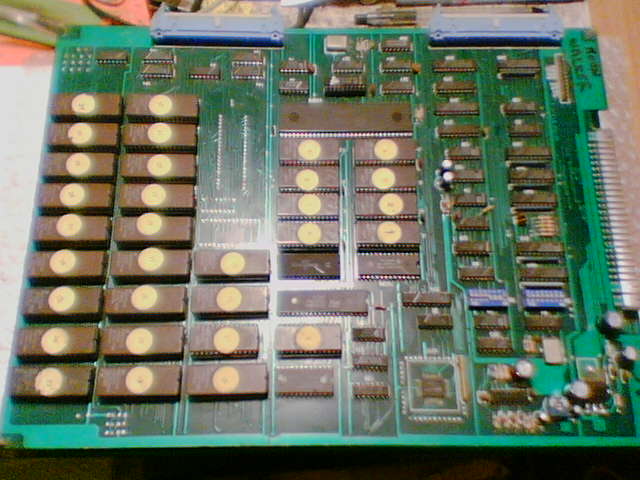

PCB component side
-

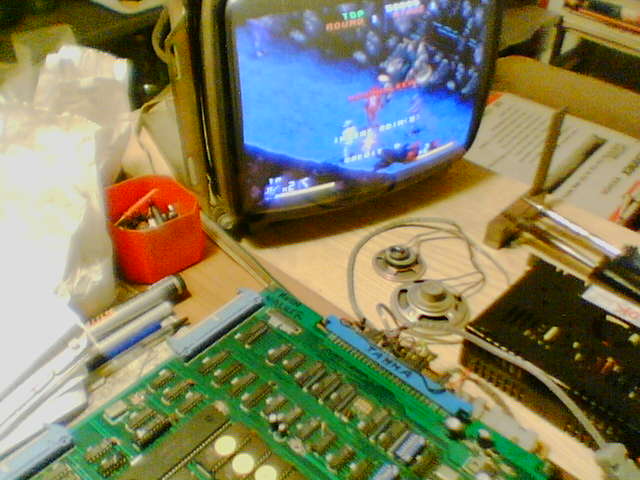

PCB component side + intro
-

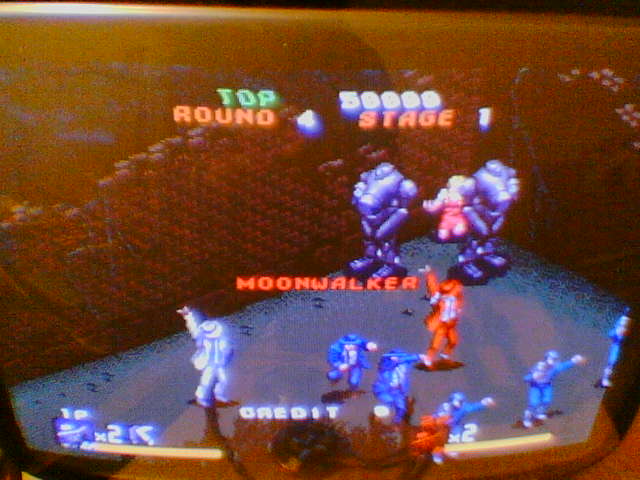

Attract mode
-
Read me
-
ROMs
