Meikyuu Hunter G (Japan, bootleg)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 22/02/2007 |
| emulator | MAME 0.112u3 |
| dev | David Haywood |
| name | meikyuha on ProgettoEMMA meikyuha on Arcade Database |
| description | Meikyuu Hunter G (Japan, bootleg) |
| year | 1987 |
| manufacturer | Data East |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68B09EP | CPUs PCB (AT0789A) | 8-bit Microprocessor - main | |
| 1x | 8751H | CPUs PCB (AT0789A) | 8-bit Microcontroller - missing, the socket is empty! (internal ROM not dumped) | |
| 1x | UM6502 | CPUs PCB (AT0789A) | 8-bit Microprocessor - sound | |
| 1x | YM2203 | CPUs PCB (AT0789A) | FM Operator Type-N (OPM) - sound | |
| 1x | YM3526 | CPUs PCB (AT0789A) | FM Operator Type-L (OPL) - sound | |
| 2x | Y3414B | CPUs PCB (AT0789A) | sound | |
| 1x | CA324E | CPUs PCB (AT0789A) | Quad Operational Amplifier - sound | |
| 1x | oscillator | 8.000MHz | CPUs PCB (AT0789A) | |
| 1x | oscillator | 12.000MHz | ROMs PCB (AT0789B) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | P27256 | CPUs PCB (AT0789A) | dumped |
| 2x | TMM24512 | CPUs PCB (AT0789A) | dumped |
| 5x | M27512ZB | CPUs PCB (AT0789A) | dumped |
| 8x | M27512ZB | ROMs PCB (AT0789B) | dumped |
| 3x | N82S137N | CPUs PCB (AT0789A) | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | PAL16R4ANC | ROMs PCB (AT0789B) | dumped |
Others
Notes
ROMs PCB is marked: "CT-306513" on component side
Files
-

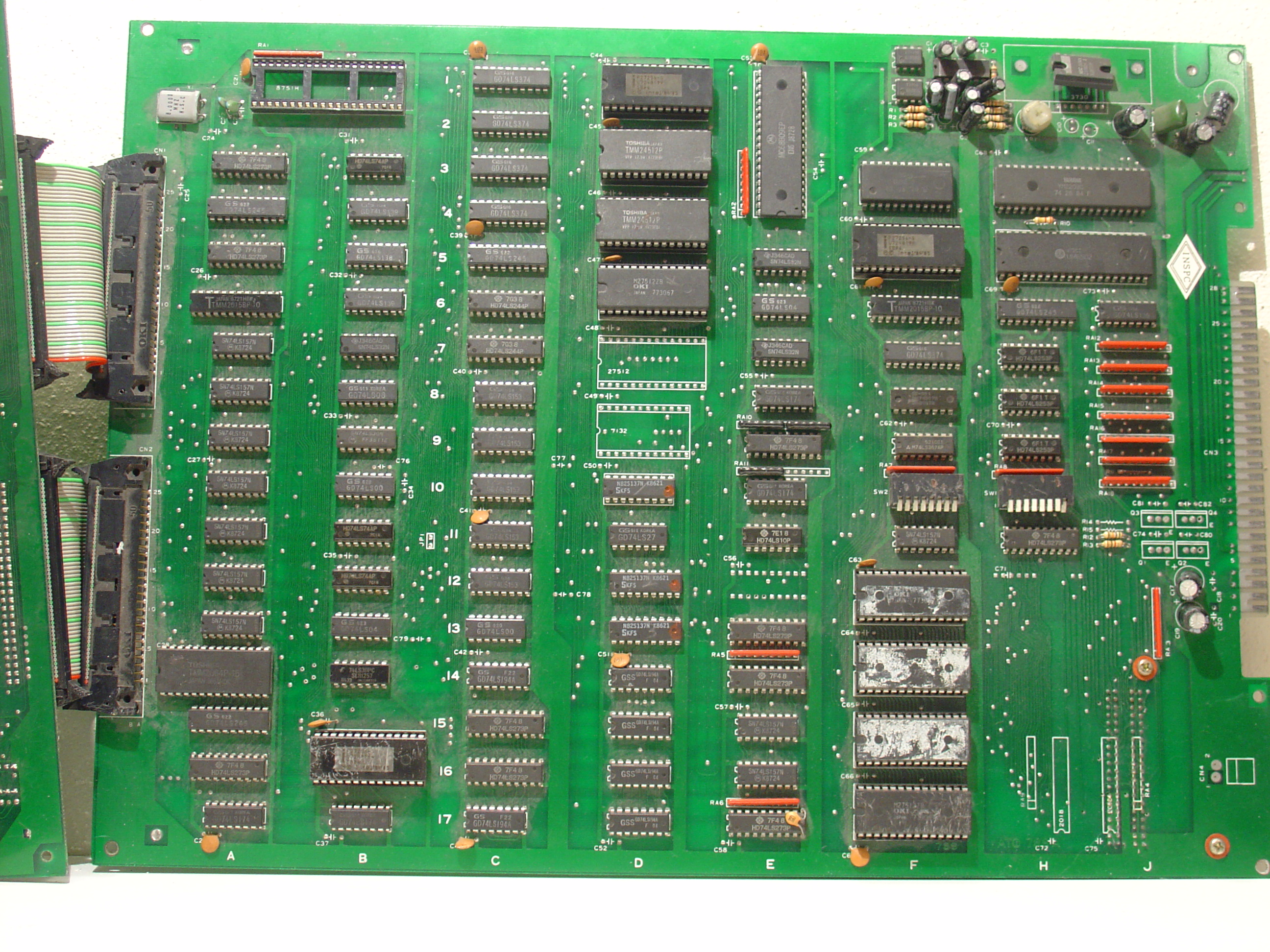

CPUs PCB component side
-

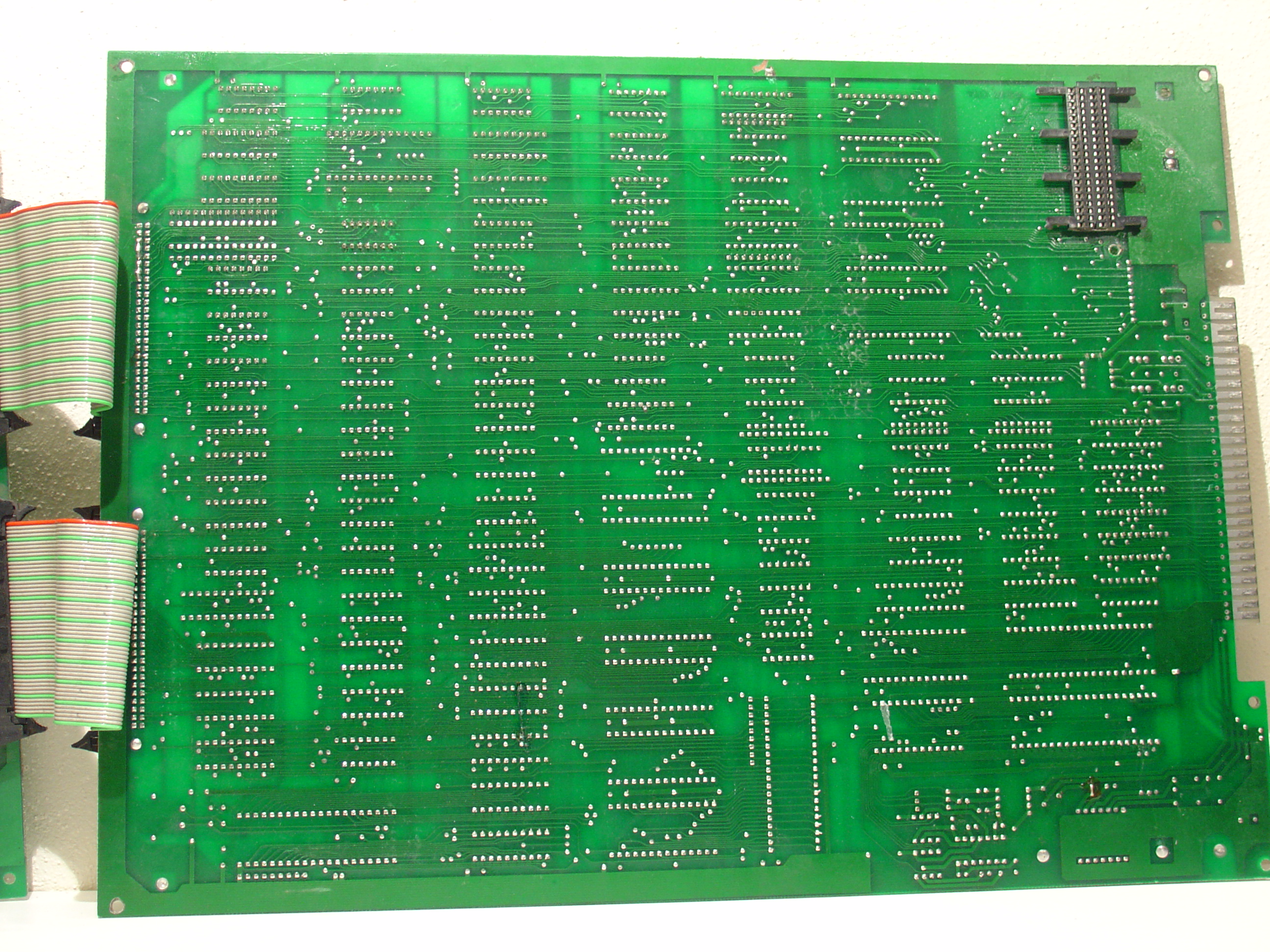

CPUs PCB solder side
-

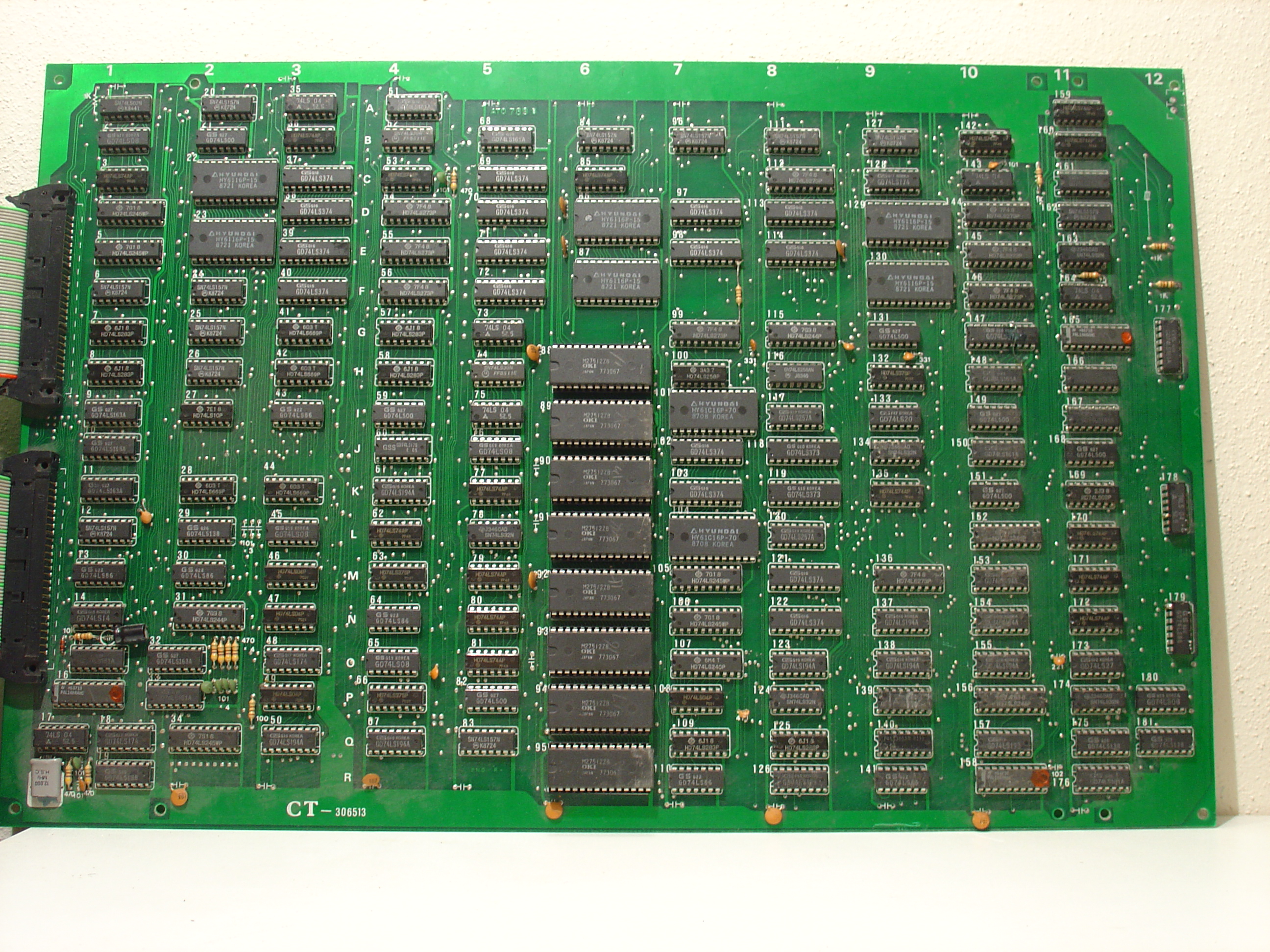

ROMs PCB component side
-

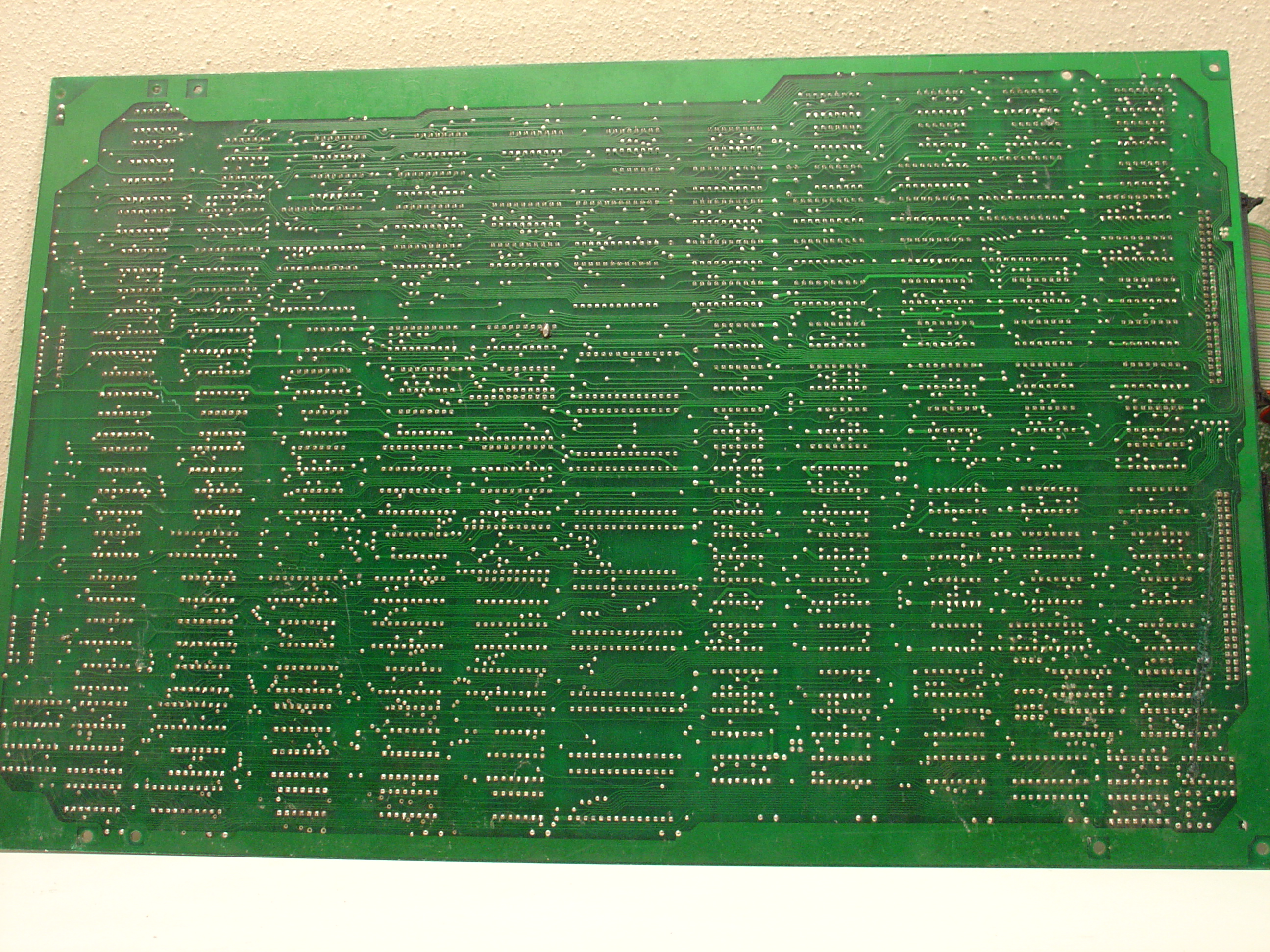

ROMs PCB solder side
-

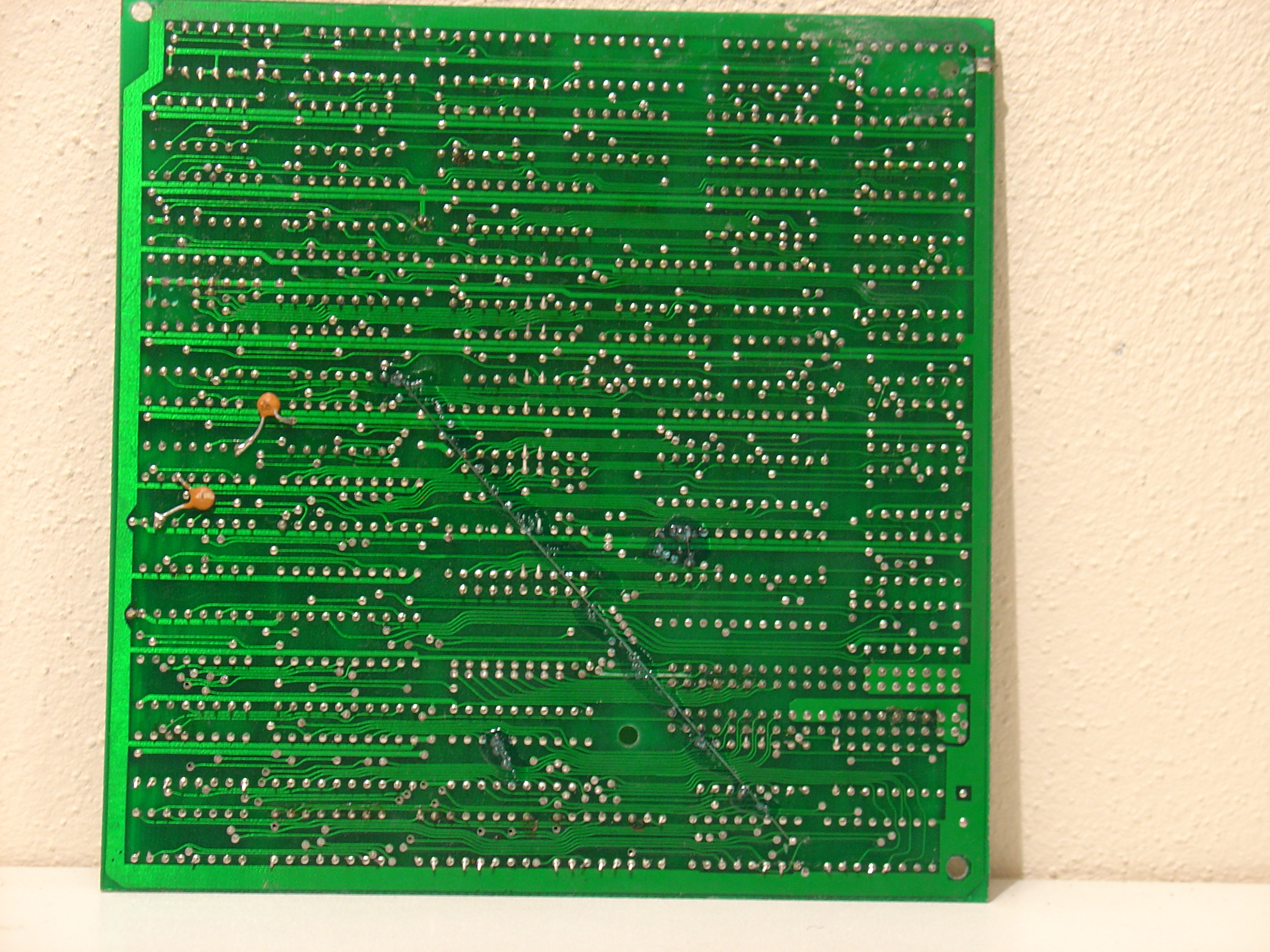

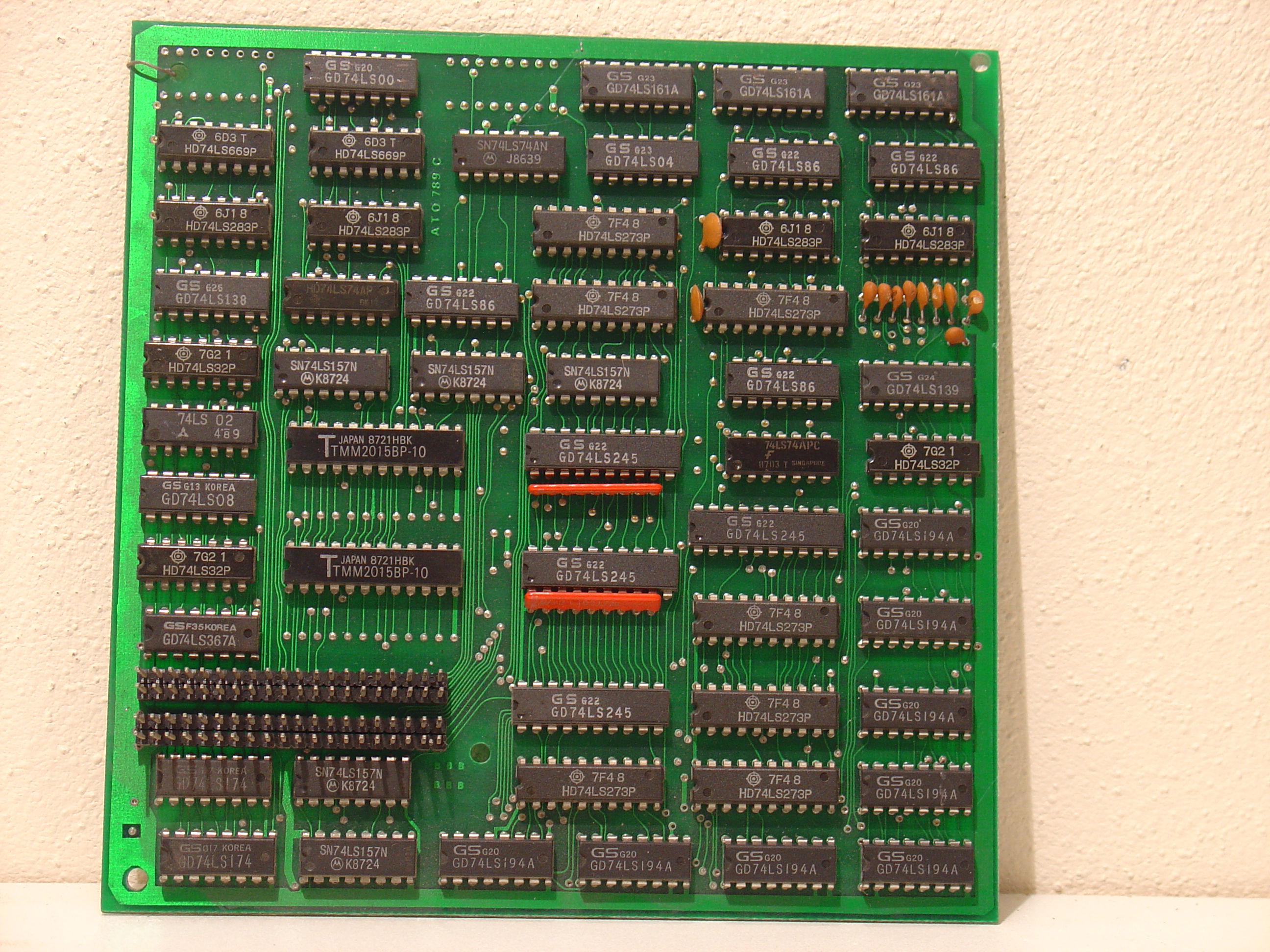

piggyback PCB component side
-
piggyback PCB solder side
-
PALs + PROMs
