Mazan: Flash of the Blade (World, MAZ2 Ver.A)
From Citylan
Jump to navigationJump to search
| dumper | rtw |
| date | 10/01/2011 |
| emulator | MAME 0.145u4 |
| dev | Hans Johanson |
| name | mazan on ProgettoEMMA mazan on Arcade Database |
| description | Mazan: Flash of the Blade (World, MAZ2 Ver.A) |
| year | 2002.07.01 |
| manufacturer | Namco |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28MHz | osc1 (2h) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 8x | MaskROM 128Mb TSOP48 | MA1 - MA8 | dumped |
| 1x | DA28F640J5 | FL1 | dumped |
| 1x | X76F100 | 1f | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | CY7C1399B-15VC | 4n, 4p |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | CY37128 | NAODEC3(2j) | not dumped |
Others
Notes
It's a NAOMI cart.
Cart type: MASK C F1X
Cart N°: 25869812 MAZ2 Ver. A
Protection IC: SEGA 315-5881 (317-0266-COM)
Key: 0x280fea94
uses 2x Namco FCB JVS I/O (not dumped)
Files
-

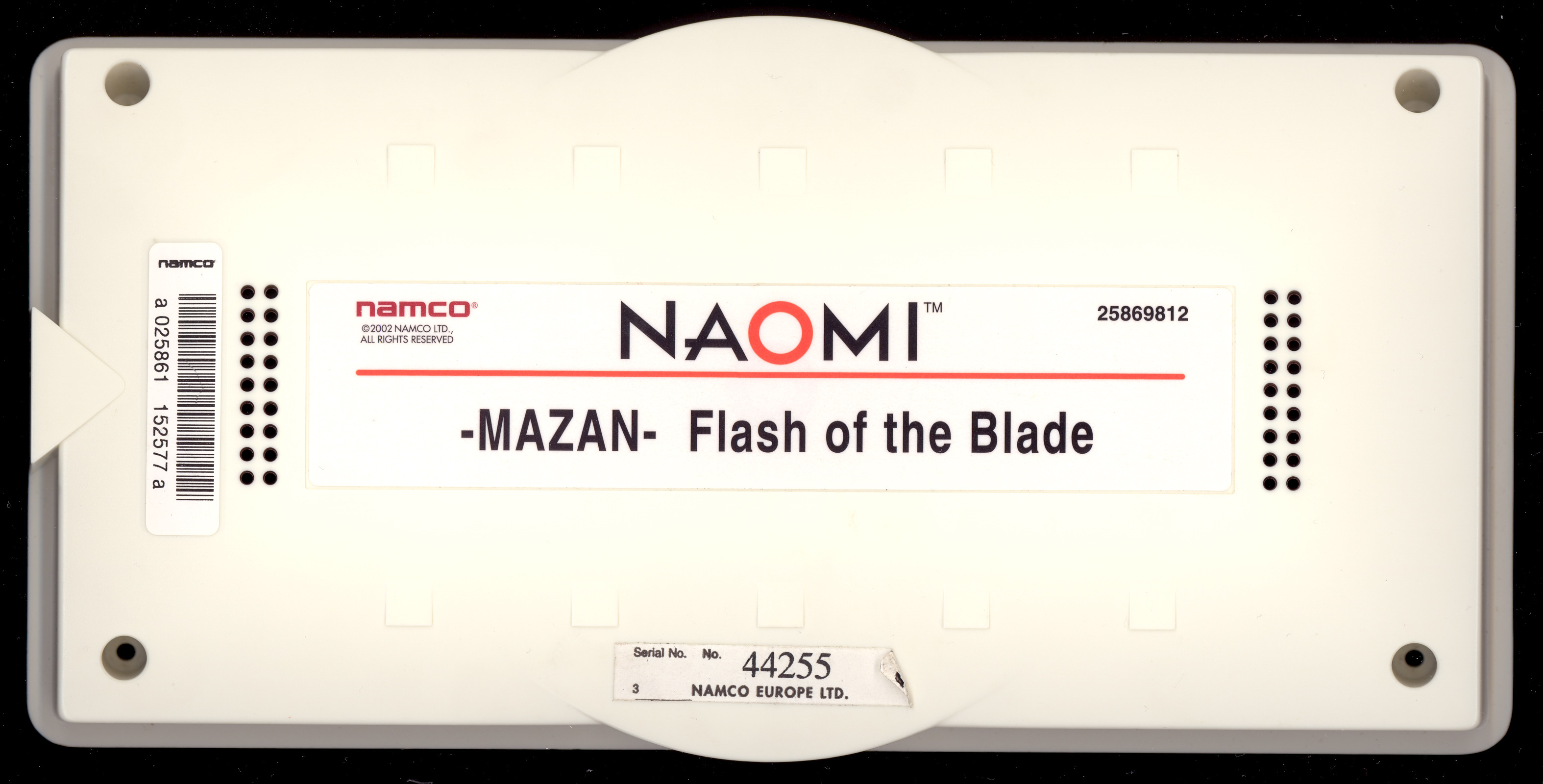

cart
-

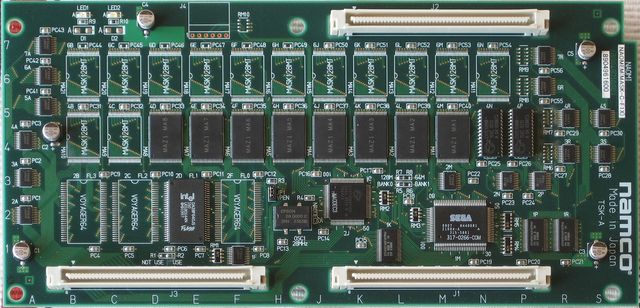

PCB component side 1
-

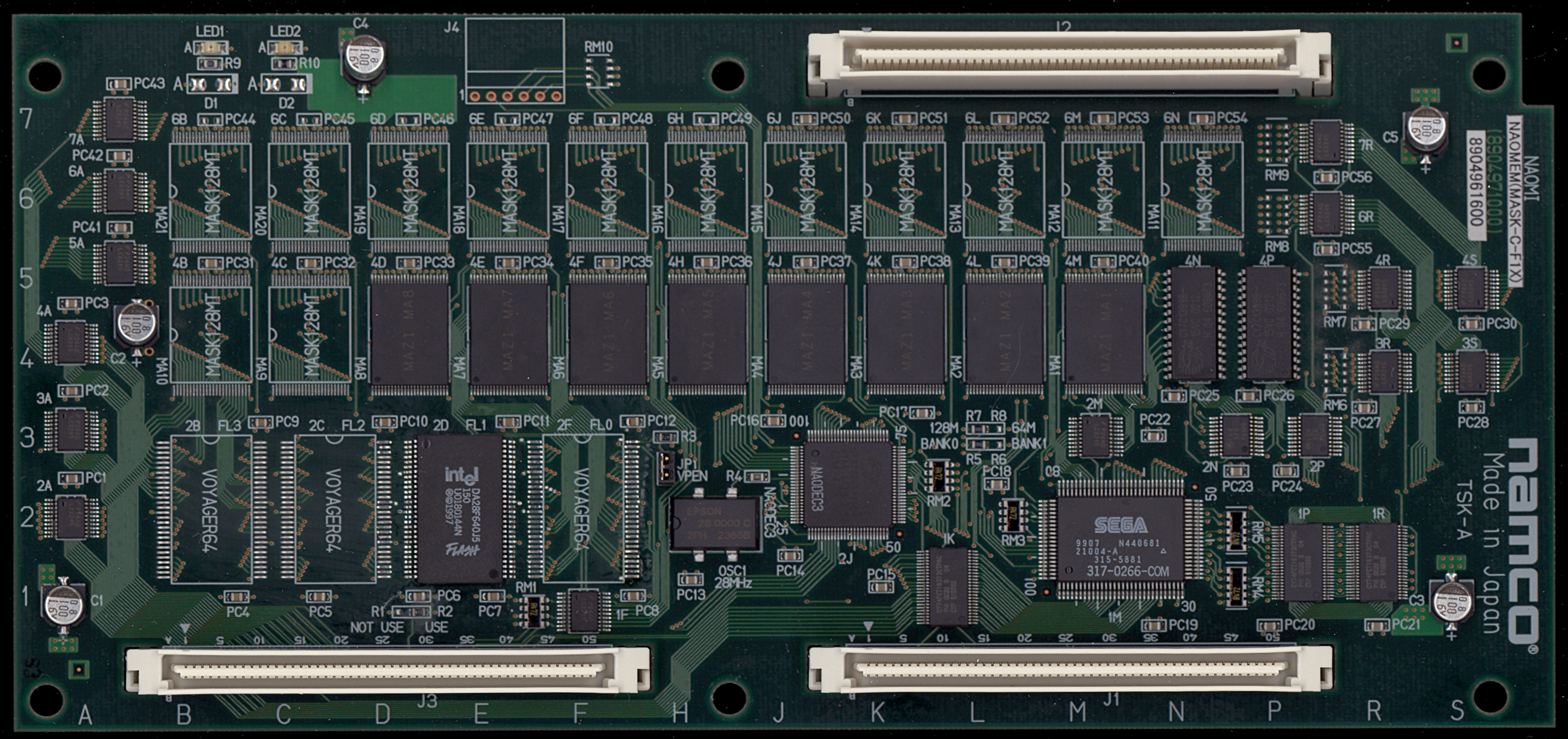

PCB component side 2
-

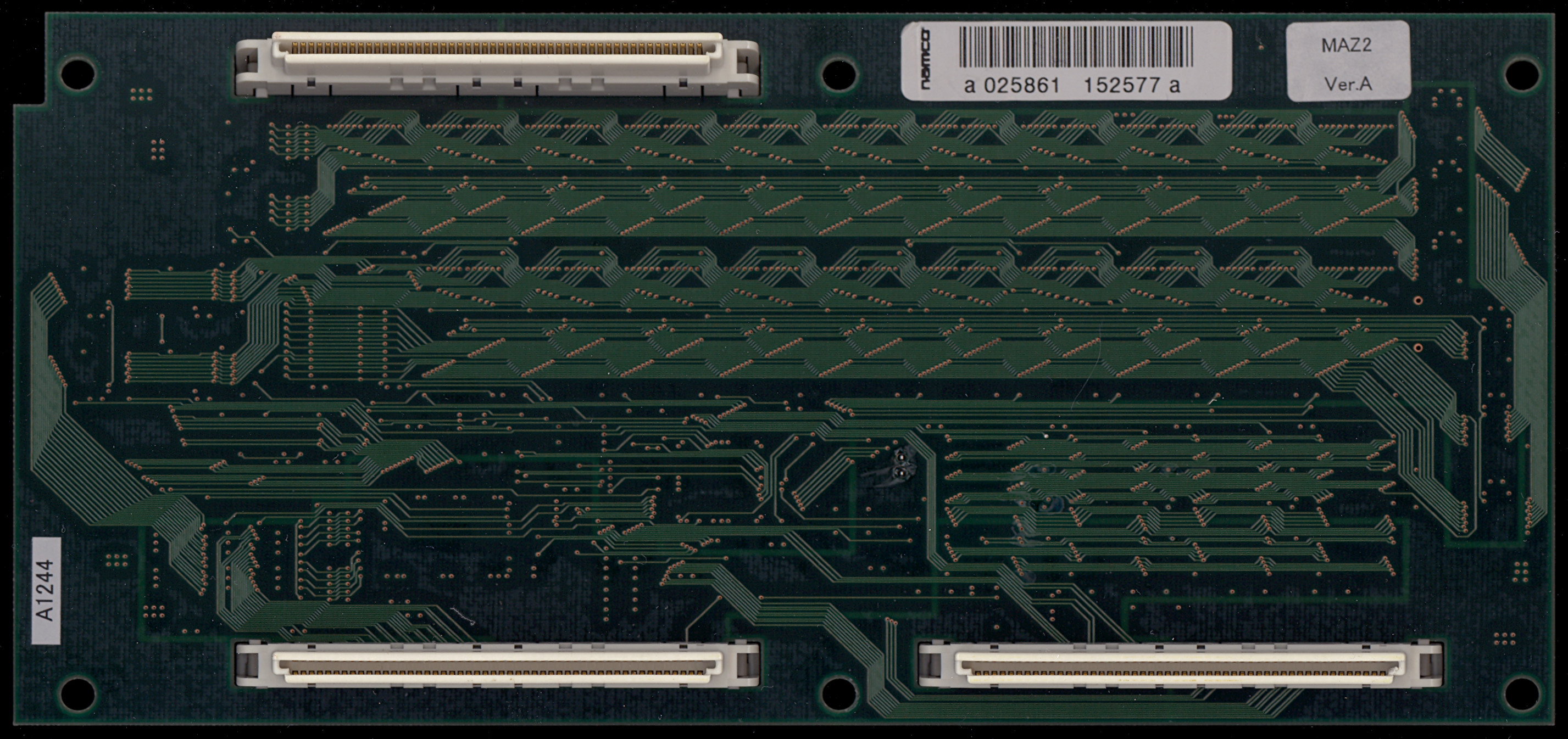

PCB solder side
-

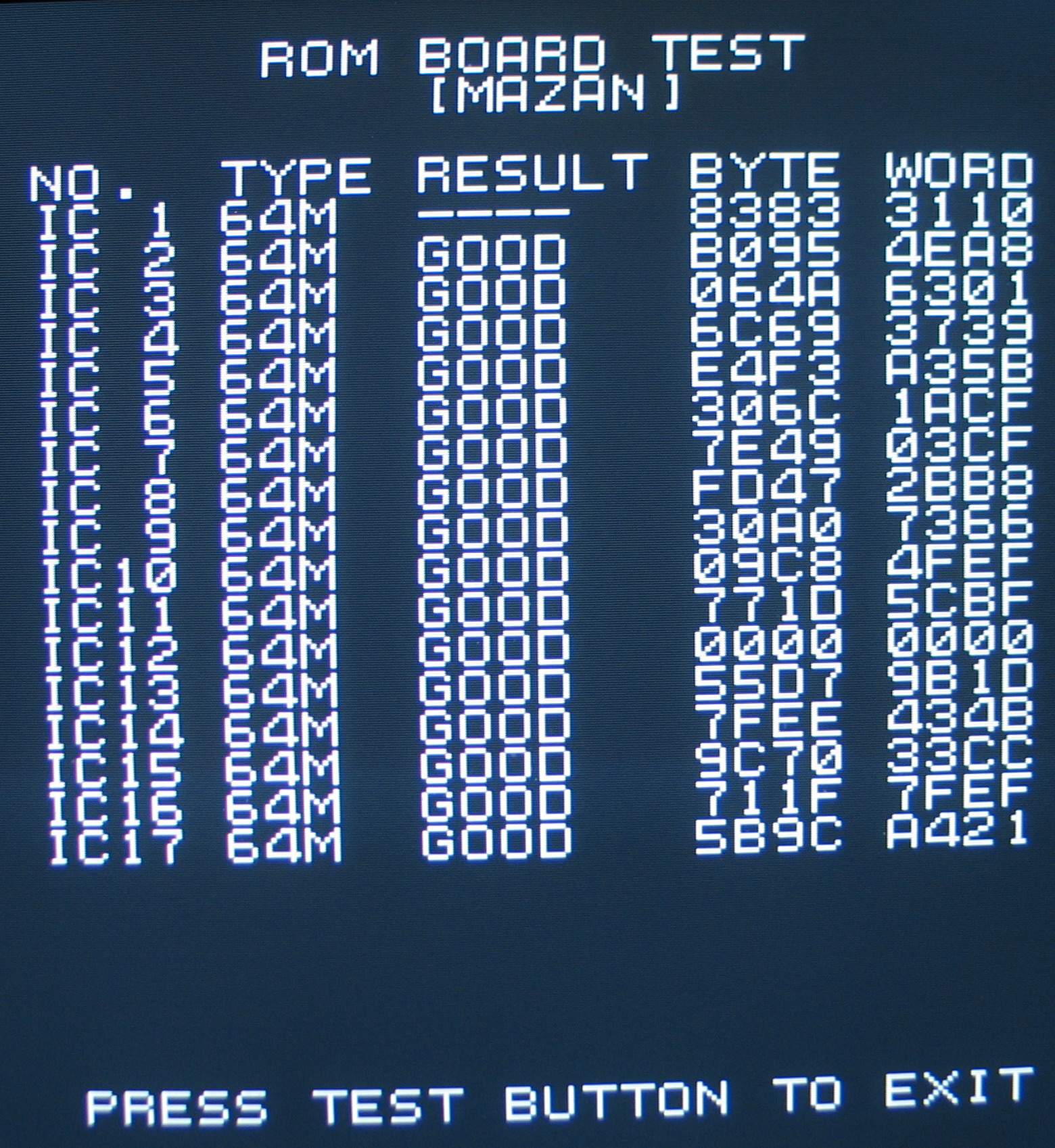

ROM board test
-
